aston martin v12 vantage (2011) non sdars blanking plate, coupe parts diagram

150204-D3 - Non SDARS Blanking Plate, Coupe

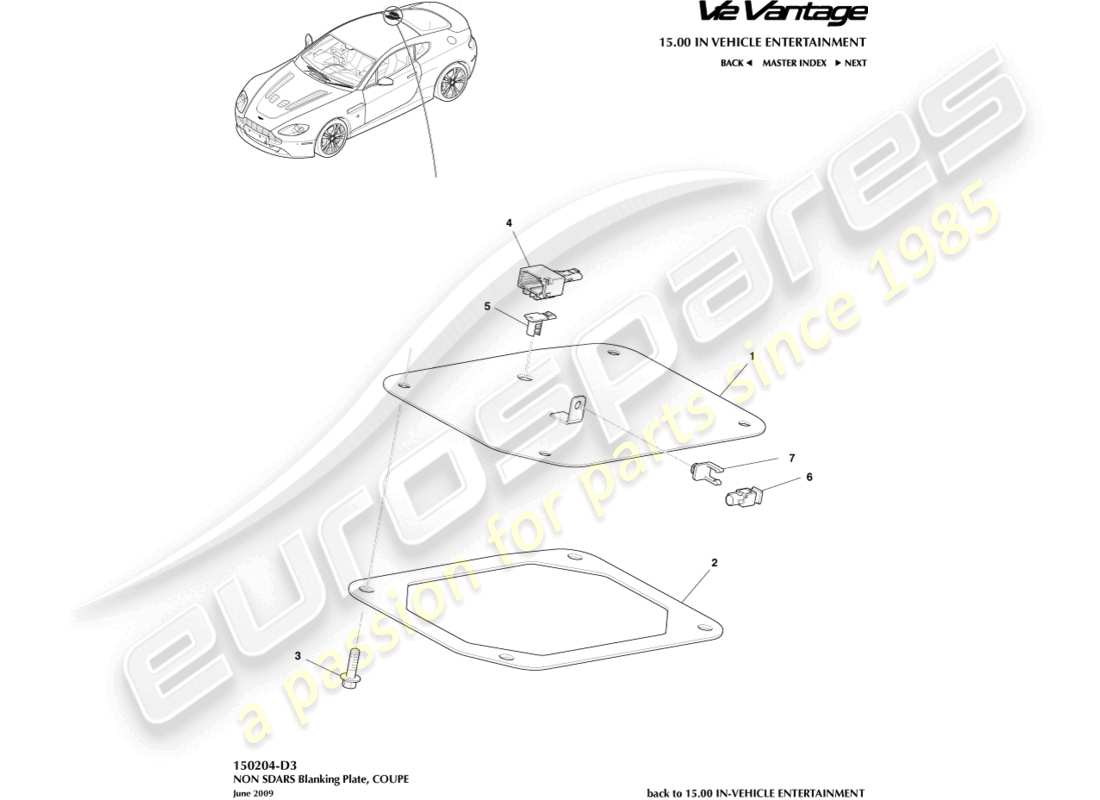

Aston Martin V12 Vantage (2011) Non SDARS Blanking Plate, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 8D33-18K876-BD
                PLATE, BLANKING NON SDARS
                from £13.97
                from £13.97
                PLATE, BLANKING NON SDARS Genuine Aston Martin - New (to order)
                # 2
                MPN: 4G43-19A070-CA
                GASKET, RUBBER, NON SDARS BLANKING PLATE
                from £14.76
                from £14.76
                RUBBER GASKET Genuine Aston Martin - New (to order)
                # 3
                MPN: 703203
                SCREW, M6X20 HEX FLG HD
                from £0.47
                from £0.47
                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                # 4
                MPN: 4G43-18C951-HB
                SERVICE LOOP, MOST
                from £12.48
                from £12.48
                MOST SERVICE LOOP Genuine Aston Martin - New (to order)
                # 5
                MPN: 6G43-01-10042
                CLIP
                from £0.47
                from £0.47
                CONNECTOR RETAINER Genuine Aston Martin - New (to order)
                # 6
                MPN: 7H2T-14A459-AGA
                CONNECTOR MLE, SLEEVE
                from £0.68
                from £0.68
                CONNECTOR MLE, SLEEVE Genuine Aston Martin - New (to order)
                # 7
                MPN: 8G43-14A163-CA
                CLIP, FAKRA SINGLE CONNECTOR
                from £0.47
                from £0.47
                ANTENA RETAINING CLP Genuine Aston Martin - New (to order)
