aston martin v12 vantage (2011) courtesy lighting parts diagram

170202-D3 - Courtesy Lighting

Aston Martin V12 Vantage (2011) Courtesy Lighting Parts Diagram

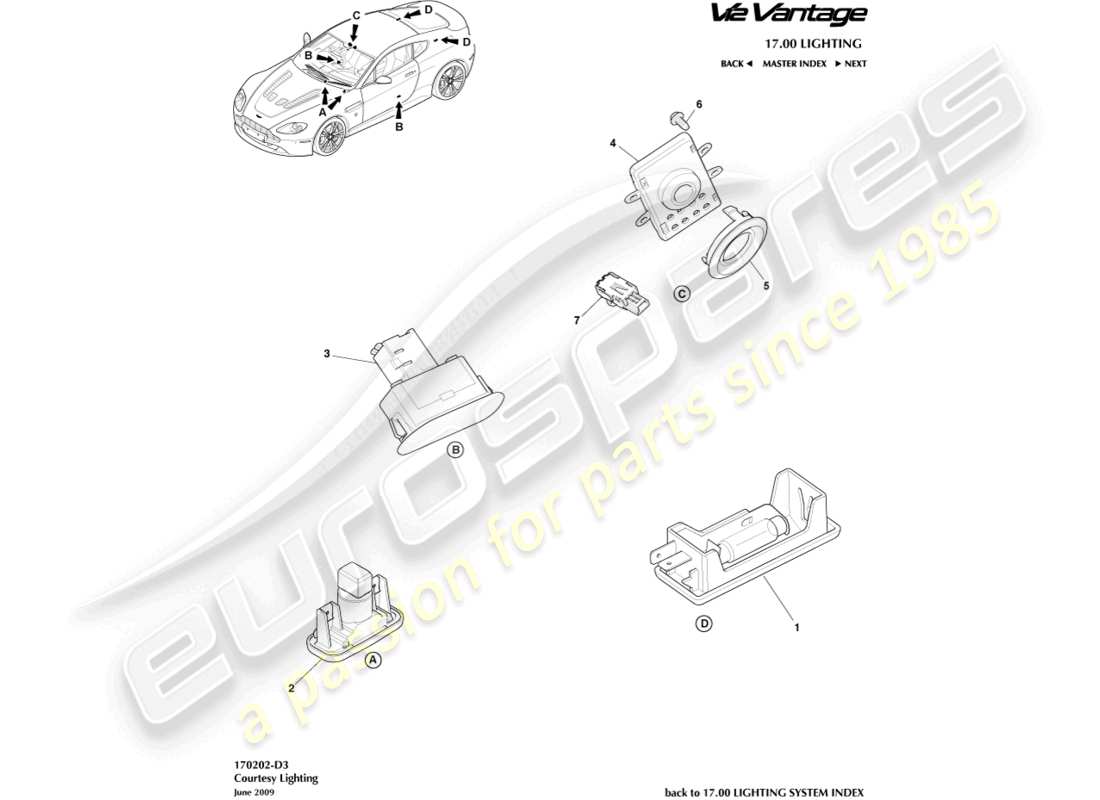

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 93BG-13A756-AB
                  LAMP, BOOT
                  from £2.53
                  from £2.53
                  LAMP, BOOT Genuine Aston Martin - New (to order)
                  LAMP, BOOT Genuine Aston Martin - Used In stock
                  # 2
                  MPN: 8D33-13K705-AA
                  LAMP, INTERIOR FOOT WELL
                  from £29.48
                  from £29.48
                  LAMP, INTERIOR FOOTWELL Genuine Aston Martin - New (to order)
                  LAMP, INTERIOR FOOTWELL Genuine Aston Martin - Used In stock
                  # 3
                  MPN: 4G43-37-10018
                  LAMP, DOOR AJAR, PUDDLE
                  from £4.21
                  from £4.21
                  DOOR LAMP Genuine Aston Martin - New (to order)
                  DOOR LAMP Genuine Aston Martin - Used In stock
                  # 4
                  MPN: 8D33-13D764-AB
                  LAMP, MAP
                  from £37.09
                  from £37.09
                  PCB HOUSING ASSEMBLY Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 8D33-13B716-AB
                  LENS AND BEZEL, LAMP, MAP
                  from £19.19
                  from £19.19
                  LENS & BEZEL ASSEMBLY Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 4G43-80899-AA
                  SCREW, M4 X 8 PAN
                  from £0.47
                  from £0.47
                  SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 8D33-13B626-AA
                  LAMP, AMBIENT
                  from £6.88
                  from £6.88
                  LED AMBIENT LAMP Genuine Aston Martin - New (to order)
                  # -
                  -
                  BULB, BOOT LAMP, W6W
                  # -
                  -
                  BULB, BOOT LAMP, BLUE W5W
                  # -
                  -
                  BULB, COURTESY LAMP, W5W
                  # -
                  -
                  BULB, MAP LAMP, W3W
