aston martin v12 vantage (2011) garmin navigation, roadster, 12my parts diagram

190701-D3 - Garmin Navigation, Roadster, 12MY

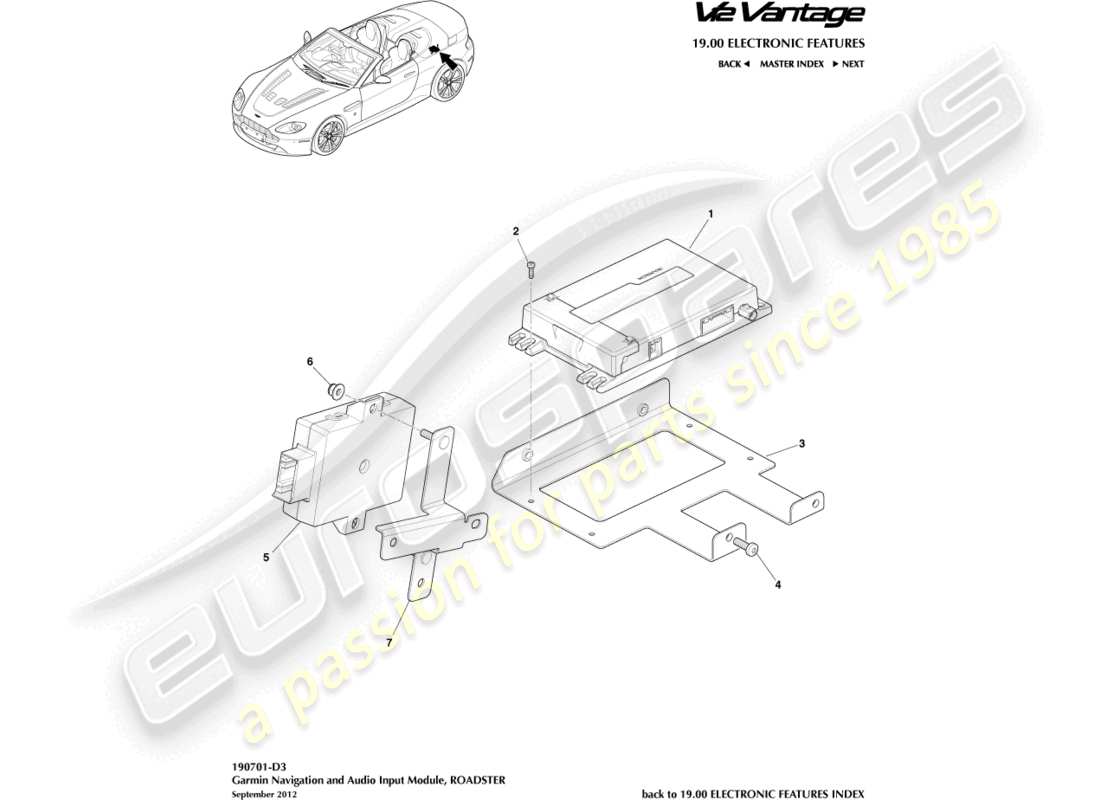

Aston Martin V12 Vantage (2011) Garmin Navigation, Roadster, 12MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CG43-10E887-AE
              MODULE, GARMIN NAV UNIT, EUROPE
              MODULE, GARMIN NAV UNIT, EUROPE Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-CE
              MODULE, GARMIN NAV UNIT, ROW AND SERVICE PART
              No software, without SD-Card
              MODULE, GARMIN NAV UNIT, ROW AND SERVICE PART Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-EE
              MODULE, GARMIN NAV UNIT, SOUTH AMERICA
              MODULE, GARMIN NAV UNIT, SOUTH AMERICA Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-GE
              MODULE, GARMIN NAV UNIT, SOUTHEAST ASIA
              MODULE, GARMIN NAV UNIT, SOUTHEAST ASIA Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-HE
              MODULE, GARMIN NAV UNIT, MIDDLE EAST
              from £1,094.52
              from £1,094.52
              MODULE, GARMIN NAV UNIT, MIDDLE EAST Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-JE
              MODULE, GARMIN NAV UNIT, RUSSIA
              MODULE, GARMIN NAV UNIT, RUSSIA Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-KE
              MODULE, GARMIN NAV UNIT, SOUTH AFRICA
              from £1,155.55
              from £1,155.55
              MODULE, GARMIN NAV UNIT, SOUTH AFRICA Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-LE
              MODULE, GARMIN NAV UNIT, JAPAN
              MODULE, GARMIN NAV UNIT, JAPAN Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-NE
              MODULE, GARMIN NAV UNIT, TURKEY
              MODULE, GARMIN NAV UNIT, TURKEY Genuine Aston Martin - New (to order)
              # 1
              MPN: CG43-10E887-PE
              MODULE, GARMIN NAV UNIT, AUSTRALIA & NZ
              from £883.21
              from £883.21
              MODULE, GARMIN NAV UNIT, AUSTRALIA & NZ Genuine Aston Martin - New (to order)
              # 2
              MPN: CG43-10E887-DA
              SCREW, M3 X 10, PAN HEAD
              GARMIN NAV BRACKET Genuine Aston Martin - New (to order)
              # 3
              MPN: CG33-10E887-BCC
              BRACKET, GARMIN NAV UNIT
              BRACKET, GARMIN NAV UNIT Genuine Aston Martin - New (to order)
              # 4
              MPN: 700242
              SCREW, M5 X 16, PAN HEAD
              from £0.52
              from £0.52
              SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
              # 5
              MPN: CG43-19A164-AB
              MODULE, AUDIO INPUT
              from £313.41
              from £313.41
              MODULE, AUDIO INPUT Genuine Aston Martin - New (to order)
              # 6
              MPN: 703165
              NUT, M5
              from £0.47
              from £0.47
              NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
              # 7
              MPN: CG33-19A164-AA
              BRACKET, AUDIO INPUT MODULE
              from £26.86
              from £26.86
              BRACKET, AUDIO INPUT MODULE Genuine Aston Martin - New (to order)
              # -
              -
              SD CARD, MAP EUROPE
              2018 mapping
              # -
              -
              SD CARD, MAP NORTH AMERICA
              2018 mapping
              # -
              -
              SD CARD, MAP AUSTRALIA/NEW ZEALAND
              2017 mapping
              # -
              -
              SD CARD, MAP SOUTH AMERICA
              2018 mapping
              # -
              -
              SD CARD, MAP CHINA
              2018 mapping
              # -
              -
              SD CARD, MAP SOUTHEAST ASIA
              2018 mapping
              # -
              -
              SD CARD, MAP MIDDLE EAST
              2018 mapping
              # -
              -
              SD CARD, MAP RUSSIA
              2018 mapping
              # -
              -
              SD CARD, MAP SOUTH AFRICA
              2018 mapping
              # -
              -
              SD CARD, MAP JAPAN
              2018 mapping
              # -
              -
              SD CARD, MAP TAIWAN
              2017 mapping
              # -
              -
              SD CARD, MAP TURKEY
              2017 mapping
              # -
              -
              SD CARD, MAP INDIA
              2017 mapping
