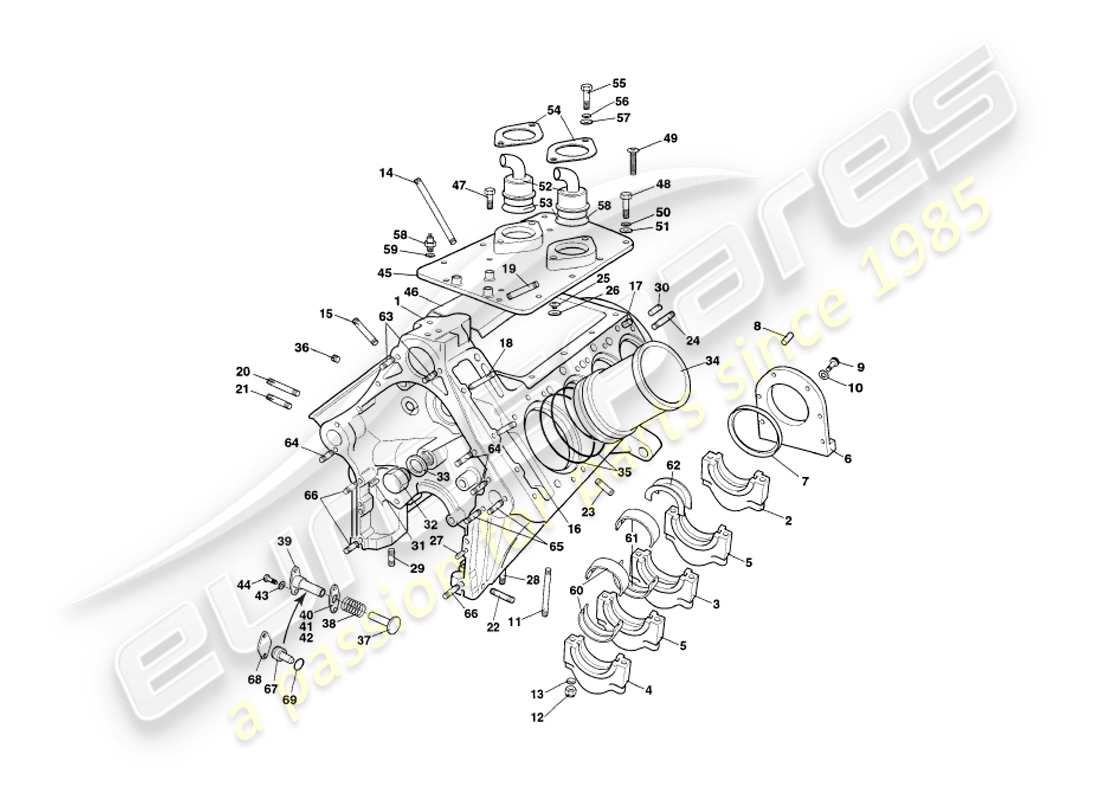

1.1 - CYLINDER BLOCK
Aston Martin V8 Coupe (1999) Cylinder Block Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 14-56076
Engine Assembly Complete, Automatic
# 1
MPN: 01-55831
CYLINDER BLOCK ASSEMBLY, STUDDED
# 2
-
MAIN BEARING CAP, REAR
NOT SOLD SEPARATELY
# 3
-
MAIN BEARING CAP, CENTRE
NOT SOLD SEPARATELY
# 4
-
MAIN BEARING CAP, FRONT
NOT SOLD SEPARATELY
# 5
-
MAIN BEARING CAP, INTERMEDIATE
NOT SOLD SEPARATELY
# -
-
LOCTITE STUDLOCK 270
# 6
MPN: 01-70684
HOUSING, REAR SEAL
from £252.69
from £252.69
# 7
MPN: 01-70686
OIL SEAL, REAR
from £88.17
from £88.17
# 8
MPN: 123111
DOWEL, 5/16 X 5/8 SILVER STEEL
Bearing housing to block
from £4.05
from £4.05
# 9
MPN: 690332
SCREW, SKT CAP 1/4 UNC X 3/4
Bearing housing to block
from £1.88
from £1.88
# 10
MPN: 119470
WASHER, 1/4 17SWG
Bearing housing to block
# -
-
LOCTITE 509
Bearing housing to block
# -
-
LOCTITE ACTIVATOR 7471
Bearing housing to block
# 11
MPN: 080-001-0121
STUD, MAIN BEARING
from £29.93
from £29.93
# 12
MPN: 691147
NUT, NYLOC 1/2
from £0.51
from £0.51
# 13
MPN: 119474
WASHER, PLAIN 1/2
from £0.47
from £0.47
# 14
MPN: 01-23122
STUD, CYLINDER HEAD
from £30.91
from £30.91
# 15
MPN: 694260
STUD, 5/16 UNC/UNF
RH cylinder head
from £9.00
from £9.00
# 16
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87
CYLINDER HEAD
from £6.69
from £6.69
# 17
MPN: 694870
DOWEL, 1/4 DIA X 1/2
Cylinder Head location
from £3.29
from £3.29
# 18
MPN: 06-26636
STUD, 5/16 X 4.625
LH cylinder head
from £9.00
from £9.00
# 19
MPN: 694645
STUD, 3/8 UNC/UNF
CYLINDER HEAD
from £7.41
from £7.41
# 20
MPN: 694225
STUD, 3/8 UNC/UNF X 2.75
Compression Bracket
from £7.31
from £7.31
# 21
MPN: 694224
STUD, 5/16 UNC/UNF
Compression Bracket
from £9.00
from £9.00
# 22
MPN: 694222
STUD, 5/16 UNC/UNF
ALTERNATOR BRACKET
from £9.00
from £9.00
# 23
MPN: 690999
STUD, 5/16 UNC/UNF X 1.25
Engine Mountings
from £7.04
from £7.04
# 24
MPN: 691413
STUD, 7/16 UNC/UNF X 2.125
BELL HOUSING
from £7.42
from £7.42
# 25
MPN: 690834
PLUG, SOCKET, 5/8 BSP
Oil gallery top
from £26.02
from £26.02
# 26
MPN: 690835
WASHER, 29/32 X 1 1/4
Oil gallery top
from £2.53
from £2.53
# 27
MPN: 123111
DOWEL, 5/16 X 5/8 SILVER STEEL
FRONT COVER
from £4.05
from £4.05
# 28
MPN: 691596
STUD, 3/8 UNC/UNF X 1.75
oil pump
from £4.77
from £4.77
# 29
MPN: 691438
STUD, 3/8 UNC/UNF X 2.87
oil pump
from £6.69
from £6.69
# 30
MPN: 691485
DOWEL, 0.490 X1
Block/Bell Housing
from £20.24
from £20.24
# 31
MPN: 691105
RING DOWEL, 0.187 ID
Block/Chain Tensioner
from £10.27
from £10.27
# 32
MPN: 095-001-0107
PLUG, 3/4 BSP
Oil Gallery Ends
from £24.79
from £24.79
# 33
MPN: 691564
WASHER, 3/4 COPPER
Plug, Oil Gallery
from £4.38
from £4.38
# -
-
LOCTITE SEALANT 542
Gallery plugs
# 34
MPN: 01-26777
Cylinder liner, Grade A
from £345.74
from £345.74
# 34
MPN: 01-26834
Cylinder Liner, Grade B
Alternative
from £367.06
from £367.06
# 35
MPN: 080-001-0107
O' ring, cylinder liner
# 36
MPN: 696055
PLUG, 1/4 BSP
Cylinder Block Drain
from £7.92
from £7.92
# 37
MPN: 01-72930
OIL PRESSURE RELIEF VALVE
from £430.82
from £430.82
# 38
MPN: 023-001-0133
SPRING, RELIEF VALVE
from £25.41
from £25.41
# 39
MPN: 01-72929
BUSH, OIL PRESSURE RELIEF VALVE
See item 67
from £75.86
from £75.86
# 40
MPN: 020-001-0147
GASKET, OIL RELIEF VALVE
from £3.54
from £3.54
# 41
MPN: 023-001-0170
SHIM, RELIEF VALVE
from £16.17
from £16.17
# 42
MPN: 080-001-0148
SHIM, RELIEF VALVE
from £2.59
from £2.59
# 43
MPN: 698543
WASHER, SHAKEPROOF, M5
from £0.47
from £0.47
# 44
MPN: 123122
CAPSCREW, 2BA X 5/8
from £0.82
from £0.82
# 45
MPN: 01-71648
VALLEY PLATE
# 46
MPN: 01-71649
BAFFLE PLATE
from £11.07
from £11.07
# 47
MPN: 696295
SCREW, DURLOCK M6X12
from £2.87
from £2.87
# -
-
LOCTITE 509
Valley plate to block
# -
-
LOCTITE ACTIVATOR 7471
Valley plate to block
# 48
MPN: 123128
SCREW, 1/4 UNC X 7/8
Valley plate to block
from £1.24
from £1.24
# 49
MPN: 695813
SCREW, SKT BUTTON HEAD 1/4 UNC X 1
Valley plate to block
from £0.47
from £0.47
# 50
MPN: 119480
WASHER, SPRING 1/4
Valley plate to block
# 51
MPN: 119470
WASHER, PLAIN 1/4
Valley plate to block
# 52
MPN: 01-26422
BREATHER ASSEMBLY
from £128.42
from £128.42
# 53
MPN: 695291
O' RING, BREATHER
from £0.88
from £0.88
# 54
MPN: 01-20468
CLAMP PLATE, BREATHER
from £40.93
from £40.93
# 55
MPN: 510405
SCREW, 1/4 UNC X 5/8
# 56
MPN: 119480
WASHER, SPRING 1/4
# 57
MPN: 119470
WASHER, PLAIN 1/4
# 58
MPN: 38-56091
SENDER, TEMPERATURE
from £48.50
from £48.50
# 59
MPN: 022-033-0202
Washer, copper
from £1.90
from £1.90
# 60
MPN: 01-18494
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, BLACK
from £49.43
from £49.43
# 60
MPN: 01-18495
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, RED
from £65.36
from £65.36
# 60
MPN: 01-18496
BEARING SHELL, FRONT/CENTRE/REAR, STANDARD, GREEN
from £65.36
from £65.36
# 60
MPN: 01-18497
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, BLACK
from £51.72
from £51.72
# 60
MPN: 01-18498
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, RED
from £48.07
from £48.07
# 60
MPN: 01-18499
BEARING SHELL, FRONT/CENTRE/REAR, 0.010 U/SIZE, GREEN
from £53.40
from £53.40
# 60
MPN: 01-18500
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, BLACK
from £45.15
from £45.15
# 60
MPN: 01-18501
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, RED
from £32.16
from £32.16
# 60
MPN: 01-18502
BEARING SHELL, FRONT/CENTRE/REAR, 0.020 U/SIZE, GREEN
from £47.32
from £47.32
# 61
MPN: 01-18503
BEARING SHELL, INTERMEDIATE, STANDARD, BLACK
from £41.04
from £41.04
# 61
MPN: 01-18504
BEARING SHELL, INTERMEDIATE, STANDARD, RED
from £41.04
from £41.04
# 61
MPN: 01-18505
BEARING SHELL, INTERMEDIATE, STANDARD, GREEN
from £61.04
from £61.04
# 61
MPN: 01-18506
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, BLACK
from £43.10
from £43.10
# 61
MPN: 01-18507
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, RED
from £41.04
from £41.04
# 61
MPN: 01-18508
BEARING SHELL, INTERMEDIATE, 0.010 UNDERSIZE, GREEN
from £69.24
from £69.24
# 61
MPN: 01-18509
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, BLACK
from £41.04
from £41.04
# 61
MPN: 01-18510
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, RED
# 61
MPN: 01-18511
BEARING SHELL, INTERMEDIATE, 0.020 UNDERSIZE, GREEN
# 62
MPN: 01-15883
WASHER, THRUST, UNCODED
# 63
MPN: 691597
STUD, 5/16 UNC/UNF X 3.12
Timing Cover to Cylinder Block
from £8.42
from £8.42
# 64
MPN: 691113
STUD, 5/16 UNC/UNF X 2.75
Timing Cover to Cylinder Block
from £7.42
from £7.42
# 65
MPN: 691438
STUD, 5/16 UNC/UNF X 2.87
Timing Cover to Cylinder Block
from £6.69
from £6.69
# 66
MPN: 691048
STUD, 5/16 UNC/UNF X 2.1
Timing Cover to Cylinder Block
from £6.84
from £6.84
# 67
MPN: 01-74580
BUSH, OIL PRESSURE RELIEF VALVE
Replaces item 39
from £86.21
from £86.21
# 68
MPN: 01-74581
FLANGE, OIL PRESSURE RELIEF VALVE
Replaces item 39
from £31.60
from £31.60
# 69
MPN: 698774
O' RING, OIL PRESSURE RELIEF
Replaces item 39
from £1.27
from £1.27
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (1999) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (1999) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (1999) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (1999) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (1999) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (1999) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (1999) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (1999) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (1999) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (1999) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (1999) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (1999) HANDBRAKES PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (1999) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (1999) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (1999) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (1999) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (1999) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (1999) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (1999) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (1999) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (1999) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (1999) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, TO VIN V79079EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (1999) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS V79080 & V79074ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (1999) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (1999) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (1999) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (1999) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (1999) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
