4.2 - Rear Suspension

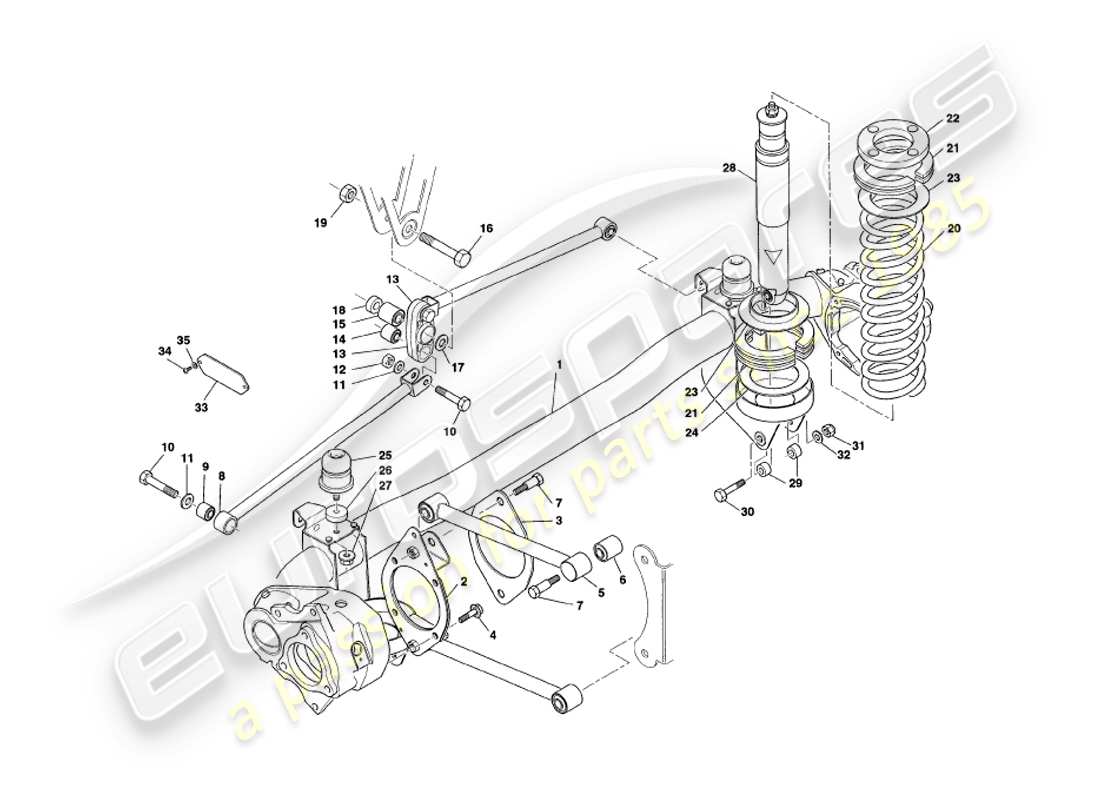

Aston Martin V8 Coupe (1999) Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 26-72958
AXLE ASSEMBLY, DE DION
from £12,062.58
from £12,062.58
# 2
MPN: 26-70382
YOKE ASSEMBLY, WELDED
# 3
MPN: 26-73068
PLATE, YOKE REINF
from £9.69
from £9.69
# 4
MPN: 697916
SCREW, DURLOK, M12X25
from £8.17
from £8.17
# 5
MPN: 26-70390
LONGITUDINAL LINK ASSEMBLY, COMPLETE
from £366.84
from £366.84
# 5
MPN: 26-72350
LONGITUDINAL LINK ASSEMBLY
from £338.75
from £338.75
# 6
MPN: 26-16560
METALASTIC BUSH
# 7
MPN: 26-73121
PIVOT BOLT
Links to chassis and hub
from £30.39
from £30.39
# -
-
LOCTITE 242E, SEALANT
# 8
MPN: 26-70416
TRANSVERSE LINK ASSEMBLY
from £395.96
from £395.96
# 9
MPN: 020-026-0141
BUSH
from £91.45
from £91.45
# 10
MPN: 520820
BOLT, 1/2 UNF X 2 1/2
Transverse link attach
from £3.15
from £3.15
# 11
MPN: 119474
WASHER, PLAIN, 1/2
Transverse link attach
from £0.47
from £0.47
# 12
MPN: 690156
NUT, NYLOC, 1/2
Transverse link attach
from £3.15
from £3.15
# 13
MPN: 26-70418
SWING LINK ASSEMBLY
# 14
MPN: 020-026-0141
BUSH, SWING LINK END
from £91.45
from £91.45
# 15
MPN: 26-70396
METALASTIC BUSH
Swing link to chassis
from £80.84
from £80.84
# 16
MPN: 696606
BOLT, 3/4 UNF X 3
Swing link to chassis
from £3.75
from £3.75
# 17
MPN: 26-70394
SPACER, FORWARD
Swing link to chassis
from £32.23
from £32.23
# 18
MPN: 26-70395
SPACER, REAR
Swing link to chassis
from £49.32
from £49.32
# 19
MPN: 690989
NUT, NYLOC, 3/4 UNF
Swing link to chassis
from £13.44
from £13.44
# 20
MPN: 26-56349
ROAD SPRING, REAR
from £188.84
from £188.84
# 21
MPN: 26-70404
PACKER, ROAD SPRING
from £14.34
from £14.34
# 22
MPN: 26-70406
ISOLATOR, ROAD SPRING
from £62.95
from £62.95
# 23
MPN: 26-71677
SPRING SEAT, REAR
from £23.39
from £23.39
# 24
MPN: 26-70397
ISOLATOR
from £14.96
from £14.96
# 25
MPN: 26-56351
SPRING ASSISTOR, REAR
from £113.74
from £113.74
# 26
MPN: 26-73405
SPACER, BUMPSTOP
from £15.69
from £15.69
# 27
MPN: 695515
NUT, FLG NYLOC, M8
from £0.50
from £0.50
# 28
MPN: 26-56347
DAMPER, REAR
# 29
MPN: 26-70398
SPACER, DAMPER LOWER MOUNTING
# 30
MPN: 696105
BOLT, M12X100
Damper to spring hanger
from £1.32
from £1.32
# 31
MPN: 692093
NUT, NYLOC, M12
Damper to spring hanger
from £0.47
from £0.47
# 32
MPN: 692059
WASHER, PLAIN, M12
from £0.47
from £0.47
# 33
MPN: 26-72555
PLATE, DAMPER FIXING
from £5.15
from £5.15
# 34
MPN: 692210
SCREW, M4X12 PAN
from £0.47
from £0.47
# 35
MPN: 692054
WASHER, PLAIN, M4
from £0.47
from £0.47
