4.4 - POWER STEERING

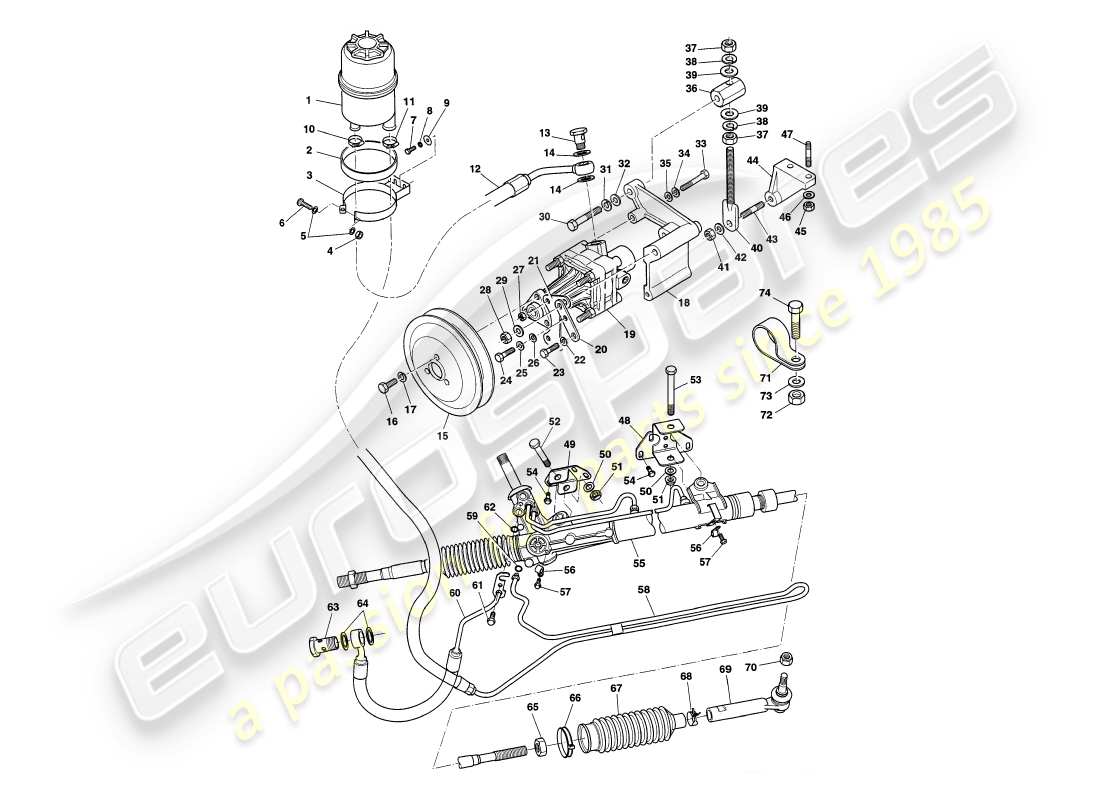

Aston Martin V8 Coupe (1999) Power Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 24-50549
Reservoir, power steering
from £53.13
from £53.13
# 2
MPN: 693068
REST RUBBER
from £34.61
from £34.61
# 3
MPN: 24-72514
MOUNTING BRACKET ASSEMBLY, PAS RESERVOIR
from £33.15
from £33.15
# 4
MPN: 692074
NUT, HEX, M4
CLAMP RING
from £0.47
from £0.47
# 5
MPN: 692054
WASHER, PLAIN, M4
CLAMP RING
from £0.47
from £0.47
# 6
MPN: 694311
SCREW, POZI PAN HD, M4X30
CLAMP RING
from £0.47
from £0.47
# 7
MPN: 695560
SCREW, M5X16
Mounting bracket attach
from £0.47
from £0.47
# 8
MPN: 692045
WASHER, SPRING, M5
Mounting bracket attach
from £0.47
from £0.47
# 9
MPN: 695825
WASHER, M5X20X1
Mounting bracket attach
from £1.28
from £1.28
# 10
MPN: 694297
HOSE CLIP
from £0.87
from £0.87
# 11
MPN: 693142
HOSE CLIP
from £0.73
from £0.73
# 12
MPN: 24-56167
HOSE, RESERVOIR TO PUMP
from £147.49
from £147.49
# 13
MPN: 696080
BANJO BOLT
# 14
MPN: 696083
SEAL, BONDED
from £3.87
from £3.87
# 15
MPN: 24-26077
PULLEY, POWER STEERING PUMP
from £167.20
from £167.20
# 16
MPN: 692089
SCREW, M8X16
Pulley to pump
from £0.47
from £0.47
# 17
MPN: 692047
WASHER, SPRING, M8
Pulley to pump
from £0.47
from £0.47
# 18
MPN: 24-26089
BRACKET, POWER STEERING PUMP
from £137.59
from £137.59
# 19
MPN: 24-50686
STEERING PUMP - ZF
from £562.92
from £562.92
# 20
MPN: 24-26097
PLATE, PIVOT
from £5.38
from £5.38
# 21
MPN: 24-26098
PLATE, RETAINING
from £30.50
from £30.50
# 22
MPN: 692047
WASHER, SPRING, M8
Plate to front cover
from £0.47
from £0.47
# 23
MPN: 692087
SCREW, M8X20
Plate to front cover
# 24
MPN: 692087
SCREW, M8X20
Plate to bracket
# 25
MPN: 692047
WASHER, SPRING, M8
Plate to bracket
from £0.47
from £0.47
# 26
MPN: 692057
WASHER, PLAIN, M8
Plate to bracket
from £0.47
from £0.47
# 27
MPN: 692135
NUT, NYLOC, M8
Plate to pump
from £0.99
from £0.99
# 28
MPN: 692034
NUT, NYLOC, M10
Pump pivot stud
from £0.47
from £0.47
# 29
MPN: 692058
WASHER, PLAIN, M10
Pump pivot stud
from £0.47
from £0.47
# 30
MPN: 692095
BOLT, M10X40
Trunnion to bracket
from £1.90
from £1.90
# 31
MPN: 692048
WASHER, SPRING, M10
Trunnion to bracket
from £0.47
from £0.47
# 32
MPN: 692058
WASHER, PLAIN, M10
Trunnion to bracket
from £0.47
from £0.47
# 33
MPN: 694257
BOLT, M8X50
Pump to bracket
from £0.78
from £0.78
# 34
MPN: 692047
WASHER, SPRING, M8
Pump to bracket
from £0.47
from £0.47
# 35
MPN: 692057
WASHER, PLAIN, M8
Pump to bracket
from £0.47
from £0.47
# 36
MPN: 09-25873
TRUNNION ADJUSTER
from £34.49
from £34.49
# 37
MPN: 692078
NUT, M10
Eyebolt to trunnion
from £0.74
from £0.74
# 38
MPN: 692048
WASHER, SPRING, M10
Eyebolt to trunnion
from £0.47
from £0.47
# 39
MPN: 692058
WASHER, PLAIN, M10
Eyebolt to trunnion
from £0.47
from £0.47
# 40
MPN: 09-25874
EYEBOLT ADJUSTER
from £91.50
from £91.50
# 41
MPN: 692034
NUT, NYLOC, M10
Eyebolt to bracket
from £0.47
from £0.47
# 42
MPN: 692058
WASHER, PLAIN, M10
Eyebolt to bracket
from £0.47
from £0.47
# 43
MPN: 694227
STUD, M10/M10
ADJUSTER BRACKET
from £11.70
from £11.70
# 44
MPN: 24-26090
ADJUSTER BRACKET
from £85.33
from £85.33
# 45
MPN: 123115
NUT, SLK, 5/16 UNF
Adjuster bracket to cylinder head
from £3.58
from £3.58
# 46
MPN: 119471
WASHER, PLAIN, 5/16
Adjuster bracket to cylinder head
# 47
MPN: 694229
STUD, 5/16 UNC/UNF X 1.55
Adjuster bracket to cylinder head
from £5.15
from £5.15
# 48
MPN: 24-74477
RACK MOUNTING BRACKET ASSEMBLY, LONG, LH
RHD Must be fitted in pairs when replacing early type rack mounts,(cars up to (V)79017)
from £100.06
from £100.06
# 48
MPN: 24-74476
RACK MOUNTING BRACKET ASSEMBLY, LONG, RH
LHD Must be fitted in pairs when replacing early type rack mounts,(cars up to (V)79017)
from £110.92
from £110.92
# 49
MPN: 24-74482
RACK MOUNTING BRACKET ASSEMBLY, SHORT, RH
RHD Must be fitted in pairs when replacing early type rack mounts,(cars up to (V)79017)
from £100.06
from £100.06
# 49
MPN: 24-74483
RACK MOUNTING BRACKET ASSEMBLY, SHORT, LH
LHD Must be fitted in pairs when replacing early type rack mounts,(cars up to (V)79017)
from £110.92
from £110.92
# 50
MPN: 119473
WASHER, PLAIN, 7/16
Rack to rack mounting bracket
from £0.47
from £0.47
# 51
MPN: 697221
NUT, NYLOC, 7/16
Rack to rack mounting bracket
from £0.78
from £0.78
# 52
MPN: 520724
BOLT, 7/16 UNF X3
Rack to rack mounting bracket
from £1.28
from £1.28
# 53
MPN: 520732
BOLT, 7/16 UNF X4
Rack to rack mounting bracket
from £4.09
from £4.09
# 54
MPN: 692284
SCREW, DURLOK, M8X25
Rack mounting brackets to front crossmember
from £2.32
from £2.32
# 55
MPN: 24-73320
Steering Rack
RHD
# 55
MPN: 24-73321
Steering Rack
LHD
# 56
MPN: 692209
P CLIP, 3/8 NYLON
PAS pipe to rack
from £0.52
from £0.52
# 57
MPN: 692210
SCREW, M4X12
PAS pipe to rack
from £0.47
from £0.47
# -
-
WASHER, PLAIN, M4
PAS pipe to rack
# -
-
WASHER, SPRF, M4
PAS pipe to rack
# 58
MPN: 24-70322
HOSE, RACK TO RESERVOIR
RHD
from £628.54
from £628.54
# 58
MPN: 24-73791
HOSE, RACK TO RESERVOIR
LHD
from £235.66
from £235.66
# 59
MPN: 24-73200
SEAL, STEERING RACK
from £2.27
from £2.27
# 60
MPN: 24-56168
HOSE, PUMP TO RACK
RHD
from £305.26
from £305.26
# 60
MPN: 24-56169
HOSE, PUMP TO RACK
LHD
from £225.86
from £225.86
# 61
MPN: 694374
SCREW, FLG, M8X12
Pipe mounting to rack
from £0.85
from £0.85
# 62
MPN: 24-70448
PIPE SEAL, STEERING RACK
from £5.42
from £5.42
# 63
MPN: 696079
BANJO BOLT
# 64
MPN: 696082
SEAL, BONDED
from £3.44
from £3.44
# 65
MPN: 694285
LOCKNUT, M14X2
from £2.94
from £2.94
# 66
MPN: 698167
TIE WRAP
from £1.34
from £1.34
# 67
MPN: 698166
BELLOWS
from £31.40
from £31.40
# 68
MPN: 698168
SPRING CLIP
from £0.70
from £0.70
# 69
MPN: 24-70440
TIE ROD ASSEMBLY
from £91.41
from £91.41
# 70
MPN: 692142
NUT, NYLOC, M12X1.25
from £4.40
from £4.40
# 71
MPN: 694923
P CLIP
from £6.19
from £6.19
# 72
MPN: 692034
NUT, NYLOC, M10
RHD P clip to bracket
from £0.47
from £0.47
# 73
MPN: 692058
WASHER, PLAIN, M10
RHD P clip to bracket
from £0.47
from £0.47
# 74
MPN: 692138
SCREW, M10X20
RHD P clip to bracket
from £1.40
from £1.40
# -
-
Bracket, power steering hose mounting
LHD
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (1999) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (1999) HANDBRAKES PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (1999) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (1999) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (1999) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (1999) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (1999) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (1999) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (1999) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (1999) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (1999) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (1999) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, TO VIN V79079EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (1999) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS V79080 & V79074ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (1999) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (1999) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (1999) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (1999) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (1999) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (1999) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (1999) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (1999) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (1999) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (1999) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (1999) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (1999) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (1999) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (1999) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (1999) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (1999) STEERING COLUMN PARTS DIAGRAM")
