6.1 - Engine Electrical Components

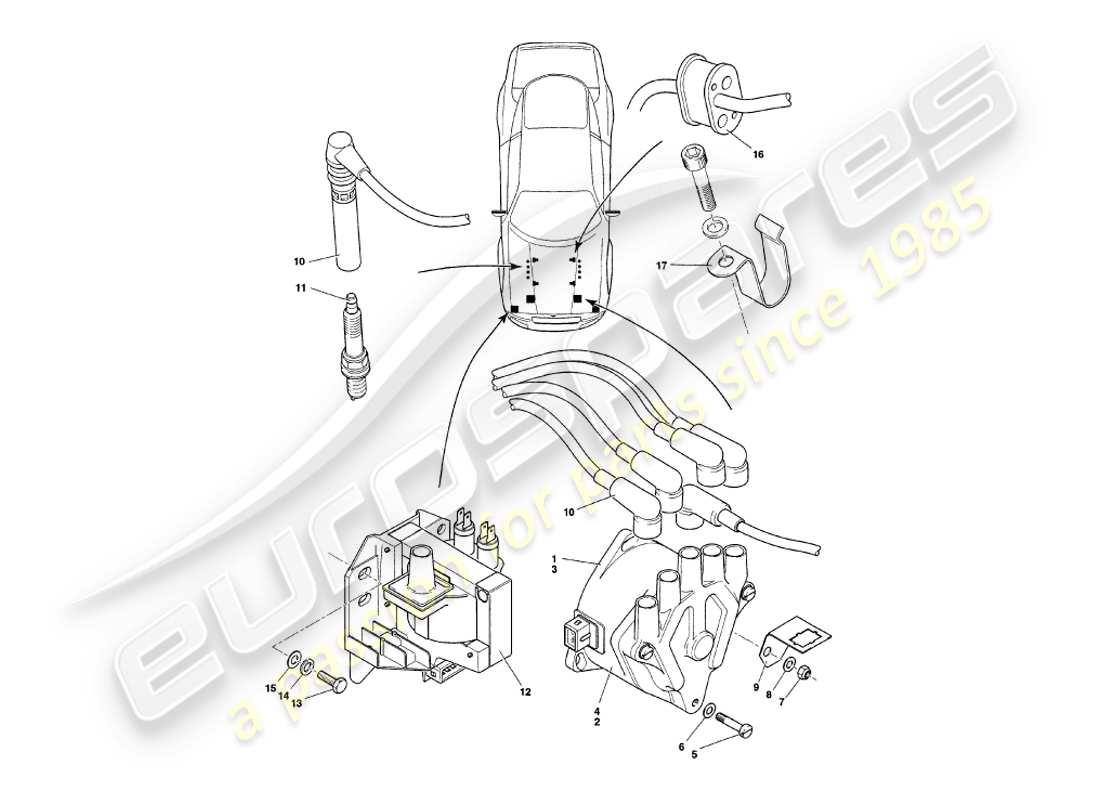

Aston Martin V8 Coupe (1999) Engine Electrical Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 07-26412
DISTRIBUTOR, RH
from £419.51
from £419.51
# 2
MPN: 07-25569
DISTRIBUTOR CAP, RH
from £1,046.19
from £1,046.19
# 3
MPN: 07-26413
DISTRIBUTOR, LH
from £419.51
from £419.51
# 4
MPN: 07-26779
DISTRIBUTOR CAP, LH
# -
-
PICK UP ASSEMBLY
# -
-
TERMINAL BLOCK, HARNESS
# -
-
Timing disc
# 5
MPN: 07-25573
SCREW, DISTRIBUTOR CAP TO DISTRIBUTOR
# 6
MPN: 07-25574
WASHER, DISTRIBUTOR CAP TO DISTRIBUTOR
# -
-
CORK SEAL FOR SCREW
# -
-
ROTOR ARM
# -
-
O RING, DISTRIBUTOR OIL SEAL
# 7
MPN: 692800
NUT, NYLOC, M5
Distributors to front covers
from £0.47
from £0.47
# 8
MPN: 692055
WASHER, PLAIN, M5
Distributors to front covers
from £0.47
from £0.47
# 9
MPN: 07-22607
Bracket, crankshaft sensor lead support
from £62.02
from £62.02
# 10
MPN: 07-56302
Ignition lead set
Up to (V)79069
from £300.91
from £300.91
# 10
MPN: 07-56567
Ignition lead set
From (V)79070
from £299.45
from £299.45
# -
-
SPIRAP, 1/2 OD
Ignition lead protection
# 11
MPN: 07-23116
Spark plug, BCPR-6E
from £5.92
from £5.92
# -
-
COPA SLIP, 8OZ TUBE
# 12
MPN: 07-26474
IGNITION MODULE
from £1,205.97
from £1,205.97
# 13
MPN: 692087
SCREW, M8X20
# 14
MPN: 692047
WASHER, SPRING, M8
from £0.47
from £0.47
# 15
MPN: 692057
WASHER, PLAIN, M8
from £0.47
from £0.47
# 16
MPN: 696818
CONNECTING BLOCK RUBBER, HT LEAD
from £3.62
from £3.62
# 17
MPN: 07-74385
Bracket, HT leads to camcover
from £36.97
from £36.97
