6.6A - Instruments & Controls

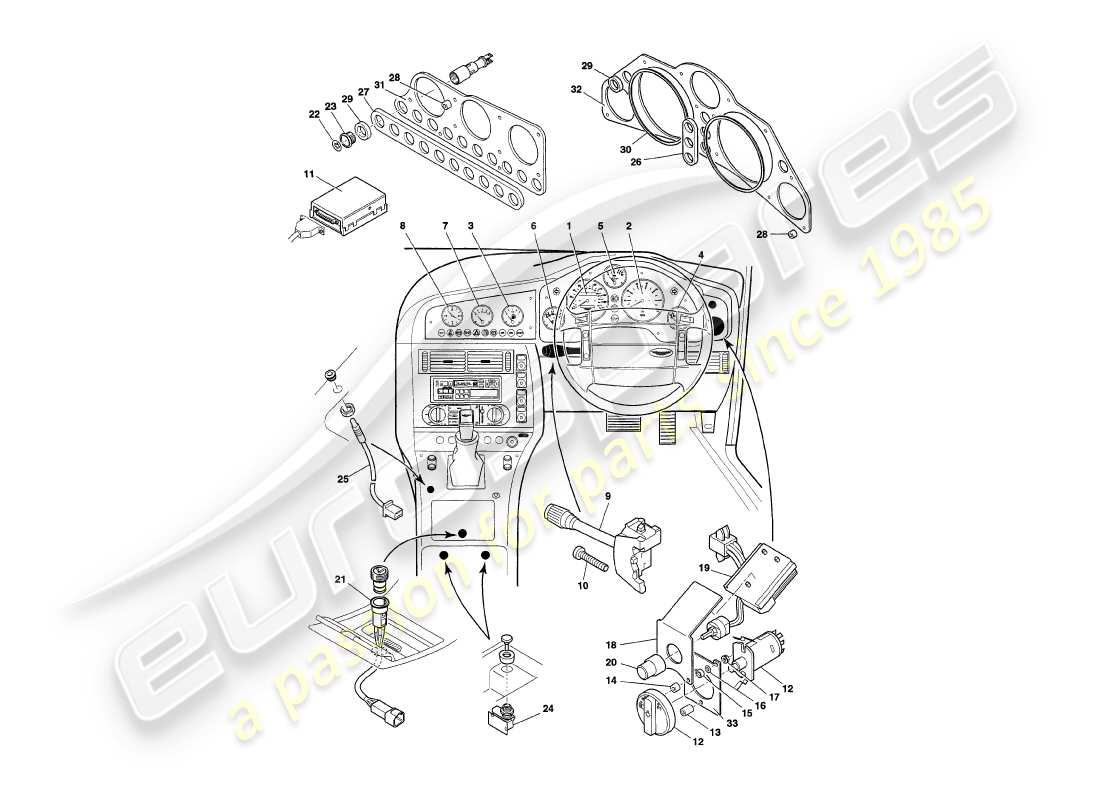

Aston Martin V8 Coupe (1999) Instruments & Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 38-56088
SPEEDO, MPH
# 1
MPN: 38-56089
SPEEDO, KPH
From (V)70139
from £589.67
from £589.67
# 2
MPN: 38-56090
TACHOMETER
from £482.21
from £482.21
# 3
MPN: 38-56085
GAUGE, FUEL
From (V)70139
from £161.55
from £161.55
# 4
MPN: 38-56082
GAUGE, WATER TEMPERATURE
from £148.00
from £148.00
# 5
MPN: 38-56084
GAUGE, OIL PRESSURE
from £268.71
from £268.71
# 6
MPN: 38-56083
GAUGE, OIL TEMPERATURE
From (V)70139
from £148.00
from £148.00
# 7
MPN: 38-56087
VOLTMETER
from £148.00
from £148.00
# 8
MPN: 38-56095
CLOCK
from £298.46
from £298.46
# 9
MPN: 37-64046
SWITCH COLUMN, MULTI FUNCTION
from £289.24
from £289.24
# 10
MPN: 696461
SCREW, NO.8 UNC X 5/8
Multi function switch
from £0.47
from £0.47
# 11
MPN: 38-74452
INTERFACE, ECU
from £4,521.91
from £4,521.91
# 12
MPN: 37-54987
SWITCH, SIDE/HEAD
from £152.71
from £152.71
# 13
MPN: 83-73130
Spacer, light switch
from £10.22
from £10.22
# 14
MPN: 83-73131
SPACER, DASH TO RHEOSTAT
from £24.64
from £24.64
# 15
MPN: 83-73132
SPACER, DASH TO RHEOSTAT, SMALL
from £2.11
from £2.11
# 16
MPN: 692054
WASHER, PLAIN, M4
from £0.47
from £0.47
# 17
MPN: 694275
NUT, FLG, M4
from £0.51
from £0.51
# 18
MPN: 83-73133
BRACKET RHEOSTAT
from £30.35
from £30.35
# 19
MPN: 37-64037
DIMMER SWITCH
from £223.21
from £223.21
# 20
MPN: 37-62465
KNOB, DIMMER SWITCH
from £4.36
from £4.36
# 21
MPN: 37-72485
CIGAR LIGHTER ASSEMBLY
from £103.33
from £103.33
# -
-
INSERT, CIGAR LIGHTER
# 22
MPN: 37-66629
Warning lamp symbols set
from £80.12
from £80.12
# 23
MPN: 37-62791
WARNING LAMP HOLDER
from £6.05
from £6.05
# 24
MPN: 37-15369
Switch unit, fuel flap
from £39.30
from £39.30
# -
-
BEZEL, BLACK
# -
-
BUTTON, ENGRAVED (FUEL PUMP SYMBOL)
# 25
MPN: 37-73844
ALARM LED
# 26
MPN: 83-65019
PLATE, MULTI SPACER
from £21.68
from £21.68
# 27
MPN: 83-56322
SPACER, MULTI, CENTRE VENEER
from £10.43
from £10.43
# 28
MPN: 83-65022
SPACER, DASH
from £0.47
from £0.47
# 29
MPN: 83-65020
Spacer plate, warning light to veneer
from £2.21
from £2.21
# 30
MPN: 83-62021
Spacer, speedo/tacho
# 31
MPN: 83-73118
REAR MOUNTING PLATE, CENTRE VENEER
from £13.12
from £13.12
# 32
MPN: 83-73119
REAR MOUNTING PLATE, BINNACLE VENEER
from £22.83
from £22.83
# 33
MPN: 83-73698
MOUNTING PLATE, LIGHT SWITCH
from £23.88
from £23.88
