6.6B - Instruments & Controls

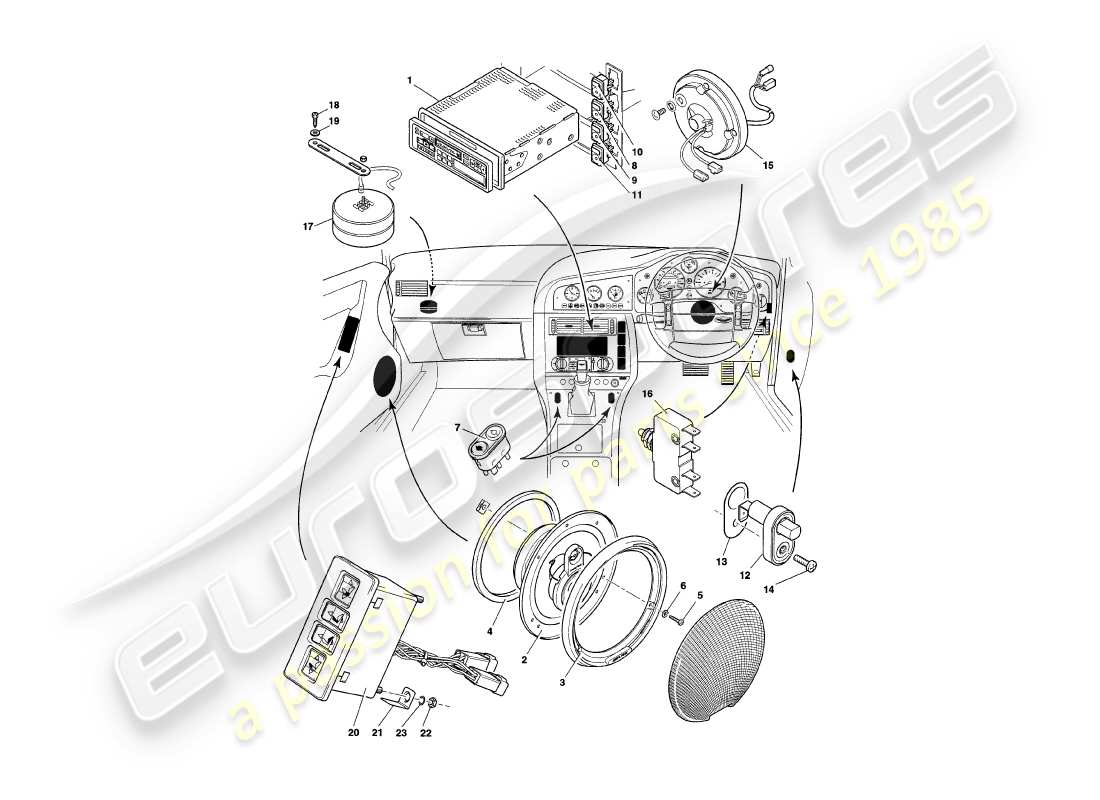

Aston Martin V8 Coupe (1999) Instruments & Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 37-56098
RADIO CASSETTE
Up to (V)79079 excl 79074
# 1
MPN: 37-90408
RADIO CASSETTE
From (V)79080 + 79074
from £624.93
from £624.93
# 1
MPN: 37-56292
RADIO CASSETTE
Japan Up to (V)79079 excl 79074
from £996.45
from £996.45
# 1
MPN: 37-90410
RADIO CASSETTE
Japan From (V)79080 + 79074
from £860.25
from £860.25
# 1
MPN: 37-56293
RADIO CASSETTE
Australia Up to (V)79079 excl 79074
from £830.36
from £830.36
# 1
MPN: 37-90411
RADIO CASSETTE
Australia/New Zealand From (V)79080 + 79074
from £871.82
from £871.82
# -
-
CD LINK LEAD
From (V)70198 + 70194
# 2
MPN: 37-64907
SPEAKERS (SET OF TWO)
# 3
MPN: 37-52075
SPEAKER MOUNTING RING
from £2.40
from £2.40
# 4
MPN: 37-74218
FOAM SPEAKER GASKET, FRONT DOOR
from £10.09
from £10.09
# 5
MPN: 693824
SCREW, M4X20
from £0.47
from £0.47
# 6
MPN: 692054
WASHER, PLAIN, M4
from £0.47
from £0.47
# 7
MPN: 37-50326
Rocker switch, window lift
RHD (1 off LHD)
from £128.96
from £128.96
# 7
MPN: 37-73762
Rocker switch, window lift (modified)
LHD
from £104.77
from £104.77
# 8
MPN: 37-70750
SWITCH, MOMENTARY, FRONT SCREEN
from £30.10
from £30.10
# 9
MPN: 37-70751
SWITCH, MOMENTARY, REAR SCREEN
from £33.25
from £33.25
# 10
MPN: 37-55977
SWITCH, FRONT FOG
from £9.55
from £9.55
# 11
MPN: 37-70749
SWITCH, REAR FOG
from £29.99
from £29.99
# 12
MPN: 37-26247
SWITCH, DOOR A POST
Up to (V)79079 excl 79074
from £30.72
from £30.72
# 13
MPN: 37-54167
SPACER RUBBER, 1.5MM
Up to (V)79079 excl 79074
from £2.06
from £2.06
# 13
MPN: 37-55117
SPACER, ALUMINIUM, 3MM
Up to (V)79079 excl 79074
from £4.36
from £4.36
# 14
MPN: 693824
SCREW, M4X20, SWITCH TO A POST
Up to (V)79079 excl 79074
from £0.47
from £0.47
# 15
MPN: 37-64233
SLIP RING AND PLUG ASSEMBLY
from £550.01
from £550.01
# 16
MPN: 37-15429
DOUBLE BREAK SWITCH, STOP LAMPS
from £148.97
from £148.97
# 17
MPN: 37-72436
MINI SIREN
Up to (V)79079 excl 79074
from £94.25
from £94.25
# 18
MPN: 694374
SCREW, M8X12
Up to (V)79079 excl 79074
from £0.85
from £0.85
# 19
MPN: 692057
WASHER, PLAIN, M8
Up to (V)79079 excl 79074
from £0.47
from £0.47
# 20
MPN: 37-64560
SEAT SWITCH AND PLUG ASSY
Up to (V)79079 excl 79074
from £349.87
from £349.87
# 21
MPN: 83-61465
RETENTION BRACKET, SEAT SWITCH
Up to (V)79079 excl 79074
from £7.63
from £7.63
# 22
MPN: 694202
NUT, LOCK, M5
Up to (V)79079 excl 79074
from £0.52
from £0.52
# 23
MPN: 692066
WASHER, SHAKEPROOF, M6
Up to (V)79079 excl 79074
from £0.47
from £0.47
