7.2E - Chassis Superstructure

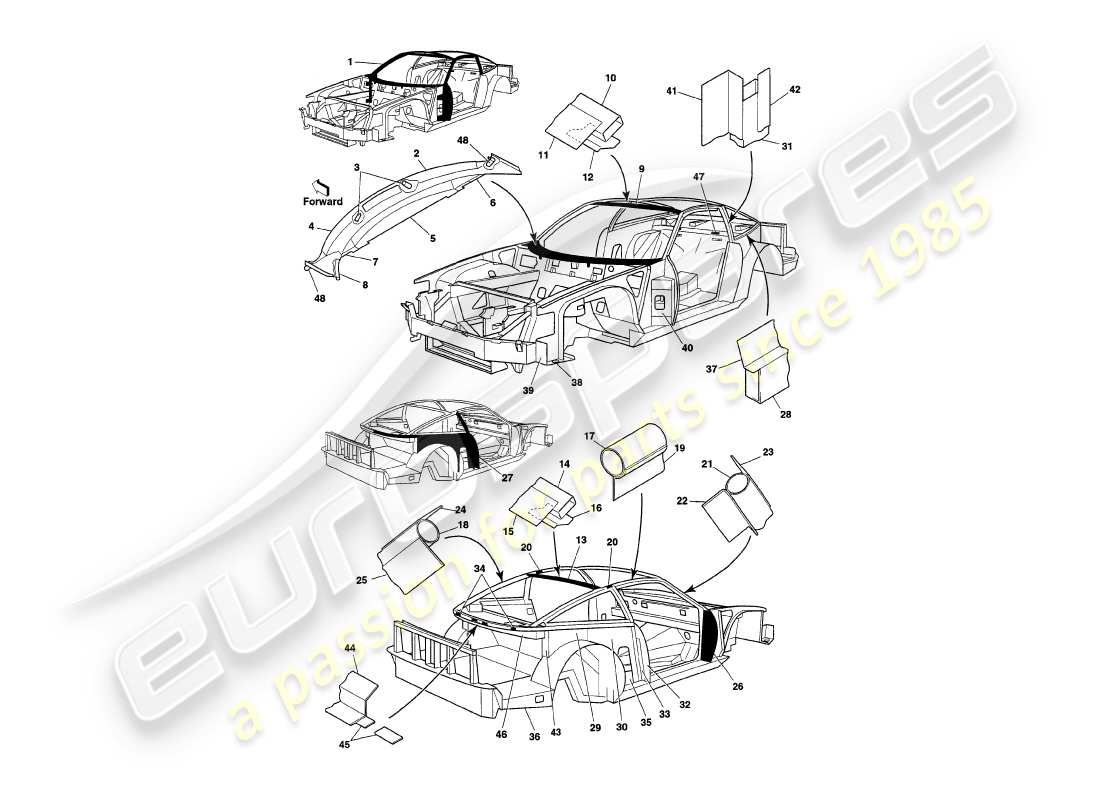

Aston Martin V8 Coupe (1999) Chassis Superstructure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 61-55882
ROOF STRUCTURE ASSEMBLY
# 2
MPN: 61-55913
SCREEN RAIL ASSEMBLY, FRONT LOWER
# 3
MPN: 61-55914
DRAIN PIPE, SCREEN RAIL FRONT
from £6.12
from £6.12
# 4
MPN: 61-55912
Panel assembly, screen rail front lower
# 5
MPN: 61-72097
CLOSING PANEL ASSEMBLY, CENTRE BULKHEAD
# 6
MPN: 20-62492
CLOSING PANEL, SIDE, RH
from £20.33
from £20.33
# 7
MPN: 20-62493
CLOSING PANEL, SIDE, LH
from £20.33
from £20.33
# 8
MPN: 20-54359
LOWER FRONT SCREEN TUBE
from £83.91
from £83.91
# 9
MPN: 61-51858
FRONT HEADER RAIL ASSEMBLY
from £401.28
from £401.28
# 10
MPN: 61-50706
HEADER RAIL FRONT
# 11
MPN: 61-51862
PANEL, FRONT HEADER
from £18.10
from £18.10
# 12
MPN: 61-54735
REINFORCEMENT ASSEMBLY, FRONT HEADER
from £10.69
from £10.69
# 12
MPN: 693945
RIVNUT, M5X12
from £0.67
from £0.67
# 13
MPN: 61-51859
REAR HEADER RAIL ASSEMBLY
# 14
MPN: 61-50707
HEADER RAIL REAR
from £229.31
from £229.31
# 15
MPN: 61-51874
Panel, rear header
# 16
MPN: 61-51868
Reinforcement panel, rear header
# 17
MPN: 61-51942
B AND C POST TUBE, RH
from £134.08
from £134.08
# 18
MPN: 61-51943
B AND C POST TUBE, LH
from £134.08
from £134.08
# 19
MPN: 61-51880
FURFLEX SUPPORT PANEL, B/C TUBE, RH
from £43.01
from £43.01
# 19
MPN: 61-51879
FURFLEX SUPPORT PANEL, B/C TUBE, LH
from £43.01
from £43.01
# 20
MPN: 61-53476
TAPPED PLATE, GRAB HANDLE
from £13.07
from £13.07
# 21
MPN: 61-50680
A POST TUBE, RH
from £59.37
from £59.37
# 21
MPN: 61-50681
A POST TUBE, LH
from £75.75
from £75.75
# 22
MPN: 61-51864
FURFLEX SUPPORT PANEL, A POST, RH
from £26.64
from £26.64
# 22
MPN: 61-51865
FURFLEX SUPPORT PANEL, A POST, LH
from £26.91
from £26.91
# 23
MPN: 61-51888
PANEL FRONT SCREEN SUPPORT, RH
from £30.72
from £30.72
# 23
MPN: 61-51889
PANEL FRONT SCREEN SUPPORT, LH
from £30.72
from £30.72
# 24
MPN: 61-52728
PANEL, REAR QUARTER GLASS S/UP, RH
# 24
MPN: 61-52729
Panel, rear quarter glass s/up, LH
# 25
MPN: 61-52726
PANEL, REAR SCREEN S/SPT, RH
from £26.64
from £26.64
# 25
MPN: 61-52727
PANEL, REAR SCREEN S/SPT, LH
from £30.72
from £30.72
# 26
MPN: 20-61280
A POST ASSEMBLY, RH
from £863.60
from £863.60
# 26
MPN: 20-61281
A POST ASSEMBLY, LH
# 27
MPN: 61-71878
Rear quarter assembly, RH
Up to (V)79079 excl 79074
# 27
MPN: 61-71879
Rear quarter assembly, LH
Up to (V)79079 excl 79074
# 27
MPN: 61-56544
Rear quarter assembly, RH
From (V)79080 + 79074
# 27
MPN: 61-56545
Rear quarter assembly, LH
From (V)79080 + 79074
# 28
MPN: 61-51992
HOOP RAIL, RH
from £202.19
from £202.19
# 28
MPN: 61-51993
HOOP RAIL, LH
from £202.19
from £202.19
# 29
MPN: 22-51193
CLOSING PANEL, RH
from £12.29
from £12.29
# 29
MPN: 22-51194
CLOSING PANEL, LH
--
from £12.29
from £12.29
# 30
MPN: 61-72744
CLOSING PANEL, REAR QUARTER FRONT, RH
from £20.50
from £20.50
# 30
MPN: 61-72745
CLOSING PANEL, REAR QUARTER FRONT, LH
from £20.50
from £20.50
# 31
MPN: 61-54354
B POST TUBE ASSEMBLY, RH
from £399.71
from £399.71
# 31
MPN: 61-54355
B POST TUBE ASSEMBLY, LH
from £399.71
from £399.71
# 32
MPN: 61-71470
PANEL, B POST LOCK FACE, RH
Up to (V)79079 excl 79074
# 32
MPN: 61-71471
PANEL, B POST LOCK FACE, LH
Up to (V)79079 excl 79074
# -
-
PANEL ASSEMBLY, B POST LOCK FACE, RH
From (V)79080 + 79074
# -
-
PANEL ASSEMBLY, B POST LOCK FACE, LH
From (V)79080 + 79074
# 33
MPN: 21-73842
Reinforcement angle, B post rear, RH
# 33
MPN: 21-73843
REINFORCEMENT ANGLE, B POST REAR, LH
# 34
MPN: 61-73272
SUPPORT DRAIN CHANNEL, REAR OUTER
# 35
MPN: 16-50978
REEL MOUNTING BRACKET ASSEMBLY, FRONT, RH
from £28.87
from £28.87
# 35
MPN: 16-50979
REEL MOUNTING BRACKET ASSEMBLY, FRONT, LH
from £28.87
from £28.87
# 36
MPN: 61-73488
PANEL BOOT FLOOR SIDE, RH
from £99.76
from £99.76
# 36
MPN: 61-73489
PANEL BOOT FLOOR SIDE, LH
from £99.76
from £99.76
# 37
MPN: 61-51890
PANEL, REAR QUARTER GLASS SUPPORT,LOWER, RH
from £75.12
from £75.12
# 37
MPN: 61-51891
PANEL, REAR QUARTER GLASS SUPPORT,LOWER, LH
from £75.12
from £75.12
# 38
MPN: 61-55916
PANEL ASSEMBLY, INNER WING TO SKIN, RH
from £33.68
from £33.68
# 38
MPN: 61-55917
PANEL ASSEMBLY, INNER WING TO SKIN, LH
from £19.54
from £19.54
# 39
MPN: 19-53768
BRACKET, BUMPER CORNER SUPPORT, RH
from £16.76
from £16.76
# 39
MPN: 19-53769
BRACKET, BUMPER CORNER SUPPORT, LH
from £16.76
from £16.76
# 40
MPN: 61-71178
CLOSING PANEL, A POST OUTER, RH
from £10.31
from £10.31
# 40
MPN: 61-71179
CLOSING PANEL, A POST OUTER, LH
from £10.31
from £10.31
# 41
MPN: 61-51884
FURFLEX SUPPORT PANEL, B POST UPPER, RH
from £30.72
from £30.72
# 41
MPN: 61-51885
FURFLEX SUPPORT PANEL, B POST UPPER, LH
from £30.72
from £30.72
# 42
MPN: 61-51886
PACKING STRIP, B POST UPPER, RH
# 42
MPN: 61-51887
PACKING STRIP, B POST UPPER, LH
# 43
MPN: 61-73494
SUPPORT TUBE ASSEMBLY, HOOP RAIL, RH
from £51.18
from £51.18
# 43
MPN: 61-73495
SUPPORT TUBE ASSEMBLY, HOOP RAIL, LH
from £51.18
from £51.18
# 44
MPN: 61-53635
RAIN DRAIN, LOWER SCREEN, REAR
from £178.17
from £178.17
# 45
MPN: 61-51883
DRAIN CHANNEL REAR SUPPORT
# 46
MPN: 22-51228
SKIRT, PARCEL SHELF
from £26.64
from £26.64
# 47
MPN: 61-72624
BRACKET, TRIM FIXING, PARCEL SHELF, RH
# 47
MPN: 61-72625
BRACKET, TRIM FIXING, PARCEL SHELF, LH
# 48
MPN: 61-74626
PIPE DRAIN, SCREEN RAIL FRONT
from £6.12
from £6.12
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (1999) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (1999) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (1999) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (1999) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, TO VIN V79079EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (1999) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS V79080 & V79074ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (1999) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (1999) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (1999) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (1999) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (1999) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (1999) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (1999) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (1999) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (1999) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (1999) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (1999) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (1999) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (1999) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (1999) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (1999) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (1999) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (1999) HANDBRAKES PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (1999) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (1999) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (1999) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (1999) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (1999) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (1999) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
