7.3A - Body Panels

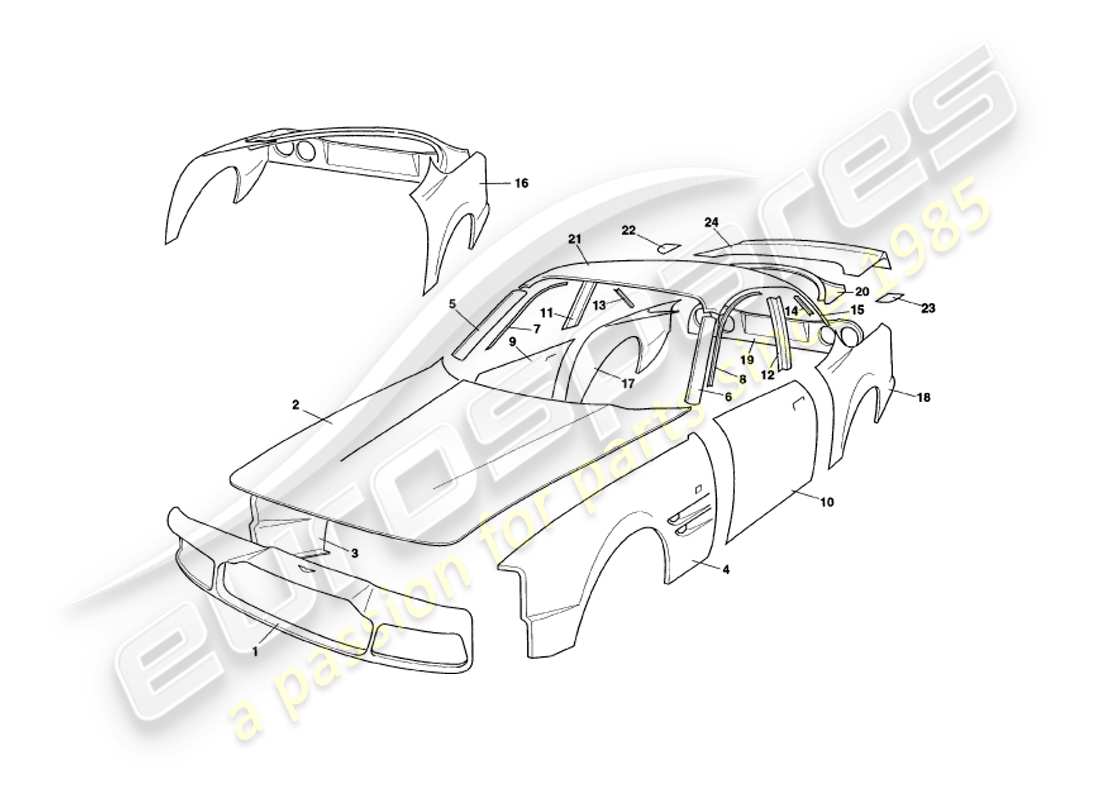

Aston Martin V8 Coupe (1999) Body Panels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: 62-55921
FRONT END ASSEMBLY, COMPLETE
# 1
MPN: 62-74177
NOSE PANEL ASSEMBLY
from £3,760.35
from £3,760.35
# -
-
SPREADER PLATE ASSEMBLY, FRONT END NOSE PANEL
# -
-
SCREW, FLG, M6X12
Nose panel to chassis/spreader
# -
-
NUT, LUG, M6
Nose panel to chassis/spreader
# -
-
EVODE MULTI-SEAL
Nose panel to chassis/spreader
# 2
MPN: 64-55931
Bonnet skin panel
# 3
MPN: 62-55922
FRONT WING ASSEMBLY, RH
from £4,099.30
from £4,099.30
# 4
MPN: 62-55923
FRONT WING ASSEMBLY, LH
from £4,099.30
from £4,099.30
# -
-
DRAIN TUBE, FRONT WING
# -
-
Fixing angle, front wing retaining
# 5
MPN: 62-50196
A' post, RH
from £48.50
from £48.50
# 6
MPN: 62-50197
A' post, LH
from £48.50
from £48.50
# 7
MPN: 62-53548
FINISHER, CANTRAIL, FRONT, RH
Made from 62-53548R
# 8
MPN: 62-53549
FINISHER, CANTRAIL, FRONT, LH
Made from 62-53548R
# -
-
PACKING STRIP, CANT RAIL
# 9
MPN: 65-60470
DOOR SKIN ASSEMBLY, RH
Up to (V)79044
from £1,349.66
from £1,349.66
# 9
MPN: 65-74494
DOOR SKIN ASSEMBLY, RH
From (V)79045 excl 79074 up to (V)79079
from £1,584.38
from £1,584.38
# -
-
DOOR SKIN PANEL, RH
From (V)79080 + 79074
# 10
MPN: 65-60471
DOOR SKIN ASSEMBLY, LH
Up to (V)79044
from £1,349.66
from £1,349.66
# 10
MPN: 65-74495
DOOR SKIN ASSEMBLY, LH
From (V)79045 excl 79074 up to (V)79079
# -
-
DOOR SKIN PANEL, LH
From (V)79080 + 79074
# 11
MPN: 62-72359
B' post, RH
Made from 62-50198R
# 12
MPN: 62-72360
B' post, LH
Made from 62-50198R
# 13
MPN: 62-53550
FINISHER, CANTRAIL, REAR, RH
Made from 62-53550R
# 14
MPN: 62-53551
FINISHER, CANTRAIL, REAR, LH
Made from 62-53550R
# 15
MPN: 62-50200
C' post, RH
# 15
MPN: 62-50201
C' post, LH
# 16
MPN: 62-55926
REAR END ASSEMBLY, COMPLETE
# 17
MPN: 62-55924
REAR WING ASSEMBLY, RH
from £1,860.11
from £1,860.11
# 18
MPN: 62-55925
REAR WING ASSEMBLY, LH
from £1,860.11
from £1,860.11
# 19
MPN: 62-71069
REAR PANEL
from £722.72
from £722.72
# 20
MPN: 62-72361
SADDLE STRIP
from £405.44
from £405.44
# 21
MPN: 62-50190
ROOF PANEL
# 21
MPN: 62-52950
ROOF PANEL, C/W A AND C POSTS
from £1,971.64
from £1,971.64
# 22
MPN: 68-50202
FUEL FLAP, RH
# 23
MPN: 68-50203
FUEL FLAP, LH
# 24
MPN: 67-71073
BOOT LID OUTER SKIN PANEL
# -
-
RIVET, 1/8 X 3/8 CSK, SOLID ALUMINIUM
# -
-
POP RIVET, 1/8 X 5/16
# -
-
POP RIVET, 3.2X8.5 CLOSED END
# -
-
SCREW, NO 4 X 1/2
# -
-
MASKING TAPE (RED) 1 1/2
# -
-
DURALAC JOINT COMPOUND
# -
-
SEALANT, TEROSTAT
