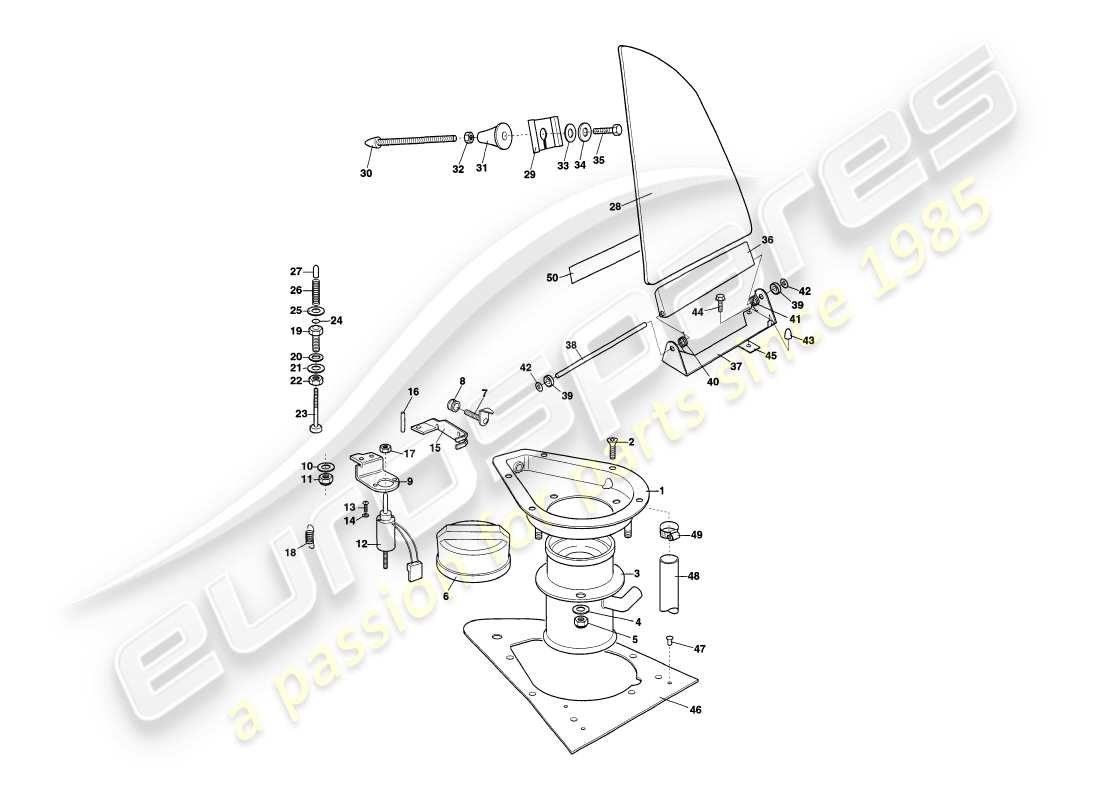

7.3B - Fuel Filler Flaps
Aston Martin V8 Coupe (1999) Fuel Filler Flaps Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 68-74182
FUEL FILLER CARRIER ASSEMBLY, RH
from £125.66
from £125.66
# 1
MPN: 68-74183
FUEL FILLER CARRIER ASSEMBLY, LH
from £125.66
from £125.66
# 2
MPN: 695862
SCREW, M4X12, COUNTERSUNK HEAD
from £0.47
from £0.47
# -
-
LOCTITE SUPERFLEX
# 3
MPN: 68-51906
FUEL FILLER NECK ASSEMBLY, RH
from £148.86
from £148.86
# 3
MPN: 68-51907
FUEL FILLER NECK ASSEMBLY, LH
from £148.86
from £148.86
# 4
MPN: 692056
WASHER, PLAIN, M6
Filler necks to carriers
from £0.47
from £0.47
# 5
MPN: 692151
NUT, NYLOC, M6
Filler necks to carriers
from £0.55
from £0.55
# 6
MPN: 68-24064
FUEL FILLER CAP
from £82.48
from £82.48
# 7
MPN: 68-23680
CATCH, FUEL FILLER, RH
from £44.63
from £44.63
# 7
MPN: 68-23681
CATCH, FUEL FILLER, LH
from £44.63
from £44.63
# 8
MPN: 693762
SEAL
from £0.88
from £0.88
# 9
MPN: 68-51538
BRACKET, SOLENOID MOUNTING, RH
from £7.27
from £7.27
# 9
MPN: 68-51539
BRACKET, SOLENOID MOUNTING, LH
from £7.27
from £7.27
# 10
MPN: 692055
WASHER, PLAIN, M5
Mounting brackets to carriers
from £0.47
from £0.47
# 11
MPN: 692800
NUT, NYLOC, M5
Mounting brackets to carriers
from £0.47
from £0.47
# 12
MPN: 37-64311
SOLENOID, FUEL FLAP
from £308.71
from £308.71
# -
-
RUBBER BELLOWS
# -
-
PETROLEUM JELLY
# 13
MPN: 693765
SCREW, M3X6
Solenoids to brackets
from £0.47
from £0.47
# 14
MPN: 692043
WASHER, SPRING, M3
Solenoids to brackets
from £0.47
from £0.47
# 15
MPN: 68-23698
OPERATING LEVER, RH
# 15
MPN: 68-23697
Operating lever, LH
# 16
MPN: 693763
PIN
from £0.47
from £0.47
# 17
MPN: 692314
NUT
Solenoid to operating lever
from £0.47
from £0.47
# 18
MPN: 693869
SPRING
from £2.70
from £2.70
# 19
MPN: 68-23687
HOUSING PLUNGER
from £8.21
from £8.21
# 20
MPN: 692067
WASHER, SHAKEPROOF, M8
Plunger housing attach
from £0.47
from £0.47
# 21
MPN: 692057
WASHER, PLAIN, M8
Plunger housing attach
from £0.47
from £0.47
# 22
MPN: 692482
NUT, THIN, M8X1.25
Plunger housing attach
from £0.83
from £0.83
# 23
MPN: 68-23686
PLUNGER
from £4.55
from £4.55
# 24
MPN: 693760
O RING
from £0.47
from £0.47
# 25
MPN: 692053
WASHER, PLAIN, M3
from £0.47
from £0.47
# 26
MPN: 693759
SPRING, PLUNGER RETURN
Cut to length required
from £8.48
from £8.48
# 27
MPN: 68-26161
BLIND NUT
from £10.31
from £10.31
# 28
MPN: 68-50202
FUEL FILLER FLAP, RH
# 28
MPN: 68-50203
FUEL FILLER FLAP, LH
# 29
MPN: 68-55127
MOUNTING PLATE, CATCH PEG
from £3.04
from £3.04
# 30
MPN: 68-23678
CATCH PEG
from £7.99
from £7.99
# 31
MPN: 68-23677
MOUNTING BOSS, CATCH PEG
from £6.34
from £6.34
# 32
MPN: 694202
NUT, THIN, LOCK, M5
Catch peg lock nut
from £0.50
from £0.50
# 33
MPN: 690257
WASHER, PLAIN, 3/16 ID X 3/4 OD
Catch mounting boss attach
from £3.17
from £3.17
# 34
MPN: 692065
WASHER, SHAKEPROOF, M5
Catch mounting boss attach
from £0.47
from £0.47
# 35
MPN: 692736
SCREW, M5X10
Catch mounting boss attach
from £0.55
from £0.55
# -
-
HINGE ASSEMBLY, FUEL FILLER FLAP, RH
# -
-
HINGE ASSEMBLY, FUEL FILLER FLAP, LH
# 36
MPN: 68-54396
MOUNTING PLATE, FUEL FILLER FLAP ASSEMBLY, RH
from £6.92
from £6.92
# 36
MPN: 68-54397
MOUNTING PLATE, FUEL FILLER FLAP ASSEMBLY, LH
from £6.92
from £6.92
# 37
MPN: 68-73225
MOUNTING BRACKET, FUEL FILLER FLAPS
from £7.14
from £7.14
# 38
MPN: 68-54400
HINGE PIN, FUEL FILLER FLAPS
from £3.44
from £3.44
# 39
MPN: 68-55106
BUSH, FUEL FILLER FLAPS
from £2.92
from £2.92
# 40
MPN: 68-55120
SPRING, TORSION, RHW, FUEL FILLER FLAPS
from £6.45
from £6.45
# 41
MPN: 68-55121
SPRING, TORSION, LHW, FUEL FILLER FLAPS
from £10.96
from £10.96
# 42
MPN: 694230
WASHER, STARLOCK, 3MM
from £0.47
from £0.47
# 43
MPN: 68-73238
CAP STOP, FILLER FLAPS
Made from 695146
# 44
MPN: 695560
SCREW, FLG, M5X16
Flap hinge to body
from £0.47
from £0.47
# 45
MPN: 68-73235
SHIM, FUEL FLAP
from £2.39
from £2.39
# 46
MPN: 68-73222
REINFORCEMENT PLATE ASSEMBLY, FUEL FILLER PLATFORM, RH
from £21.85
from £21.85
# 46
MPN: 68-73223
REINFORCEMENT PLATE ASSEMBLY, FUEL FILLER PLATFORM, LH
from £21.85
from £21.85
# 47
MPN: 110897
RIVET, 1/8 X 3/8 CSK
Reinforcement plate attach
from £0.47
from £0.47
# -
-
SEALANT, TEROSTAT
Reinforcement plate attach
# -
-
LOCTITE 341, 2 X 300ML PACK
Hinge to flap
# 48
MPN: 68-74169
HOSE, 7/8 OD X 5/8 ID
Fuel filler drain. Cut from 619919
# 49
MPN: 114679
HOSE CLIP, ST STEEL
Fuel filler drain hose
from £0.52
from £0.52
# 50
MPN: 97-53653
LABEL, UNLEADED FUEL (ENGLISH)
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (1999) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (1999) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (1999) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, TO VIN V79079EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (1999) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS V79080 & V79074ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (1999) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (1999) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (1999) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (1999) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (1999) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (1999) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (1999) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (1999) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (1999) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (1999) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (1999) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (1999) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (1999) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (1999) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (1999) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (1999) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (1999) HANDBRAKES PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (1999) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (1999) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (1999) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (1999) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (1999) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (1999) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (1999) BODY PANELS PARTS DIAGRAM")
