7.4A - Doors

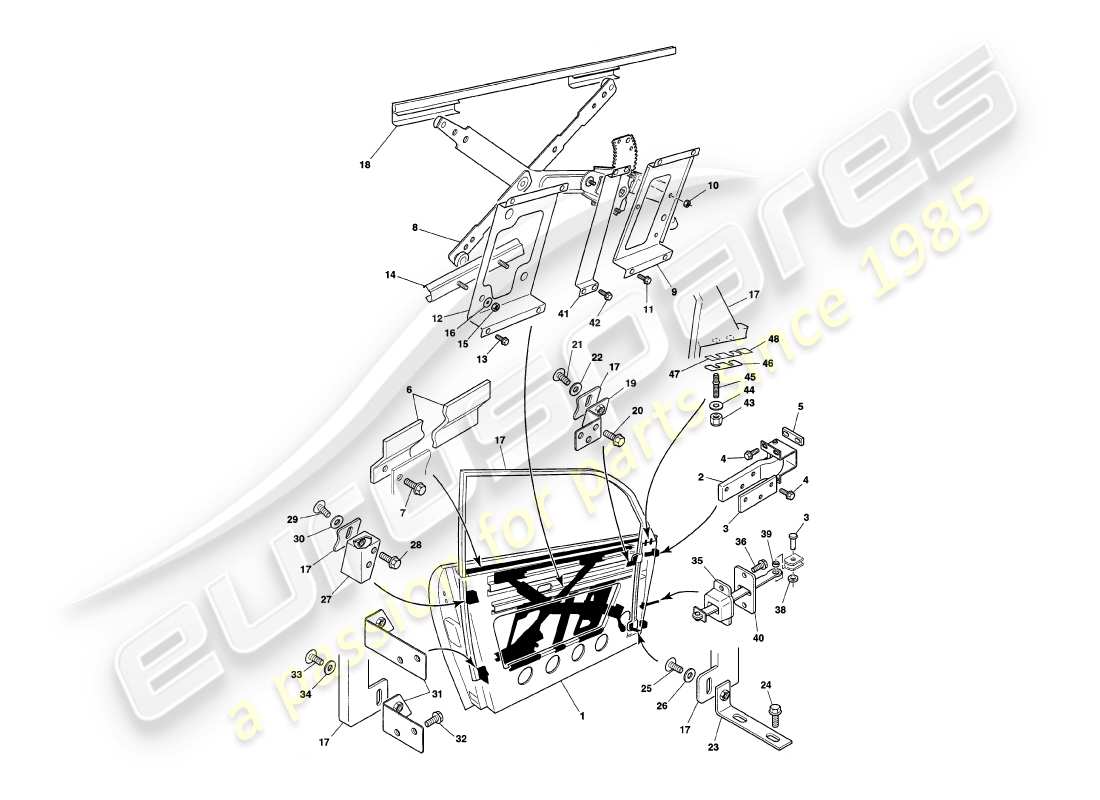

Aston Martin V8 Coupe (1999) Doors Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 65-73724
DOOR STRUCTURE ASSEMBLY, RH
Up to (V) 79079 excl 79074
from £2,149.01
from £2,149.01
# 1
MPN: 65-73725
DOOR STRUCTURE ASSEMBLY, LH
Up to (V) 79079 excl 79074
# 1
MPN: 65-56556
DOOR STRUCTURE ASSEMBLY, RH
From (V) 79080 + 79074
# 1
MPN: 65-56557
DOOR STRUCTURE ASSEMBLY, LH
From (V) 79080 + 79074
# 2
MPN: 65-55496
Door hinge assembly, RH
from £239.66
from £239.66
# 2
MPN: 65-55497
Door hinge assembly, LH
from £239.66
from £239.66
# 3
MPN: 65-11309
REINFORCEMENT, HINGE PLATE
from £2.05
from £2.05
# 4
MPN: 694033
SCREW, FLG, M8X20
Hinges to doors and A posts
from £3.94
from £3.94
# 5
MPN: 65-61352
Spacer, door hinge, 3MM thick
from £7.75
from £7.75
# 6
MPN: 65-61414
MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, RH
from £127.59
from £127.59
# 6
MPN: 65-61415
MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, LH
from £127.59
from £127.59
# 7
MPN: 695559
SCREW, FLG, M5X12
Weather seal attach
# 8
MPN: 65-50604
Window lift regulator, RH
from £509.02
from £509.02
# 8
MPN: 65-50603
Window lift regulator, LH
from £425.37
from £425.37
# 9
MPN: 65-60686
MOUNTING BRACKET, WINDOW MOTOR, RH
from £13.63
from £13.63
# 9
MPN: 65-60687
MOUNTING BRACKET, WINDOW MOTOR, LH
from £13.63
from £13.63
# 10
MPN: 692076
NUT, M6
Regulator to bracket
from £0.47
from £0.47
# 11
MPN: 695559
SCREW, FLG, M5X12
Window regulator support
# 12
MPN: 65-60688
MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, RH
from £20.07
from £20.07
# 12
MPN: 65-60689
MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, LH
from £20.07
from £20.07
# 13
MPN: 695559
SCREW, FLG, M5X12
Bracket to door
# 14
MPN: 65-50605
GUIDE CHANNEL
from £94.40
from £94.40
# 15
MPN: 692800
NUT, NYLOC, M5
Guide channel to bracket
from £0.47
from £0.47
# 16
MPN: 692055
WASHER, PLAIN, M5
Guide channel to bracket
from £0.47
from £0.47
# 17
MPN: 65-73456
DOOR GLASS FRAME ASSEMBLY, RH
Up to (V) 79044
from £1,294.30
from £1,294.30
# 17
MPN: 65-74496
DOOR GLASS FRAME ASSEMBLY, RH
From (V) 79045
from £1,493.19
from £1,493.19
# 17
MPN: 65-73457
DOOR GLASS FRAME ASSEMBLY, LH
Up to (V) 79044
from £1,294.30
from £1,294.30
# 17
MPN: 65-74497
DOOR GLASS FRAME ASSEMBLY, LH
From (V) 79045
from £1,493.19
from £1,493.19
# 17
MPN: 65-74538
SPACER TUBE, DOOR GLASS FRAME, 28MM LONG
From (V) 79045
# 17
MPN: 76-70778
DOOR GLASS, RH
See section 7.8A
from £377.20
from £377.20
# 17
MPN: 76-70779
DOOR GLASS, LH
See section 7.8A
from £377.20
from £377.20
# 18
MPN: 65-50606
LIFT CHANNEL, DOOR GLASS, RH
from £77.10
from £77.10
# 18
MPN: 65-50607
LIFT CHANNEL, DOOR GLASS, LH
from £77.10
from £77.10
# 19
MPN: 65-72034
BRACKET ASSEMBLY, SASH UPPER FRONT, RH
from £15.10
from £15.10
# 19
MPN: 65-72035
BRACKET ASSEMBLY, SASH UPPER FRONT, LH
from £15.10
from £15.10
# 20
MPN: 695563
SCREW, FLG, M6X16
Sash brackets, upper front
# 21
MPN: 696371
SCREW, BTN HD/FLG, M6X12
Sash brackets, upper front
from £0.72
from £0.72
# 22
MPN: 690386
WASHER, PLAIN, 1/4 X 3/4
Sash brackets, upper front
from £0.47
from £0.47
# 23
MPN: 65-72108
BRACKET ASSEMBLY, SASH LOWER FRONT, RH
from £9.25
from £9.25
# 23
MPN: 65-72109
BRACKET ASSEMBLY, SASH LOWER FRONT, LH
from £9.25
from £9.25
# 24
MPN: 695563
SCREW, FLG, M6X16
Sash brackets, lower front
# 25
MPN: 696371
SCREW, BTN/HD, FLG, M6X12
Sash brackets, lower front
from £0.72
from £0.72
# 26
MPN: 690386
WASHER, PLAIN, 1/4 X 3/4
Sash brackets, lower front
from £0.47
from £0.47
# 27
MPN: 65-73970
BRACKET ASSEMBLY, SASH UPPER REAR, RH
from £27.38
from £27.38
# 27
MPN: 65-73971
BRACKET ASSEMBLY, SASH UPPER REAR, LH
from £27.38
from £27.38
# 28
MPN: 695563
SCREW, FLG, M6X16
Sash brackets, upper rear
# 29
MPN: 696371
SCREW, BTN/HD, FLG, M6X12
Sash brackets, upper rear
from £0.72
from £0.72
# 30
MPN: 690386
WASHER, PLAIN, 1/4 X 3/4
Sash brackets, upper rear
from £0.47
from £0.47
# 31
MPN: 65-72104
BRACKET ASSEMBLY, SASH LOWER REAR, RH
Up to (V) 79079 excl 79074
from £0.50
from £0.50
# 31
MPN: 65-72105
BRACKET ASSEMBLY, SASH LOWER REAR, LH
Up to (V) 79079 excl 79074
from £0.50
from £0.50
# 31
MPN: 65-56582
BRACKET ASSEMBLY, SASH LOWER REAR, RH
From (V) 79080 + 79074
from £5.29
from £5.29
# 31
MPN: 65-56583
BRACKET ASSEMBLY, SASH LOWER REAR, LH
From (V) 79080 + 79074
from £5.17
from £5.17
# 32
MPN: 695563
SCREW, FLG, M6X16
Sash brackets, lower rear
# 33
MPN: 696371
SCREW, BTN/HD, FLG, M6X12
Sash brackets, lower rear
from £0.72
from £0.72
# 34
MPN: 690386
WASHER, PLAIN, 1/4 X 3/4
Sash brackets, lower rear
from £0.47
from £0.47
# -
-
PACKING, REAR DOOR FRAME LEG
# 35
MPN: 65-56318
DOOR CHECK STRAP
from £58.90
from £58.90
# 36
MPN: 695560
SCREW, FLG, M5X16
Check strap to door
from £0.47
from £0.47
# 37
MPN: 695336
CLEVIS PIN
from £1.15
from £1.15
# 38
MPN: 692300
SPIRE NUT
Clevis pin retaining
from £2.53
from £2.53
# 39
MPN: 65-65016
BUSH, DOOR CHECK LINK
from £6.06
from £6.06
# 40
MPN: 65-65017
PACKING PLATE, CHECK LINK
from £4.48
from £4.48
# 41
MPN: 65-62902
BRACKET ASSEMBLY, DOOR PULL, RH
from £18.40
from £18.40
# 41
MPN: 65-62903
BRACKET ASSEMBLY, DOOR PULL, LH
from £18.40
from £18.40
# 42
MPN: 695559
SCREW, FLG, M5X12
# 43
MPN: 695526
NUT, NYLOC, M6
from £0.47
from £0.47
# 44
MPN: 124383
WASHER, PLAIN, 1/4 X 1
from £0.47
from £0.47
# 45
MPN: 696153
STUD, M6X30
from £2.00
from £2.00
# 46
MPN: 65-64073
CLAMP PLATE, CHEATER
from £1.62
from £1.62
# 47
MPN: 65-61681
PACKING PIECE
from £1.15
from £1.15
# 48
MPN: 65-61710
RUBBER SPACER
from £2.45
from £2.45
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (1999) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (1999) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (1999) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, TO VIN V79079EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (1999) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (1999) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (1999) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (1999) FRONT SEATS & BELTS V79080 & V79074ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (1999) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (1999) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (1999) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (1999) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (1999) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (1999) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (1999) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (1999) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (1999) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (1999) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (1999) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (1999) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
-part-diagram-1.3.webp "ASTON MARTIN V8 COUPE (1999) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (1999) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (1999) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (1999) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (1999) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (1999) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (1999) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (1999) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (1999) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (1999) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (1999) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (1999) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (1999) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (1999) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (1999) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (1999) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (1999) TORQUE CONVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (1999) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (1999) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (1999) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (1999) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (1999) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (1999) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (1999) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (1999) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (1999) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (1999) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (1999) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (1999) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (1999) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (1999) HANDBRAKES PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (1999) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (1999) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (1999) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (1999) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (1999) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (1999) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (1999) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (1999) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (1999) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (1999) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (1999) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (1999) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (1999) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (1999) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (1999) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (1999) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (1999) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (1999) FUEL FILLER FLAPS PARTS DIAGRAM")
