7.4C - Weather Seals

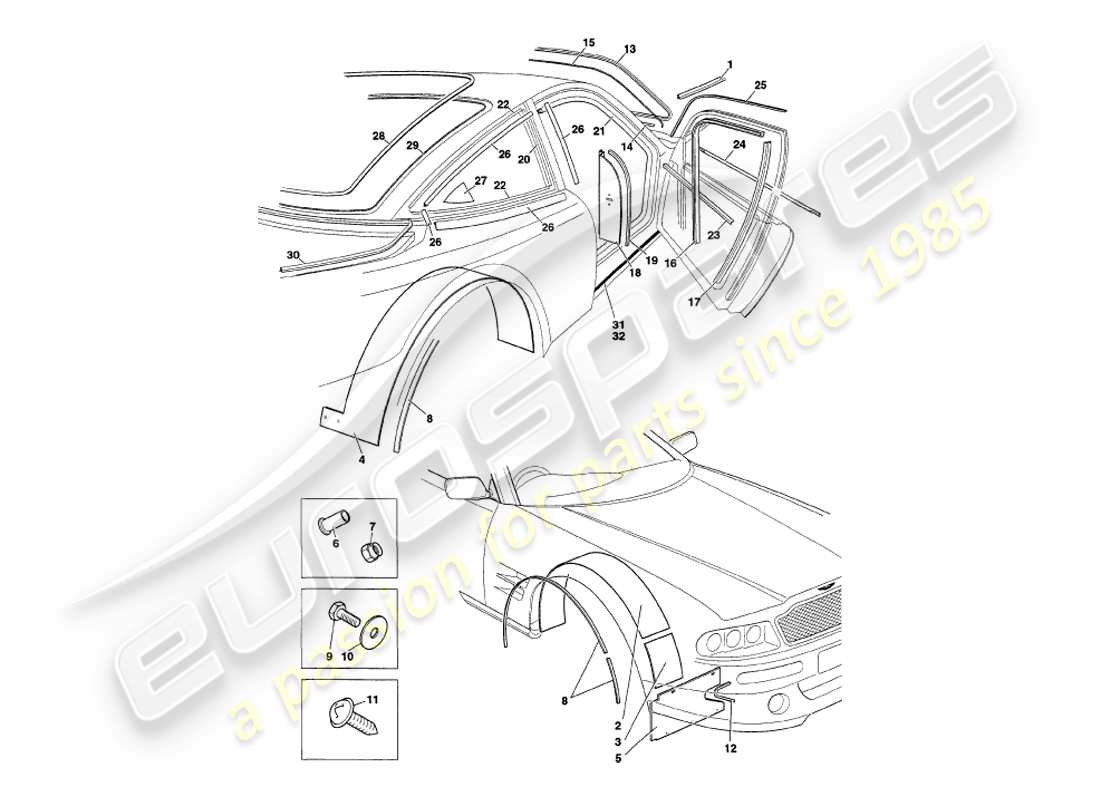

Aston Martin V8 Coupe (1999) Weather Seals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 698098
WEATHER SEAL, BONNET
# 2
MPN: 77-73834
STONEGUARD, FRONT, RH
from £77.49
from £77.49
# 2
MPN: 77-73835
STONEGUARD, FRONT, LH
from £81.41
from £81.41
# 3
MPN: 77-73775
STONEGUARD, FRONT, LOWER
from £28.22
from £28.22
# 4
MPN: 77-73797
STONEGUARD, REAR
from £83.96
from £83.96
# 5
MPN: 77-64804
STONEGUARD, SPOILER, RH
from £43.71
from £43.71
# 5
MPN: 77-64805
STONEGUARD, SPOILER, LH
from £43.71
from £43.71
# 6
MPN: 692292
RIVNUT, M6
Stoneguard attach
from £1.46
from £1.46
# 7
MPN: 692041
HANKBUSH, M6
Stoneguard front attach
from £0.83
from £0.83
# 8
MPN: 692369
SEAL RUBBER
Stoneguards
from £22.12
from £22.12
# 9
MPN: 696513
SCREW, M6X16, BLACK NYLON
Stoneguard attach
from £1.78
from £1.78
# 10
MPN: 77-72743
WASHER, M6X25.4X2, BLACK ABS
Stoneguard attach
from £3.75
from £3.75
# 11
MPN: 691020
SCREW, NO.8X 1/2 PK
Rear stoneguard attach
from £0.47
from £0.47
# 12
MPN: 77-14017
EDGE TRIM, BLACK RUBBER
Stoneguard, spoiler
from £18.74
from £18.74
# -
-
EVODE MULTI-SEAL
Stoneguards
# 13
MPN: 77-53584
GASKET, WINDSCREEN FINISHER
Made from 65-11313 / 77-52031
# 14
MPN: 77-52045
Damming strip, lower screen rail
Made from 694099
# 15
MPN: 77-52043
MASTIC RETENTION DAM, A POST FRONT HEADER
Made from 77-52036
# 16
MPN: 77-52038
GLASS RUN CHANNEL, FORWARD
Made from 694093
# 17
MPN: 77-52039
GLASS RUN CHANNEL, REAR
Made from 694093
# 18
MPN: 77-73838
Panel, B post finisher, RH
Up to (V)79079 excl 79074
# 18
MPN: 77-73839
Panel, B post finisher, LH
Up to (V)79079 excl 79074
# 18
MPN: 77-56594
Panel, B post finisher, RH
From (V)79080 + 79074
from £59.91
from £59.91
# 18
MPN: 77-56595
Panel, B post finisher, LH
From (V)79080 + 79074
from £59.91
from £59.91
# 19
MPN: 696093
RUBBER EDGE FINISHER
from £18.37
from £18.37
# 20
MPN: 77-52033
Damming strip, B post
Made from 694099
# 21
MPN: 77-50302
DOOR SEAL EDGE FINISHER
Door aperture
# 22
MPN: 77-52037
Mastic retention dam, waist and roof
Made from 77-52036
# 23
MPN: 77-72298
INNER WAIST BELT FINISHER, DOOR
Made from 77-62001
# 24
MPN: 77-61715
OUTER WAIST BELT FINISHER, DOOR
from £17.63
from £17.63
# 25
MPN: 77-73770
EXTRUSION DOOR FRAME UPPER
from £20.98
from £20.98
# 26
MPN: 77-52028
Gasket, rear side glass, RH
Made from 77-52031 / 77-52032
# 26
MPN: 77-52029
GASKET, REAR SIDE GLASS, LH
Made from 77-52031 / 77-52032
# 27
MPN: 77-55346
CHEATER PANEL, REAR QUARTER LIGHT
from £25.25
from £25.25
# 28
MPN: 77-53585
Gasket, rear screen finisher
Made from 77-74069
# 29
MPN: 77-52044
Mastic retaining dam
Made from 77-52036
# 30
MPN: 698098
WEATHER SEAL, BOOT
# 31
MPN: 77-65663
SEAL, DOOR SILL
From (V) 79080 + 79074
from £70.67
from £70.67
# 32
MPN: 77-65664
PIN, WEATHER STRIP FIXING
From (V) 79080 + 79074
from £2.45
from £2.45
