7.8C.2 - Door Casing

Aston Martin V8 Coupe (1999) Door Casing Parts Diagram

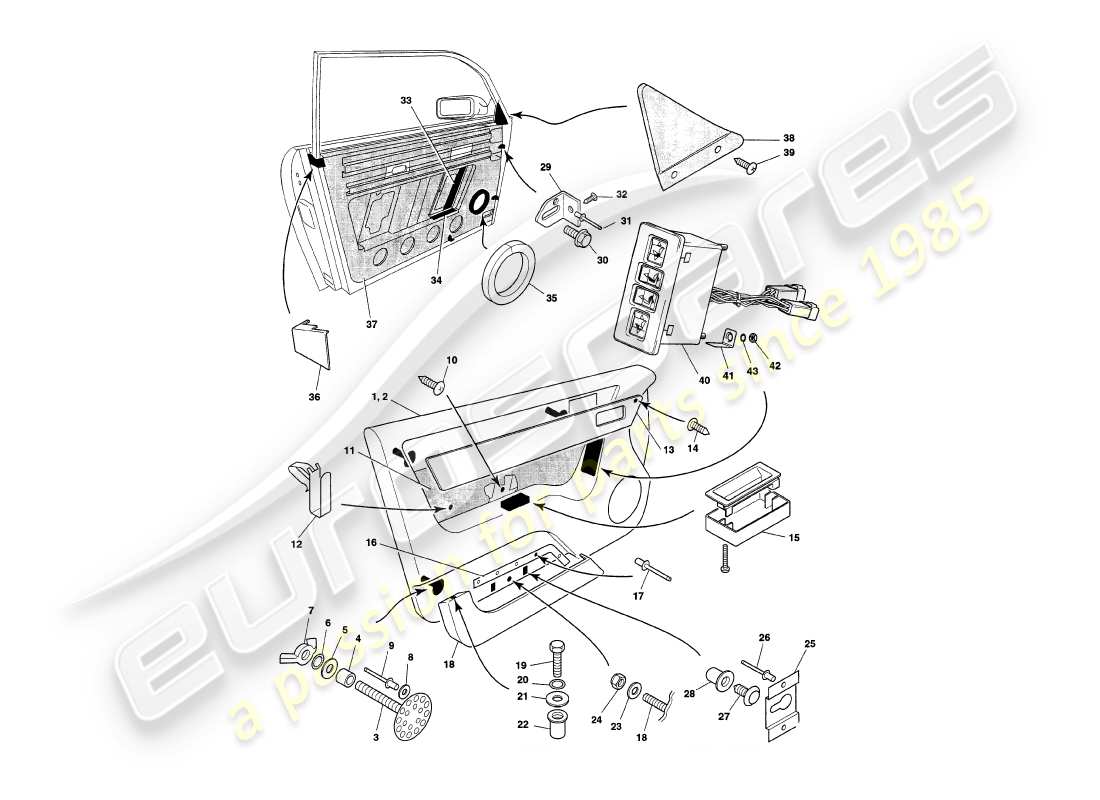

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 83-55974XXX
                                                        Door pad assembly, RH, trimmed
                                                        Door pad assembly, RH, trimmed Genuine Aston Martin - New (to order)
                                                        # 1
                                                        MPN: 83-55975XXX
                                                        DOOR PAD ASSEMBLY, LH, TRIMMED
                                                        DOOR PAD ASSEMBLY, LH, TRIMMED Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 83-55970
                                                        Door pad and fittings, RH
                                                        Door pad and fittings, RH Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 83-55971
                                                        DOOR PAD AND FITTINGS, LH
                                                        DOOR PAD AND FITTINGS, LH Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: 696195
                                                        FIXING, M6X50, BIG HEAD
                                                        FIXING, M6X50, BIG HEAD Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: 696673
                                                        NYLON SPACER, 6.3X15X15
                                                        from £0.82
                                                        from £0.82
                                                        NYLON SPACER Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: 124383
                                                        WASHER, PLAIN, 1/4 X 1
                                                        from £0.47
                                                        from £0.47
                                                        WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: 692066
                                                        WASHER, SHAKEPROOF, M6
                                                        from £0.47
                                                        from £0.47
                                                        WASHER, SPR, M6 Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: 692514
                                                        WING NUT, M6
                                                        from £0.51
                                                        from £0.51
                                                        NUT M6 WING - STEEL Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: 630-000-0102
                                                        WASHER, PLAIN, NO.6
                                                        from £0.47
                                                        from £0.47
                                                        WASHER NO6 PLAIN Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: 582-000-2829
                                                        POP RIVET, 1/8
                                                        from £0.49
                                                        from £0.49
                                                        POP-RIVET 3.2MM COUNTERSUNK Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: 539-000-0804
                                                        SCREW, NO.8X1/2 CSK POZI
                                                        Pad to bracket
                                                        from £0.47
                                                        from £0.47
                                                        SCREW NO8 X 1/2 COUNTERSUNK Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: 83-61212XXX
                                                        INFILL PANEL, DOOR
                                                        INFILL PANEL, DOOR Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 069-099-0009
                                                        CLIP, INFILL PANEL
                                                        from £0.47
                                                        from £0.47
                                                        CLIP-INFILL PANEL Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: 83-54474
                                                        VENEER, DOOR, RH
                                                        from £503.74
                                                        from £503.74
                                                        VENEER - DOOR RH Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: 83-54475
                                                        VENEER, DOOR, LH
                                                        from £503.74
                                                        from £503.74
                                                        VENEER - DOOR LH Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: 627-000-0603
                                                        SCREW, NO.6X3/8 PAN HD, CHROME
                                                        from £0.47
                                                        from £0.47
                                                        SCREW NO6 X 3/8 PAN Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 695296
                                                        HANDLE ASSEMBLY, DOOR PULL
                                                        from £10.31
                                                        from £10.31
                                                        HANDLE - PULL Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 83-62698
                                                        TRACKING STRIP, DOOR PAD
                                                        from £5.77
                                                        from £5.77
                                                        TACKING STRIP Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: 582-000-2829
                                                        POP RIVET, 1/8
                                                        Tracking strip to pad
                                                        from £0.49
                                                        from £0.49
                                                        POP-RIVET 3.2MM COUNTERSUNK Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 83-62430XXX
                                                        Door pocket, RH
                                                        Door pocket, RH Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 83-62431XXX
                                                        DOOR POCKET, LH
                                                        DOOR POCKET, LH Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: 692005
                                                        SCREW, M5X16
                                                        Door pocket to pad
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M5 X 16 HEX HD Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 692065
                                                        WASHER, SHAKEPROOF, M5
                                                        Door pocket to pad
                                                        from £0.47
                                                        from £0.47
                                                        WASHER M5 S/PROOF Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: 692055
                                                        WASHER, PLAIN, M5
                                                        Door pocket to pad
                                                        from £0.47
                                                        from £0.47
                                                        WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: 693945
                                                        RIVNUT, M5X12
                                                        Door pocket to pad
                                                        from £0.66
                                                        from £0.66
                                                        RIVNUT M5 X 12 Genuine Aston Martin - New (to order)
                                                        # 23
                                                        MPN: 692055
                                                        WASHER, PLAIN, M5
                                                        Door pocket to pad
                                                        from £0.47
                                                        from £0.47
                                                        WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                        # 24
                                                        MPN: 694202
                                                        NUT, LOCK, M5
                                                        Door pocket to pad
                                                        from £0.49
                                                        from £0.49
                                                        NUT M5 RH - LOCK Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 83-73095
                                                        DOOR PAD SINGLE STAGE BRACKET
                                                        from £12.24
                                                        from £12.24
                                                        DOOR PAD SINGL STAGE Genuine Aston Martin - New (to order)
                                                        # 26
                                                        MPN: 582-000-2829
                                                        POP RIVET, 1/8
                                                        from £0.49
                                                        from £0.49
                                                        POP-RIVET 3.2MM COUNTERSUNK Genuine Aston Martin - New (to order)
                                                        # 27
                                                        MPN: 696999
                                                        CLIP, TRIM FIXING
                                                        from £0.54
                                                        from £0.54
                                                        CLIP TRIM FIXING Genuine Aston Martin - New (to order)
                                                        # 28
                                                        MPN: 694566
                                                        SNAPSAC
                                                        from £0.47
                                                        from £0.47
                                                        SNAPSAC Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: 83-73094
                                                        EDGE BRACKET, DOOR PAD
                                                        EDGE BRACKET DOOR PAD Genuine Aston Martin - New (to order)
                                                        # 30
                                                        MPN: 695559
                                                        SCREW, FLG, M5X12
                                                        SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                        # 31
                                                        MPN: 692205
                                                        POP RIVET, 1/8 X 3/8
                                                        Edge bracket attach
                                                        from £0.47
                                                        from £0.47
                                                        POP RIVET, 1/8 X 3/8 Genuine Aston Martin - New (to order)
                                                        # 32
                                                        MPN: 696608
                                                        SCREW, FLG, NO.6X1/2
                                                        from £0.47
                                                        from £0.47
                                                        SCREW NO6 X 1/2INFLG Genuine Aston Martin - New (to order)
                                                        # 33
                                                        MPN: 695765
                                                        FOAM SHEET, 3MM
                                                        Door pad
                                                        from £31.28
                                                        from £31.28
                                                        FOAM SHEET 3MM Genuine Aston Martin - New (to order)
                                                        # 34
                                                        MPN: 694890
                                                        FOAM, 15MM
                                                        Door pad
                                                        FOAM, 15MM Genuine Aston Martin - New (to order)
                                                        # 35
                                                        MPN: 83-62217
                                                        SPEAKER, DOOR PAD INSULATOR FOAM
                                                        from £10.96
                                                        from £10.96
                                                        SPEAKER DOOR PAD Genuine Aston Martin - New (to order)
                                                        # 36
                                                        MPN: 83-72432
                                                        TOP CORNER CAP ABS, DOOR PAD, RH
                                                        from £14.21
                                                        from £14.21
                                                        TOP CORNER CAP ABS Genuine Aston Martin - New (to order)
                                                        # 36
                                                        MPN: 83-72433
                                                        TOP CORNER CAP ABS, DOOR PAD, LH
                                                        from £14.21
                                                        from £14.21
                                                        TOP CORNER CAP ABS Genuine Aston Martin - New (to order)
                                                        # -
                                                        -
                                                        TAPE, SELF ADHESIVE, 35X50
                                                        # 37
                                                        MPN: 83-74091
                                                        WATER SHEDDER, DOOR, LH
                                                        WATER SHEDDER, DOOR, LH Genuine Aston Martin - New (to order)
                                                        # 37
                                                        MPN: 83-74090
                                                        WATER SHEDDER, DOOR, RH
                                                        WATER SHEDDER, DOOR, RH Genuine Aston Martin - New (to order)
                                                        # 38
                                                        MPN: 83-74492
                                                        CHEATER ASSEMBLY, INNER TRIM, RH
                                                        From (V)79045
                                                        from £36.71
                                                        from £36.71
                                                        ASSEMBLY CHEATER INNER Genuine Aston Martin - New (to order)
                                                        # 38
                                                        MPN: 83-74493
                                                        CHEATER ASSEMBLY, INNER TRIM, LH
                                                        From (V)79045
                                                        from £36.71
                                                        from £36.71
                                                        ASSEMBLY CHEATER INNER Genuine Aston Martin - New (to order)
                                                        # 39
                                                        MPN: 695559
                                                        SCREW, FLG, M5X12
                                                        From (V)79045
                                                        SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                        # 40
                                                        MPN: 37-64560
                                                        SEAT SWITCH AND PLUG ASSY
                                                        Up to (V)79079 excl 79074
                                                        from £329.80
                                                        from £329.80
                                                        ASSEMBLY SEAT SW & PLUG Genuine Aston Martin - New (to order)
                                                        # 41
                                                        MPN: 83-61465
                                                        RETENTION BRACKET, SEAT SWITCH
                                                        Up to (V)79079 excl 79074
                                                        from £7.37
                                                        from £7.37
                                                        BRACKET RETENTION Genuine Aston Martin - New (to order)
                                                        # 42
                                                        MPN: 694202
                                                        NUT, LOCK, M5
                                                        Up to (V)79079 excl 79074
                                                        from £0.49
                                                        from £0.49
                                                        NUT M5 RH - LOCK Genuine Aston Martin - New (to order)
                                                        # 43
                                                        MPN: 692066
                                                        WASHER, SHAKEPROOF, M6
                                                        Up to (V)79079 excl 79074
                                                        from £0.47
                                                        from £0.47
                                                        WASHER, SPR, M6 Genuine Aston Martin - New (to order)
