1.3 - Cylinder Heads

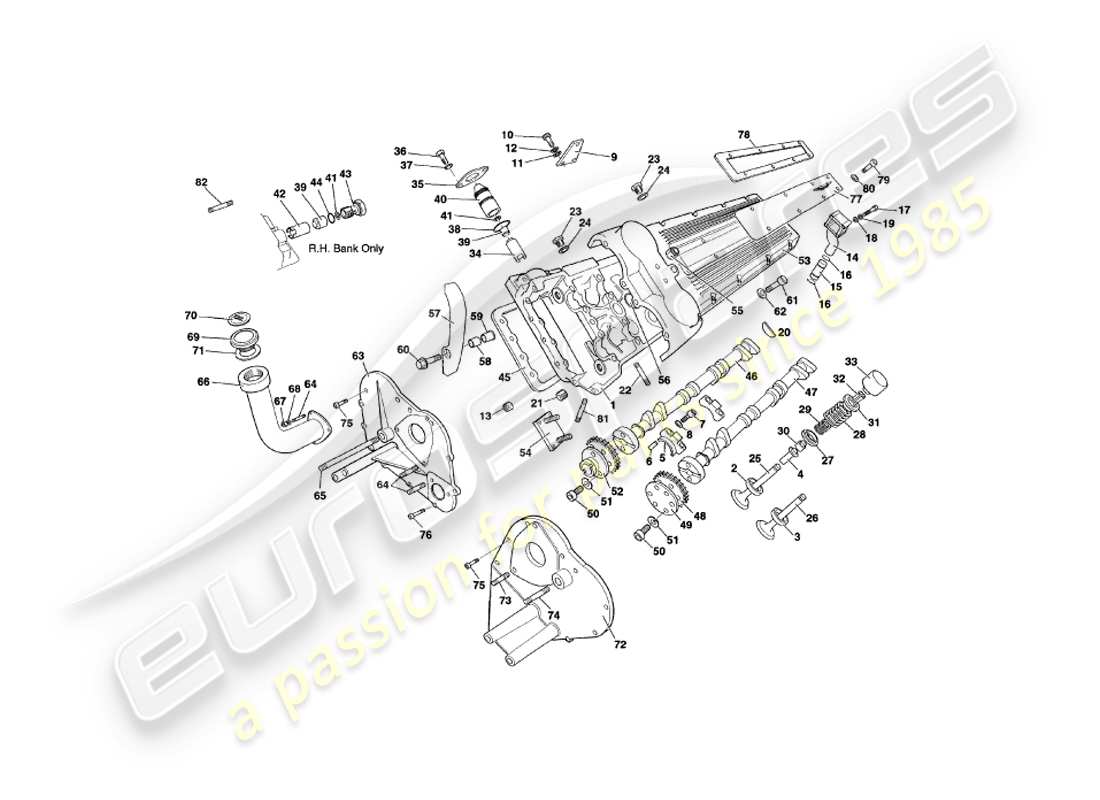

Aston Martin V8 Coupe (2000) Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 06-70317
CYLINDER HEAD STUDDED - LH
from £11,607.48
from £11,607.48
# 1
MPN: 06-70316
CYLINDER HEAD STUDDED - RH
from £11,607.48
from £11,607.48
# 2
MPN: 06-70306
VALVE SEAT, INLET
from £95.10
from £95.10
# 3
MPN: 06-70307
VALVE SEAT, EXHAUST
from £95.10
from £95.10
# 4
MPN: 06-71440
VALVE GUIDE, INLET
from £72.77
from £72.77
# 4
MPN: 06-71441
VALVE GUIDE, EXHAUST
from £27.96
from £27.96
# 5
MPN: 06-23120
BEARING CAP, FRONT RH
Only available in sets
from £190.27
from £190.27
# 5
MPN: 06-23121
BEARING CAP, FRONT LH
Only available in sets
from £190.27
from £190.27
# 5
MPN: 06-26358
BEARING CAP, INTERMEDIATE, NO 3
Only available in sets
from £31.07
from £31.07
# 5
MPN: 06-26469
BEARING CAP, NO 2,4,5
Only available in sets
from £17.43
from £17.43
# 6
MPN: 06-26127
DOWEL
from £8.41
from £8.41
# 7
MPN: 693364
SCREW, SOCKET HEAD, 5/16 UNC X 1 3/4
Cam bearing cap attach
from £1.48
from £1.48
# 8
MPN: 694208
WASHER, 13MM OD, SPECIAL
Cam bearing cap attach
from £1.56
from £1.56
# 9
MPN: 06-70565
BLANKING PLATE, WATER
from £11.83
from £11.83
# 10
MPN: 690331
SCREW, SOCKET HEAD, 1/4 UNC X 5/8 LONG
Blanking plate to cylinder head
from £1.15
from £1.15
# 11
MPN: 119470
WASHER, PLAIN, 1/4
Blanking plate to cylinder head
# 12
MPN: 119480
WASHER, SPRING, 1/4
Blanking plate to cylinder head
# 13
MPN: 06-26533
PLUG, AIR INJECTION GALLERY
from £5.45
from £5.45
# 14
MPN: 06-70691
ELBOW, REAR DRAIN, LH
from £156.37
from £156.37
# 14
MPN: 06-70690
ELBOW, REAR DRAIN, RH
from £156.37
from £156.37
# 15
MPN: 06-70689
TUBE, JOINER
from £31.95
from £31.95
# 16
MPN: 06-71098
O' ring
from £1.90
from £1.90
# 17
MPN: 500414
BOLT, 1/4 UNC X 1 3/4
Elbow to cylinder head
from £1.23
from £1.23
# 18
MPN: 119470
WASHER, PLAIN, 1/4
Elbow to cylinder head
# 19
MPN: 119480
WASHER, SPRING, 1/4
Elbow to cylinder head
# -
-
LOCTITE 509
Elbow to cylinder head
# -
-
LOCTIE ACTIVATOR 7471
Elbow to cylinder head
# 20
MPN: 080-007-0111
SEAL PLUG, LH CYLINDER HEAD
# 21
MPN: 06-26755
PLUG, 3/8 BSP
from £12.19
from £12.19
# 22
MPN: 690993
STUD, 5/16 UNC/UNF X 1 15/32
EXHAUST MANIFOLD
from £7.54
from £7.54
# 23
MPN: 119591
PLUG, 1/8 BSP, FLANGED
Oilway blanking
from £11.83
from £11.83
# 24
MPN: 095-033-0161
COPPER WASHER
Plug, oilway blanking
# 25
MPN: 06-70308
INLET VALVE
from £95.10
from £95.10
# 26
MPN: 06-70309
EXHAUST VALVE
from £95.10
from £95.10
# 27
MPN: 06-23107
VALVE SPRING SEAT
from £31.79
from £31.79
# 28
MPN: 06-23105
VALVE SPRING, OUTER
from £27.49
from £27.49
# 29
MPN: 06-64355
VALVE SPRING, INNER
from £16.29
from £16.29
# 30
MPN: 06-72260
Seal, valve stem
from £6.17
from £6.17
# 31
MPN: 06-70310
RETAINER, VALVE SPRING
from £29.89
from £29.89
# 32
MPN: 06-70311
VALVE COTTER
from £4.94
from £4.94
# 33
MPN: 06-26843
CAM FOLLOWER, ANTI DRAIN
from £67.84
from £67.84
# 34
MPN: 06-26553
CHAIN ADJUSTER
from £148.23
from £148.23
# 35
MPN: 06-71829
RETAINING PLATE
from £15.23
from £15.23
# 36
MPN: 510405
SETSCREW, 1/4 UNC X 5/8
# 37
MPN: 119470
WASHER, PLAIN, 1/4
# 38
MPN: 696509
O' ring
from £2.35
from £2.35
# -
-
SLEEVE AND VALVE ASSEMBLY
# 39
MPN: 06-26033
SPIGOT, CHECK VALVE
from £18.96
from £18.96
# 40
MPN: 06-74582
SLEEVE PLUNGER, CHAIN TENSIONER
from £240.72
from £240.72
# 41
MPN: 06-74583
WASHER PLUNGER, CHAIN TENSIONER
from £13.35
from £13.35
# 42
MPN: 06-26553
CHAIN ADJUSTER
from £148.23
from £148.23
# -
-
PLUG AND VALVE ASSEMBLY
# 43
MPN: 06-74586
PLUG, CHECK VALVE, CHAIN TENSIONER, RH
from £36.26
from £36.26
# 44
MPN: 06-26696
O' ring
from £0.76
from £0.76
# 45
MPN: 06-26847
CYLINDER HEAD GASKET
from £139.63
from £139.63
# -
-
NUT, CYLINDER HEAD
Cylinder head to block
# -
-
WASHER, CYLINDER HEAD
Cylinder head to block
# -
-
NUT, NYLOC, 5/16 UNF
Cylinder head to block
# -
-
WASHER, PLAIN, 5/16
Cylinder head to block
# -
-
NUT, NYLOC, 3/8 UNF
Cylinder head to block
# -
-
WASHER, PLAIN, 3/8
Cylinder head to block
# 46
MPN: 07-70648
CAMSHAFT, RH
from £957.40
from £957.40
# 47
MPN: 07-70649
CAMSHAFT, LH
from £957.40
from £957.40
# 48
MPN: 07-20291
SPROCKET, CAMSHAFT
from £292.10
from £292.10
# 49
MPN: 080-007-0107
WASHER, SPROCKET
Sprockets to camshafts
from £33.00
from £33.00
# 50
MPN: 693177
SCREW, SOCKET HEAD, 5/16 UNF X 3/4
Sprockets to camshafts
from £1.05
from £1.05
# 51
MPN: 694208
WASHER, 13MM OD
Sprockets to camshafts
from £1.56
from £1.56
# 52
MPN: 07-25803
DISTRIBUTOR DRIVE ADAPTOR, LH
from £190.73
from £190.73
# 52
MPN: 07-25802
DISTRIBUTOR DRIVE ADAPTOR, RH
from £190.73
from £190.73
# 53
MPN: 07-70536
CAMSHAFT COVER
from £558.36
from £558.36
# 54
MPN: 03-71848
CHAIN GUIDE ASSEMBLY, INTERMEDIATE SPROCKET
from £92.90
from £92.90
# 55
MPN: 694310
NUT, 1/4 UNF ST/STL
from £6.83
from £6.83
# -
-
LOCTITE 5699, ULTRA GREY
Chain guide attach
# 56
MPN: 695773
O' RING, SPARK PLUG RECESS
from £0.93
from £0.93
# 57
MPN: 03-72019
CHAIN TENSIONER SHOE, LH
from £486.29
from £486.29
# -
-
LINING, CHAIN TENSIONER, LH
# -
-
CHAIN TENSIONER SHOE, RH
# -
-
LINING, CHAIN TENSIONER, RH
# 58
MPN: 03-26007
BEARING
from £100.05
from £100.05
# 59
MPN: 03-26006
SLEEVE, SPACER
from £12.29
from £12.29
# 60
MPN: 03-26203
SCREW, M8X35 MODIFIED
LH adjuster attachment
from £13.93
from £13.93
# 60
MPN: 694100
SCREW, M8 X 35
RH adjuster attachment
from £7.33
from £7.33
# 61
MPN: 690333
SCREW, SOCKET HEAD, 1/4 UNC X 1 1/2
Cam cover attach
from £2.83
from £2.83
# 61
MPN: 690332
SCREW, SOCKET HEAD, 1/4 UNC X 3/4
Cam cover attach
from £1.94
from £1.94
# 61
MPN: 696458
SCREW, SOCKET HEAD, 1/4 UNC X 2 1/2
Cam cover attach
from £2.99
from £2.99
# 62
MPN: 692056
WASHER, PLAIN M6
from £0.47
from £0.47
# 63
MPN: 07-64722
FRONT COVER, CYLINDER HEAD, RH
from £449.07
from £449.07
# 64
MPN: 694253
STUD, M5XM5
Distributor/oil filter
from £7.30
from £7.30
# 65
MPN: 694226
STUD, M10XM10X135
PAS pump to pivot
from £12.55
from £12.55
# 66
MPN: 07-64714
Pipe assembly, oil filter
from £710.39
from £710.39
# 67
MPN: 692800
NUT, NYLOC, M5
Oil filler pipe to front cover
from £0.47
from £0.47
# 68
MPN: 692055
WASHER, PLAIN, M5
Oil filler pipe to front cover
from £0.47
from £0.47
# -
-
LOCTITE 5699, ULTRA GREY
Oil filler pipe to front cover
# -
-
OIL FILLER CAP AND LABEL ASSEMBLY
# 69
MPN: 07-71843
OIL FILLER CAP
from £62.24
from £62.24
# 70
MPN: 07-71981
LABEL, OIL FILLER CAP
# 71
MPN: 095-007-0106
SEAL, OIL FILLER CAP
from £1.90
from £1.90
# 72
MPN: 07-64421
FRONT COVER, CYLINDER HEAD, LH
from £1,193.49
from £1,193.49
# 73
MPN: 694253
STUD, M5XM5
Distributor to front cover
from £7.30
from £7.30
# 74
MPN: 694228
STUD, M10
Pump adjusting link to front cover
from £10.68
from £10.68
# 75
MPN: 691439
SCREW, SOCKET HEAD, 1/4 UNC X 5/8
Front covers to cylinder heads
from £0.87
from £0.87
# -
-
LOCTITE 5699, ULTRA GREY
Front covers to cylinder heads
# 76
MPN: 696790
SCREW, SOCKET HEAD, 1/4 UNC X 1
Front cover and oil filler to cyl head
from £0.72
from £0.72
# 77
MPN: 07-64713
Spark plug cover, LH
from £35.00
from £35.00
# 77
MPN: 07-64712
Spark plug cover, RH
from £45.84
from £45.84
# 78
MPN: 07-64803
Spacer, spark plug cover
# 79
MPN: 693968
SCREW, 1/4 UNC X 1/2 LOW HEAD, ST/STL
Spark plug cover attach
from £12.69
from £12.69
# 80
MPN: 698230
WASHER, SPECIAL, SHAKEPROOF
Spark plug cover attach
from £0.47
from £0.47
# 81
MPN: 694222
STUD, 5/16 UNC/UNF
AIR PUMP BRACKET
from £9.31
from £9.31
# 82
MPN: 694229
STUD, 5/16 UNC/UNF X 1.55
POWER STEERING BRACKET
from £5.15
from £5.15
-part-diagram-1.4a.webp "ASTON MARTIN V8 COUPE (2000) TIMING CASE, WATER PUMP & SPROCKETS PARTS DIAGRAM")
-part-diagram-1.4b.webp "ASTON MARTIN V8 COUPE (2000) BELTS & CHAINS PARTS DIAGRAM")
-part-diagram-1.5.webp "ASTON MARTIN V8 COUPE (2000) OIL PUMP & SUMP PARTS DIAGRAM")
-part-diagram-1.6.webp "ASTON MARTIN V8 COUPE (2000) OIL COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-1.7a.1.webp "ASTON MARTIN V8 COUPE (2000) WATER COOLING SYSTEM, UP TO 79079 PARTS DIAGRAM")
-part-diagram-1.7a.2.webp "ASTON MARTIN V8 COUPE (2000) WATER COOLING SYSTEM, VIN 79080 ON PARTS DIAGRAM")
-part-diagram-1.7b.webp "ASTON MARTIN V8 COUPE (2000) RADIATOR FAN COWLING PARTS DIAGRAM")
-part-diagram-1.8.webp "ASTON MARTIN V8 COUPE (2000) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-1.9.webp "ASTON MARTIN V8 COUPE (2000) GENERATOR, STARTER & AIR PUMP PARTS DIAGRAM")
-part-diagram-2.1.webp "ASTON MARTIN V8 COUPE (2000) THROTTLE LINKAGE & CONTROLS PARTS DIAGRAM")
-part-diagram-2.2a.webp "ASTON MARTIN V8 COUPE (2000) INLET MANIFOLDS AND PLENUM PARTS DIAGRAM")
-part-diagram-2.2b.webp "ASTON MARTIN V8 COUPE (2000) AIR FILTERS PARTS DIAGRAM")
-part-diagram-2.3.webp "ASTON MARTIN V8 COUPE (2000) SECONDARY AIR INJECTION SYSTEM PARTS DIAGRAM")
-part-diagram-2.4.webp "ASTON MARTIN V8 COUPE (2000) VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-2.5.webp "ASTON MARTIN V8 COUPE (2000) ELECTRONIC FUEL INJECTION PARTS DIAGRAM")
-part-diagram-2.6.webp "ASTON MARTIN V8 COUPE (2000) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-2.7.webp "ASTON MARTIN V8 COUPE (2000) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-3.1.webp "ASTON MARTIN V8 COUPE (2000) TORQUE COVERTOR PARTS DIAGRAM")
-part-diagram-3.2.webp "ASTON MARTIN V8 COUPE (2000) GEARBOX COOLING PARTS DIAGRAM")
-part-diagram-3.3a.webp "ASTON MARTIN V8 COUPE (2000) GEAR SELECTOR PARTS DIAGRAM")
-part-diagram-3.3b.webp "ASTON MARTIN V8 COUPE (2000) GEARBOX LINKAGE PARTS DIAGRAM")
-part-diagram-3.3c.webp "ASTON MARTIN V8 COUPE (2000) FOUR SPEED GEARBOX PARTS DIAGRAM")
-part-diagram-3.4.webp "ASTON MARTIN V8 COUPE (2000) TORQUE TUBE AND PROPSHAFT PARTS DIAGRAM")
-part-diagram-3.5.webp "ASTON MARTIN V8 COUPE (2000) HYPOID UNIT PARTS DIAGRAM")
-part-diagram-3.6.webp "ASTON MARTIN V8 COUPE (2000) DRIVESHAFT AND HUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-4.1.webp "ASTON MARTIN V8 COUPE (2000) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-4.2.webp "ASTON MARTIN V8 COUPE (2000) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-4.3.webp "ASTON MARTIN V8 COUPE (2000) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-4.4.webp "ASTON MARTIN V8 COUPE (2000) POWER STEERING PARTS DIAGRAM")
-part-diagram-5.1.webp "ASTON MARTIN V8 COUPE (2000) SERVO & MODULATOR PARTS DIAGRAM")
-part-diagram-5.2.webp "ASTON MARTIN V8 COUPE (2000) FRONT BRAKES PARTS DIAGRAM")
-part-diagram-5.3.webp "ASTON MARTIN V8 COUPE (2000) REAR BRAKES PARTS DIAGRAM")
-part-diagram-5.4.webp "ASTON MARTIN V8 COUPE (2000) HANDBRAKE PARTS DIAGRAM")
-part-diagram-5.5.webp "ASTON MARTIN V8 COUPE (2000) PEDAL GEAR PARTS DIAGRAM")
-part-diagram-5.6.webp "ASTON MARTIN V8 COUPE (2000) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-6.1.webp "ASTON MARTIN V8 COUPE (2000) ENGINE ELECTRICAL COMPONENTS PARTS DIAGRAM")
-part-diagram-6.2a.webp "ASTON MARTIN V8 COUPE (2000) HEADLAMPS PARTS DIAGRAM")
-part-diagram-6.2b.1.webp "ASTON MARTIN V8 COUPE (2000) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2b.2.webp "ASTON MARTIN V8 COUPE (2000) EXTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2c.webp "ASTON MARTIN V8 COUPE (2000) INTERIOR LAMPS PARTS DIAGRAM")
-part-diagram-6.2d.webp "ASTON MARTIN V8 COUPE (2000) BULBS PARTS DIAGRAM")
-part-diagram-6.3a.webp "ASTON MARTIN V8 COUPE (2000) WINDSCREEN WIPERS PARTS DIAGRAM")
-part-diagram-6.3b.webp "ASTON MARTIN V8 COUPE (2000) WINDSCREEN WASHERS PARTS DIAGRAM")
-part-diagram-6.4a.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, TO VIN V79079 PARTS DIAGRAM")
-part-diagram-6.4b.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, VIN V79079-79091 PARTS DIAGRAM")
-part-diagram-6.4c.webp "ASTON MARTIN V8 COUPE (2000) UNDERBONNET COMPONENTS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.5.webp "ASTON MARTIN V8 COUPE (2000) ELECTRONIC CONTROL MODULES PARTS DIAGRAM")
-part-diagram-6.6a.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6b.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.6c.webp "ASTON MARTIN V8 COUPE (2000) INSTRUMENTS & CONTROLS PARTS DIAGRAM")
-part-diagram-6.7.webp "ASTON MARTIN V8 COUPE (2000) BATTERY PARTS DIAGRAM")
-part-diagram-6.8a.1.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, TO VIN V79097 PARTS DIAGRAM")
-part-diagram-6.8a.2.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.8b.1.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, TO VIN V79091 PARTS DIAGRAM")
-part-diagram-6.8b.2.webp "ASTON MARTIN V8 COUPE (2000) RELAYS, VIN V79092 ON PARTS DIAGRAM")
-part-diagram-6.9.webp "ASTON MARTIN V8 COUPE (2000) HARNESSES PARTS DIAGRAM")
-part-diagram-7.1.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS FRAME PARTS DIAGRAM")
-part-diagram-7.2a.webp "ASTON MARTIN V8 COUPE (2000) FRONT BUMPER SUPPORT FRAME PARTS DIAGRAM")
-part-diagram-7.2b.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2c.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2d.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS PANELS PARTS DIAGRAM")
-part-diagram-7.2e.webp "ASTON MARTIN V8 COUPE (2000) CHASSIS SUPERSTRUCTURE PARTS DIAGRAM")
-part-diagram-7.3a.webp "ASTON MARTIN V8 COUPE (2000) BODY PANELS PARTS DIAGRAM")
-part-diagram-7.3b.webp "ASTON MARTIN V8 COUPE (2000) FUEL FILLER FLAPS PARTS DIAGRAM")
-part-diagram-7.4a.webp "ASTON MARTIN V8 COUPE (2000) DOORS PARTS DIAGRAM")
-part-diagram-7.4b.1.webp "ASTON MARTIN V8 COUPE (2000) DOOR LATCH MECH, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.4b.2.webp "ASTON MARTIN V8 COUPE (2000) DOOR LATCH MECH, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.4c.webp "ASTON MARTIN V8 COUPE (2000) WEATHER SEALS PARTS DIAGRAM")
-part-diagram-7.5a.1.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5a.2.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.5b.webp "ASTON MARTIN V8 COUPE (2000) BODY FITTINGS PARTS DIAGRAM")
-part-diagram-7.6a.webp "ASTON MARTIN V8 COUPE (2000) BONNET PARTS DIAGRAM")
-part-diagram-7.6b.1.webp "ASTON MARTIN V8 COUPE (2000) TRUNK LID, TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.6b.2.webp "ASTON MARTIN V8 COUPE (2000) TRUNK LID, VIN V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.7.webp "ASTON MARTIN V8 COUPE (2000) BUMPERS PARTS DIAGRAM")
-part-diagram-7.8a.webp "ASTON MARTIN V8 COUPE (2000) GLASS PARTS DIAGRAM")
-part-diagram-7.8b.1a.webp "ASTON MARTIN V8 COUPE (2000) FRONT SEATS & BELTS TO VIN V79079 EXCL V79074 PARTS DIAGRAM")
-part-diagram-7.8b.1b.webp "ASTON MARTIN V8 COUPE (2000) FRONT SEATS & BELTS V79080 & V79074 ON PARTS DIAGRAM")
-part-diagram-7.8b.2.webp "ASTON MARTIN V8 COUPE (2000) REAR SEATS & BELTS PARTS DIAGRAM")
-part-diagram-7.8c.1a.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1b.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.1c.webp "ASTON MARTIN V8 COUPE (2000) FASCIA & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.2.webp "ASTON MARTIN V8 COUPE (2000) DOOR CASING PARTS DIAGRAM")
-part-diagram-7.8c.3a.webp "ASTON MARTIN V8 COUPE (2000) CENTRE CONSOLE & TRIM PARTS DIAGRAM")
-part-diagram-7.8c.3b.webp "ASTON MARTIN V8 COUPE (2000) REAR TRIM PARTS DIAGRAM")
-part-diagram-7.8c.4.webp "ASTON MARTIN V8 COUPE (2000) BOOT TRIM PARTS DIAGRAM")
-part-diagram-7.8d.1.webp "ASTON MARTIN V8 COUPE (2000) SOUND DEADENING PARTS DIAGRAM")
-part-diagram-7.8d.2.webp "ASTON MARTIN V8 COUPE (2000) CARPETS PARTS DIAGRAM")
-part-diagram-8.1a.webp "ASTON MARTIN V8 COUPE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.1b.webp "ASTON MARTIN V8 COUPE (2000) ENGINE COMPARTMENT INSTALLATION PARTS DIAGRAM")
-part-diagram-8.2.webp "ASTON MARTIN V8 COUPE (2000) INTERIOR INSTALLATION PARTS DIAGRAM")
-part-diagram-8.3.webp "ASTON MARTIN V8 COUPE (2000) SENSORS, SWITCHES, SOLENOIDS, MOTORS ETC PARTS DIAGRAM")
-part-diagram-9.1.webp "ASTON MARTIN V8 COUPE (2000) OPTIONAL EQUIPMENT PARTS DIAGRAM")
-part-diagram-9.2.webp "ASTON MARTIN V8 COUPE (2000) TOOLS & SUNDRIES PARTS DIAGRAM")
-part-diagram-1.1.webp "ASTON MARTIN V8 COUPE (2000) CYLINDER BLOCK PARTS DIAGRAM")
-part-diagram-1.2.webp "ASTON MARTIN V8 COUPE (2000) CRANKSHAFT, PISTONS & RODS PARTS DIAGRAM")
