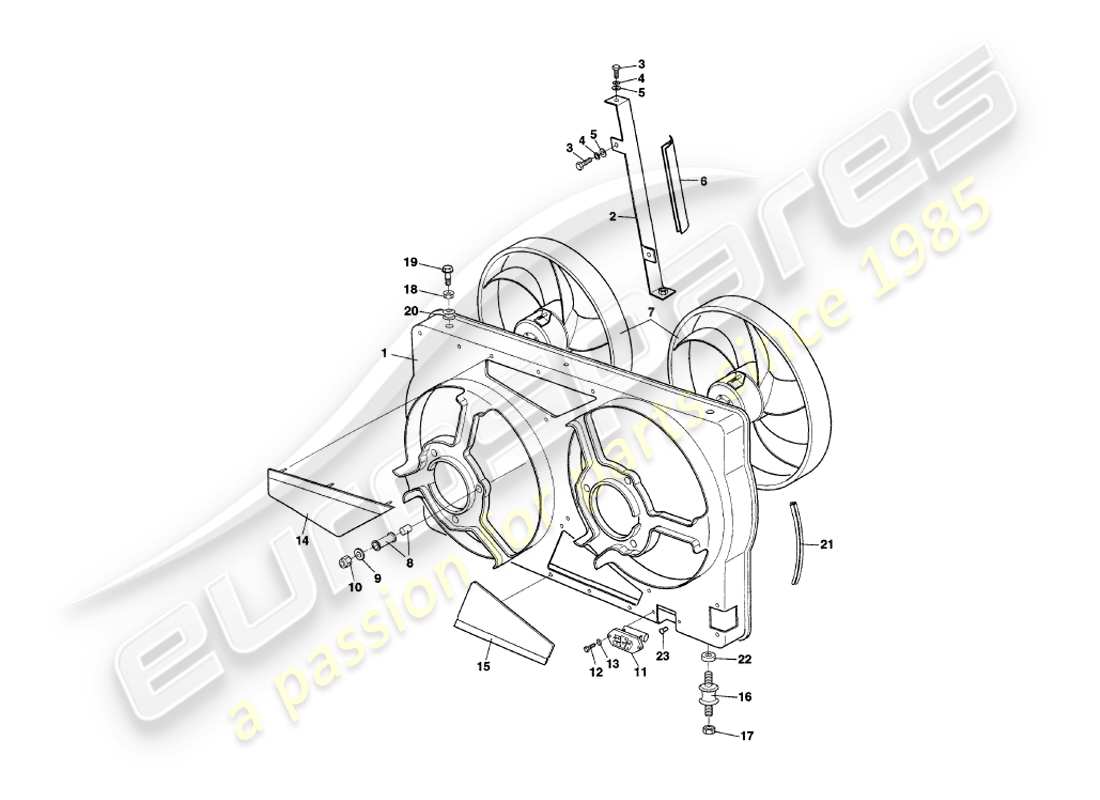

1.7B - Radiator Fan Cowling

Aston Martin V8 Coupe (2000) Radiator Fan Cowling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # -
                          MPN: 32-70532
                          COOLING FAN AND COWL ASSY
                          from £919.31
                          from £919.31
                          ASSEMBLY COOLNG FAN & CWL Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 32-73832
                          fan cowl
                          from £266.34
                          from £266.34
                          fan cowl Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 32-73821
                          FAN COWL SPLITTER ASSY
                          from £51.90
                          from £51.90
                          ASSEMBLY FAN COWL SPLTTR Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 695613
                          SCREW, M4X16
                          Splitter to fan cowl
                          from £0.67
                          from £0.67
                          SCREW, M4 X 16 Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 692064
                          WASHER, SPRF, M4
                          Splitter to fan cowl
                          from £0.47
                          from £0.47
                          WASHER M4 S/PROOF Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 692054
                          WASHER, PLAIN, M4
                          Splitter to fan cowl
                          from £0.47
                          from £0.47
                          WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 692369
                          SEAL, RUBBER
                          Splitter to radiator
                          from £22.67
                          from £22.67
                          SEAL-RUBBER 2 MTR LG Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 32-72136
                          COOLING FAN AND MOTOR
                          from £256.72
                          from £256.72
                          ELEC FAN/COWL AS BGT Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 32-72138
                          Sleeve, cooling fan
                          Fan to cowl
                          Sleeve, cooling fan Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 32-72823
                          WASHER, M6
                          Fan to cowl
                          WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 693983
                          NUT, NYLOC, M6
                          Fan to cowl
                          from £0.47
                          from £0.47
                          NUT M6 X 1 THIN SLK Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 37-52615
                          RESISTOR
                          from £39.44
                          from £39.44
                          RESISTR-SPEED CNTRL Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 692785
                          SCREW, M4X16
                          Resistor to cowl
                          from £1.20
                          from £1.20
                          SCREW M4 X 16 Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 692054
                          WASHER, PLAIN, M4
                          Resistor to cowl
                          from £0.47
                          from £0.47
                          WASHER, PLAIN, M4 Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 32-72820
                          FLAP, FAN COWL, UPPER
                          Cut from 32-72819
                          from £2.14
                          from £2.14
                          FLAP FAN COWL UPPER Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 32-72821
                          FLAP, FAN COWL, LOWER
                          Cut from 32-72819
                          from £2.14
                          from £2.14
                          FLAP FAN COWL LOWER Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 692599
                          RUBBER ISOLATOR
                          from £59.77
                          from £59.77
                          RUBBER ISOLATOR Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 695515
                          NUT, NYLOC, FLG M8
                          from £0.48
                          from £0.48
                          NUT M8 HEX FLANGE SLK Genuine Aston Martin - New (to order)
                          # 18
                          MPN: 695527
                          NUT, FLG M8
                          from £0.51
                          from £0.51
                          NUT M8 FLANGE GRD 8 Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 695160
                          SCREW, FLG, M8X30
                          from £1.15
                          from £1.15
                          SCREW M8 X 30HEX FLANGE Genuine Aston Martin - New (to order)
                          # 20
                          MPN: 32-72137
                          MOUNTING RUBBER, FAN COWL
                          from £5.26
                          from £5.26
                          MOUNTING RUBBER Genuine Aston Martin - New (to order)
                          # -
                          -
                          GROMMET
                          # 21
                          MPN: 692373
                          SEAL, FAN COWL
                          from £128.00
                          from £128.00
                          SEAL-2 MTR LONG Genuine Aston Martin - New (to order)
                          # 22
                          MPN: 069-064-0050
                          SPACER, FAN COWL/RUBBER ISOLATOR
                          from £9.32
                          from £9.32
                          SPACER Genuine Aston Martin - New (to order)
                          # 23
                          MPN: 694964
                          RIVNUT, M4 CSK HEAD
                          from £0.57
                          from £0.57
                          RIVNUT M4 C'SUNK HD Genuine Aston Martin - New (to order)
                          # -
                          -
                          CABLE TIE, 98MM X 22MM
                          Harness to fan cowl
                          # -
                          -
                          SCREW, M5 X 16
                          Fan earth to chassis
                          # -
                          -
                          WASHER, SPRF, M5
                          Fan earth to chassis
                          # -
                          -
                          WASHER, PLAIN, M5
                          Fan earth to chassis
