aston martin v8 coupe (2000) secondary air injection system parts diagram

2.3 - Secondary Air Injection System

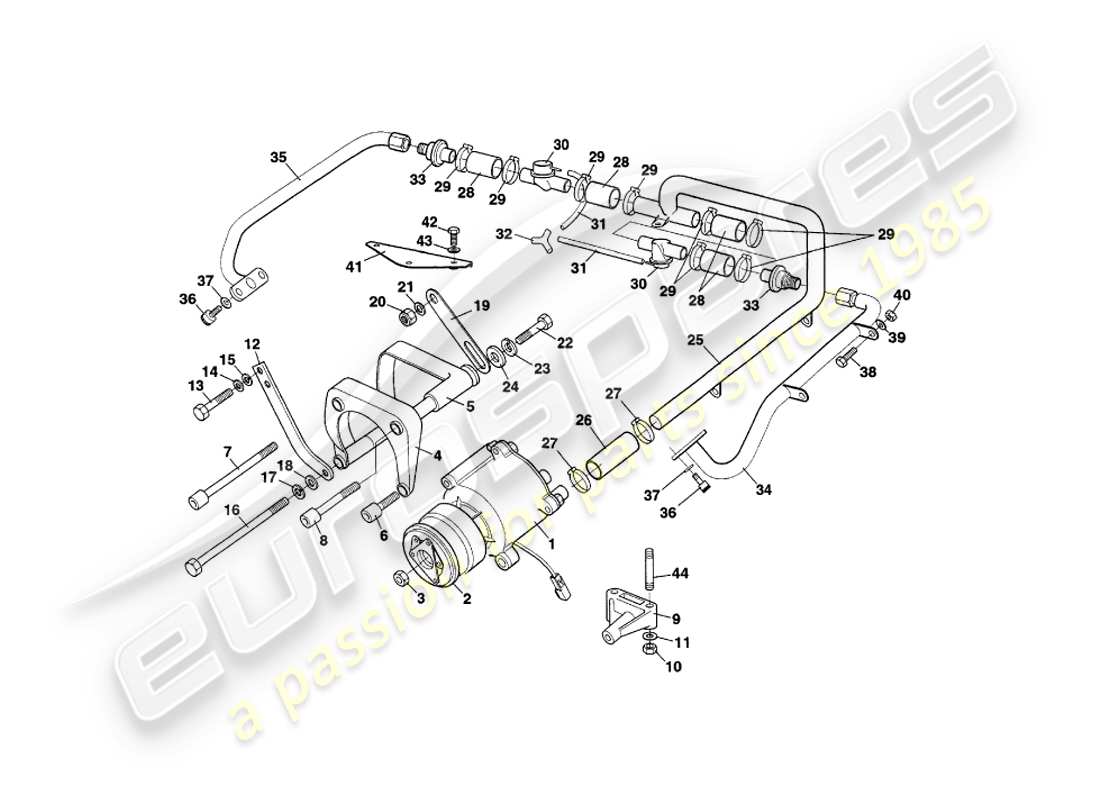

Aston Martin V8 Coupe (2000) Secondary AIR Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # -
                                        MPN: 07-26473
                                        AIR pump and clutch assembly
                                        For mountings - see section 1.9
                                        AIR pump and clutch assembly Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: 07-26472
                                        AIR PUMP
                                        from £650.78
                                        from £650.78
                                        AIR PUMP-NIPPONDENSO Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 07-71505
                                        CLUTCH, AIR PUMP
                                        from £467.99
                                        from £467.99
                                        CLUTCH - 4PK Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: 692232
                                        LOCKNUT, M14, THIN
                                        from £2.21
                                        from £2.21
                                        NUT M14 PLN THIN HEX Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        LOCTITE, NUTLOCK 242E, BLUE
                                        # 4
                                        MPN: 07-26460
                                        HOUSING OUTER, AIR PUMP
                                        from £221.13
                                        from £221.13
                                        HSG OUTER-AIR PUMP Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: 07-26462
                                        HOUSING ASSEMBLY INNER, AIR PUMP
                                        from £107.40
                                        from £107.40
                                        ASSEMBLY HSG INNR-AIR PMP Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 693782
                                        CAPSCREW, M8X20
                                        from £0.55
                                        from £0.55
                                        SCREW M8 X20 SOCKET CAP Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 694261
                                        CAPSCREW, M8X100
                                        from £2.59
                                        from £2.59
                                        SCREW M8 X100 SOCKET CP Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: 694480
                                        CAPSCREW, M8X70
                                        from £0.88
                                        from £0.88
                                        SCREW M8 X70 SOCKET CAP Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: 07-26223
                                        MOUNTING BRACKET ASSY, AIR PUMP
                                        from £92.20
                                        from £92.20
                                        ASSEMBLY BRACKET MOUNTING Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: 123115
                                        NUT, NYLOC, 5/16 UNF
                                        Mounting bracket to cylinder head
                                        from £3.58
                                        from £3.58
                                        Nut, Nyloc,5/16UNF Timing case to block Genuine Aston Martin - New (to order)
                                        SPACER Genuine Ferrari Part - New (to order)
                                        # 11
                                        MPN: 119471
                                        WASHER, PLAIN, 5/16
                                        Mounting bracket to cylinder head
                                        WASHER, PLAIN, 5/16in Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: 07-25872
                                        PLATE, PIVOT, AIR PUMP
                                        from £32.65
                                        from £32.65
                                        PLATE - PIVOT Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: 692087
                                        SCREW, M8X20
                                        Pivot plate to front cover
                                        Screw, M8 x 20, plate to front cover Genuine Aston Martin - New (to order)
                                        # 14
                                        MPN: 692047
                                        WASHER, SPRING, M8
                                        Pivot plate to front cover
                                        from £0.47
                                        from £0.47
                                        WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 692057
                                        WASHER, PLAIN, M8
                                        Pivot plate to front cover
                                        from £0.47
                                        from £0.47
                                        WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: 693217
                                        BOLT, M10X160
                                        AIR pump to bracket
                                        from £11.21
                                        from £11.21
                                        BOLT M10 X 160 HEX Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 692068
                                        WASHER, SHAKEPROOF, M10
                                        AIR pump to bracket
                                        from £0.47
                                        from £0.47
                                        WASHER M10 S/PROOF Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 692058
                                        WASHER, PLAIN, M10
                                        AIR pump to bracket
                                        from £0.47
                                        from £0.47
                                        WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 07-25871
                                        ADJUSTMENT LINK, AIR PUMP
                                        from £31.72
                                        from £31.72
                                        LINK ADJUSTMENT Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 692034
                                        NUT, NYLOC, M10
                                        Adjustment link to stud
                                        from £0.47
                                        from £0.47
                                        NUT M10 HEX SLK Genuine Aston Martin - New (to order)
                                        # 21
                                        MPN: 692058
                                        WASHER, PLAIN, M10
                                        Adjustment link to stud
                                        from £0.47
                                        from £0.47
                                        WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: 692185
                                        SETSCREW, M10X25
                                        Adjustment link to AIR pump
                                        from £1.00
                                        from £1.00
                                        SCREW M10 X25 HEX HD Genuine Aston Martin - New (to order)
                                        # 23
                                        MPN: 692048
                                        WASHER, SPRING, M10
                                        Adjustment link to AIR pump
                                        from £0.47
                                        from £0.47
                                        WASHER M10 SPRING Genuine Aston Martin - New (to order)
                                        # 24
                                        MPN: 692058
                                        WASHER, PLAIN, M10
                                        Adjustment link to AIR pump
                                        from £0.47
                                        from £0.47
                                        WASHER M10 PLAIN Genuine Aston Martin - New (to order)
                                        # 25
                                        MPN: 07-72927
                                        AIR INJECTION PIPE ASSY
                                        from £459.96
                                        from £459.96
                                        AIR INJ PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        PIPE CLIP
                                        Primary pipe to intake pipe
                                        # -
                                        -
                                        SCREW, M5X16
                                        Primary pipe to intake pipe
                                        # -
                                        -
                                        WASHER, PLAIN, 3/16 ID
                                        Primary pipe to intake pipe
                                        # -
                                        -
                                        NUT, M5
                                        Primary pipe to intake pipe
                                        # 26
                                        MPN: 07-26652
                                        HOSE, AIR PUMP TO INJECTION PIPE ASSY
                                        Made from 694790
                                        HOSE Genuine Aston Martin - New (to order)
                                        # 27
                                        MPN: 694620
                                        CLIP, OETIKER 326
                                        Hose attachment
                                        from £1.22
                                        from £1.22
                                        CLIP OETIKER 316 Genuine Aston Martin - New (to order)
                                        # 28
                                        MPN: 07-26651
                                        HOSE, AIR INJECTION
                                        Made from 696337
                                        HOSE Genuine Aston Martin - New (to order)
                                        # 29
                                        MPN: 692723
                                        EAR CLAMP
                                        Hose attachment
                                        from £2.09
                                        from £2.09
                                        CLAMP - EAR NO286 Genuine Aston Martin - New (to order)
                                        # 30
                                        MPN: 07-26602
                                        AIR switching valve
                                        from £75.76
                                        from £75.76
                                        AIR switching valve Genuine Aston Martin - New (to order)
                                        # 31
                                        MPN: 692546
                                        TUBE, POLYVON, 1/8 DIA
                                        AIR switching valve
                                        from £8.13
                                        from £8.13
                                        TUBE 1/8 ID PLVN BLK Genuine Aston Martin - New (to order)
                                        # 32
                                        MPN: 08-21068
                                        Y CONNECTION
                                        AIR switching valve
                                        Y' connection Genuine Aston Martin - New (to order)
                                        # 33
                                        MPN: 07-26655
                                        CHECK VALVE
                                        from £66.86
                                        from £66.86
                                        CHECK VALVE Genuine Aston Martin - New (to order)
                                        # 34
                                        MPN: 07-73668
                                        SECONDARY AIR INJECTION PIPE ASSY, LH
                                        from £619.88
                                        from £619.88
                                        ASSEMBLY AIR INJ PIPE Genuine Aston Martin - New (to order)
                                        # 35
                                        MPN: 07-73666
                                        SECONDARY AIR INJECTION PIPE ASSY, RH
                                        from £619.88
                                        from £619.88
                                        ASSY-AIR INJ PIPE Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        WASHER, SPRING, 1/4
                                        AIR pipe RH, to cylinder head stud
                                        # -
                                        -
                                        WASHER, PLAIN, 1/4
                                        AIR pipe RH, to cylinder head stud
                                        # -
                                        -
                                        LOCKNUT, 1/4
                                        AIR pipe RH, to cylinder head stud
                                        # 36
                                        MPN: 694211
                                        CAPSCREW, M6X16
                                        Secondary AIR pipes attach
                                        from £0.89
                                        from £0.89
                                        SCREW M6 X16 SOCKET CAP Genuine Aston Martin - New (to order)
                                        # 37
                                        MPN: 692046
                                        WASHER, SPRING, M6
                                        Secondary AIR pipes attach
                                        from £0.47
                                        from £0.47
                                        WASHER M6 SPRING Genuine Aston Martin - New (to order)
                                        # 38
                                        MPN: 692262
                                        SCREW, M6X12
                                        Primary pipe to secondary pipe, LH
                                        from £0.47
                                        from £0.47
                                        SCREW M6 X 12 HEX HD Genuine Aston Martin - New (to order)
                                        # 39
                                        MPN: 692056
                                        WASHER, PLAIN, M6
                                        Primary pipe to secondary pipe, LH
                                        from £0.47
                                        from £0.47
                                        WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                        # 40
                                        MPN: 692151
                                        NUT, NYLOC, M6
                                        Primary pipe to secondary pipe, LH
                                        from £0.55
                                        from £0.55
                                        NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                                        # 41
                                        MPN: 07-72852
                                        SUPPORT BRACKET ASSY, AIR INJECTION PIPES
                                        from £23.16
                                        from £23.16
                                        ASSEMBLY SUPPORT BRACKET Genuine Aston Martin - New (to order)
                                        # 42
                                        MPN: 692090
                                        SCREW, M5X12
                                        from £0.47
                                        from £0.47
                                        SCREW M5 X 12 HEX HD Genuine Aston Martin - New (to order)
                                        # 43
                                        MPN: 692045
                                        WASHER, SPRING, M5
                                        from £0.47
                                        from £0.47
                                        WASHER, SPRING, M5 Genuine Aston Martin - New (to order)
                                        # 44
                                        MPN: 694222
                                        STUD, 5/16 UNC/UNF
                                        AIR PUMP BRACKET
                                        from £9.00
                                        from £9.00
                                        STUD 5/16 UNC/UNF Genuine Aston Martin - New (to order)
