6.1 - Engine Electrical Components

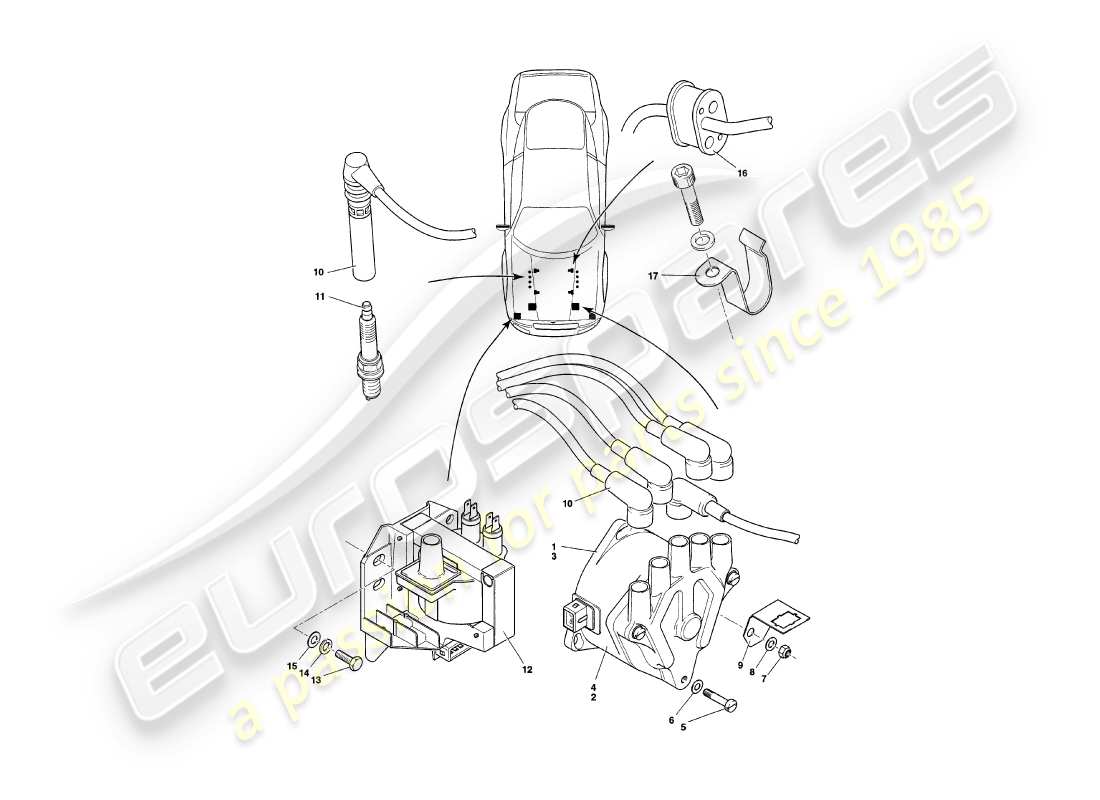

Aston Martin V8 Coupe (2000) Engine Electrical Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 07-26412
                              DISTRIBUTOR, RH
                              from £434.20
                              from £434.20
                              DISTRIBUTOR RH Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 07-25569
                              DISTRIBUTOR CAP, RH
                              from £1,109.87
                              from £1,109.87
                              DISTRIBUTOR CAP-RH Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 07-26413
                              DISTRIBUTOR, LH
                              from £434.20
                              from £434.20
                              DISTRIBUTOR LH Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 07-26779
                              DISTRIBUTOR CAP, LH
                              DISTRIBUTOR CAP, LH Genuine Aston Martin - New (to order)
                              # -
                              -
                              PICK UP ASSEMBLY
                              # -
                              -
                              TERMINAL BLOCK, HARNESS
                              # -
                              -
                              Timing disc
                              # 5
                              MPN: 07-25573
                              SCREW, DISTRIBUTOR CAP TO DISTRIBUTOR
                              SCREW, DISTRIBUTOR CAP TO BODY Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 07-25574
                              WASHER, DISTRIBUTOR CAP TO DISTRIBUTOR
                              WASHER, DISTRIBUTOR CAP TO BODY Genuine Aston Martin - New (to order)
                              # -
                              -
                              CORK SEAL FOR SCREW
                              # -
                              -
                              ROTOR ARM
                              # -
                              -
                              O RING, DISTRIBUTOR OIL SEAL
                              # 7
                              MPN: 692800
                              NUT, NYLOC, M5
                              Distributors to front covers
                              from £0.47
                              from £0.47
                              NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 692055
                              WASHER, PLAIN, M5
                              Distributors to front covers
                              from £0.47
                              from £0.47
                              WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 07-22607
                              Bracket, crankshaft sensor lead support
                              from £65.81
                              from £65.81
                              BRKT-SENS LD TO DIST Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 07-56302
                              Ignition lead set
                              Up to (V)79069
                              from £319.23
                              from £319.23
                              PLUG LEAD SET Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 07-56567
                              Ignition lead set
                              From (V)79070
                              from £317.68
                              from £317.68
                              PLUG LEAD SET Genuine Aston Martin - New (to order)
                              # -
                              -
                              SPIRAP, 1/2 OD
                              Ignition lead protection
                              # 11
                              MPN: 07-23116
                              Spark plug, BCPR-6E
                              from £6.27
                              from £6.27
                              Spark plug, BCPR-6E Genuine Aston Martin - New (to order)
                              # -
                              -
                              COPA SLIP, 8OZ TUBE
                              # 12
                              MPN: 07-26474
                              IGNITION MODULE
                              from £1,279.38
                              from £1,279.38
                              IGNITION MODULE Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 692047
                              WASHER, SPRING, M8
                              from £0.47
                              from £0.47
                              WASHER M8 SPRING Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 692057
                              WASHER, PLAIN, M8
                              from £0.47
                              from £0.47
                              WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 696818
                              CONNECTING BLOCK RUBBER, HT LEAD
                              from £3.84
                              from £3.84
                              CONNECTING BLOCK - Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 07-74385
                              Bracket, HT leads to camcover
                              from £39.22
                              from £39.22
                              BRACKET - HT LEADS Genuine Aston Martin - New (to order)
