aston martin v8 coupe (2000) exterior lamps parts diagram

6.2B.1 - Exterior Lamps

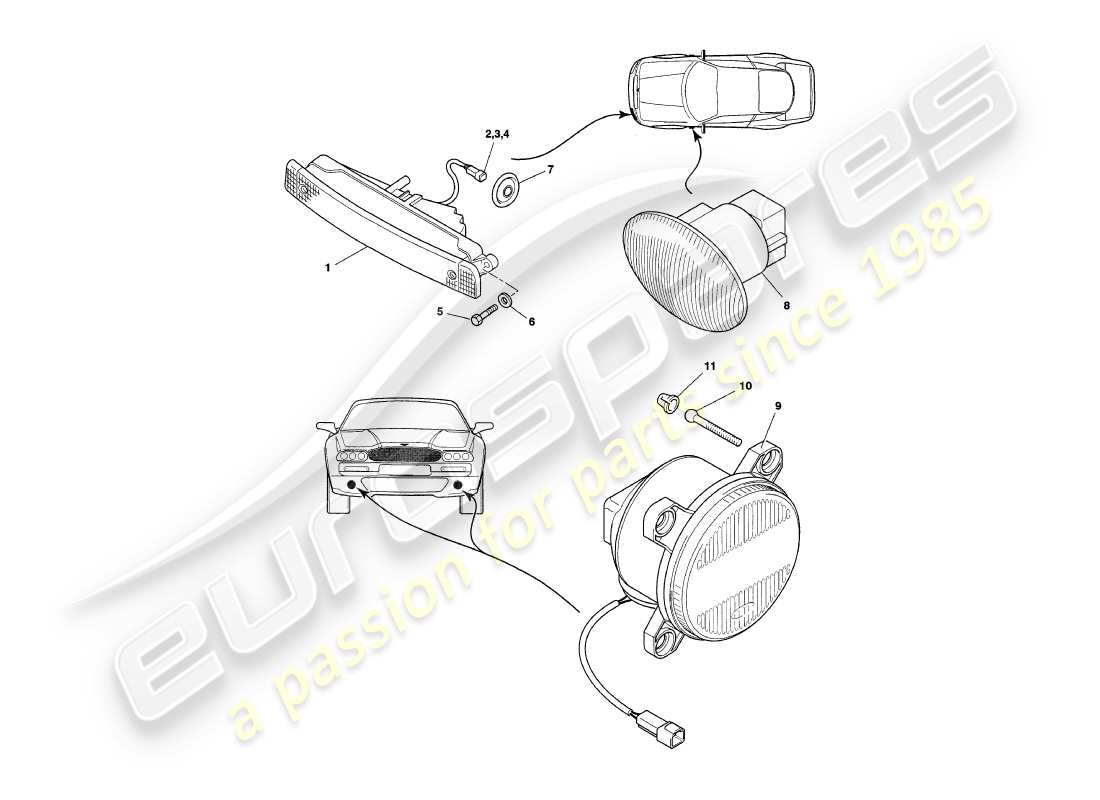

Aston Martin V8 Coupe (2000) Exterior Lamps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 37-72442
                        FRONT INDICATOR LAMP ASSEMBLY, RH
                        from £382.80
                        from £382.80
                        ASSEMBLY FRONT IND LAMP RH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 37-50242
                        FRONT INDICATOR, RH
                        from £182.28
                        from £182.28
                        FRONT INDICATOR RH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 37-72443
                        FRONT INDICATOR LAMP ASSEMBLY, LH
                        from £382.80
                        from £382.80
                        ASSEMBLY FRONT IND LAMP LH Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 37-50241
                        FRONT INDICATOR, LH
                        from £182.28
                        from £182.28
                        FRONT INDICATOR LH Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 696430
                        2 WAY SOCKET MOULDING
                        from £4.82
                        from £4.82
                        2 WAY SOCKET MOULDING Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 696442
                        2 WAY SOCKET LOCKING WEDGE
                        from £0.47
                        from £0.47
                        2 WAY LOCKING WEDGE Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 696456
                        SOCKET TERMINAL, 0.5-1.5
                        from £0.81
                        from £0.81
                        SOCKET TERMINAL 0.5-1.5 Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 692215
                        SCREW, M5X20
                        from £0.47
                        from £0.47
                        SCREW M5 X 20 HEX HD Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 692055
                        WASHER, PLAIN, M5
                        from £0.47
                        from £0.47
                        WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 020-037-0182
                        GROMMET, 1/2 X 1 3/8
                        from £3.86
                        from £3.86
                        GROMMET 1/2 X 1 3/8 Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 37-55981
                        LAMP, SIDE REPEATER
                        from £24.08
                        from £24.08
                        LAMP - SIDE REPEATER Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 37-56333
                        FRONT FOG LAMP
                        from £223.27
                        from £223.27
                        FRONT FOG LAMP MODFD Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 697896
                        ADJUSTING SCRW, 30MM LONG
                        from £12.98
                        from £12.98
                        SCREW 30MM LONG Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 697987
                        ADJUSTMENT BEARING
                        from £0.60
                        from £0.60
                        ADJUSTMENT BEARING Genuine Aston Martin - New (to order)
