aston martin v8 coupe (2000) chassis frame parts diagram

7.1 - Chassis Frame

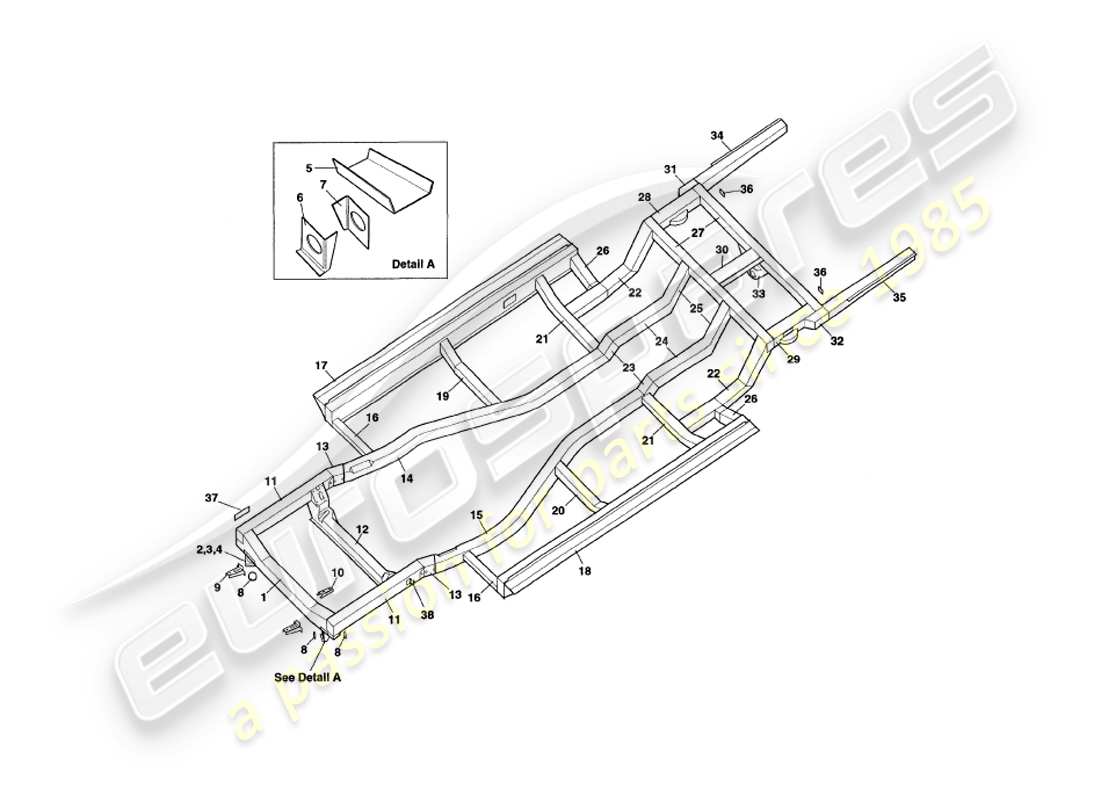

Aston Martin V8 Coupe (2000) Chassis Frame Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # -
                                                                                MPN: 21-55901
                                                                                Centre frame assembly
                                                                                Centre frame assembly Genuine Aston Martin - New (to order)
                                                                                # 1
                                                                                MPN: 21-73117
                                                                                FRONT CROSSMEMBER ASSEMBLY
                                                                                from £593.40
                                                                                from £593.40
                                                                                ASSEMBLY FRONT XMBR Genuine Aston Martin - New (to order)
                                                                                # 2
                                                                                MPN: 21-14682
                                                                                BASE, BRAKE REACTION BAR, RH
                                                                                from £29.71
                                                                                from £29.71
                                                                                BASE BRAKE REACT BAR Genuine Aston Martin - New (to order)
                                                                                # 3
                                                                                MPN: 21-52508
                                                                                MOUNTING PLATE FRONT, RH
                                                                                from £7.43
                                                                                from £7.43
                                                                                MOUNTING PLT-FRNT SECT RH Genuine Aston Martin - New (to order)
                                                                                # 4
                                                                                MPN: 21-52510
                                                                                MOUNTING PLATE REAR, RH
                                                                                from £38.17
                                                                                from £38.17
                                                                                MOUNTING PLT-REAR SECT RH Genuine Aston Martin - New (to order)
                                                                                # 5
                                                                                MPN: 21-14683
                                                                                BASE, BRAKE REACTION BAR, LH
                                                                                from £29.71
                                                                                from £29.71
                                                                                BASE BRAKE REACT BAR Genuine Aston Martin - New (to order)
                                                                                # 6
                                                                                MPN: 21-52509
                                                                                MOUNTING PLATE FRONT, LH
                                                                                from £7.43
                                                                                from £7.43
                                                                                MOUNTING PLT-FRNT SECT LH Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 21-52511
                                                                                MOUNTING PLATE REAR, LH
                                                                                from £38.17
                                                                                from £38.17
                                                                                MOUNTING PLT-REAR SECT LH Genuine Aston Martin - New (to order)
                                                                                # 8
                                                                                MPN: 17-71777
                                                                                CUP BUSH
                                                                                from £48.74
                                                                                from £48.74
                                                                                CUP BUSH - FRONT XMBR Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 21-64734
                                                                                Mounting bracket, oil cooler, RH
                                                                                from £27.15
                                                                                from £27.15
                                                                                BRACKET BTTM MOUNTING G/BOX Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 21-64735
                                                                                Mounting bracket, oil cooler, LH
                                                                                from £27.15
                                                                                from £27.15
                                                                                BRACKET BTTM MOUNTING G/BOX Genuine Aston Martin - New (to order)
                                                                                # 10
                                                                                MPN: 17-73340
                                                                                Support bracket, oil filter
                                                                                from £9.43
                                                                                from £9.43
                                                                                BRACKET SUPPORT OIL FILTER Genuine Aston Martin - New (to order)
                                                                                # 11
                                                                                MPN: 21-73126
                                                                                FRONT LONGITUDINAL MEMBER ASSEMBLY
                                                                                ASSEMBLY FRONT LONGIT Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 21-73079
                                                                                Front suspension crossmember assembly
                                                                                from £745.04
                                                                                from £745.04
                                                                                ASSEMBLY XMBR FRONT SUSPN Genuine Aston Martin - New (to order)
                                                                                # 13
                                                                                MPN: 21-50032
                                                                                REINFORCEMENT PLATE
                                                                                from £40.09
                                                                                from £40.09
                                                                                REINFORCEMENT PLATE Genuine Aston Martin - New (to order)
                                                                                # 14
                                                                                MPN: 21-51666
                                                                                CENTRE LONGITUDINAL ASSEMBLY, RH
                                                                                from £338.29
                                                                                from £338.29
                                                                                ASSEMBLY LNGT CTR SECT RH Genuine Aston Martin - New (to order)
                                                                                # 15
                                                                                MPN: 21-51667
                                                                                CENTRE LONGITUDINAL ASSEMBLY, LH
                                                                                from £651.43
                                                                                from £651.43
                                                                                ASSEMBLY LNGT CTR SECT LH Genuine Aston Martin - New (to order)
                                                                                # 16
                                                                                MPN: 21-72587
                                                                                TUBE, OUTRIGGER, SILL FRONT
                                                                                from £66.82
                                                                                from £66.82
                                                                                TUB OUTRIG SILL FRONT Genuine Aston Martin - New (to order)
                                                                                # 17
                                                                                MPN: 21-72572
                                                                                SILL ASSEMBLY, RH
                                                                                ASSEMBLY SILL RH Genuine Aston Martin - New (to order)
                                                                                # 18
                                                                                MPN: 21-72573
                                                                                SILL ASSEMBLY, LH
                                                                                ASSEMBLY SILL LH Genuine Aston Martin - New (to order)
                                                                                # 19
                                                                                MPN: 21-51608
                                                                                OUTRIGGER ASSEMBLY, FRONT, RH
                                                                                OUTRGGR FRONT S/ASY RH Genuine Aston Martin - New (to order)
                                                                                # 20
                                                                                MPN: 21-51609
                                                                                OUTRIGGER ASSEMBLY, FRONT, LH
                                                                                OUTRGGR FRONT S/ASY LH Genuine Aston Martin - New (to order)
                                                                                # 21
                                                                                MPN: 21-51249
                                                                                REAR OUTRIGGER
                                                                                from £91.51
                                                                                from £91.51
                                                                                REAR OUTRIGGER Genuine Aston Martin - New (to order)
                                                                                # 22
                                                                                MPN: 21-72596
                                                                                REAR OUTER LONGITUDINAL ASSEMBLY
                                                                                from £121.37
                                                                                from £121.37
                                                                                ASSEMBLY LONGIT L REAR OUT Genuine Aston Martin - New (to order)
                                                                                # 23
                                                                                MPN: 21-50011
                                                                                LONGITUDINAL, REAR SEAT, FRONT
                                                                                from £25.41
                                                                                from £25.41
                                                                                LONGIT-RR SEAT-FRONT Genuine Aston Martin - New (to order)
                                                                                # 24
                                                                                MPN: 21-50010
                                                                                LONGITUDINAL, REAR SEAT, REAR
                                                                                from £36.37
                                                                                from £36.37
                                                                                LONGIT-RR SEAT-REAR Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: 21-73226
                                                                                UPRIGHT ASSEMBLY, REAR BULKHEAD
                                                                                from £97.45
                                                                                from £97.45
                                                                                ASSEMBLY UPRIGHT REAR B/HD Genuine Aston Martin - New (to order)
                                                                                # 26
                                                                                MPN: 21-72593
                                                                                REAR OUTRIGGER ASSEMBLY
                                                                                from £29.56
                                                                                from £29.56
                                                                                ASSEMBLY OUTRIGGER REAR Genuine Aston Martin - New (to order)
                                                                                # 27
                                                                                MPN: 21-72688
                                                                                CROSSMEMBER ASSEMBLY, CENTRE FRAME REAR
                                                                                from £593.40
                                                                                from £593.40
                                                                                ASSEMBLY CROSSMEMBER Genuine Aston Martin - New (to order)
                                                                                # 28
                                                                                MPN: 21-72540
                                                                                LONGITUDINAL ASSEMBLY, SPRING PAN REAR, RH
                                                                                from £216.20
                                                                                from £216.20
                                                                                ASSEMBLY LNG SPR PN REAR RH Genuine Aston Martin - New (to order)
                                                                                # 29
                                                                                MPN: 21-72541
                                                                                LONGITUDINAL ASSEMBLY, SPRING PAN REAR, LH
                                                                                from £216.20
                                                                                from £216.20
                                                                                ASSEMBLY LNG SPR PN REAR LH Genuine Aston Martin - New (to order)
                                                                                # 30
                                                                                MPN: 21-73228
                                                                                LONGITUDINAL ASSEMBLY, DIFFERENTIAL SUPPORT
                                                                                from £81.08
                                                                                from £81.08
                                                                                ASSEMBLY LONGIT DIFF SUPT Genuine Aston Martin - New (to order)
                                                                                # 31
                                                                                MPN: 21-72914
                                                                                BRACKET ASSEMBLY, ANTI ROLL BAR MOUNTING, RH
                                                                                from £27.07
                                                                                from £27.07
                                                                                ASSEMBLY BRACKET MOUNTING Genuine Aston Martin - New (to order)
                                                                                # 32
                                                                                MPN: 21-72915
                                                                                BRACKET ASSEMBLY, ANTI ROLL BAR MOUNTING, LH
                                                                                from £27.07
                                                                                from £27.07
                                                                                ASSEMBLY BRACKET MOUNTING Genuine Aston Martin - New (to order)
                                                                                # 33
                                                                                MPN: 21-71046
                                                                                BRACKET ASSEMBLY, WATTS LINK MOUNTING
                                                                                from £50.19
                                                                                from £50.19
                                                                                ASSEMBLY BRACKET W/LINK MOUNTING Genuine Aston Martin - New (to order)
                                                                                # 34
                                                                                MPN: 21-71796
                                                                                LONGITUDINAL ASSEMBLY, BOOT FLOOR, RH
                                                                                ASSEMBLY LONGIT BOOT FLR Genuine Aston Martin - New (to order)
                                                                                # 35
                                                                                MPN: 21-71797
                                                                                LONGITUDINAL ASSEMBLY, BOOT FLOOR, LH
                                                                                ASSEMBLY LNGT BOOT FLR LH Genuine Aston Martin - New (to order)
                                                                                # 36
                                                                                MPN: 21-72913
                                                                                CLOSING PLATE, LONGITUDINAL BOOT FLOOR
                                                                                from £5.92
                                                                                from £5.92
                                                                                PLATE CLOSING Genuine Aston Martin - New (to order)
                                                                                # 37
                                                                                MPN: 21-54583
                                                                                Stamping plate, chassis
                                                                                from £3.15
                                                                                from £3.15
                                                                                STAMPING PLT-CHASSIS Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: 17-72984
                                                                                BRACKET, BRAKE HOSE, FRONT, RH
                                                                                from £4.00
                                                                                from £4.00
                                                                                BRACKET BRK J/HSE FRONT RH Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: 17-72985
                                                                                BRACKET, BRAKE HOSE, FRONT, LH
                                                                                from £20.47
                                                                                from £20.47
                                                                                BRACKET BRK J/HSE FRONT LH Genuine Aston Martin - New (to order)
