7.2B - Chassis Panels

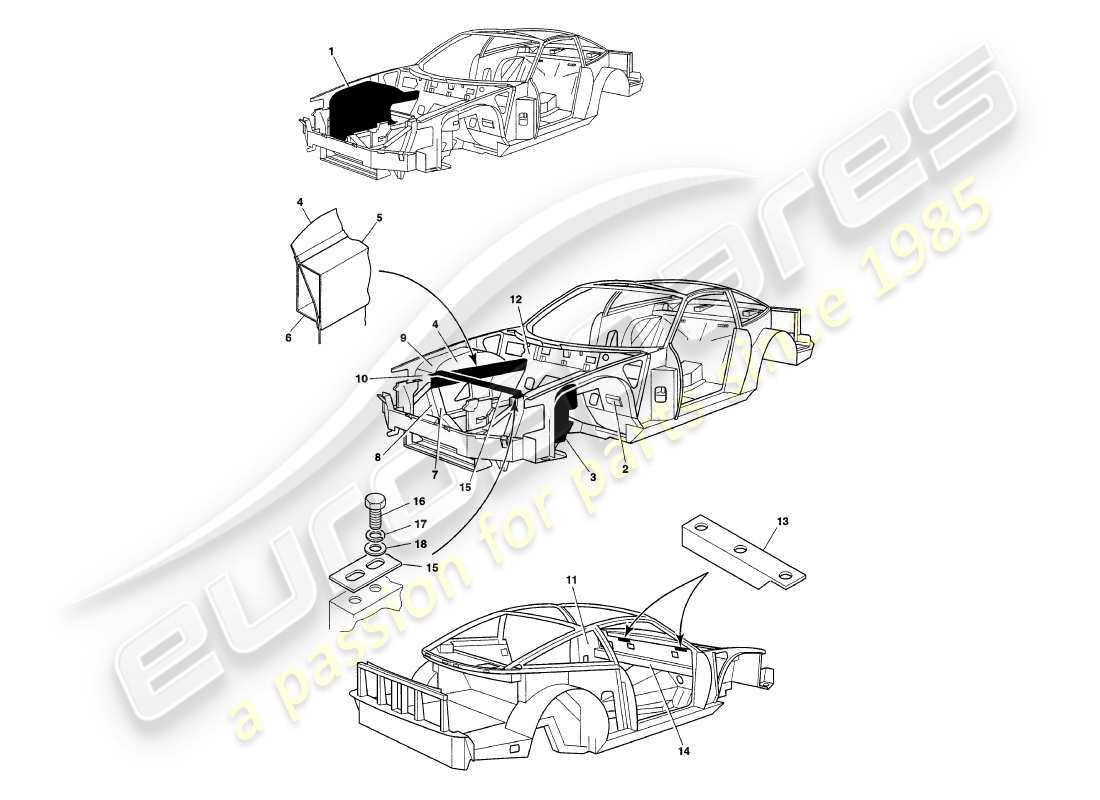

Aston Martin V8 Coupe (2000) Chassis Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 20-70988
                                WHEELARCH ASSEMBLY, RH
                                Up to (V)79079 excl 79074
                                ASSEMBLY WHEELARCH RH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 20-66046
                                WHEELARCH ASSEMBLY, RH
                                From (V)79080 + 79074
                                WHEELARCH ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 20-70989
                                WHEELARCH ASSEMBLY, LH
                                Up to (V)79079 excl 79074
                                ASSEMBLY WHEELARCH LH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 20-66047
                                WHEELARCH ASSEMBLY, LH
                                From (V)79080 + 79074
                                WHEELARCH ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 20-55109
                                POCKET ASSEMBLY, ABS MODULATOR
                                from £24.53
                                from £24.53
                                ASSEMBLY POCKET Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 20-70506
                                Front spring turret assembly
                                Up to (V)79079 excl 79074
                                Front spring turret assembly Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 20-66044
                                Front spring turret assembly
                                From (V)79080 + 79074
                                Front spring turret assembly Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 20-51468
                                WHEELARCH PANEL ASSEMBLY, RH
                                from £115.01
                                from £115.01
                                ASSEMBLY W/ARCH PANEL RH Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 20-51469
                                WHEELARCH PANEL ASSEMBLY, LH
                                from £115.01
                                from £115.01
                                ASSEMBLY WHEELARCH PANEL LH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 20-51820
                                INNER SECTION ASSEMBLY, FRONT TOP LONGITUDINAL, RH
                                from £60.35
                                from £60.35
                                ASSEMBLY I/SCT F/TOP LNGT Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 20-51821
                                INNER SECTION ASSEMBLY, FRONT TOP LONGITUDINAL, LH
                                from £60.35
                                from £60.35
                                ASSEMBLY I/SCT F/TOP LNGT Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 20-51822
                                OUTER SECTION, FRONT TOP LONGITUDINAL, RH
                                from £45.02
                                from £45.02
                                OUTER SCT F/TP LNGT RH Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 20-51823
                                OUTER SECTION, FRONT TOP LONGITUDINAL, LH
                                from £45.02
                                from £45.02
                                OUTER SCT F/TP LNGT LH Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 20-62302
                                INNER SECTION ASSEMBLY, FRONT VERTICAL MEMBER, RH
                                from £15.79
                                from £15.79
                                ASSEMBLY INNER SECT RH Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 20-62303
                                INNER SECTION ASSEMBLY, FRONT VERTICAL MEMBER, LH
                                from £15.79
                                from £15.79
                                ASSEMBLY INNER SECT FRONT LH Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 20-10020
                                OUTER SECTION, FRONT VERTICAL MEMBER, RH
                                from £36.64
                                from £36.64
                                OUTER SECTION FRONT Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 20-10021
                                OUTER SECTION, FRONT VERTICAL MEMBER, LH
                                from £9.02
                                from £9.02
                                OUTER SECTION FRONT Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 20-73514
                                Splash panel, front wheelarch, RH
                                Splash panel, front wheelarch, RH Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 20-73515
                                Splash panel, front wheelarch, LH
                                Splash panel, front wheelarch, LH Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 20-73902
                                VERTICAL PANEL ASSEMBLY, FRONT WHEELARCH, RH
                                from £29.59
                                from £29.59
                                ASSEMBLY PANEL VERTICAL Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 20-73903
                                VERTICAL PANEL ASSEMBLY, FRONT WHEELARCH, LH
                                from £119.84
                                from £119.84
                                ASSEMBLY PANEL VERTICAL Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 20-72610
                                A POST INNER ASSEMBLY, RH
                                A POST INNER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 20-72611
                                A post inner assembly, LH
                                A post inner assembly, LH Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 20-71162
                                FRONT BULKHEAD ASSEMBLY
                                from £288.81
                                from £288.81
                                ASSEMBLY FRONT BULKHEAD Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 20-62546
                                REINFORCEMENT ANGLE ASSEMBLY
                                REINFORCEMENT ANGLE ASSEMBLY Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 20-71164
                                CROSSMEMBER PANEL ASSEMBLY, FRONT BULKHEAD
                                from £219.75
                                from £219.75
                                ASSEMBLY PANEL XMBR FRONT BHD Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 20-64704
                                CROSSMEMBER ASSEMBLY, FRONT UPPER
                                Up to (V)79069
                                from £270.18
                                from £270.18
                                ASSEMBLY XMBR-FRONT UPPER Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 20-66301
                                CROSSMEMBER ASSEMBLY, FRONT UPPER
                                From (V)79070
                                from £578.80
                                from £578.80
                                ASSEMBLY XMBR-FRONT UPPER Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 692047
                                WASHER, SPRING, M8
                                from £0.47
                                from £0.47
                                WASHER M8 SPRING Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 694597
                                WASHER, M8X25X3
                                from £1.98
                                from £1.98
                                WASHER M8 X 25 X 3 Genuine Aston Martin - New (to order)
                                # -
                                -
                                FIR TREE BUTTON, M4
                                Blanking unused weld nuts
                                # -
                                -
                                FIR TREE BUTTON, M5
                                Blanking unused weld nuts
                                # -
                                -
                                FIR TREE BUTTON, M6
                                Blanking unused weld nuts
                                # -
                                -
                                FIR TREE BUTTON, M8
                                Blanking unused weld nuts
