7.3B - Fuel Filler Flaps

Aston Martin V8 Coupe (2000) Fuel Filler Flaps Parts Diagram

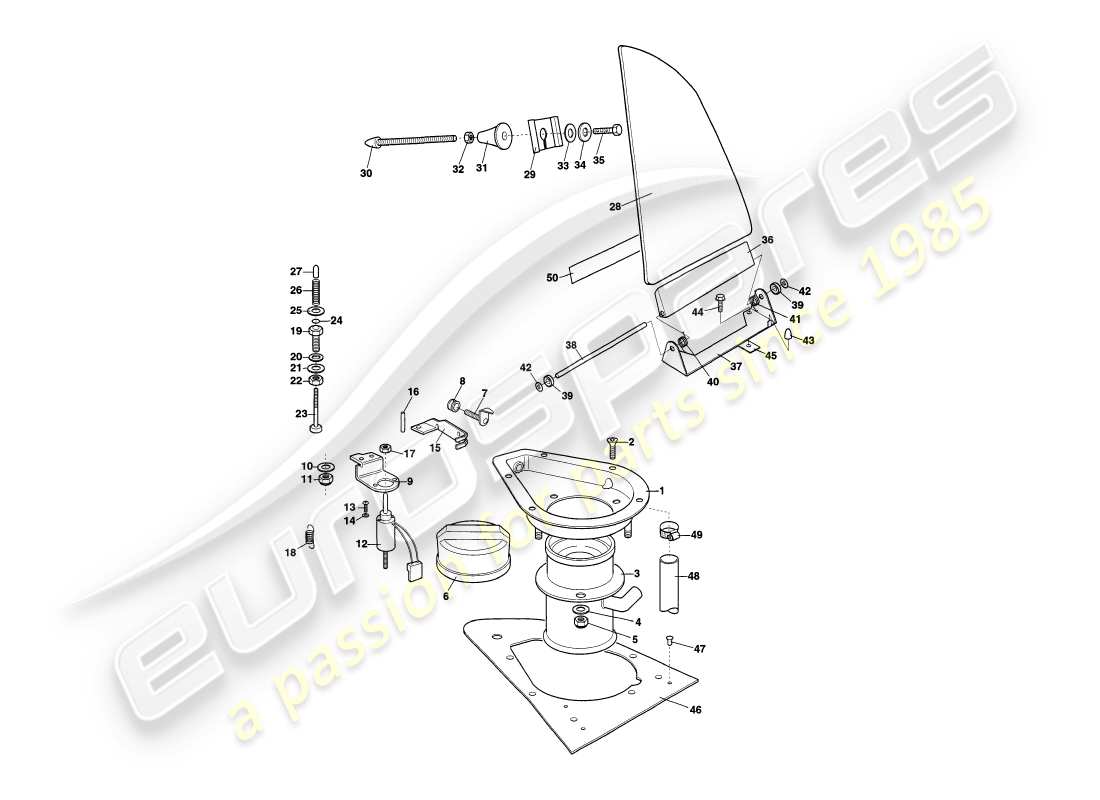

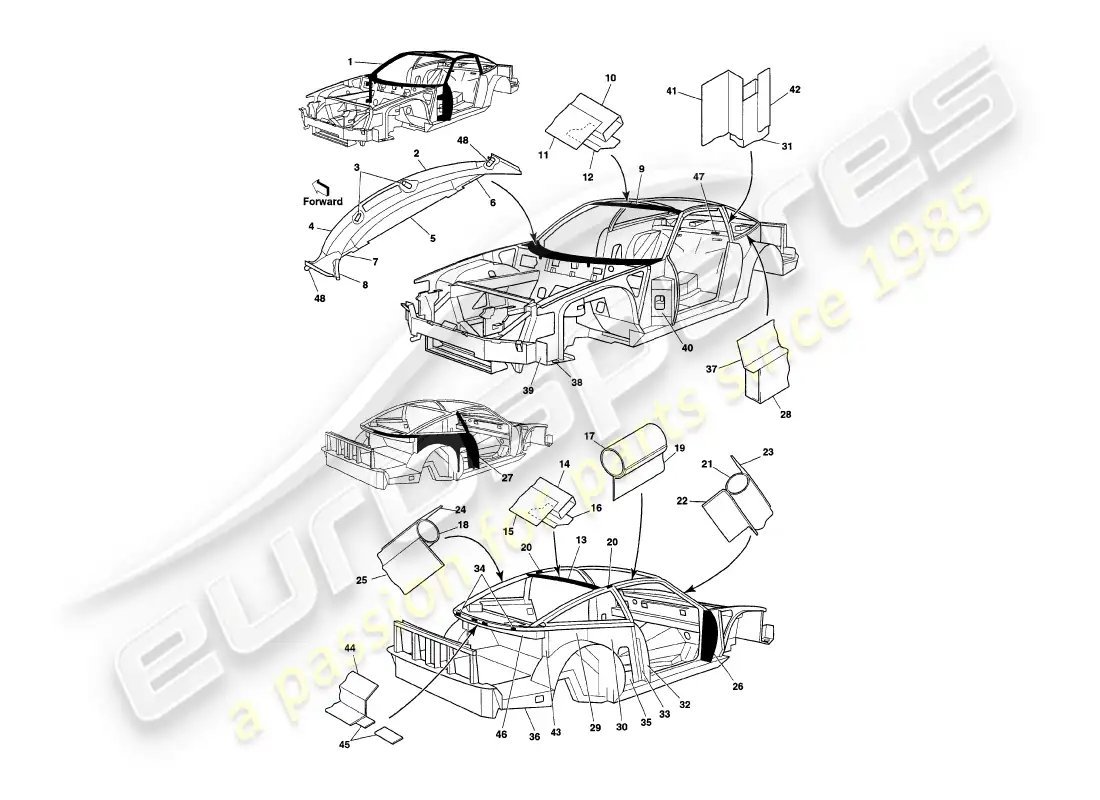

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 1
                                                                MPN: 68-74182
                                                                FUEL FILLER CARRIER ASSEMBLY, RH
                                                                from £125.66
                                                                from £125.66
                                                                ASSEMBLY CARR F/FLLR NK R Genuine Aston Martin - New (to order)
                                                                # 1
                                                                MPN: 68-74183
                                                                FUEL FILLER CARRIER ASSEMBLY, LH
                                                                from £125.66
                                                                from £125.66
                                                                ASSEMBLY CARR F/FLLR NK L Genuine Aston Martin - New (to order)
                                                                # 2
                                                                MPN: 695862
                                                                SCREW, M4X12, COUNTERSUNK HEAD
                                                                from £0.47
                                                                from £0.47
                                                                SCREW M4 X12 POZI CK Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                LOCTITE SUPERFLEX
                                                                # 3
                                                                MPN: 68-51906
                                                                FUEL FILLER NECK ASSEMBLY, RH
                                                                from £148.86
                                                                from £148.86
                                                                ASSEMBLY F/FILLR RH COMP Genuine Aston Martin - New (to order)
                                                                # 3
                                                                MPN: 68-51907
                                                                FUEL FILLER NECK ASSEMBLY, LH
                                                                from £148.86
                                                                from £148.86
                                                                ASSEMBLY F/FILLR LH COMP Genuine Aston Martin - New (to order)
                                                                # 4
                                                                MPN: 692056
                                                                WASHER, PLAIN, M6
                                                                Filler necks to carriers
                                                                from £0.47
                                                                from £0.47
                                                                WASHER, PLAIN, M6 Genuine Aston Martin - New (to order)
                                                                # 5
                                                                MPN: 692151
                                                                NUT, NYLOC, M6
                                                                Filler necks to carriers
                                                                from £0.55
                                                                from £0.55
                                                                NUT M6 HEX SLK Genuine Aston Martin - New (to order)
                                                                # 6
                                                                MPN: 68-24064
                                                                FUEL FILLER CAP
                                                                from £82.48
                                                                from £82.48
                                                                FUEL FILLER CAP SCRW Genuine Aston Martin - New (to order)
                                                                # 7
                                                                MPN: 68-23680
                                                                CATCH, FUEL FILLER, RH
                                                                from £44.63
                                                                from £44.63
                                                                ASSEMBLY CTCH F/FILLER RH Genuine Aston Martin - New (to order)
                                                                # 7
                                                                MPN: 68-23681
                                                                CATCH, FUEL FILLER, LH
                                                                from £44.63
                                                                from £44.63
                                                                ASSEMBLY CTCH F/FILLER LH Genuine Aston Martin - New (to order)
                                                                # 8
                                                                MPN: 693762
                                                                SEAL
                                                                from £0.88
                                                                from £0.88
                                                                SEAL Genuine Aston Martin - New (to order)
                                                                # 9
                                                                MPN: 68-51538
                                                                BRACKET, SOLENOID MOUNTING, RH
                                                                from £7.27
                                                                from £7.27
                                                                BRACKET SOLENOID MOUNTING RH Genuine Aston Martin - New (to order)
                                                                # 9
                                                                MPN: 68-51539
                                                                BRACKET, SOLENOID MOUNTING, LH
                                                                from £7.27
                                                                from £7.27
                                                                BRACKET SOLENOID MOUNTING LH Genuine Aston Martin - New (to order)
                                                                # 10
                                                                MPN: 692055
                                                                WASHER, PLAIN, M5
                                                                Mounting brackets to carriers
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                                # 11
                                                                MPN: 692800
                                                                NUT, NYLOC, M5
                                                                Mounting brackets to carriers
                                                                from £0.47
                                                                from £0.47
                                                                NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                                # 12
                                                                MPN: 37-64311
                                                                SOLENOID, FUEL FLAP
                                                                from £308.71
                                                                from £308.71
                                                                ASSEMBLY FUEL FLAP SOLEND Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                RUBBER BELLOWS
                                                                # -
                                                                -
                                                                PETROLEUM JELLY
                                                                # 13
                                                                MPN: 693765
                                                                SCREW, M3X6
                                                                Solenoids to brackets
                                                                from £0.47
                                                                from £0.47
                                                                SCREW M3 X6 POZI PN Genuine Aston Martin - New (to order)
                                                                # 14
                                                                MPN: 692043
                                                                WASHER, SPRING, M3
                                                                Solenoids to brackets
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M3 SPRING Genuine Aston Martin - New (to order)
                                                                # 15
                                                                MPN: 68-23698
                                                                OPERATING LEVER, RH
                                                                OPERATING LEVER, RH Genuine Aston Martin - New (to order)
                                                                # 15
                                                                MPN: 68-23697
                                                                Operating lever, LH
                                                                Operating lever, LH Genuine Aston Martin - New (to order)
                                                                # 16
                                                                MPN: 693763
                                                                PIN
                                                                from £0.47
                                                                from £0.47
                                                                PIN 1.5 X15.0LG ROLL Genuine Aston Martin - New (to order)
                                                                # 17
                                                                MPN: 692314
                                                                NUT
                                                                Solenoid to operating lever
                                                                from £0.47
                                                                from £0.47
                                                                NUT, NYLOC, M4 Genuine Aston Martin - New (to order)
                                                                # 18
                                                                MPN: 693869
                                                                SPRING
                                                                from £2.70
                                                                from £2.70
                                                                SPRING - EXTENSION Genuine Aston Martin - New (to order)
                                                                # 19
                                                                MPN: 68-23687
                                                                HOUSING PLUNGER
                                                                from £8.21
                                                                from £8.21
                                                                HSG-SWTCH PLUNGER Genuine Aston Martin - New (to order)
                                                                # 20
                                                                MPN: 692067
                                                                WASHER, SHAKEPROOF, M8
                                                                Plunger housing attach
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M8 S/PROOF Genuine Aston Martin - New (to order)
                                                                # 21
                                                                MPN: 692057
                                                                WASHER, PLAIN, M8
                                                                Plunger housing attach
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                                                # 22
                                                                MPN: 692482
                                                                NUT, THIN, M8X1.25
                                                                Plunger housing attach
                                                                from £0.83
                                                                from £0.83
                                                                NUT M8 X1.25 PLN HEX Genuine Aston Martin - New (to order)
                                                                # 23
                                                                MPN: 68-23686
                                                                PLUNGER
                                                                from £4.55
                                                                from £4.55
                                                                PLUNGER-F/FLP SWTCH Genuine Aston Martin - New (to order)
                                                                # 24
                                                                MPN: 693760
                                                                O RING
                                                                from £0.47
                                                                from £0.47
                                                                O-RING Genuine Aston Martin - New (to order)
                                                                # 25
                                                                MPN: 692053
                                                                WASHER, PLAIN, M3
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M3 PLAIN Genuine Aston Martin - New (to order)
                                                                # 26
                                                                MPN: 693759
                                                                SPRING, PLUNGER RETURN
                                                                Cut to length required
                                                                from £8.48
                                                                from £8.48
                                                                SPRING - COMPRESSION Genuine Aston Martin - New (to order)
                                                                # 27
                                                                MPN: 68-26161
                                                                BLIND NUT
                                                                from £10.31
                                                                from £10.31
                                                                BLIND NUT Genuine Aston Martin - New (to order)
                                                                # 28
                                                                MPN: 68-50202
                                                                FUEL FILLER FLAP, RH
                                                                FUEL FLAP RH Genuine Aston Martin - New (to order)
                                                                # 28
                                                                MPN: 68-50203
                                                                FUEL FILLER FLAP, LH
                                                                FUEL FLAP LH Genuine Aston Martin - New (to order)
                                                                # 29
                                                                MPN: 68-55127
                                                                MOUNTING PLATE, CATCH PEG
                                                                from £3.04
                                                                from £3.04
                                                                MOUNTING PLATE CATCH PEG Genuine Aston Martin - New (to order)
                                                                # 30
                                                                MPN: 68-23678
                                                                CATCH PEG
                                                                from £7.99
                                                                from £7.99
                                                                CATCH PEG-F/FIL FLAP Genuine Aston Martin - New (to order)
                                                                # 31
                                                                MPN: 68-23677
                                                                MOUNTING BOSS, CATCH PEG
                                                                from £6.34
                                                                from £6.34
                                                                CATCH MOUNTING BOSS Genuine Aston Martin - New (to order)
                                                                # 32
                                                                MPN: 694202
                                                                NUT, THIN, LOCK, M5
                                                                Catch peg lock nut
                                                                from £0.50
                                                                from £0.50
                                                                NUT M5 RH - LOCK Genuine Aston Martin - New (to order)
                                                                # 33
                                                                MPN: 690257
                                                                WASHER, PLAIN, 3/16 ID X 3/4 OD
                                                                Catch mounting boss attach
                                                                from £3.17
                                                                from £3.17
                                                                WASHER-3/16 X 3/4 Genuine Aston Martin - New (to order)
                                                                # 34
                                                                MPN: 692065
                                                                WASHER, SHAKEPROOF, M5
                                                                Catch mounting boss attach
                                                                from £0.47
                                                                from £0.47
                                                                WASHER M5 S/PROOF Genuine Aston Martin - New (to order)
                                                                # -
                                                                -
                                                                SCREW, M5X10
                                                                Catch mounting boss attach
                                                                # 35
                                                                MPN: 68-73236
                                                                HINGE ASSEMBLY, FUEL FILLER FLAP, RH
                                                                from £42.74
                                                                from £42.74
                                                                ASSEMBLY HINGE-RH Genuine Aston Martin - New (to order)
                                                                # 35
                                                                MPN: 68-73237
                                                                HINGE ASSEMBLY, FUEL FILLER FLAP, LH
                                                                from £42.74
                                                                from £42.74
                                                                ASSEMBLY HINGE-LH Genuine Aston Martin - New (to order)
                                                                # 36
                                                                MPN: 68-54396
                                                                MOUNTING PLATE, FUEL FILLER FLAP ASSEMBLY, RH
                                                                from £6.92
                                                                from £6.92
                                                                MOUNTING PLATE RH Genuine Aston Martin - New (to order)
                                                                # 36
                                                                MPN: 68-54397
                                                                MOUNTING PLATE, FUEL FILLER FLAP ASSEMBLY, LH
                                                                from £6.92
                                                                from £6.92
                                                                MOUNTING PLATE LH Genuine Aston Martin - New (to order)
                                                                # 37
                                                                MPN: 68-73225
                                                                MOUNTING BRACKET, FUEL FILLER FLAPS
                                                                from £7.14
                                                                from £7.14
                                                                MOUNTING BRACKET Genuine Aston Martin - New (to order)
                                                                # 38
                                                                MPN: 68-54400
                                                                HINGE PIN, FUEL FILLER FLAPS
                                                                from £3.44
                                                                from £3.44
                                                                HINGE PIN Genuine Aston Martin - New (to order)
                                                                # 39
                                                                MPN: 68-55106
                                                                BUSH, FUEL FILLER FLAPS
                                                                from £2.92
                                                                from £2.92
                                                                BUSH Genuine Aston Martin - New (to order)
                                                                # 40
                                                                MPN: 68-55120
                                                                SPRING, TORSION, RHW, FUEL FILLER FLAPS
                                                                from £6.45
                                                                from £6.45
                                                                SPRING-TORSION Genuine Aston Martin - New (to order)
                                                                # 41
                                                                MPN: 68-55121
                                                                SPRING, TORSION, LHW, FUEL FILLER FLAPS
                                                                from £10.96
                                                                from £10.96
                                                                SPRING TORSION LHW Genuine Aston Martin - New (to order)
                                                                # 42
                                                                MPN: 694230
                                                                WASHER, STARLOCK, 3MM
                                                                from £0.47
                                                                from £0.47
                                                                WASHER 3MM STARLOCK Genuine Aston Martin - New (to order)
                                                                # 43
                                                                MPN: 68-73238
                                                                CAP STOP, FILLER FLAPS
                                                                Made from 695146
                                                                CAP STOP, FILLER FLAPS Genuine Aston Martin - New (to order)
                                                                # 44
                                                                MPN: 695560
                                                                SCREW, FLG, M5X16
                                                                Flap hinge to body
                                                                from £0.47
                                                                from £0.47
                                                                SCREW M5 X 16 HEX Genuine Aston Martin - New (to order)
                                                                # 45
                                                                MPN: 68-73235
                                                                SHIM, FUEL FLAP
                                                                from £2.39
                                                                from £2.39
                                                                SHIM FUEL FLAP Genuine Aston Martin - New (to order)
                                                                # 46
                                                                MPN: 68-73222
                                                                REINFORCEMENT PLATE ASSEMBLY, FUEL FILLER PLATFORM, RH
                                                                from £21.85
                                                                from £21.85
                                                                ASSEMBLY REINFORCEMENT PLATE RH Genuine Aston Martin - New (to order)
                                                                # 46
                                                                MPN: 68-73223
                                                                REINFORCEMENT PLATE ASSEMBLY, FUEL FILLER PLATFORM, LH
                                                                from £21.85
                                                                from £21.85
                                                                ASSEMBLY REINFORCEMENT PLATE LH Genuine Aston Martin - New (to order)
                                                                # 47
                                                                MPN: 110897
                                                                RIVET, 1/8 X 3/8 CSK
                                                                Reinforcement plate attach
                                                                from £0.47
                                                                from £0.47
                                                                RIVET 1/8 X 3/8 COUNTERSUNK Genuine Aston Martin - New (to order)
                                                                Genuine Ferrari Part (no longer available to order)
                                                                # -
                                                                -
                                                                SEALANT, TEROSTAT
                                                                Reinforcement plate attach
                                                                # -
                                                                -
                                                                LOCTITE 341, 2 X 300ML PACK
                                                                Hinge to flap
                                                                # 48
                                                                MPN: 68-74169
                                                                HOSE, 7/8 OD X 5/8 ID
                                                                Fuel filler drain. Cut from 619919
                                                                HOSE, 7/8 OD x 5/8 ID, FUEL CARRIER DRAIN Genuine Aston Martin - New (to order)
                                                                # 49
                                                                MPN: 114679
                                                                HOSE CLIP, ST STEEL
                                                                Fuel filler drain hose
                                                                from £0.52
                                                                from £0.52
                                                                HOSE-CLIP S/STEEL Genuine Aston Martin - New In stock
                                                                # 50
                                                                MPN: 97-53653
                                                                LABEL, UNLEADED FUEL (ENGLISH)
                                                                label, 'Unleaded fuel only'. English only Genuine Aston Martin - New (to order)
