7.4A - Doors

Aston Martin V8 Coupe (2000) Doors Parts Diagram

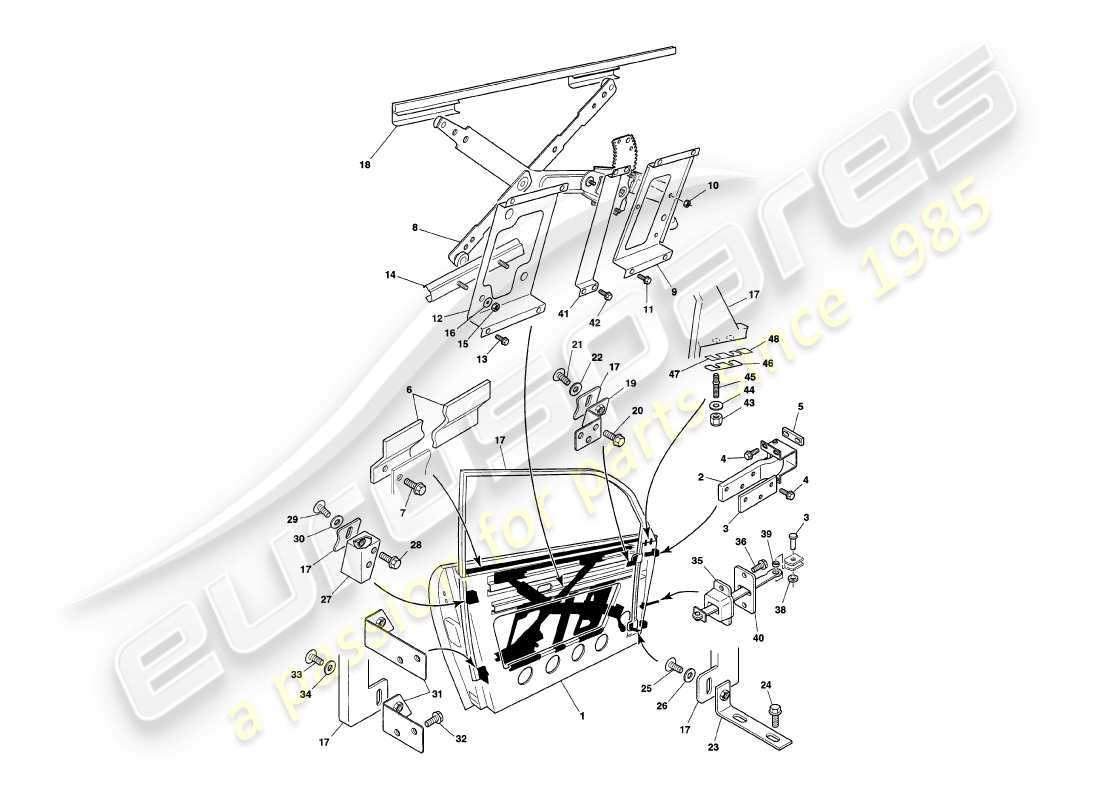

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 65-73724
                                                  DOOR STRUCTURE ASSEMBLY, RH
                                                  Up to (V) 79079 excl 79074
                                                  from £2,149.01
                                                  from £2,149.01
                                                  ASSEMBLY DOOR STRUCT RH Genuine Aston Martin - New (to order)
                                                  # 1
                                                  MPN: 65-73725
                                                  DOOR STRUCTURE ASSEMBLY, LH
                                                  Up to (V) 79079 excl 79074
                                                  ASSEMBLY DOOR STRUCT LH Genuine Aston Martin - New (to order)
                                                  # 1
                                                  MPN: 65-56556
                                                  DOOR STRUCTURE ASSEMBLY, RH
                                                  From (V) 79080 + 79074
                                                  DOOR STRUCTURE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                  # 1
                                                  MPN: 65-56557
                                                  DOOR STRUCTURE ASSEMBLY, LH
                                                  From (V) 79080 + 79074
                                                  DOOR STRUCTURE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 65-55496
                                                  Door hinge assembly, RH
                                                  from £239.66
                                                  from £239.66
                                                  ASSEMBLY HNG FRONT DOOR RH Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 65-55497
                                                  Door hinge assembly, LH
                                                  from £239.66
                                                  from £239.66
                                                  ASSEMBLY HNG FRONT DOOR LH Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 65-11309
                                                  REINFORCEMENT, HINGE PLATE
                                                  from £2.05
                                                  from £2.05
                                                  REINFORCEMENT HINGE PLATE Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 694033
                                                  SCREW, FLG, M8X20
                                                  Hinges to doors and A posts
                                                  from £3.94
                                                  from £3.94
                                                  SCREW M8 X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 65-61352
                                                  Spacer, door hinge, 3MM thick
                                                  from £7.75
                                                  from £7.75
                                                  SPACER - DOOR HINGE Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 65-61414
                                                  MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, RH
                                                  from £127.59
                                                  from £127.59
                                                  ASSEMBLY MOUNTING STRIP RH Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 65-61415
                                                  MOUNTING STRIP ASSEMBLY, INNER WEATHER SEAL, LH
                                                  from £127.59
                                                  from £127.59
                                                  ASSEMBLY MOUNTING STRIP LH Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 695559
                                                  SCREW, FLG, M5X12
                                                  Weather seal attach
                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 65-50604
                                                  Window lift regulator, RH
                                                  from £509.02
                                                  from £509.02
                                                  WNDW LIFT REGULTR RH Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 65-50603
                                                  Window lift regulator, LH
                                                  from £425.37
                                                  from £425.37
                                                  WNDW LIFT REGULTR LH Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 65-60686
                                                  MOUNTING BRACKET, WINDOW MOTOR, RH
                                                  from £13.63
                                                  from £13.63
                                                  MOUNTING BRACKET MTR SUPPORT RH Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 65-60687
                                                  MOUNTING BRACKET, WINDOW MOTOR, LH
                                                  from £13.63
                                                  from £13.63
                                                  MOUNTING BRACKET MTR SUPPORT LH Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 692076
                                                  NUT, M6
                                                  Regulator to bracket
                                                  from £0.47
                                                  from £0.47
                                                  NUT M6 HEX Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 695559
                                                  SCREW, FLG, M5X12
                                                  Window regulator support
                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 65-60688
                                                  MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, RH
                                                  from £20.07
                                                  from £20.07
                                                  ASSEMBLY M/BRKT GD CHN RH Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 65-60689
                                                  MOUNTING BRACKET ASSEMBLY, GUIDE CHANNEL, LH
                                                  from £20.07
                                                  from £20.07
                                                  AY M/BRKT GD CHNL LH Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 695559
                                                  SCREW, FLG, M5X12
                                                  Bracket to door
                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 65-50605
                                                  GUIDE CHANNEL
                                                  from £94.40
                                                  from £94.40
                                                  ASSEMBLY GUIDE CHANNEL Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 692800
                                                  NUT, NYLOC, M5
                                                  Guide channel to bracket
                                                  from £0.47
                                                  from £0.47
                                                  NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 692055
                                                  WASHER, PLAIN, M5
                                                  Guide channel to bracket
                                                  from £0.47
                                                  from £0.47
                                                  WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 65-73456
                                                  DOOR GLASS FRAME ASSEMBLY, RH
                                                  Up to (V) 79044
                                                  from £1,294.30
                                                  from £1,294.30
                                                  ASSEMBLY DOOR GLASS Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 65-74496
                                                  DOOR GLASS FRAME ASSEMBLY, RH
                                                  From (V) 79045
                                                  from £1,493.19
                                                  from £1,493.19
                                                  ASSEMBLY DOOR GLASS Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 65-73457
                                                  DOOR GLASS FRAME ASSEMBLY, LH
                                                  Up to (V) 79044
                                                  from £1,294.30
                                                  from £1,294.30
                                                  ASSEMBLY DOOR GLASS Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 65-74497
                                                  DOOR GLASS FRAME ASSEMBLY, LH
                                                  From (V) 79045
                                                  from £1,493.19
                                                  from £1,493.19
                                                  DOOR GLASS FRAME LH Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  SPACER TUBE, DOOR GLASS FRAME, 28MM LONG
                                                  From (V) 79045
                                                  # -
                                                  -
                                                  DOOR GLASS, RH
                                                  See section 7.8A
                                                  # -
                                                  -
                                                  DOOR GLASS, LH
                                                  See section 7.8A
                                                  # 18
                                                  MPN: 65-50606
                                                  LIFT CHANNEL, DOOR GLASS, RH
                                                  from £77.10
                                                  from £77.10
                                                  LIFT CHANNEL RH Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 65-50607
                                                  LIFT CHANNEL, DOOR GLASS, LH
                                                  from £77.10
                                                  from £77.10
                                                  LIFT CHANNEL LH Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 65-72034
                                                  BRACKET ASSEMBLY, SASH UPPER FRONT, RH
                                                  from £15.10
                                                  from £15.10
                                                  BRACKET SASH MOUNTING UPPER FT Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 65-72035
                                                  BRACKET ASSEMBLY, SASH UPPER FRONT, LH
                                                  from £15.10
                                                  from £15.10
                                                  BRACKET SASH MOUNTING UPPER LH Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 695563
                                                  SCREW, FLG, M6X16
                                                  Sash brackets, upper front
                                                  SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 696371
                                                  SCREW, BTN HD/FLG, M6X12
                                                  Sash brackets, upper front
                                                  from £0.72
                                                  from £0.72
                                                  SCREW M6 X 12 BUTTON Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 690386
                                                  WASHER, PLAIN, 1/4 X 3/4
                                                  Sash brackets, upper front
                                                  from £0.47
                                                  from £0.47
                                                  WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 65-72108
                                                  BRACKET ASSEMBLY, SASH LOWER FRONT, RH
                                                  from £9.25
                                                  from £9.25
                                                  BRACKET SASH LOWER FRONT RH Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 65-72109
                                                  BRACKET ASSEMBLY, SASH LOWER FRONT, LH
                                                  from £9.25
                                                  from £9.25
                                                  BRACKET SASH LOWER FRONT LH Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 695563
                                                  SCREW, FLG, M6X16
                                                  Sash brackets, lower front
                                                  SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 696371
                                                  SCREW, BTN/HD, FLG, M6X12
                                                  Sash brackets, lower front
                                                  from £0.72
                                                  from £0.72
                                                  SCREW M6 X 12 BUTTON Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 690386
                                                  WASHER, PLAIN, 1/4 X 3/4
                                                  Sash brackets, lower front
                                                  from £0.47
                                                  from £0.47
                                                  WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 65-73970
                                                  BRACKET ASSEMBLY, SASH UPPER REAR, RH
                                                  from £27.38
                                                  from £27.38
                                                  ASSEMBLY BRACKET SASH MOUNTING Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 65-73971
                                                  BRACKET ASSEMBLY, SASH UPPER REAR, LH
                                                  from £27.38
                                                  from £27.38
                                                  ASSEMBLY BRACKET SASH MOUNTING Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: 695563
                                                  SCREW, FLG, M6X16
                                                  Sash brackets, upper rear
                                                  SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: 696371
                                                  SCREW, BTN/HD, FLG, M6X12
                                                  Sash brackets, upper rear
                                                  from £0.72
                                                  from £0.72
                                                  SCREW M6 X 12 BUTTON Genuine Aston Martin - New (to order)
                                                  # 30
                                                  MPN: 690386
                                                  WASHER, PLAIN, 1/4 X 3/4
                                                  Sash brackets, upper rear
                                                  from £0.47
                                                  from £0.47
                                                  WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: 65-72104
                                                  BRACKET ASSEMBLY, SASH LOWER REAR, RH
                                                  Up to (V) 79079 excl 79074
                                                  from £0.50
                                                  from £0.50
                                                  BRACKET SASH LOWER REAR RH Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: 65-72105
                                                  BRACKET ASSEMBLY, SASH LOWER REAR, LH
                                                  Up to (V) 79079 excl 79074
                                                  from £0.50
                                                  from £0.50
                                                  BRACKET SASH LOWER REAR LH Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: 65-56582
                                                  BRACKET ASSEMBLY, SASH LOWER REAR, RH
                                                  From (V) 79080 + 79074
                                                  from £5.29
                                                  from £5.29
                                                  BRACKET SASH LOWER REAR Genuine Aston Martin - New (to order)
                                                  # 31
                                                  MPN: 65-56583
                                                  BRACKET ASSEMBLY, SASH LOWER REAR, LH
                                                  From (V) 79080 + 79074
                                                  from £5.17
                                                  from £5.17
                                                  BRACKET SASH LOWER REAR Genuine Aston Martin - New (to order)
                                                  # 32
                                                  MPN: 695563
                                                  SCREW, FLG, M6X16
                                                  Sash brackets, lower rear
                                                  SCREW, M6 X 16, HEATER UNIT TO FACIA Genuine Aston Martin - New (to order)
                                                  # 33
                                                  MPN: 696371
                                                  SCREW, BTN/HD, FLG, M6X12
                                                  Sash brackets, lower rear
                                                  from £0.72
                                                  from £0.72
                                                  SCREW M6 X 12 BUTTON Genuine Aston Martin - New (to order)
                                                  # 34
                                                  MPN: 690386
                                                  WASHER, PLAIN, 1/4 X 3/4
                                                  Sash brackets, lower rear
                                                  from £0.47
                                                  from £0.47
                                                  WASHER 1/4 X 3/4 ZPL Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  PACKING, REAR DOOR FRAME LEG
                                                  # 35
                                                  MPN: 65-56318
                                                  DOOR CHECK STRAP
                                                  from £58.90
                                                  from £58.90
                                                  ASSEMBLY DOOR CHECK Genuine Aston Martin - New (to order)
                                                  # 36
                                                  MPN: 695560
                                                  SCREW, FLG, M5X16
                                                  Check strap to door
                                                  from £0.47
                                                  from £0.47
                                                  SCREW M5 X 16 HEX Genuine Aston Martin - New (to order)
                                                  # 37
                                                  MPN: 695336
                                                  CLEVIS PIN
                                                  from £1.15
                                                  from £1.15
                                                  PIN 3/16 X3/4 CLEVIS Genuine Aston Martin - New (to order)
                                                  # 38
                                                  MPN: 692300
                                                  SPIRE NUT
                                                  Clevis pin retaining
                                                  from £2.53
                                                  from £2.53
                                                  NUT SPIRE 3441 Genuine Aston Martin - New (to order)
                                                  # 39
                                                  MPN: 65-65016
                                                  BUSH, DOOR CHECK LINK
                                                  from £6.06
                                                  from £6.06
                                                  BUSH DOOR CHECK LINK Genuine Aston Martin - New (to order)
                                                  # 40
                                                  MPN: 65-65017
                                                  PACKING PLATE, CHECK LINK
                                                  from £4.48
                                                  from £4.48
                                                  PLATE PACKER CHECK Genuine Aston Martin - New (to order)
                                                  # 41
                                                  MPN: 65-62902
                                                  BRACKET ASSEMBLY, DOOR PULL, RH
                                                  from £18.40
                                                  from £18.40
                                                  ASSEMBLY BRACKET DR PULL RH Genuine Aston Martin - New (to order)
                                                  # 41
                                                  MPN: 65-62903
                                                  BRACKET ASSEMBLY, DOOR PULL, LH
                                                  from £18.40
                                                  from £18.40
                                                  ASSEMBLY BRACKET DR PULL LH Genuine Aston Martin - New (to order)
                                                  # 42
                                                  MPN: 695559
                                                  SCREW, FLG, M5X12
                                                  SCREW, FLANGE , M5X12 Genuine Aston Martin - New (to order)
                                                  # 43
                                                  MPN: 695526
                                                  NUT, NYLOC, M6
                                                  from £0.47
                                                  from £0.47
                                                  NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 44
                                                  MPN: 124383
                                                  WASHER, PLAIN, 1/4 X 1
                                                  from £0.47
                                                  from £0.47
                                                  WASHER, PLAIN, 1/4 Genuine Aston Martin - New (to order)
                                                  # 45
                                                  MPN: 696153
                                                  STUD, M6X30
                                                  from £2.00
                                                  from £2.00
                                                  STUD M6 X1 6G X 30 Genuine Aston Martin - New (to order)
                                                  # 46
                                                  MPN: 65-64073
                                                  CLAMP PLATE, CHEATER
                                                  from £1.62
                                                  from £1.62
                                                  PLATE CLAMP CHEATER Genuine Aston Martin - New (to order)
                                                  # 47
                                                  MPN: 65-61681
                                                  PACKING PIECE
                                                  from £1.15
                                                  from £1.15
                                                  PACKING PIECE Genuine Aston Martin - New (to order)
                                                  # 48
                                                  MPN: 65-61710
                                                  RUBBER SPACER
                                                  from £2.45
                                                  from £2.45
                                                  PACKING PIECE Genuine Aston Martin - New (to order)
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
