7.4C - Weather Seals

Aston Martin V8 Coupe (2000) Weather Seals Parts Diagram

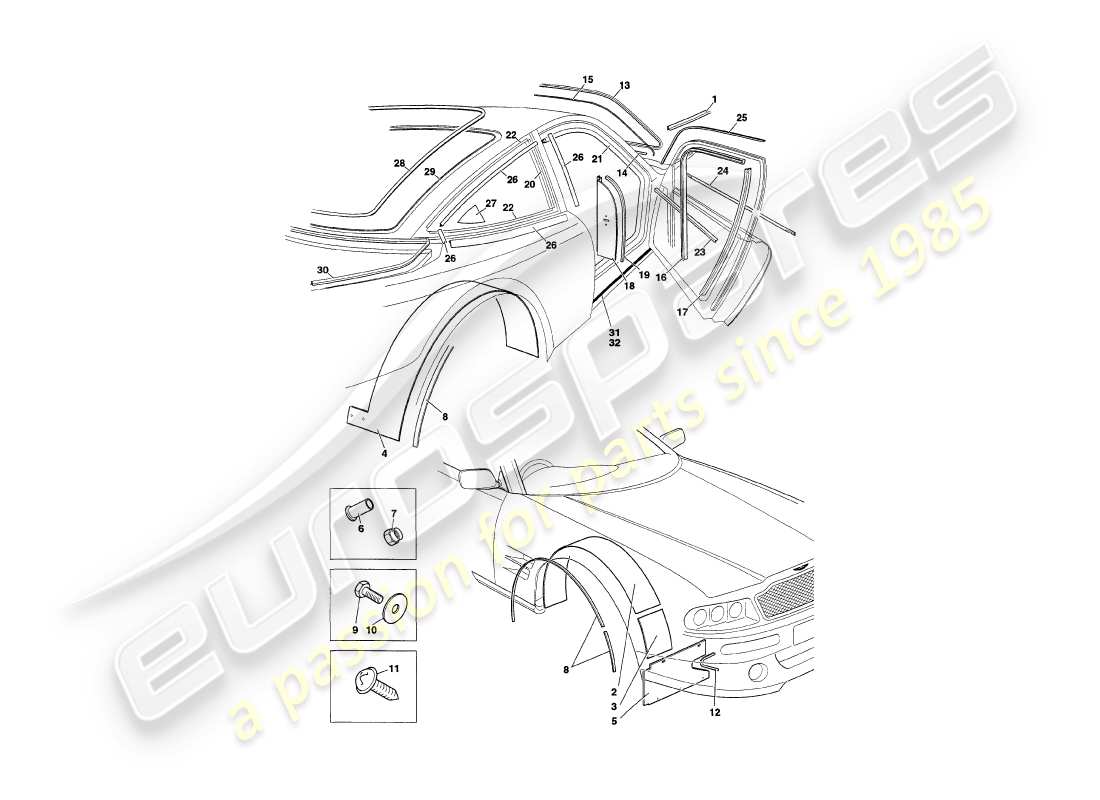

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 698098
                      WEATHER SEAL, BONNET
                      Boot aperture seal Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 77-73834
                      STONEGUARD, FRONT, RH
                      from £82.22
                      from £82.22
                      STONEGUARD FRONT RH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: 77-73835
                      STONEGUARD, FRONT, LH
                      from £86.36
                      from £86.36
                      STONEGUARD FRONT LH Genuine Aston Martin - New (to order)
                      # 3
                      MPN: 77-73775
                      STONEGUARD, FRONT, LOWER
                      from £29.94
                      from £29.94
                      STONEGUARD FRONT LOWER Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 77-73797
                      STONEGUARD, REAR
                      from £89.06
                      from £89.06
                      STONEGUARD REAR Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 77-64804
                      STONEGUARD, SPOILER, RH
                      from £46.36
                      from £46.36
                      STONEGUARD - RH Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 77-64805
                      STONEGUARD, SPOILER, LH
                      from £46.36
                      from £46.36
                      STONEGUARD - LH Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 692292
                      RIVNUT, M6
                      Stoneguard attach
                      from £1.56
                      from £1.56
                      RIVNUT M6 Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 692041
                      HANKBUSH, M6
                      Stoneguard front attach
                      from £0.88
                      from £0.88
                      HANKBUSH M6 HEXAGON Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 692369
                      SEAL RUBBER
                      Stoneguards
                      from £23.47
                      from £23.47
                      SEAL-RUBBER 2 MTR LG Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 696513
                      SCREW, M6X16, BLACK NYLON
                      Stoneguard attach
                      from £1.89
                      from £1.89
                      SCREW M6 X 16 HEX Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 77-72743
                      WASHER, M6X25.4X2, BLACK ABS
                      Stoneguard attach
                      from £3.98
                      from £3.98
                      WASHER M6 X 25.4 OD Genuine Aston Martin - New (to order)
                      # 11
                      MPN: 691020
                      SCREW, NO.8X 1/2 PK
                      Rear stoneguard attach
                      from £0.47
                      from £0.47
                      SCREW NO8 X 1/2 PK Genuine Aston Martin - New (to order)
                      # 12
                      MPN: 77-14017
                      EDGE TRIM, BLACK RUBBER
                      Stoneguard, spoiler
                      from £19.87
                      from £19.87
                      EDGE TRIM-5 MTR LONG Genuine Aston Martin - New (to order)
                      # -
                      -
                      EVODE MULTI-SEAL
                      Stoneguards
                      # 13
                      MPN: 77-53584
                      GASKET, WINDSCREEN FINISHER
                      Made from 65-11313 / 77-52031
                      GASKET, WINDSCREEN FINISHER Genuine Aston Martin - New (to order)
                      # 14
                      MPN: 77-52045
                      Damming strip, lower screen rail
                      Made from 694099
                      Damming strip, lower screen rail Genuine Aston Martin - New (to order)
                      # 15
                      MPN: 77-52043
                      MASTIC RETENTION DAM, A POST FRONT HEADER
                      Made from 77-52036
                      MASTIC RETENTION DAM Genuine Aston Martin - New (to order)
                      # 16
                      MPN: 77-52038
                      GLASS RUN CHANNEL, FORWARD
                      Made from 694093
                      GLSS RUN CHNNL 1.7M Genuine Aston Martin - New (to order)
                      # 17
                      MPN: 77-52039
                      GLASS RUN CHANNEL, REAR
                      Made from 694093
                      GLSS RUN CHNNL 0.9M Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 77-73838
                      Panel, B post finisher, RH
                      Up to (V)79079 excl 79074
                      Panel, B post finisher, RH Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 77-73839
                      Panel, B post finisher, LH
                      Up to (V)79079 excl 79074
                      Panel, B post finisher, LH Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 77-56594
                      Panel, B post finisher, RH
                      From (V)79080 + 79074
                      from £63.56
                      from £63.56
                      PANEL B POST FINSHR RH Genuine Aston Martin - New (to order)
                      # 18
                      MPN: 77-56595
                      Panel, B post finisher, LH
                      From (V)79080 + 79074
                      from £63.56
                      from £63.56
                      PANEL B POST FINSHR LH Genuine Aston Martin - New (to order)
                      # 19
                      MPN: 696093
                      RUBBER EDGE FINISHER
                      from £19.50
                      from £19.50
                      RUBBER -EDGE FINISHR Genuine Aston Martin - New (to order)
                      # 20
                      MPN: 77-52033
                      Damming strip, B post
                      Made from 694099
                      Damming strip, B post Genuine Aston Martin - New (to order)
                      # 21
                      MPN: 77-50302
                      DOOR SEAL EDGE FINISHER
                      Door aperture
                      SEAL RUBBER, DOOR APERTURE Genuine Aston Martin - New (to order)
                      # 22
                      MPN: 77-52037
                      Mastic retention dam, waist and roof
                      Made from 77-52036
                      Mastic retention dam, waist and roof Genuine Aston Martin - New (to order)
                      # 23
                      MPN: 77-72298
                      INNER WAIST BELT FINISHER, DOOR
                      Made from 77-62001
                      INNER W/BLT FNR-DOOR Genuine Aston Martin - New (to order)
                      # 24
                      MPN: 77-61715
                      OUTER WAIST BELT FINISHER, DOOR
                      from £18.70
                      from £18.70
                      OUTER W/BLT FNR-DR 1.2 Genuine Aston Martin - New (to order)
                      # 25
                      MPN: 77-73770
                      EXTRUSION DOOR FRAME UPPER
                      from £22.28
                      from £22.28
                      EXTRUSION DOOR FRAME Genuine Aston Martin - New (to order)
                      # 26
                      MPN: 77-52028
                      Gasket, rear side glass, RH
                      Made from 77-52031 / 77-52032
                      GASKET, REAR SIDE GLASS , RH Genuine Aston Martin - New (to order)
                      # 26
                      MPN: 77-52029
                      GASKET, REAR SIDE GLASS, LH
                      Made from 77-52031 / 77-52032
                      GASKET, REAR SIDE GLASS , LH Genuine Aston Martin - New (to order)
                      # 27
                      MPN: 77-55346
                      CHEATER PANEL, REAR QUARTER LIGHT
                      from £26.79
                      from £26.79
                      CHEATER PANEL Genuine Aston Martin - New (to order)
                      # 28
                      MPN: 77-53585
                      Gasket, rear screen finisher
                      Made from 77-74069
                      Gasket, rear screen finisher Genuine Aston Martin - New (to order)
                      # 29
                      MPN: 77-52044
                      Mastic retaining dam
                      Made from 77-52036
                      Mastic retaining dam Genuine Aston Martin - New (to order)
                      # 30
                      MPN: 698098
                      WEATHER SEAL, BOOT
                      Boot aperture seal Genuine Aston Martin - New (to order)
                      # 31
                      MPN: 77-65663
                      SEAL, DOOR SILL
                      From (V) 79080 + 79074
                      from £73.15
                      from £73.15
                      SEAL - DOOR SILL Genuine Aston Martin - New (to order)
                      # 32
                      MPN: 77-65664
                      PIN, WEATHER STRIP FIXING
                      From (V) 79080 + 79074
                      from £3.90
                      from £3.90
                      PIN - WEATHER Genuine Aston Martin - New (to order)
