7.5A.1 - Body Fittings

Aston Martin V8 Coupe (2000) Body Fittings Parts Diagram

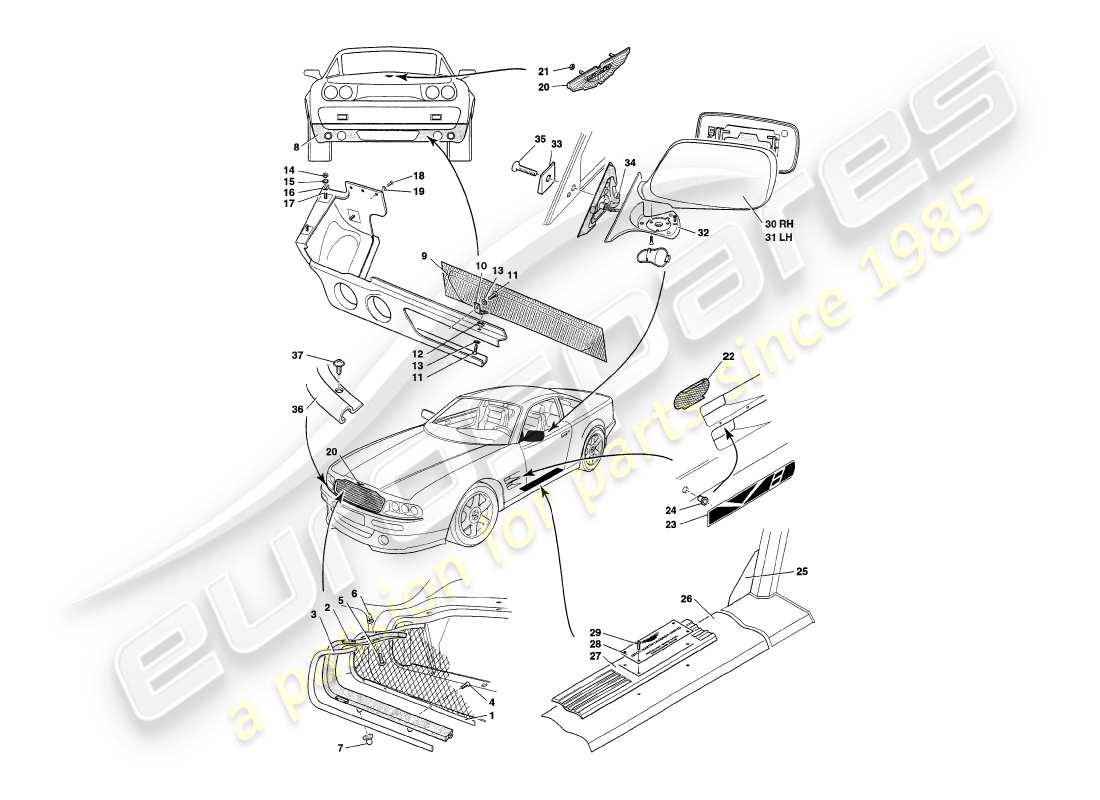

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 71-74298
                                    FRONT GRILLE WIRE AND FRAME ASSY
                                    from £384.62
                                    from £384.62
                                    FRONT GRILLE WIRE & Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 71-74296
                                    FRONT GRILLE BLACK SURROUND, RH
                                    from £232.32
                                    from £232.32
                                    FRONT GRILLE BLACK Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 71-74297
                                    FRONT GRILLE BLACK SURROUND, LH
                                    from £290.67
                                    from £290.67
                                    FRONT GRILLE Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 71-55967
                                    FRONT GRILLE SURROUND, CHROMED
                                    from £1,223.16
                                    from £1,223.16
                                    FRONT GRILLE SURR CHRM Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 696338
                                    SCREW, NO.4 X 1/2 BLACK
                                    from £0.47
                                    from £0.47
                                    SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 697624
                                    SCREW, NO.8X25 RSD CSK HD, BLACK
                                    from £0.47
                                    from £0.47
                                    SCREW, NO. 8X25 RAISED COUNTERSUNK HD Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    DOUBLE SIDED ADHESIVE TAPE
                                    # 6
                                    MPN: 692240
                                    NUT, CAPTIVE NYLON
                                    Grille to body
                                    from £1.74
                                    from £1.74
                                    NUT, CAPTIVE NYLON Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 694566
                                    SNAPSAC
                                    from £0.47
                                    from £0.47
                                    SNAPSAC Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    BLANKING PLUG, TOWING EYE
                                    # -
                                    -
                                    O' RING DOWTY
                                    # 8
                                    MPN: 78-55945
                                    REAR UNDERTRAY ASSY
                                    from £831.59
                                    from £831.59
                                    ASSEMBLY REAR U/TRAY GRP Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 78-56282
                                    CENTRE MESH, REAR UNDERTRAY
                                    from £27.72
                                    from £27.72
                                    CENTRE MESH-RR U/TRY Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 78-56273
                                    BRACKET, REAR UNDERTRAY TO BODY
                                    from £4.36
                                    from £4.36
                                    BRACKET REAR UNDERTRAY Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 692243
                                    SCREW, M5X16
                                    Bracket to rear undertray
                                    from £0.47
                                    from £0.47
                                    SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 692800
                                    NUT, NYLOC, M5
                                    Bracket to rear undertray
                                    from £0.47
                                    from £0.47
                                    NUT M5 HEX SLK Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 122422
                                    WASHER, PLAIN, 2BA
                                    Bracket to rear undertray
                                    from £0.47
                                    from £0.47
                                    WASHER 2BA PLAIN Genuine Aston Martin - New (to order)
                                    AIR CONDITIONING ELECTROMAGNETIC CLUTCH UNIT Genuine Ferrari Part - New (to order)
                                    # -
                                    -
                                    SIKAFLEX, 255 FC
                                    Centre mesh to undertray
                                    # 14
                                    MPN: 692075
                                    NUT, M5
                                    Undertray to body/lamp holders
                                    from £0.47
                                    from £0.47
                                    NUT M5 HEX Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 692065
                                    WASHER, SHAKEPROOF, M5
                                    Undertray to body/lamp holders
                                    from £0.47
                                    from £0.47
                                    WASHER M5 S/PROOF Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 692057
                                    WASHER, PLAIN, 3/16
                                    Undertray to body/lamp holders
                                    from £0.47
                                    from £0.47
                                    WASHER M8 PLAIN Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    EVODE MULTI SEAL
                                    Undertray to body
                                    # 17
                                    MPN: 692472
                                    FIXING, BIG HEAD, M5X20
                                    Undertray to body
                                    from £6.95
                                    from £6.95
                                    FIXING M5 X20 BIG HD Genuine Aston Martin - New (to order)
                                    # 18
                                    MPN: 692011
                                    SCREW, NO.10 X 3/4
                                    Undertray to body
                                    from £0.47
                                    from £0.47
                                    SCREW NO10 X 3/4 FLANGE Genuine Aston Martin - New (to order)
                                    # 19
                                    MPN: 692055
                                    WASHER, PLAIN, M5
                                    Undertray to body
                                    from £0.47
                                    from £0.47
                                    WASHER M5 PLAIN MED Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    FREBOL
                                    Undertray to body
                                    # 20
                                    MPN: 78-19336
                                    BADGE, Aston Martin
                                    Grille and boot lid
                                    from £183.43
                                    from £183.43
                                    BADGE (Aston Martin) Genuine Aston Martin - New (to order)
                                    # 21
                                    MPN: 694575
                                    NUT, KEPS, 2BA
                                    Aston Martin badge attach
                                    from £0.47
                                    from £0.47
                                    NUT 2BA KEPS Genuine Aston Martin - New (to order)
                                    # 22
                                    MPN: 78-72895
                                    GRILLE FRONT WING, A/C AIR INTAKE
                                    from £54.01
                                    from £54.01
                                    GRILLE-FRT WING Genuine Aston Martin - New (to order)
                                    # 23
                                    MPN: 78-56646
                                    BADGE, V8 COUPE
                                    from £141.12
                                    from £141.12
                                    BADGE V8 COUPE Genuine Aston Martin - New (to order)
                                    # 24
                                    MPN: 696804
                                    PLASTIC INSERT
                                    V8 Coupe badge attach
                                    from £0.47
                                    from £0.47
                                    PLASTIC INSERT Genuine Aston Martin - New (to order)
                                    # 25
                                    MPN: 78-55011
                                    FINISHER, B POST LOWER
                                    from £111.63
                                    from £111.63
                                    FINISHER - `B POST Genuine Aston Martin - New (to order)
                                    # 26
                                    MPN: 78-54465
                                    TREADPLATE SURROUND ASSY, RH
                                    from £194.98
                                    from £194.98
                                    ASSEMBLY TREADPLT SURR LH Genuine Aston Martin - New (to order)
                                    # 26
                                    MPN: 78-54464
                                    TREADPLATE SURROUND ASSY, LH
                                    from £194.98
                                    from £194.98
                                    ASSEMBLY TREADPLT SURR RH Genuine Aston Martin - New (to order)
                                    # 27
                                    MPN: 78-54460
                                    MOULDING, TREADPLATE
                                    from £123.79
                                    from £123.79
                                    MOULDG-TR/PLT(MODIF) Genuine Aston Martin - New (to order)
                                    # 28
                                    MPN: 37-54461
                                    NAMEPLATE
                                    NAMEPLATE Genuine Aston Martin - New (to order)
                                    # 29
                                    MPN: 695046
                                    SCREW, M3X6
                                    from £0.92
                                    from £0.92
                                    SCREW M3 X6 S/S RSD Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    TAPE, SELF ADHESIVE
                                    # 30
                                    MPN: 37-64902
                                    DOOR MIRROR ASSY, CONVEX, RH
                                    Up to (V)79044
                                    from £675.98
                                    from £675.98
                                    ASSEMBLY DOOR MIRROR RH Genuine Aston Martin - New (to order)
                                    # 30
                                    MPN: 37-74490
                                    DOOR MIRROR ASSY, CONVEX, RH
                                    From (V)79045
                                    from £621.63
                                    from £621.63
                                    DOOR MIRROR RH Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    LENS, DOOR MIRROR, CONVEX, RH
                                    Up to (V)79044
                                    # 31
                                    MPN: 37-64903
                                    DOOR MIRROR ASSY, CONVEX, LH
                                    Up to (V)79044
                                    from £675.98
                                    from £675.98
                                    ASSEMBLY DOOR MIRROR LH Genuine Aston Martin - New (to order)
                                    # 31
                                    MPN: 37-74491
                                    DOOR MIRROR ASSY, CONVEX, LH
                                    From (V)79045
                                    from £689.52
                                    from £689.52
                                    DOOR MIRROR LH Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    LENS, DOOR MIRROR, CONVEX, LH
                                    Up to (V)79044
                                    # -
                                    -
                                    DOOR MIRROR ASSY, CONVEX, RH
                                    Arabic inscription Up to (V)79044
                                    # -
                                    -
                                    LENS, DOOR MIRROR, CONVEX, RH
                                    Arabic inscription Up to (V)79044
                                    # -
                                    -
                                    Motor, door mirror
                                    From (V)79045
                                    # -
                                    -
                                    HOUSING, PIN 5 WAY
                                    From (V)79045
                                    # -
                                    -
                                    SOCKET 0.3-0.6
                                    From (V)79045
                                    # 32
                                    MPN: 37-74488
                                    MOULDING, EXTERIOR MIRROR BASE, RH
                                    From (V)79045
                                    from £168.88
                                    from £168.88
                                    MOULDING-EXTERIOR Genuine Aston Martin - New (to order)
                                    # 32
                                    MPN: 37-74489
                                    MOULDING, EXTERIOR MIRROR BASE, LH
                                    From (V)79045
                                    from £168.88
                                    from £168.88
                                    MOULDING EXTERIOR Genuine Aston Martin - New (to order)
                                    # 33
                                    MPN: 37-74534
                                    PLATE, TAPERED
                                    From (V)79045
                                    from £23.55
                                    from £23.55
                                    PLATE - TAPERED Genuine Aston Martin - New (to order)
                                    # 34
                                    MPN: 698777
                                    WASHER, NYLON, 8.3 ID X 12.0 OD X 5.0
                                    From (V)79045
                                    from £0.47
                                    from £0.47
                                    WASHER NYLON Genuine Aston Martin - New (to order)
                                    # 35
                                    MPN: 698204
                                    CAPSCREW, M8X50
                                    From (V)79045
                                    from £1.59
                                    from £1.59
                                    SCREW M8X50 Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    MIRROR BACK COVER, RH
                                    From (V)79045
                                    # -
                                    -
                                    MIRROR BACK COVER, LH
                                    From (V)79045
                                    # -
                                    -
                                    TUBULAR CLIP
                                    From (V)79045
                                    # 36
                                    MPN: 78-55959
                                    TRIM, FRONT BUMPER, CHROME
                                    TRIM, FRONT BUMPER, CHROME Genuine Aston Martin - New (to order)
                                    # 37
                                    MPN: 696338
                                    SCREW, NO.4 X 1/2
                                    Crome trim to bumper
                                    from £0.47
                                    from £0.47
                                    SCREW NO4 X 1/2 Genuine Aston Martin - New (to order)
                                    # -
                                    -
                                    Door mirror glass, flat, RH
                                    Australia
                                    # -
                                    -
                                    PLATE, INSULATOR
                                    LHD
