aston martin v8 coupe (2000) glass parts diagram

7.8A - Glass

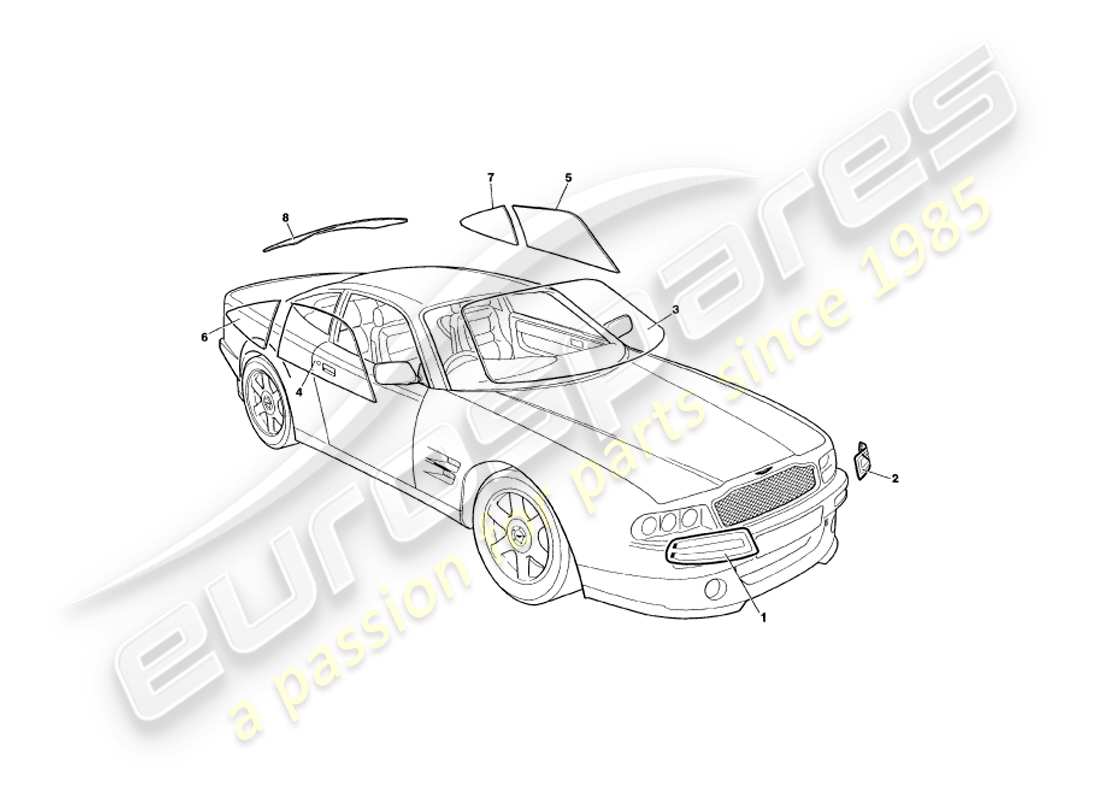

Aston Martin V8 Coupe (2000) Glass Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 76-70676
                HEADLAMP GLAZING, RH
                from £1,095.85
                from £1,095.85
                HEADLAMP GLAZING RH Genuine Aston Martin - New (to order)
                # 2
                MPN: 76-70677
                HEADLAMP GLAZING, LH
                from £1,095.85
                from £1,095.85
                HEADLAMP GLAZING LH Genuine Aston Martin - New (to order)
                # 3
                MPN: 76-50256
                GLASS, WINDSCREEN, SUNDYM
                Not Singapore
                from £2,591.62
                from £2,591.62
                WINDSCREEN GLASS Genuine Aston Martin - New (to order)
                # 3
                MPN: 76-62870
                GLASS, WINDSCREEN, UNHEATED
                Singapore
                W/SCRN GLSS UNHEATED Genuine Aston Martin - New (to order)
                # 4
                MPN: 76-70778
                GLASS, DOOR, RH
                from £400.16
                from £400.16
                DOOR GLASS 3MM RH Genuine Aston Martin - New (to order)
                # 5
                MPN: 76-70779
                GLASS, DOOR, LH
                from £400.16
                from £400.16
                DOOR GLASS 3MM LH Genuine Aston Martin - New (to order)
                # 6
                MPN: 76-53774
                GLASS, REAR SIDE, RH
                from £1,459.03
                from £1,459.03
                REAR SIDE GLASS RH Genuine Aston Martin - New (to order)
                # 7
                MPN: 76-53775
                GLASS, REAR SIDE, LH
                from £1,459.03
                from £1,459.03
                REAR SIDE GLASS LH Genuine Aston Martin - New (to order)
                # 8
                MPN: 76-50257
                GLASS, REAR SCREEN, SUNDYM
                from £1,967.09
                from £1,967.09
                REAR SCREEN GLASS Genuine Aston Martin - New (to order)
                # -
                -
                ADHESIVE, SIKAFLEX 255
                # -
                -
                PRIMER, SIKAFLEX 205
                # -
                -
                DOUBLE SIDED ADHESIVE TAPE
                # -
                -
                BOSTIK, BONDFLEX 100HMA
                Headlamp glass sealing
