010108-B4 - Body Components, Roadster

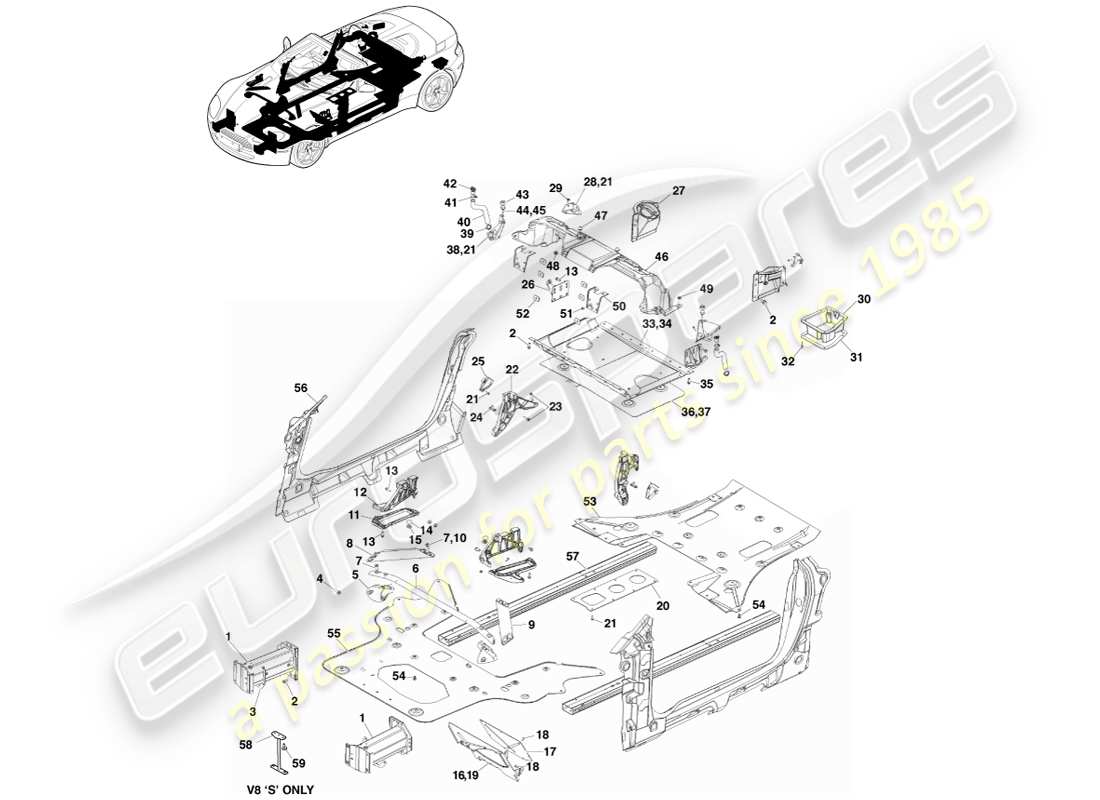

Aston Martin V8 Vantage (2007) Body Components, Roadster Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 6G33-V17N800-BA
BUMPER, FRONT CRUSH CAN
Structural Cat. A only
from £1,268.79
from £1,268.79
# 2
MPN: 703120
SCREW, M8X25
from £3.45
from £3.45
# 3
MPN: 6G33-6367912-AB
NUTPLATE, CRUSH CAN, RH
from £6.67
from £6.67
# 3
MPN: 6G33-6367913-AB
NUTPLATE, CRUSH CAN, LH
from £7.16
from £7.16
# 4
MPN: 702210
BOLT, M10X30
Supersession
Supersession
# 5
MPN: 4G43-108A86-BA
BRACKET, FRONT CROSS BRACE, RH
Up To VIN C18055
from £19.78
from £19.78
# 5
MPN: 4G43-108A86-CA
BRACKET, FRONT CROSS BRACE, RH
From VIN C18056 To 17MY
from £76.08
from £76.08
# 5
MPN: 8D33-108A86-AA
BRACKET, FRONT CROSS BRACE, RH
FROM 17MY
from £76.08
from £76.08
# 5
MPN: 4G43-108A87-BA
BRACKET, FRONT CROSS BRACE, LH
Up To VIN C18055
# 5
MPN: 4G43-108A87-CA
BRACKET, FRONT CROSS BRACE, LH
From VIN C18056 To 17MY
from £114.12
from £114.12
This part replaces part number 4G43-108A87-BA which we have in stock
# 5
MPN: 8D33-108A87-AA
BRACKET, FRONT CROSS BRACE, LH
FROM 17MY
from £76.08
from £76.08
# 6
MPN: 6G33-108A75-AB
BRACE, FRONT CROSS
from £61.24
from £61.24
# 7
MPN: 702209
SCREW, M10X25, TORX DRIVE
from £0.81
from £0.81
# 8
MPN: GOAG43-F00198-AA
BRACE, REINFORCEMENT, ENGINE, RH
Order in pairs
from £279.10
from £279.10
# 9
MPN: GOAG43-F00199-AA
BRACE, REINFORCEMENT, E
Order in pairs
from £279.10
from £279.10
# 10
MPN: 699838
NUT, M10, 2 EACH SIDE
# 11
MPN: 6G33-5340-BA
BRACKET, ECU MOUNTING, RH
from £41.90
from £41.90
# 11
MPN: 6G33-5341-BA
BRACKET, ECU MOUNTING, LH
from £37.05
from £37.05
# 12
MPN: 6G33-16798-BA
BRACKET, BONNET HINGE SUPPORT, RH
from £59.02
from £59.02
# 12
MPN: 6G33-16799-BA
BRACKET, BONNET HINGE SUPPORT, LH
from £59.02
from £59.02
# 13
MPN: 701664
SCREW, M8X25
# 14
MPN: 4G43-061B70-AA
CAP, DUST COVER
from £0.47
from £0.47
# 14
MPN: 4G43-061B70-AB
CAP, DUST COVER
08MY
# 15
MPN: 4G43-16740-AA
PAD, COWL
from £10.21
from £10.21
# 16
MPN: 4G43-111C61-AE
PANEL, DUMMY, FRONT FLOOR, RHD
from £127.86
from £127.86
# 16
MPN: 9G43-111C60-GF
PANEL, DUMMY, FRONT FLOOR, LHD
from £255.72
from £255.72
# 17
MPN: 4G43-111B48-AB
PANEL, DUMMY, COVER, FRONT FLOOR
from £13.89
from £13.89
# 18
MPN: 701553
SCREW, M6X16
from £0.47
from £0.47
# 19
MPN: 700116
NUT, FLG, M6
from £1.18
from £1.18
# 20
MPN: AD23-111K37-CA
PLATE, REINFORCEMENT, TUNNEL
from £20.91
from £20.91
This part replaces part number AD23-111K37-BA which we have in stock
# 21
MPN: 700099
SCREW, M6X20
# 22
MPN: 6G33-611D38-BA
BRACKET ASSEMBLY, FRONT SEAT BELT, RH
from £47.55
from £47.55
# 22
MPN: 6G33-611D39-BA
BRACKET ASSEMBLY, FRONT SEAT BELT, LH
from £47.55
from £47.55
# 23
MPN: 702635
BOLT, M8X38
from £0.47
from £0.47
# 24
MPN: 4G43-L243A70-AA
ALIGNMENT PIN, MAIN BEARING BRACKET
from £27.62
from £27.62
# 25
MPN: GO6G33-L53948-AE
BRACKET, ACT PIVOT
# 26
MPN: 6G33-5D022-AD
BRACKET, REAR, SUBFRAME, STABILISER
from £38.64
from £38.64
# 27
MPN: 6G33-18A000-AD
MOUNTING, REAR SHOCK ABSORBER, RH
from £286.04
from £286.04
# 27
MPN: 6G33-18A001-AD
MOUNTING, REAR SHOCK ABSORBER, LH
from £286.04
from £286.04
# 28
MPN: 6G33-L46302-AC
ACTUATOR, TONNEAU, REINF BODY, RH
# 28
MPN: 6G33-L46303-AC
ACTUATOR, TONNEAU, REINF BODY, LH
from £27.61
from £27.61
# 29
MPN: 6G33-100134-AB
SCREW AND WASHER M8X18
# 30
MPN: 6G33-L14C445-AF
FUSE BOX
from £58.73
from £58.73
# 31
MPN: 6G33-L41400-AB
GASKET
NSS. Part of item 30
from £5.09
from £5.09
# 32
MPN: 703754
RIVET
from £0.61
from £0.61
# 33
MPN: 6G33-9N172-AD
PANEL, FUEL TANK COMPARTMENT, LOWER
# 33
MPN: 6G33-9N172-AE
PANEL, FUEL TANK COMPARTMENT, LOWER
10.5MY
from £400.81
from £400.81
# 33
MPN: ED23-9N172-BA
PANEL, FUEL TANK COMPARTMENT, LOWER
13MY
# 34
MPN: 4G43-501B0-AC
NUTPLATE
from £9.54
from £9.54
# 35
MPN: 702509
STUD, M8X25, M6X14
from £1.53
from £1.53
# 36
MPN: 6G33-9A032-AE
HEATSHIELD, FUEL TANK
from £76.08
from £76.08
# 37
MPN: 703754
RIVET
from £0.61
from £0.61
# 38
MPN: 6G33-N17K902-AE
BRACKET, BUMP STOP, RH
from £38.56
from £38.56
# 38
MPN: 6G33-N17K902-AF
BRACKET, BUMP STOP, RH
09MY
from £52.05
from £52.05
# 38
MPN: 6G33-N17K903-AE
BRACKET, BUMP STOP, LH
from £38.56
from £38.56
# 38
MPN: 6G33-N17K903-AF
BRACKET, BUMP STOP, LH
09MY
from £52.05
from £52.05
# 39
MPN: 6G33-58500W04-AB
GROMMET, DRAIN HOSE
from £0.50
from £0.50
# 40
MPN: 6G33-L82844-AB
DRAIN PIPE, REAR QUARTER
from £8.54
from £8.54
# 41
MPN: 699094
CLAMP
from £4.51
from £4.51
# 41
MPN: 37-90075
CABLE TIE
15.5MY on
from £0.47
from £0.47
# 42
MPN: 6G33-L80840-AC
PLUG, REAR QUARTER DRAIN
from £4.77
from £4.77
# 43
MPN: 4G43-061B70-AA
CAP DUST COVER
from £0.47
from £0.47
# 44
MPN: 4G43-16K808-AB
SUPPORT ASSEMBLY, HOOD BUMPER
from £2.44
from £2.44
# 45
MPN: 702994
NUT, M6
from £0.47
from £0.47
# 46
MPN: 6G33-L21327-AD
ROOF STOWAGE COVER, FRONT
Up To 12MY, with SatNav
from £62.38
from £62.38
# 46
MPN: CG33-L21327-AA
ROOF STOWAGE COVER, FRONT
From 12MY To 16MY, with Garmin SatNav
from £76.63
from £76.63
# 46
MPN: 6G33-L21327-BB
ROOF STOWAGE COVER, FRONT
Up To 16MY, Less SatNav
from £52.97
from £52.97
# 46
MPN: GG33-L21327-AA
ROOF STOWAGE COVER, FRONT
FROM 16MY
from £208.46
from £208.46
# 47
MPN: 6G33-3633038-AB
BUMP STOP, M6X20
from £5.69
from £5.69
# 48
MPN: 6G33-FA0115-AB-PK
SCREW AND WASHER M6X19 PAN HD
Pack of 20
from £12.31
from £12.31
This part replaces part number 6G33-FA0115-AB
# 49
MPN: 704327
NUT AND WASHER, M6, HEX
from £3.16
from £3.16
# 50
MPN: 6G33-L43218-AE
MOUNTING BRACKET, TONNEAU LATCH
from £24.94
from £24.94
# 51
MPN: 700211
SCREW M6X16
# 52
MPN: 6G33-L111C98-AB
NUT PLATE, M8
from £8.16
from £8.16
# 53
MPN: 6G33-L17C857-AE
SHIELD, REAR BUMPER OPENING
# 53
MPN: BG33-L17C857-KB
SHIELD, REAR BUMPER OPENING
11MY
# 54
MPN: 6G33-100134-AB
SCREW AND WASHER
# 55
MPN: 6G33-L11270-AE
REINFORCEMENT, FLOOR PAN, FRONT
08MY
# 55
MPN: BG33-L11270-BA
REINFORCEMENT, FLOOR PAN, FRONT
09MY
from £824.60
from £824.60
# 56
MPN: 6G33-L20412-AD
REINFORCEMENT, DOOR, RH, BODY
Structural Cat. A only
from £675.05
from £675.05
# 56
MPN: 6G33-L20413-AD
REINFORCEMENT, DOOR, LH, BODY
Structural Cat. A only
from £532.47
from £532.47
# 57
MPN: AG33-10120-AA
REINFORCEMENT, FLOOR MEMBER
Structural Cat. A only
from £164.30
from £164.30
# 57
MPN: 8G33-L45108-AA
FRONT SURROUND, TRUNK LID
08MY, Structural Cat. A only
from £1,189.77
from £1,189.77
# 58
MPN: BG33-442A05-AA
SUPPORT POST, FRONT SPLITTER
V8 S / 12.25MY
from £28.19
from £28.19
# 59
MPN: 6G33-FA0115-AB-PK
SCREW AND WASHER M6X19 PAN HD
Pack of 20. V8 S / 12.25MY
from £12.31
from £12.31
This part replaces part number 6G33-FA0115-AB
-part-diagram-010201.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-010202-b1.webp "ASTON MARTIN V8 VANTAGE (2007) GRILLE OPENING PANEL PARTS DIAGRAM")
-part-diagram-010203-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WING ASSEMBLY PARTS DIAGRAM")
-part-diagram-010204.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WHEEL ARCHES PARTS DIAGRAM")
-part-diagram-010205-b1.webp "ASTON MARTIN V8 VANTAGE (2007) BONNET AND MOUNTING PARTS DIAGRAM")
-part-diagram-010207-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT UNDERSHIELD PARTS DIAGRAM")
-part-diagram-010301-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SIDE DOORS PARTS DIAGRAM")
-part-diagram-010301-g1.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR HINGES PARTS DIAGRAM")
-part-diagram-010303-b1.webp "ASTON MARTIN V8 VANTAGE (2007) TAILGATE, COUPE PARTS DIAGRAM")
-part-diagram-010303-b2.webp "ASTON MARTIN V8 VANTAGE (2007) DECK LID, ROADSTER PARTS DIAGRAM")
-part-diagram-010501.webp "ASTON MARTIN V8 VANTAGE (2007) FLOOR TRIM PARTS DIAGRAM")
-part-diagram-010502.webp "ASTON MARTIN V8 VANTAGE (2007) COWL SIDE TRIM, LOWER PARTS DIAGRAM")
-part-diagram-010503-b1.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLINER ASSY PARTS DIAGRAM")
-part-diagram-010503-b10.webp "ASTON MARTIN V8 VANTAGE (2007) PILLAR TRIM, UPPER, ROADSTER PARTS DIAGRAM")
-part-diagram-010503-b2.webp "ASTON MARTIN V8 VANTAGE (2007) HEADER TRIM, COUPE PARTS DIAGRAM")
-part-diagram-010503-b2-1.webp "ASTON MARTIN V8 VANTAGE (2007) HEADER TRIM, COUPE 09MY PARTS DIAGRAM")
-part-diagram-010503-b4.webp "ASTON MARTIN V8 VANTAGE (2007) HEADER TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010503-b4-1.webp "ASTON MARTIN V8 VANTAGE (2007) HEADER TRIM, ROADSTER 09MY PARTS DIAGRAM")
-part-diagram-010503-b6.webp "ASTON MARTIN V8 VANTAGE (2007) HEADER TRIM, REAR, COUPE PARTS DIAGRAM")
-part-diagram-010503-b7.webp "ASTON MARTIN V8 VANTAGE (2007) PILLAR TRIM, UPPER, COUPE PARTS DIAGRAM")
-part-diagram-010503-b8.webp "ASTON MARTIN V8 VANTAGE (2007) B PILLAR ASSEMBLY PARTS DIAGRAM")
-part-diagram-010503-b9.webp "ASTON MARTIN V8 VANTAGE (2007) C PILLAR ASSEMBLY PARTS DIAGRAM")
-part-diagram-010504-b1.webp "ASTON MARTIN V8 VANTAGE (2007) SUNVISOR PARTS DIAGRAM")
-part-diagram-010505-b1.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR TRIM PARTS DIAGRAM")
-part-diagram-010505-gt8.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR TRIM, GT8 PARTS DIAGRAM")
-part-diagram-010507-b1.webp "ASTON MARTIN V8 VANTAGE (2007) BODY SIDE QUARTER TRIM, COUPE PARTS DIAGRAM")
-part-diagram-010507-b2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR END TRIM, COUPE PARTS DIAGRAM")
-part-diagram-010507-b4.webp "ASTON MARTIN V8 VANTAGE (2007) BODY SIDE QUARTER TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010507-b5.webp "ASTON MARTIN V8 VANTAGE (2007) REAR ENVIRONMENT TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010508-b1.webp "ASTON MARTIN V8 VANTAGE (2007) LOAD COMPARTMENT TRIM, COUPE PARTS DIAGRAM")
-part-diagram-010508-b2.webp "ASTON MARTIN V8 VANTAGE (2007) PACKAGE TRAY ASSEMBLY PARTS DIAGRAM")
-part-diagram-010508-b3.webp "ASTON MARTIN V8 VANTAGE (2007) LOAD COMPARTMENT TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010601-05.webp "ASTON MARTIN V8 VANTAGE (2007) BODY INSULATION, ROADSTER, 14MY PARTS DIAGRAM")
-part-diagram-010601-07.webp "ASTON MARTIN V8 VANTAGE (2007) BODY INSULATION, COUPE, 14MY PARTS DIAGRAM")
-part-diagram-010601-b2.webp "ASTON MARTIN V8 VANTAGE (2007) FLOOR SOUND INSULATION, RHD PARTS DIAGRAM")
-part-diagram-010601-b3.webp "ASTON MARTIN V8 VANTAGE (2007) FLOOR SOUND INSULATION, LHD PARTS DIAGRAM")
-part-diagram-010601-b4.webp "ASTON MARTIN V8 VANTAGE (2007) SOUND INSULATION, ENGINE COMP PARTS DIAGRAM")
-part-diagram-010601-b5.webp "ASTON MARTIN V8 VANTAGE (2007) ANTI-CAN SOUND PADS, LHD PARTS DIAGRAM")
-part-diagram-010601-b6.webp "ASTON MARTIN V8 VANTAGE (2007) ANTI-CAN SOUND PADS, RHD PARTS DIAGRAM")
-part-diagram-010601-b7.webp "ASTON MARTIN V8 VANTAGE (2007) BODY INSULATION, LHD PARTS DIAGRAM")
-part-diagram-010601-b8.webp "ASTON MARTIN V8 VANTAGE (2007) BODY INSULATION, RHD PARTS DIAGRAM")
-part-diagram-010702-b1.webp "ASTON MARTIN V8 VANTAGE (2007) DYNAMIC WEATHERSTRIPS, COUPE PARTS DIAGRAM")
-part-diagram-010702-b2.webp "ASTON MARTIN V8 VANTAGE (2007) DYNAMIC WEATHERSTRIPS, ROADSTER PARTS DIAGRAM")
-part-diagram-010703-b1.webp "ASTON MARTIN V8 VANTAGE (2007) SOFT SEALING, COUPE PARTS DIAGRAM")
-part-diagram-010703-b3.webp "ASTON MARTIN V8 VANTAGE (2007) SOFT SEALING, ROADSTER PARTS DIAGRAM")
-part-diagram-010706.webp "ASTON MARTIN V8 VANTAGE (2007) PLENUM COVER PARTS DIAGRAM")
-part-diagram-010707-b1.webp "ASTON MARTIN V8 VANTAGE (2007) WATERSHIELDS PARTS DIAGRAM")
-part-diagram-010801-b1.webp "ASTON MARTIN V8 VANTAGE (2007) RADIATOR GRILLE PARTS DIAGRAM")
-part-diagram-010801-gt8.webp "ASTON MARTIN V8 VANTAGE (2007) RADIATOR GRILLE, GT8 & V8 18MY PARTS DIAGRAM")
-part-diagram-010802-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT END TRIM PARTS DIAGRAM")
-part-diagram-010804-b2.webp "ASTON MARTIN V8 VANTAGE (2007) ROOF TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010805-b1.webp "ASTON MARTIN V8 VANTAGE (2007) BODYSIDE & QUARTER TRIM, COUPE PARTS DIAGRAM")
-part-diagram-010805-b2.webp "ASTON MARTIN V8 VANTAGE (2007) BODYSIDE & QUARTER TRIM, ROADSTER PARTS DIAGRAM")
-part-diagram-010805-b3.webp "ASTON MARTIN V8 VANTAGE (2007) VINYL BODYSIDE TRIM, GT PARTS DIAGRAM")
-part-diagram-010805-b5.webp "ASTON MARTIN V8 VANTAGE (2007) STONE CHIP GUARDS PARTS DIAGRAM")
-part-diagram-010806-b1.webp "ASTON MARTIN V8 VANTAGE (2007) BODY REAR END TRIM PARTS DIAGRAM")
-part-diagram-010807.webp "ASTON MARTIN V8 VANTAGE (2007) TRUNK LID TRIM PARTS DIAGRAM")
-part-diagram-010811-10.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SPOILER PARTS DIAGRAM")
-part-diagram-010901.webp "ASTON MARTIN V8 VANTAGE (2007) INTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-010904.webp "ASTON MARTIN V8 VANTAGE (2007) EXTERIOR REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-011000-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT LIGHTWEIGHT SEAT PARTS DIAGRAM")
-part-diagram-011000-b2.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SEAT PARTS DIAGRAM")
-part-diagram-011009-d1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SEAT ADJUSTMENT PARTS DIAGRAM")
-part-diagram-011101-b1.webp "ASTON MARTIN V8 VANTAGE (2007) WINDSHIELD PARTS DIAGRAM")
-part-diagram-011103-b1.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR GLASS, COUPE PARTS DIAGRAM")
-part-diagram-011103-b2.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR GLASS, ROADSTER PARTS DIAGRAM")
-part-diagram-011104-b1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR QUARTER GLASS, COUPE PARTS DIAGRAM")
-part-diagram-011106-b1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WINDSCREEN PARTS DIAGRAM")
-part-diagram-011108-b1.webp "ASTON MARTIN V8 VANTAGE (2007) DOOR WINDOW REGULATORS PARTS DIAGRAM")
-part-diagram-011109.webp "ASTON MARTIN V8 VANTAGE (2007) WINDOW/MIRROR LOCK CONTROLLER PARTS DIAGRAM")
-part-diagram-011201-50.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK, MANUAL, 16MY PARTS DIAGRAM")
-part-diagram-011201-60.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK, ASM, 16MY PARTS DIAGRAM")
-part-diagram-011201-b1.webp "ASTON MARTIN V8 VANTAGE (2007) INSTRUMENT PANEL, LHD PARTS DIAGRAM")
-part-diagram-011201-b2.webp "ASTON MARTIN V8 VANTAGE (2007) INSTRUMENT PANEL, RHD PARTS DIAGRAM")
-part-diagram-011201-b3.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK, LESS SAT NAV TO 16MY PARTS DIAGRAM")
-part-diagram-011201-b4.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK, WITH SAT NAV, TO 16MY PARTS DIAGRAM")
-part-diagram-011201-d1.webp "ASTON MARTIN V8 VANTAGE (2007) GLOVE BOX SWITCH PARTS DIAGRAM")
-part-diagram-011201-e1.webp "ASTON MARTIN V8 VANTAGE (2007) CCB TO BIW BRACKETS PARTS DIAGRAM")
-part-diagram-011202.webp "ASTON MARTIN V8 VANTAGE (2007) CONSOLE SWITCHES, ROADSTER PARTS DIAGRAM")
-part-diagram-011202-b01.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE CONSOLE LESS ARMREST PARTS DIAGRAM")
-part-diagram-011202-b11.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT CONSOLE, MANUAL, TO 16MY PARTS DIAGRAM")
-part-diagram-011202-b16a.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT CONSOLE, ASM, 16MY PARTS DIAGRAM")
-part-diagram-011202-b16m.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT CONSOLE, MANUAL, 16MY PARTS DIAGRAM")
-part-diagram-011202-b4.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE CONSOLE WITH ARMREST PARTS DIAGRAM")
-part-diagram-011202-b5.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT CONSOLE, ASM, TO 16MY PARTS DIAGRAM")
-part-diagram-011202-d1.webp "ASTON MARTIN V8 VANTAGE (2007) CONSOLE SWITCHES, COUPE, RHD PARTS DIAGRAM")
-part-diagram-011202-d5.webp "ASTON MARTIN V8 VANTAGE (2007) CONSOLE SWITCHES, COUPE, LHD PARTS DIAGRAM")
-part-diagram-011401-b1.webp "ASTON MARTIN V8 VANTAGE (2007) LOCK SET AND KEYS, LHD PARTS DIAGRAM")
-part-diagram-011401-b1-1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMITTER, RKE, 09MY PARTS DIAGRAM")
-part-diagram-011401-b2.webp "ASTON MARTIN V8 VANTAGE (2007) LOCK SET AND KEYS, RHD PARTS DIAGRAM")
-part-diagram-011401-b2-1.webp "ASTON MARTIN V8 VANTAGE (2007) START/STOP MODULE, 09MY PARTS DIAGRAM")
-part-diagram-011403-b1.webp "ASTON MARTIN V8 VANTAGE (2007) HOOD LATCH SYSTEM PARTS DIAGRAM")
-part-diagram-011404-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT DOOR LATCH PARTS DIAGRAM")
-part-diagram-011404-b3.webp "ASTON MARTIN V8 VANTAGE (2007) HANDLE ASSEMBLY PARTS DIAGRAM")
-part-diagram-011404-gt8.webp "ASTON MARTIN V8 VANTAGE (2007) HANDLE ASSEMBLY, GT8 PARTS DIAGRAM")
-part-diagram-011405-b1.webp "ASTON MARTIN V8 VANTAGE (2007) TRUNK LATCH SYSTEM PARTS DIAGRAM")
-part-diagram-011405-d1.webp "ASTON MARTIN V8 VANTAGE (2007) TAILGATE RELEASE PARTS DIAGRAM")
-part-diagram-011409-b1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMITTER, RKE PARTS DIAGRAM")
-part-diagram-011409-d1.webp "ASTON MARTIN V8 VANTAGE (2007) REDUCED GUARD SWITCH PARTS DIAGRAM")
-part-diagram-011410-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL FILLER MECHANISM, COUPE PARTS DIAGRAM")
-part-diagram-011410-b2.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL FILLER MECHANISM, ROADSTER PARTS DIAGRAM")
-part-diagram-011410-d1.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL FILLER RELEASE SWITCH PARTS DIAGRAM")
-part-diagram-011411-b1.webp "ASTON MARTIN V8 VANTAGE (2007) TONNEAU LATCHING SYSTEM PARTS DIAGRAM")
-part-diagram-011601.webp "ASTON MARTIN V8 VANTAGE (2007) WIPER BLADE ASSEMBLY, 12MY PARTS DIAGRAM")
-part-diagram-011601-b1.webp "ASTON MARTIN V8 VANTAGE (2007) WIPER BLADE ASSEMBLY PARTS DIAGRAM")
-part-diagram-011602.webp "ASTON MARTIN V8 VANTAGE (2007) WIPER LINKAGE ASSEMBLY PARTS DIAGRAM")
-part-diagram-011604-10.webp "ASTON MARTIN V8 VANTAGE (2007) WASHER BOTTLE PARTS DIAGRAM")
-part-diagram-011604-20.webp "ASTON MARTIN V8 VANTAGE (2007) WINDSCREEN WASH PARTS DIAGRAM")
-part-diagram-011604-30.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLAMP WASH PARTS DIAGRAM")
-part-diagram-011702-b1.webp "ASTON MARTIN V8 VANTAGE (2007) WIND DEFLECTOR PARTS DIAGRAM")
-part-diagram-011702-d1.webp "ASTON MARTIN V8 VANTAGE (2007) TONNEAU LATCH CONTROLLER PARTS DIAGRAM")
-part-diagram-011702-d3-1.webp "ASTON MARTIN V8 VANTAGE (2007) ROADSTER ROOF, PAGE1 PARTS DIAGRAM")
-part-diagram-011702-d3-2.webp "ASTON MARTIN V8 VANTAGE (2007) ROADSTER ROOF, PAGE2 PARTS DIAGRAM")
-part-diagram-011703-b1.webp "ASTON MARTIN V8 VANTAGE (2007) ROOF OPENING PANEL PARTS DIAGRAM")
-part-diagram-011703-b3.webp "ASTON MARTIN V8 VANTAGE (2007) ROOF OPENING TRIM PARTS DIAGRAM")
-part-diagram-011901-10.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT BUMPER, TO 12.25MY PARTS DIAGRAM")
-part-diagram-011901-20.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT BUMPER, 12.25MY ON & V8S PARTS DIAGRAM")
-part-diagram-011901-25.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT BUMPER, GT8 PARTS DIAGRAM")
-part-diagram-011901-30.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT BUMPER ARMATURE PARTS DIAGRAM")
-part-diagram-011902-20.webp "ASTON MARTIN V8 VANTAGE (2007) REAR BUMPER, GT8 PARTS DIAGRAM")
-part-diagram-011902-b1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR BUMPER, TO 12.25MY PARTS DIAGRAM")
-part-diagram-011902-b1-1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR BUMPER, 12.25MY ON & V8S PARTS DIAGRAM")
-part-diagram-011902-b2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR BUMPER ARMATURE PARTS DIAGRAM")
-part-diagram-011904-b1.webp "ASTON MARTIN V8 VANTAGE (2007) LICENSE PLATE BRACKETS, CHINA, FED, GCC PARTS DIAGRAM")
-part-diagram-011904-b2.webp "ASTON MARTIN V8 VANTAGE (2007) LICENSE PLATE BRACKETS, ROW PARTS DIAGRAM")
-part-diagram-011904-b3.webp "ASTON MARTIN V8 VANTAGE (2007) LICENSE PLATE BRACKETS, JAPAN PARTS DIAGRAM")
-part-diagram-011904-b4.webp "ASTON MARTIN V8 VANTAGE (2007) LICENSE PLATE BRACKETS, SWISS PARTS DIAGRAM")
-part-diagram-012001.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SEAT BELTS PARTS DIAGRAM")
-part-diagram-012003-b1.webp "ASTON MARTIN V8 VANTAGE (2007) PASSENGER AIRBAG PARTS DIAGRAM")
-part-diagram-012003-b3.webp "ASTON MARTIN V8 VANTAGE (2007) SIDE AIRBAG PARTS DIAGRAM")
-part-diagram-012004-b1.webp "ASTON MARTIN V8 VANTAGE (2007) ROPS INSTALLATION, ROADSTER PARTS DIAGRAM")
-part-diagram-012005-b1.webp "ASTON MARTIN V8 VANTAGE (2007) ACTUATION SENSORS PARTS DIAGRAM")
-part-diagram-020100-c1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SUBFRAME PARTS DIAGRAM")
-part-diagram-020100-c2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SUBFRAME PARTS DIAGRAM")
-part-diagram-020300-c1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-020600.webp "ASTON MARTIN V8 VANTAGE (2007) HEAT SHIELDS PARTS DIAGRAM")
-part-diagram-030100-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE STRUCTURE PARTS DIAGRAM")
-part-diagram-030100-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE STRUCTURE PARTS DIAGRAM")
-part-diagram-030200-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE LUBRICATION, ENGINE PARTS DIAGRAM")
-part-diagram-030200-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE LUBRICATION, ENGINE PARTS DIAGRAM")
-part-diagram-030200-s1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE LUBRICATION, LINE FIT PARTS DIAGRAM")
-part-diagram-030200-s1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE LUBRICATION, LINE FIT PARTS DIAGRAM")
-part-diagram-030300-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-030300-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-030300-s1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE COOLING (LINE FIT) PARTS DIAGRAM")
-part-diagram-030300-s1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE COOLING (LINE FIT) PARTS DIAGRAM")
-part-diagram-030304.webp "ASTON MARTIN V8 VANTAGE (2007) COOLANT HOSES & RESERVOIR PARTS DIAGRAM")
-part-diagram-030304-1.webp "ASTON MARTIN V8 VANTAGE (2007) COOLANT HOSES & RESERVOIR PARTS DIAGRAM")
-part-diagram-030500-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ACCESSORY DRIVE PARTS DIAGRAM")
-part-diagram-030500-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ACCESSORY DRIVE PARTS DIAGRAM")
-part-diagram-030600-e1.webp "ASTON MARTIN V8 VANTAGE (2007) STARTER MOTOR PARTS DIAGRAM")
-part-diagram-030600-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) STARTER MOTOR PARTS DIAGRAM")
-part-diagram-030604-d1.webp "ASTON MARTIN V8 VANTAGE (2007) STARTER BUTTON PARTS DIAGRAM")
-part-diagram-030700-e1.webp "ASTON MARTIN V8 VANTAGE (2007) IGNITION PARTS DIAGRAM")
-part-diagram-030700-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) IGNITION PARTS DIAGRAM")
-part-diagram-030800-e1.webp "ASTON MARTIN V8 VANTAGE (2007) EMISSION CONTROL PARTS DIAGRAM")
-part-diagram-030800-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) EMISSION CONTROL PARTS DIAGRAM")
-part-diagram-030900-e1.webp "ASTON MARTIN V8 VANTAGE (2007) VALVE TRAIN PARTS DIAGRAM")
-part-diagram-030900-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) VALVE TRAIN PARTS DIAGRAM")
-part-diagram-031000-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE SEALING PARTS DIAGRAM")
-part-diagram-031000-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE SEALING PARTS DIAGRAM")
-part-diagram-031100-s1.webp "ASTON MARTIN V8 VANTAGE (2007) POWER CONVERSION PARTS DIAGRAM")
-part-diagram-031100-s1-1.webp "ASTON MARTIN V8 VANTAGE (2007) POWER CONVERSION PARTS DIAGRAM")
-part-diagram-031200-1-1.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CHARGING, V8S PARTS DIAGRAM")
-part-diagram-031200-s1.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CHARGING PARTS DIAGRAM")
-part-diagram-031200-s1-1.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CHARGING PARTS DIAGRAM")
-part-diagram-031200-s3.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CHARGING, N400 PARTS DIAGRAM")
-part-diagram-031300.webp "ASTON MARTIN V8 VANTAGE (2007) EVAPORATIVE EMISSIONS PARTS DIAGRAM")
-part-diagram-031300-1.webp "ASTON MARTIN V8 VANTAGE (2007) EVAPORATIVE EMISSIONS PARTS DIAGRAM")
-part-diagram-031400-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-031400-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-031400-e2.webp "ASTON MARTIN V8 VANTAGE (2007) EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-031400-e2-1.webp "ASTON MARTIN V8 VANTAGE (2007) EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-031401.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-031401-1.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-031403.webp "ASTON MARTIN V8 VANTAGE (2007) BAROMETRIC SENSOR PARTS DIAGRAM")
-part-diagram-031403-d1.webp "ASTON MARTIN V8 VANTAGE (2007) BAROMETRIC SENSOR PARTS DIAGRAM")
-part-diagram-031600-e1.webp "ASTON MARTIN V8 VANTAGE (2007) ACCELERATOR CONTROL PARTS DIAGRAM")
-part-diagram-031600-e1-1.webp "ASTON MARTIN V8 VANTAGE (2007) ACCELERATOR CONTROL PARTS DIAGRAM")
-part-diagram-031800.webp "ASTON MARTIN V8 VANTAGE (2007) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-031800-1.webp "ASTON MARTIN V8 VANTAGE (2007) ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-031904-1.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH PEDAL SWITCH PARTS DIAGRAM")
-part-diagram-031904-d1.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH PEDAL SWITCH PARTS DIAGRAM")
-part-diagram-040100-c1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-040105-c1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT STABILISER BAR PARTS DIAGRAM")
-part-diagram-040200-c1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-040205-c1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR STABILISER BAR PARTS DIAGRAM")
-part-diagram-040300-10.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SPRING & DAMPER, MULTIMATIC PARTS DIAGRAM")
-part-diagram-040300-20.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SPRING & DAMPER, BILSTEIN PARTS DIAGRAM")
-part-diagram-040300-30.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SPRING & DAMPER, MULTIMATIC PARTS DIAGRAM")
-part-diagram-040300-40.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SPRING & DAMPER, BILSTEIN PARTS DIAGRAM")
-part-diagram-040400-30.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WHEELS & TYRES, 12.25MY ON PARTS DIAGRAM")
-part-diagram-040400-35.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WHEELS & TYRES, GT8 PARTS DIAGRAM")
-part-diagram-040400-60.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WHEELS & TYRES, 12.25MY ON PARTS DIAGRAM")
-part-diagram-040400-70.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WHEELS & TYRES, GT8 PARTS DIAGRAM")
-part-diagram-040400-c1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WHEELS & TYRES, TO 09MY PARTS DIAGRAM")
-part-diagram-040400-c1-1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT WHEELS & TYRES, 09MY TO 12.25MY PARTS DIAGRAM")
-part-diagram-040400-c2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WHEELS & TYRES, TO 09MY PARTS DIAGRAM")
-part-diagram-040400-c2-1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WHEELS & TYRES, 09MY TO 12.25MY PARTS DIAGRAM")
-part-diagram-050100.webp "ASTON MARTIN V8 VANTAGE (2007) DRIVESHAFT ASSEMBLY PARTS DIAGRAM")
-part-diagram-050500-w1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR HALFSHAFT ASSEMBLY PARTS DIAGRAM")
-part-diagram-060300-c1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-060400-c1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-060500-c2.webp "ASTON MARTIN V8 VANTAGE (2007) PARKING BRAKE, LHD PARTS DIAGRAM")
-part-diagram-060500-c3.webp "ASTON MARTIN V8 VANTAGE (2007) PARKING BRAKE RHD PARTS DIAGRAM")
-part-diagram-060600-c1.webp "ASTON MARTIN V8 VANTAGE (2007) BRAKE ACTUATOR ASSEMBLY, MANUAL PARTS DIAGRAM")
-part-diagram-060600-c3.webp "ASTON MARTIN V8 VANTAGE (2007) BRAKE ACTUATOR ASSEMBLY, ASM PARTS DIAGRAM")
-part-diagram-060603-c1.webp "ASTON MARTIN V8 VANTAGE (2007) BRAKE LINES & HOSES, LHD PARTS DIAGRAM")
-part-diagram-060603-c2.webp "ASTON MARTIN V8 VANTAGE (2007) BRAKE LINES & HOSES, RHD PARTS DIAGRAM")
-part-diagram-060604-d1.webp "ASTON MARTIN V8 VANTAGE (2007) STOP LAMP SWITCH PARTS DIAGRAM")
-part-diagram-060700.webp "ASTON MARTIN V8 VANTAGE (2007) POWER BRAKE ASSEMBLY PARTS DIAGRAM")
-part-diagram-060900-c1.webp "ASTON MARTIN V8 VANTAGE (2007) ANTI-LOCK MODULE PARTS DIAGRAM")
-part-diagram-070200-gt8.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMISSION COOLER, GT8 PARTS DIAGRAM")
-part-diagram-070200-r1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMISSION COOLER PARTS DIAGRAM")
-part-diagram-070200-r1-1.webp "ASTON MARTIN V8 VANTAGE (2007) COOLING DUCT PARTS DIAGRAM")
-part-diagram-070300-r1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSAXLE, MANUAL, 6 SPD PARTS DIAGRAM")
-part-diagram-070300-r2.webp "ASTON MARTIN V8 VANTAGE (2007) SPORTSHIFT, 6 SPD PARTS DIAGRAM")
-part-diagram-070300-r2-1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSAXLE, MANUAL, 7 SPD PARTS DIAGRAM")
-part-diagram-070300-r2a.webp "ASTON MARTIN V8 VANTAGE (2007) SPORTSHIFT KITS, 6 SPD PARTS DIAGRAM")
-part-diagram-070300-r2a-1.webp "ASTON MARTIN V8 VANTAGE (2007) SPORTSHIFT KITS, 7 SPD PARTS DIAGRAM")
-part-diagram-070502.webp "ASTON MARTIN V8 VANTAGE (2007) PADDLESHIFT PARTS DIAGRAM")
-part-diagram-070502-d1.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMISSION SWITCHES PARTS DIAGRAM")
-part-diagram-070600-r1.webp "ASTON MARTIN V8 VANTAGE (2007) GEAR LEVER ASSEMBLY, MANUAL PARTS DIAGRAM")
-part-diagram-071111.webp "ASTON MARTIN V8 VANTAGE (2007) TRANSMISSION ECU PARTS DIAGRAM")
-part-diagram-080000-r1.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH SYSTEM, LHD PARTS DIAGRAM")
-part-diagram-080000-r2.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH SYSTEM, RHD PARTS DIAGRAM")
-part-diagram-080000-r3.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH SYSTEM, SPORTSHIFT 6 SPD PARTS DIAGRAM")
-part-diagram-080000-r4.webp "ASTON MARTIN V8 VANTAGE (2007) CLUTCH SYSTEM, SPORTSHIFT 7 SPD PARTS DIAGRAM")
-part-diagram-090000-s1.webp "ASTON MARTIN V8 VANTAGE (2007) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-090400-s1.webp "ASTON MARTIN V8 VANTAGE (2007) HEATSHIELD SUBSYSTEM PARTS DIAGRAM")
-part-diagram-100101.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL TANK ASSY, 13MY ON PARTS DIAGRAM")
-part-diagram-100101-s1.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL TANK ASSY, TO 13MY PARTS DIAGRAM")
-part-diagram-100103-s1.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL PIPES PARTS DIAGRAM")
-part-diagram-100104.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL FILLER CAP & PIPE PARTS DIAGRAM")
-part-diagram-100106-s1.webp "ASTON MARTIN V8 VANTAGE (2007) FUEL PUMP MODULES PARTS DIAGRAM")
-part-diagram-110200-c1.webp "ASTON MARTIN V8 VANTAGE (2007) POWER STEERING, LHD PARTS DIAGRAM")
-part-diagram-110200-c2.webp "ASTON MARTIN V8 VANTAGE (2007) POWER STEERING, RHD PARTS DIAGRAM")
-part-diagram-110203-c3.webp "ASTON MARTIN V8 VANTAGE (2007) COOLER, HOSES & RESERVOIR, LHD PARTS DIAGRAM")
-part-diagram-110203-c4.webp "ASTON MARTIN V8 VANTAGE (2007) COOLER, HOSES & RESERVOIR, RHD PARTS DIAGRAM")
-part-diagram-110401.webp "ASTON MARTIN V8 VANTAGE (2007) STEERING COLUMN ASSEMBLY PARTS DIAGRAM")
-part-diagram-110502.webp "ASTON MARTIN V8 VANTAGE (2007) IGNITION SWITCH INTERLOCK PARTS DIAGRAM")
-part-diagram-110600.webp "ASTON MARTIN V8 VANTAGE (2007) STEERING WHEEL ASSEMBLY PARTS DIAGRAM")
-part-diagram-110602.webp "ASTON MARTIN V8 VANTAGE (2007) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-120101.webp "ASTON MARTIN V8 VANTAGE (2007) AIR INTAKE DUCTS PARTS DIAGRAM")
-part-diagram-120102.webp "ASTON MARTIN V8 VANTAGE (2007) AIR DISTRIBUTION COMPONENTS PARTS DIAGRAM")
-part-diagram-120103-b1.webp "ASTON MARTIN V8 VANTAGE (2007) AIR EXTRACTION COMPONENTS PARTS DIAGRAM")
-part-diagram-120300.webp "ASTON MARTIN V8 VANTAGE (2007) EVAPORATOR & HEATER PARTS DIAGRAM")
-part-diagram-120305-10.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CON LINES, R134A GAS, LHD PARTS DIAGRAM")
-part-diagram-120305-20.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CON LINES, HFO1234YF GAS, LHD PARTS DIAGRAM")
-part-diagram-120305-30.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CON LINES, R134A GAS, RHD PARTS DIAGRAM")
-part-diagram-120305-40.webp "ASTON MARTIN V8 VANTAGE (2007) AIR CON LINES, HFO1234YF GAS, RHD PARTS DIAGRAM")
-part-diagram-120400.webp "ASTON MARTIN V8 VANTAGE (2007) SENSORS PARTS DIAGRAM")
-part-diagram-130101.webp "ASTON MARTIN V8 VANTAGE (2007) INSTRUMENT CLUSTER PARTS DIAGRAM")
-part-diagram-130600-d1.webp "ASTON MARTIN V8 VANTAGE (2007) HORN SYSTEM PARTS DIAGRAM")
-part-diagram-131301.webp "ASTON MARTIN V8 VANTAGE (2007) PARKING AID SENSORS PARTS DIAGRAM")
-part-diagram-140101-10.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY, LITHIUM ION PARTS DIAGRAM")
-part-diagram-140101-d1.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY PARTS DIAGRAM")
-part-diagram-140101-d2.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY OFF SWITCH PARTS DIAGRAM")
-part-diagram-140101-d3.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY CONDITIONER KIT PARTS DIAGRAM")
-part-diagram-140102-b1.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY HOLD DOWNS PARTS DIAGRAM")
-part-diagram-140103.webp "ASTON MARTIN V8 VANTAGE (2007) BATTERY CABLES PARTS DIAGRAM")
-part-diagram-150101-10.webp "ASTON MARTIN V8 VANTAGE (2007) ICU AND BRACKET, 16MY PARTS DIAGRAM")
-part-diagram-150103.webp "ASTON MARTIN V8 VANTAGE (2007) AMPLIFIER, ROADSTER PARTS DIAGRAM")
-part-diagram-150103-d1.webp "ASTON MARTIN V8 VANTAGE (2007) AMPLIFIER, COUPE PARTS DIAGRAM")
-part-diagram-150103-d3.webp "ASTON MARTIN V8 VANTAGE (2007) PREMIUM AMPLIFIERS, COUPE PARTS DIAGRAM")
-part-diagram-150103-d3-1.webp "ASTON MARTIN V8 VANTAGE (2007) B&O AMPLIFIERS, COUPE PARTS DIAGRAM")
-part-diagram-150103-d4.webp "ASTON MARTIN V8 VANTAGE (2007) B&O AMPLIFIERS, ROADSTER PARTS DIAGRAM")
-part-diagram-150104.webp "ASTON MARTIN V8 VANTAGE (2007) MEDIA CONTROLS, 09MY PARTS DIAGRAM")
-part-diagram-150104-30.webp "ASTON MARTIN V8 VANTAGE (2007) INFOTAINMENT CONTROLS, 16MY PARTS DIAGRAM")
-part-diagram-150104-d1.webp "ASTON MARTIN V8 VANTAGE (2007) MEDIA CONTROLS PARTS DIAGRAM")
-part-diagram-150108-d1.webp "ASTON MARTIN V8 VANTAGE (2007) MEDIA PLAYER PARTS DIAGRAM")
-part-diagram-150108-d2.webp "ASTON MARTIN V8 VANTAGE (2007) MP3 MEDIA PARTS DIAGRAM")
-part-diagram-150201-01.webp "ASTON MARTIN V8 VANTAGE (2007) DAB TUNER, 14MY PARTS DIAGRAM")
-part-diagram-150204.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ANTENNA, 09MY PARTS DIAGRAM")
-part-diagram-150204-01.webp "ASTON MARTIN V8 VANTAGE (2007) RADIO ANTENNA, 14MY PARTS DIAGRAM")
-part-diagram-150204-2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR & SCREEN ANTENNA, ROADSTER PARTS DIAGRAM")
-part-diagram-150204-d1.webp "ASTON MARTIN V8 VANTAGE (2007) ELECTRONIC ANTENNA PARTS DIAGRAM")
-part-diagram-150204-d2.webp "ASTON MARTIN V8 VANTAGE (2007) SDARS ANTENNA, ROADSTER PARTS DIAGRAM")
-part-diagram-150205-10.webp "ASTON MARTIN V8 VANTAGE (2007) WI-FI ANTENNA, 16MY PARTS DIAGRAM")
-part-diagram-150301-10.webp "ASTON MARTIN V8 VANTAGE (2007) SPEAKER, BASE PARTS DIAGRAM")
-part-diagram-150301-20.webp "ASTON MARTIN V8 VANTAGE (2007) SPEAKER, B&O PARTS DIAGRAM")
-part-diagram-150302-02.webp "ASTON MARTIN V8 VANTAGE (2007) P3 AMPLIFIER, ROADSTER PARTS DIAGRAM")
-part-diagram-150302-10.webp "ASTON MARTIN V8 VANTAGE (2007) P3 AMPLIFIER, COUPE PARTS DIAGRAM")
-part-diagram-160000-s1.webp "ASTON MARTIN V8 VANTAGE (2007) VACUUM DISTRIBUTION PARTS DIAGRAM")
-part-diagram-160200-c1.webp "ASTON MARTIN V8 VANTAGE (2007) VACUUM PIPE, LHD PARTS DIAGRAM")
-part-diagram-160200-c2.webp "ASTON MARTIN V8 VANTAGE (2007) VACUUM PIPE, RHD PARTS DIAGRAM")
-part-diagram-170101-d1.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-170101-d2.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLAMP FIXINGS PARTS DIAGRAM")
-part-diagram-170101-d3.webp "ASTON MARTIN V8 VANTAGE (2007) DIRECTIONAL INDICATOR RESISTOR PARTS DIAGRAM")
-part-diagram-170102-d1.webp "ASTON MARTIN V8 VANTAGE (2007) SIDE REPEATERS PARTS DIAGRAM")
-part-diagram-170105-d1.webp "ASTON MARTIN V8 VANTAGE (2007) FRONT SIDE MARKERS PARTS DIAGRAM")
-part-diagram-170202.webp "ASTON MARTIN V8 VANTAGE (2007) COURTESY LIGHTING PARTS DIAGRAM")
-part-diagram-170301.webp "ASTON MARTIN V8 VANTAGE (2007) REAR LAMPS PARTS DIAGRAM")
-part-diagram-170301-d2.webp "ASTON MARTIN V8 VANTAGE (2007) HIGH MOUNTED STOP LIGHT PARTS DIAGRAM")
-part-diagram-170305-d1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR SIDE MARKERS PARTS DIAGRAM")
-part-diagram-170306-d1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR REFLECTORS PARTS DIAGRAM")
-part-diagram-170308-d1.webp "ASTON MARTIN V8 VANTAGE (2007) LICENSE PLATE LAMPS PARTS DIAGRAM")
-part-diagram-170400-00.webp "ASTON MARTIN V8 VANTAGE (2007) RAIN & DAYLIGHT SENSOR PARTS DIAGRAM")
-part-diagram-170401.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLAMP LEVELING CONTROLLER PARTS DIAGRAM")
-part-diagram-170401-c1.webp "ASTON MARTIN V8 VANTAGE (2007) HEADLAMP LEVELING PARTS DIAGRAM")
-part-diagram-170501.webp "ASTON MARTIN V8 VANTAGE (2007) LIGHTING SWITCH PARTS DIAGRAM")
-part-diagram-180101.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE BAY HARNESS PARTS DIAGRAM")
-part-diagram-180101-d3.webp "ASTON MARTIN V8 VANTAGE (2007) ENGINE HARNESS PARTS DIAGRAM")
-part-diagram-180101-d4.webp "ASTON MARTIN V8 VANTAGE (2007) EARTH STUDS & NUTS PARTS DIAGRAM")
-part-diagram-180102.webp "ASTON MARTIN V8 VANTAGE (2007) IP HARNESS PARTS DIAGRAM")
-part-diagram-180102-d1.webp "ASTON MARTIN V8 VANTAGE (2007) IP HARNESS, 12MY PARTS DIAGRAM")
-part-diagram-180103.webp "ASTON MARTIN V8 VANTAGE (2007) BODY HARNESS, COUPE PARTS DIAGRAM")
-part-diagram-180103-20.webp "ASTON MARTIN V8 VANTAGE (2007) BODY HARNESS, ROADSTER PARTS DIAGRAM")
-part-diagram-180103-d2.webp "ASTON MARTIN V8 VANTAGE (2007) REAR END HARNESS PARTS DIAGRAM")
-part-diagram-180106.webp "ASTON MARTIN V8 VANTAGE (2007) FUSE PANELS PARTS DIAGRAM")
-part-diagram-180301-10.webp "ASTON MARTIN V8 VANTAGE (2007) IP SWITCHES, 16MY PARTS DIAGRAM")
-part-diagram-180302-10.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK SWITCHES, MANUAL, 16MY PARTS DIAGRAM")
-part-diagram-180302-20.webp "ASTON MARTIN V8 VANTAGE (2007) CENTRE STACK SWITCHES, ASM, 16MY PARTS DIAGRAM")
-part-diagram-180401-d1.webp "ASTON MARTIN V8 VANTAGE (2007) CIGAR LIGHTER PARTS DIAGRAM")
-part-diagram-180401-d2.webp "ASTON MARTIN V8 VANTAGE (2007) AUXILIARY SOCKET PARTS DIAGRAM")
-part-diagram-190101-d2.webp "ASTON MARTIN V8 VANTAGE (2007) TRACKER PARTS DIAGRAM")
-part-diagram-190101-d3.webp "ASTON MARTIN V8 VANTAGE (2007) TRACKER, COBRA, 14MY PARTS DIAGRAM")
-part-diagram-190102.webp "ASTON MARTIN V8 VANTAGE (2007) ANTI-THEFT SENSORS & SWITCHES PARTS DIAGRAM")
-part-diagram-190103-d1.webp "ASTON MARTIN V8 VANTAGE (2007) SECURITY SOUNDER PARTS DIAGRAM")
-part-diagram-190202.webp "ASTON MARTIN V8 VANTAGE (2007) RKE PARTS DIAGRAM")
-part-diagram-190600-d1.webp "ASTON MARTIN V8 VANTAGE (2007) VOICE CONTROL SUBSYSTEM PARTS DIAGRAM")
-part-diagram-190701.webp "ASTON MARTIN V8 VANTAGE (2007) NAVIGATION, TO 12MY PARTS DIAGRAM")
-part-diagram-190701-d1.webp "ASTON MARTIN V8 VANTAGE (2007) GARMIN NAVIGATION, COUPE, 12MY PARTS DIAGRAM")
-part-diagram-190701-d2.webp "ASTON MARTIN V8 VANTAGE (2007) GARMIN NAVIGATION, ROADSTER, 12MY PARTS DIAGRAM")
-part-diagram-190703-d1.webp "ASTON MARTIN V8 VANTAGE (2007) NAVIGATION DISPLAY PARTS DIAGRAM")
-part-diagram-190703-d2.webp "ASTON MARTIN V8 VANTAGE (2007) NAVIGATION DISPLAY, 12MY PARTS DIAGRAM")
-part-diagram-190705-d1.webp "ASTON MARTIN V8 VANTAGE (2007) GPS TUNER PARTS DIAGRAM")
-part-diagram-190706-d1.webp "ASTON MARTIN V8 VANTAGE (2007) GPS ANTENNA PARTS DIAGRAM")
-part-diagram-190800-d1.webp "ASTON MARTIN V8 VANTAGE (2007) TELEPHONE SUBSYSTEM PARTS DIAGRAM")
-part-diagram-190801-d1.webp "ASTON MARTIN V8 VANTAGE (2007) BLUETOOTH SUBSYSTEM PARTS DIAGRAM")
-part-diagram-191001-d1.webp "ASTON MARTIN V8 VANTAGE (2007) MULTI-FUNCTION CONTROL PARTS DIAGRAM")
-part-diagram-191001-d3.webp "ASTON MARTIN V8 VANTAGE (2007) TYRE PRESSURE MODULE PARTS DIAGRAM")
-part-diagram-191001-d4.webp "ASTON MARTIN V8 VANTAGE (2007) TYRE PRESSURE MODULE, 11MY PARTS DIAGRAM")
-part-diagram-200000.webp "ASTON MARTIN V8 VANTAGE (2007) EXTERIOR LABELS PARTS DIAGRAM")
-part-diagram-200001.webp "ASTON MARTIN V8 VANTAGE (2007) INTERIOR LABELS PARTS DIAGRAM")
-part-diagram-200002.webp "ASTON MARTIN V8 VANTAGE (2007) UNDERBONNET LABELS PARTS DIAGRAM")
-part-diagram-000200-c1.webp "ASTON MARTIN V8 VANTAGE (2007) EMERGENCY EQUIPMENT PARTS DIAGRAM")
-part-diagram-000203-b1.webp "ASTON MARTIN V8 VANTAGE (2007) HAZARD WARNING REFLECTOR PARTS DIAGRAM")
-part-diagram-000204-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FIRE EXTINGUISHER PARTS DIAGRAM")
-part-diagram-000205-b1.webp "ASTON MARTIN V8 VANTAGE (2007) FIRST AID KIT PARTS DIAGRAM")
-part-diagram-000301-g4.webp "ASTON MARTIN V8 VANTAGE (2007) OWNERS GUIDE PARTS DIAGRAM")
-part-diagram-010100-01.webp "ASTON MARTIN V8 VANTAGE (2007) BIW WITH CLOSURES, COUPE PARTS DIAGRAM")
-part-diagram-010100-02.webp "ASTON MARTIN V8 VANTAGE (2007) BIW WITH CLOSURES, ROADSTER PARTS DIAGRAM")
-part-diagram-010101-b1.webp "ASTON MARTIN V8 VANTAGE (2007) UNDERBODY PARTS DIAGRAM")
-part-diagram-010101-b2.webp "ASTON MARTIN V8 VANTAGE (2007) UNDERBODY REAR, COUPE PARTS DIAGRAM")
-part-diagram-010101-b3.webp "ASTON MARTIN V8 VANTAGE (2007) UNDERBODY REAR, ROADSTER PARTS DIAGRAM")
-part-diagram-010102-10.webp "ASTON MARTIN V8 VANTAGE (2007) A PILLAR & FENDER RAILS PARTS DIAGRAM")
-part-diagram-010102-20.webp "ASTON MARTIN V8 VANTAGE (2007) BODY DASH AND COWL, COUPE PARTS DIAGRAM")
-part-diagram-010102-30.webp "ASTON MARTIN V8 VANTAGE (2007) BODY DASH AND COWL, ROADSTER PARTS DIAGRAM")
-part-diagram-010103-b1.webp "ASTON MARTIN V8 VANTAGE (2007) ROOF, COUPE PARTS DIAGRAM")
-part-diagram-010103-b2.webp "ASTON MARTIN V8 VANTAGE (2007) WINDSCREEN, OUTER, ROADSTER PARTS DIAGRAM")
-part-diagram-010104-10.webp "ASTON MARTIN V8 VANTAGE (2007) PANEL BODY SIDE, COUPE PARTS DIAGRAM")
-part-diagram-010104-20.webp "ASTON MARTIN V8 VANTAGE (2007) PANEL BODY SIDE, ROADSTER PARTS DIAGRAM")
-part-diagram-010106-10.webp "ASTON MARTIN V8 VANTAGE (2007) BODY REAR END, COUPE PARTS DIAGRAM")
-part-diagram-010106-100.webp "ASTON MARTIN V8 VANTAGE (2007) BODY REAR END COMPOSITE, COUPE PARTS DIAGRAM")
-part-diagram-010106-110.webp "ASTON MARTIN V8 VANTAGE (2007) BODY REAR END COMPOSITE, ROADSTER PARTS DIAGRAM")
-part-diagram-010106-20.webp "ASTON MARTIN V8 VANTAGE (2007) BODY REAR END, ROADSTER PARTS DIAGRAM")
-part-diagram-010107-b1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR WHEEL ARCHES PARTS DIAGRAM")
-part-diagram-010107-c1.webp "ASTON MARTIN V8 VANTAGE (2007) REAR UNDERBODY SHIELDS PARTS DIAGRAM")
-part-diagram-010108-b2.webp "ASTON MARTIN V8 VANTAGE (2007) BODY COMPONENTS, COUPE PARTS DIAGRAM")
