011411-B1 - Tonneau Latching System

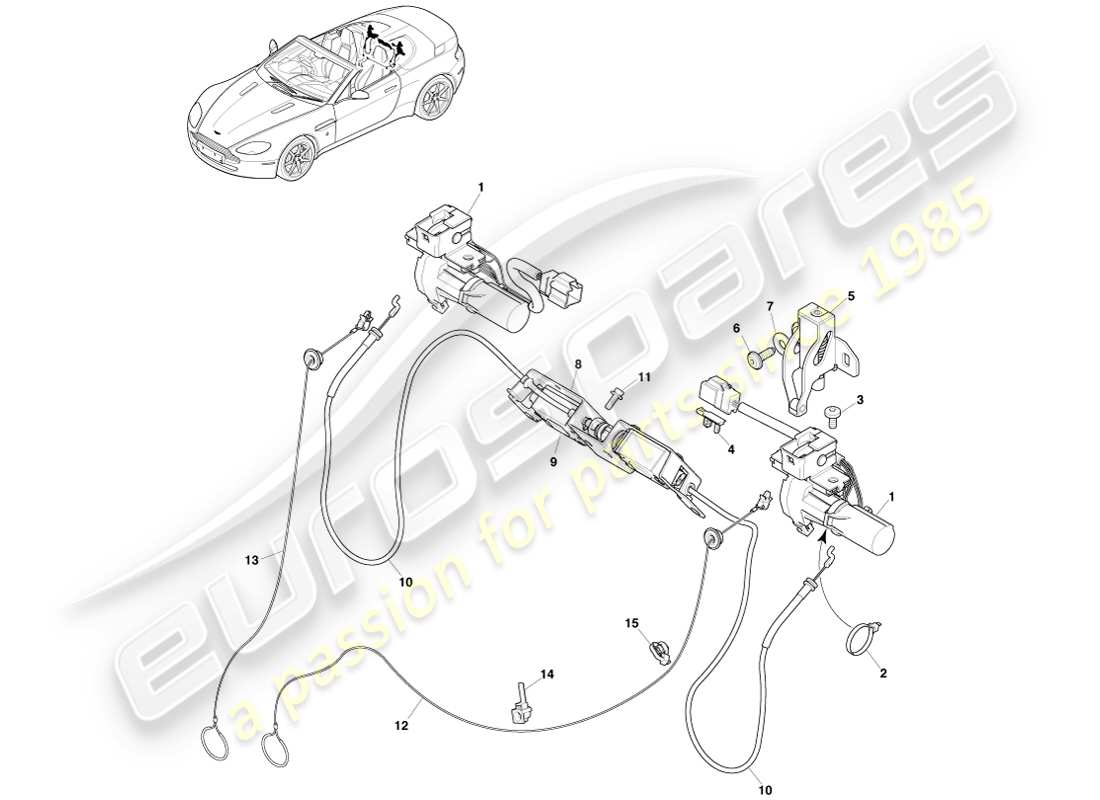

Aston Martin V8 Vantage (2007) Tonneau Latching System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 6G43-93-10421
                                LATCH ASSY LCD
                                from £379.81
                                from £379.81
                                LATCH LCD Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 37-90075
                                TIE STRAP
                                from £0.47
                                from £0.47
                                TIE STRAP-290MM Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 703173
                                SCREW, M8 X 16, PAN HEAD
                                from £0.47
                                from £0.47
                                SCREW, M8 X 16, PAN HEAD Genuine Aston Martin - New (to order)
                                # 4
                                MPN: E9DB-14A163-CA
                                RETAINER, WIRE HARNESS
                                RETAINER, WIRE HARNESS UPPER Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-53974-BB
                                STRIKER ASSY, TONNEAU
                                from £111.76
                                from £111.76
                                STRIKER ASSEMBLY, TONNEAU Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 703071
                                SCREW, M8 X 22
                                from £0.47
                                from £0.47
                                SCREW, M8 X 25, TORX HEAD Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 697452
                                WASHER
                                from £4.39
                                from £4.39
                                WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 6G33-507B36-AB
                                ACTUATOR AND BRACKET ASSY
                                from £504.14
                                from £504.14
                                ACTUATOR AND BRACKET ASSEMBLY Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 6G33-507B02-AA
                                BRACKET ACTUATOR
                                BRACKET ACTUATOR Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 6G33-507B20-AA
                                ACTUATOR ASSY
                                ACTUATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 6G33-514B26-AB
                                CABLE ASSY
                                from £706.09
                                from £706.09
                                CABLE ASSEMBLY Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 703265
                                SCREW, M6 X 16, HEX FLANGE HEAD
                                from £0.47
                                from £0.47
                                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 6G33-432B19-AB
                                CORD ASSY, LHS
                                from £7.64
                                from £7.64
                                CORD TONNEAU RELEASE, LH Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-432B18-AB
                                CORD ASSY, RHS
                                from £6.70
                                from £6.70
                                CORD TONNEAU RELEASE, RH Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 700423
                                TIE WRAP STUD FIXING
                                from £6.12
                                from £6.12
                                TIE WRAP, STUD FIXING Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 4G43-619B00-AA
                                TIE WRAP FIR TREE
                                from £0.47
                                from £0.47
                                TIE WRAP, FIR TREE, 200MM X 4.6MM Genuine Aston Martin - New (to order)
