aston martin v8 vantage (2007) engine cooling parts diagram

030300-E1-1 - engine cooling

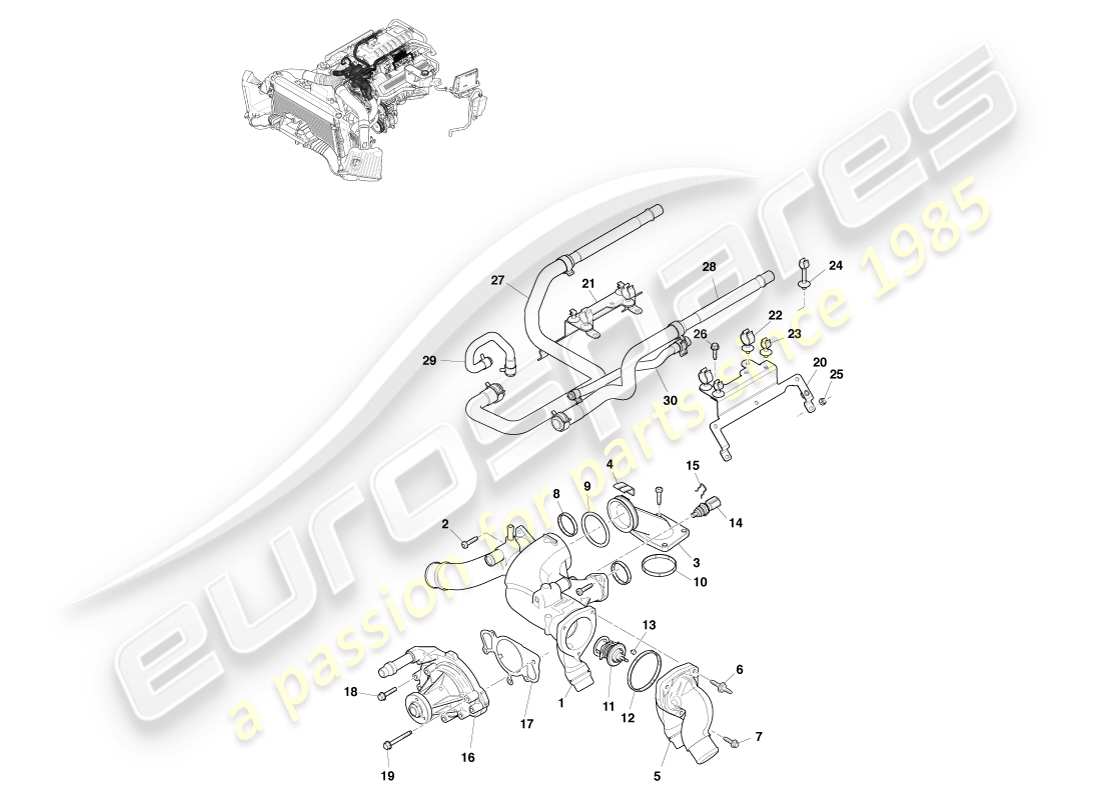

Aston Martin V8 Vantage (2007) Engine Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 6G33-8A520-AK
                                                  MANIFOLD, WATER INLET/OUTLET
                                                  from £503.68
                                                  from £503.68
                                                  MANIFOLD, WATER INLET/OUTLET Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  PIPE, WATER OUTLET
                                                  See assembly item 1
                                                  # 2
                                                  MPN: 702543
                                                  SCREW, M6 X 25
                                                  from £0.47
                                                  from £0.47
                                                  SCREW, M6X25 Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 6G43-32-10450
                                                  DUCT, WATER
                                                  from £103.36
                                                  from £103.36
                                                  DUCT, WATER Genuine Aston Martin - New (to order)
                                                  # 4
                                                  -
                                                  SPRING CLIP, PLASTIC
                                                  Discarded in production. Transport Only.
                                                  # 5
                                                  MPN: 6G43-32-10448
                                                  CONNECTOR WATER OUTLET, UPPER
                                                  from £51.19
                                                  from £51.19
                                                  CONNECTOR WATER OUTLET, UPPER Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 702545
                                                  STUD M6 X 15/M6 X 22
                                                  from £17.04
                                                  from £17.04
                                                  STUD, M6X15+M6X22 Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 702542
                                                  BOLT, M6 X 20
                                                  from £0.77
                                                  from £0.77
                                                  BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 6G43-32-10366-PK
                                                  GASKET KIT, WATER OUTLET
                                                  from £38.44
                                                  from £38.44
                                                  GASKET KIT, WATER OUTLET Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 702730
                                                  O RING
                                                  from £50.51
                                                  from £50.51
                                                  O RING Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 6G43-32-10451
                                                  GASKET, THERMO HOUSING, FRONT
                                                  from £5.15
                                                  from £5.15
                                                  GASKET, THERMOSTAT HOUSING, FRONT Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 6G43-32-10449
                                                  THERMOSTAT ASSY, WATER
                                                  from £97.60
                                                  from £97.60
                                                  THERMOSTAT ASSEMBLY, WATER Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 6G43-32-10310
                                                  SEAL, THERMOSTAT COVER
                                                  from £12.42
                                                  from £12.42
                                                  SEAL, THERMOSTAT COVER Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 6R83-8594-AA
                                                  VALVE, VENT
                                                  THERMOSTAT COVER
                                                  VALVE, VENT Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 6G43-37-10447
                                                  Sensor, engine cntrl cool temp
                                                  Sensor, engine cntrl cool temp Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: YL8E-14197-AA
                                                  CLIP, WIRE
                                                  SENSOR
                                                  CLIP, WIRE Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 9G33-8501-AB
                                                  PUMP ASSY, WATER
                                                  09MY
                                                  Supersession
                                                  Supersession
                                                  Genuine Aston Martin (no longer available to order)
                                                  # 17
                                                  MPN: 6G43-05-10149
                                                  GASKET, WATER PUMP TO BLOCK
                                                  from £1.23
                                                  from £1.23
                                                  GASKET, WATER PUMP TO BLOCK Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  GASKET, SANDWICH GASKET WITHIN PUMP ASSY
                                                  # 18
                                                  MPN: 702544
                                                  BOLT, FLG, M6 X 50
                                                  from £0.47
                                                  from £0.47
                                                  BOLT, M6X50 Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 703903
                                                  BOLT, FLG, M6 X 30
                                                  BOLT-M6X30 HF 8 FLANGE Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 6G33-18N348-AB
                                                  Bracket, heater hose, LH
                                                  Includes items 22, 23, 24
                                                  from £376.77
                                                  from £376.77
                                                  Bracket, heater hose, LH Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 6G33-18N348-BB
                                                  Bracket, heater hose, RH
                                                  from £19.32
                                                  from £19.32
                                                  Bracket, heater hose, RH Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 701181
                                                  CLIP
                                                  from £1.85
                                                  from £1.85
                                                  CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 702569
                                                  CLIP
                                                  from £1.20
                                                  from £1.20
                                                  CLIP, C Genuine Aston Martin - New (to order)
                                                  # 24
                                                  -
                                                  CLIP
                                                  Part of item 20
                                                  # 25
                                                  MPN: 702295
                                                  NUT, FLG, M5
                                                  from £0.47
                                                  from £0.47
                                                  NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 702542
                                                  BOLT, M6 X 20
                                                  from £0.77
                                                  from £0.77
                                                  BOLT M6 X 20 Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 6G33-18K579-AD
                                                  HOSE ASSY, HEATER FEED
                                                  from £23.61
                                                  from £23.61
                                                  HOSE, HEATER FEED Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  CLAMP, 27 X 12 HEAVY DUTY
                                                  # -
                                                  -
                                                  CLAMP, 25 X 12 HEAVY DUTY
                                                  # 28
                                                  MPN: 6G33-18K580-AC
                                                  HOSE ASSY, HEATER RETURN
                                                  from £19.31
                                                  from £19.31
                                                  HOSE ASSEMBLY, HEATER RETURN Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: 6G33-9F813-AC
                                                  HOSE ASSY, THROTTLE FEED
                                                  from £6.04
                                                  from £6.04
                                                  HOSE ASSEMBLY, THROTTLE FEED Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  CLAMP, 17 X 12 HVY DTY SPR BND
                                                  # -
                                                  -
                                                  CLAMP, 15 X 12 HVY DTY SPR BND
                                                  # 30
                                                  MPN: 6G33-8C362-AA
                                                  HOSE ASSY, ENGINE VENT
                                                  from £6.92
                                                  from £6.92
                                                  HOSE ASSEMBLY, ENGINE VENT Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  CLAMP, 17 X 15 HVY DTY SPR BND
