aston martin v8 vantage (2007) accessory drive parts diagram

030500-E1-1 - Accessory Drive

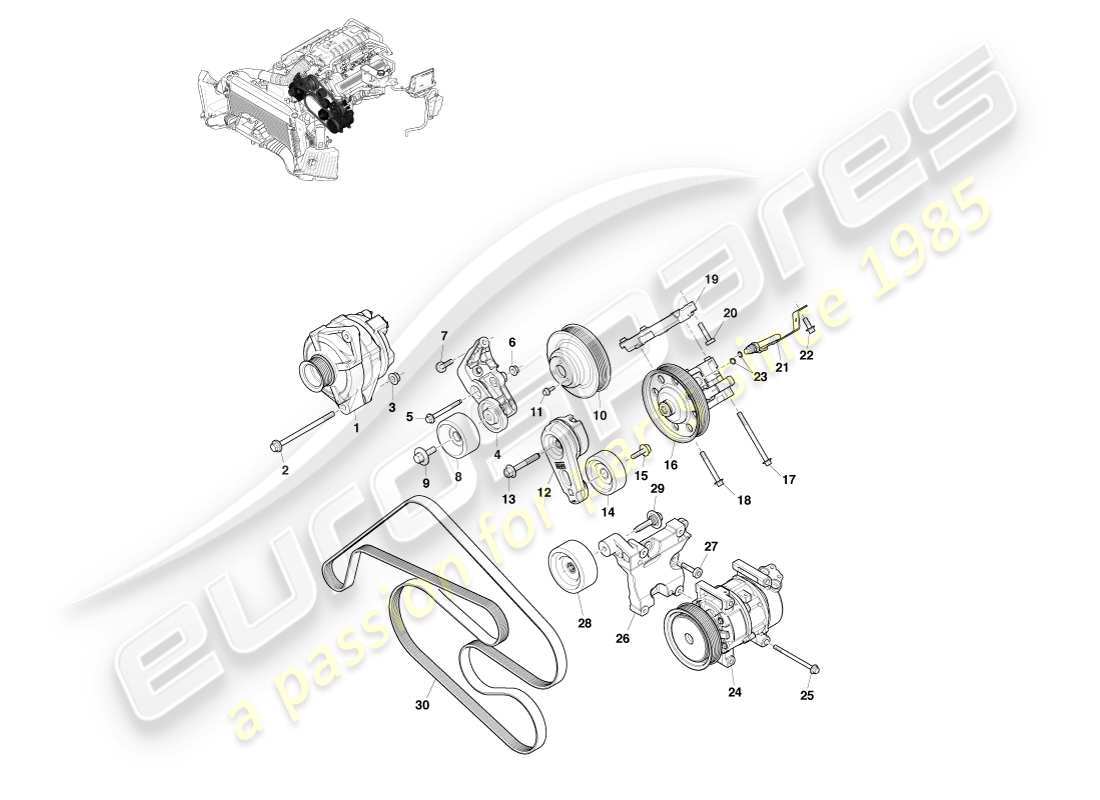

Aston Martin V8 Vantage (2007) Accessory Drive Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 1
                                                      MPN: 6G43-09-10481
                                                      ALTERNATOR ASSY
                                                      from £577.79
                                                      from £577.79
                                                      # 2
                                                      MPN: 702554
                                                      BOLT, M10X140 HEX FLG
                                                      from £28.96
                                                      from £28.96
                                                      # 4
                                                      MPN: 6G33-10239-AC
                                                      BRACKET ASSY, ALTERNATOR
                                                      from £444.96
                                                      from £444.96
                                                      # 5
                                                      MPN: 702552
                                                      BOLT, M8X70 HEX FLG
                                                      from £0.71
                                                      from £0.71
                                                      # 6
                                                      MPN: 702553
                                                      NUT, M8 HEX FLG
                                                      from £0.47
                                                      from £0.47
                                                      # 7
                                                      MPN: 702551
                                                      BOLT, M8X35 PAN HD
                                                      from £1.00
                                                      from £1.00
                                                      # 8
                                                      MPN: 6G33-19A216-BA
                                                      IDLER ASSY, DRIVE BELT
                                                      from £28.33
                                                      from £28.33
                                                      # 9
                                                      -
                                                      BOLT
                                                      # 10
                                                      MPN: 6G43-05-10085
                                                      PULLEY, WATER PUMP
                                                      from £13.42
                                                      from £13.42
                                                      # 11
                                                      MPN: 6G43-05-10175
                                                      BOLT AND WASHER, M6X18 HEX FLG
                                                      from £0.47
                                                      from £0.47
                                                      # 12
                                                      MPN: 6G33-6B209-AC
                                                      TENSIONER ASSY, ENGINE DRIVE BELT
                                                      from £54.97
                                                      from £54.97
                                                      # 13
                                                      -
                                                      BOLT
                                                      # 14
                                                      -
                                                      PULLEY, TENSIONER ASSY
                                                      # 15
                                                      -
                                                      BOLT, PULLEY
                                                      # 16
                                                      MPN: 6G33-3A696-AC
                                                      PUMP AND PULLEY, PWR STEERING
                                                      from £469.70
                                                      from £469.70
                                                      # 17
                                                      MPN: 702557
                                                      BOLT, M8X100 HEX FLG
                                                      from £15.04
                                                      from £15.04
                                                      # 18
                                                      MPN: 702558
                                                      BOLT, M8X60 HEX FLG
                                                      from £9.32
                                                      from £9.32
                                                      # 19
                                                      MPN: 6G33-3K738-AA
                                                      BRACKET ASSY, POWER STEERING PUMP
                                                      from £74.42
                                                      from £74.42
                                                      # 20
                                                      MPN: 702551
                                                      BOLT, M8X35 PAN INT. LOB 8
                                                      from £1.00
                                                      from £1.00
                                                      # 21
                                                      MPN: 6G33-3494-AB
                                                      TUBE ASSY, POWER STEERING PUMP
                                                      from £39.20
                                                      from £39.20
                                                      # 22
                                                      MPN: 702556
                                                      SCREW, M8X20 HEX FLG
                                                      from £0.47
                                                      from £0.47
                                                      # 23
                                                      -
                                                      O RING
                                                      # 24
                                                      MPN: 6G33-19D629-AB
                                                      COMPRESSOR ASSY, AIR CON
                                                      With R134 refrigerant
                                                      from £793.67
                                                      from £793.67
                                                      This part replaces part number 6G33-19D629-AA
                                                      # 24
                                                      MPN: HG33-19D629-AA
                                                      COMPRESSOR ASSY, AIR CON
                                                      From 17MY, With HFO1234yf refrigerant
                                                      from £957.72
                                                      from £957.72
                                                      # 25
                                                      MPN: 702557
                                                      BOLT, M8X100 HEX FLG
                                                      from £15.04
                                                      from £15.04
                                                      # 26
                                                      MPN: 6G33-19N586-AC
                                                      BRACKET ASSY, AIR CON PUMP
                                                      09MY on
                                                      from £91.23
                                                      from £91.23
                                                      # 27
                                                      MPN: 702551
                                                      BOLT, M8X35
                                                      from £1.00
                                                      from £1.00
                                                      # 28
                                                      MPN: 9G33-19A216-AA
                                                      IDLER ASSY, ENGINE DRIVE BELT
                                                      from £35.43
                                                      from £35.43
                                                      # 29
                                                      -
                                                      BOLT
                                                      Included with item 28
                                                      # 30
                                                      MPN: 9G33-8620-AB
                                                      BELT, DRIVE
                                                      Before Ordering, Please see Bulletin PSB.2017.402
                                                      from £87.63
                                                      from £87.63
                                                      This part replaces part number 9G33-8620-AA
