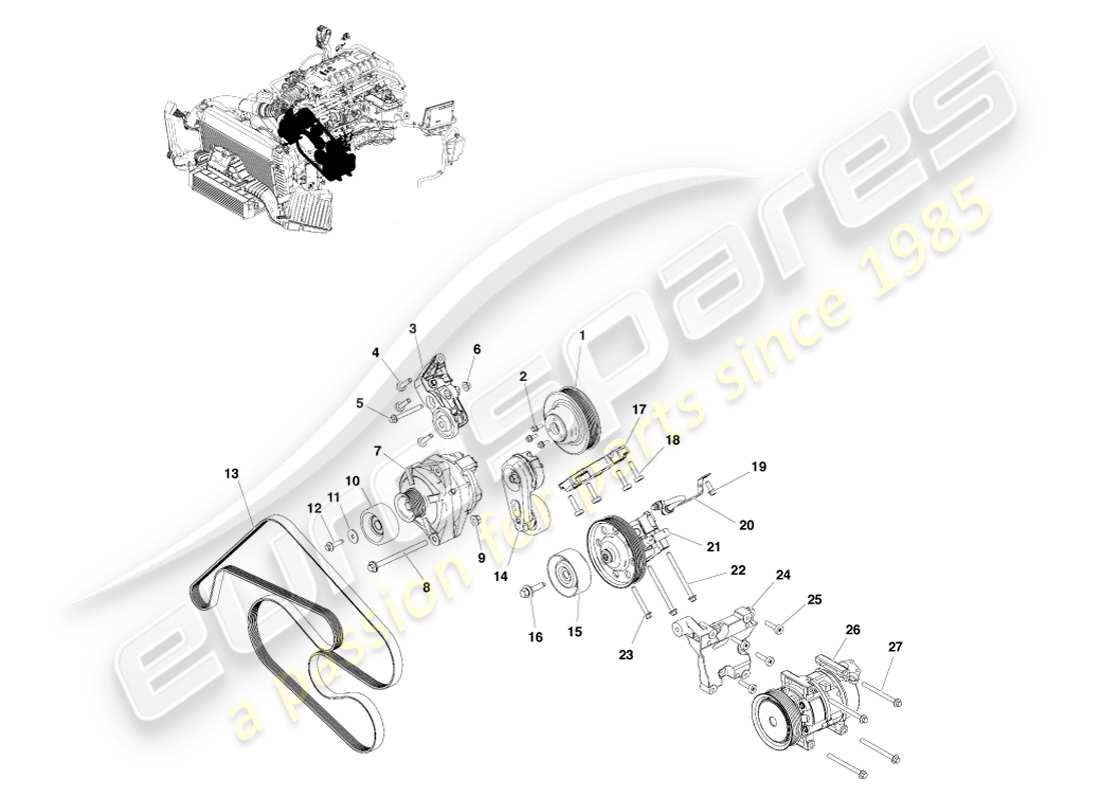

030500-E1 - Accessory Drive

Aston Martin V8 Vantage (2007) Accessory Drive Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 6G43-05-10085
                                                    PULLEY, WATER PUMP
                                                    from £13.42
                                                    from £13.42
                                                    PULLEY, WATER PUMP Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: 6G43-05-10175
                                                    BOLT AND WASHER, M6 X 18
                                                    from £0.47
                                                    from £0.47
                                                    BOLT AND WASHER, M6X18 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: 6G33-10239-AC
                                                    BRACKET ASSY, ALTERNATOR
                                                    from £444.96
                                                    from £444.96
                                                    BRACKET ASSEMBLY, ALTERNATOR Genuine Aston Martin - New (to order)
                                                    # 4
                                                    MPN: 702551
                                                    BOLT, M8 X 35
                                                    from £1.00
                                                    from £1.00
                                                    SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 702552
                                                    BOLT, M8 X 70
                                                    from £0.71
                                                    from £0.71
                                                    BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 702553
                                                    NUT, M8
                                                    from £0.47
                                                    from £0.47
                                                    NUT, M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: 6G43-14-10051
                                                    ALTERNATOR ASSY
                                                    from £549.84
                                                    from £549.84
                                                    ALTERNATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                                    # 8
                                                    MPN: 702554
                                                    BOLT, M10 X 140
                                                    from £28.96
                                                    from £28.96
                                                    BOLT M10 X 140 Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: 6G33-19A216-BA
                                                    IDLER ASSY, DRIVE BELT
                                                    from £28.33
                                                    from £28.33
                                                    IDLER ASSEMBLY, DRIVE BELT Genuine Aston Martin - New In stock
                                                    # 11
                                                    -
                                                    WASHER
                                                    # 12
                                                    -
                                                    BOLT
                                                    # 13
                                                    MPN: 9G33-8620-AA
                                                    BELT, DRIVE
                                                    Before Ordering, Please see Bulletin PSB.2017.402
                                                    Supersession
                                                    Supersession
                                                    Genuine Aston Martin (no longer available to order)
                                                    # 14
                                                    MPN: 6G33-6B209-AB
                                                    TENSIONER ASSY, ENGINE DRIVE BELT
                                                    TENSIONER ASSEMBLY, ENGINE DRIVE BELT Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: 9G33-19A216-AA
                                                    IDLER ASSY, ENGINE DRIVE BELT
                                                    from £35.43
                                                    from £35.43
                                                    IDLER ASSEMBLY, ENGINE DRIVE BELT Genuine Aston Martin - New In stock
                                                    # 16
                                                    -
                                                    BOLT
                                                    Included with item 15
                                                    # 17
                                                    MPN: 6G33-3K738-AA
                                                    BRACKET ASSY, POWER STEERING PUMP
                                                    from £74.42
                                                    from £74.42
                                                    BRACKET ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: 702551
                                                    BOLT, M8 X 35
                                                    from £1.00
                                                    from £1.00
                                                    SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: 702556
                                                    SCREW, M8 X 20
                                                    from £0.47
                                                    from £0.47
                                                    SCREW, M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: 6G33-3494-AB
                                                    TUBE ASSY, POWER STEERING PUMP
                                                    from £39.20
                                                    from £39.20
                                                    TUBE ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - New (to order)
                                                    TUBE ASSEMBLY, POWER STEERING PUMP Genuine Aston Martin - Used In stock
                                                    # 21
                                                    MPN: 6G33-3A696-AC
                                                    PUMP AND PULLEY, PWR STEERING
                                                    from £469.70
                                                    from £469.70
                                                    Genuine Aston Martin (no longer available to order)
                                                    PUMP AND PULLEY, POWER STEERING Genuine Aston Martin - Used In stock
                                                    # 22
                                                    MPN: 702557
                                                    BOLT, M8 X 100
                                                    from £15.04
                                                    from £15.04
                                                    BOLT M8 X 100 Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: 702558
                                                    BOLT, M8 X 60
                                                    from £9.32
                                                    from £9.32
                                                    BOLT, M8X60 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: 6G33-19N586-AB
                                                    BRACKET ASSY, AIR CON PUMP
                                                    from £74.01
                                                    from £74.01
                                                    BRACKET ASSEMBLY, AIR CON PUMP Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: 702551
                                                    BOLT, M8 X 35
                                                    from £1.00
                                                    from £1.00
                                                    SCREW M8 X 35 Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: 6G33-19D629-AB
                                                    COMPRESSOR ASSY, AIR CON
                                                    from £793.67
                                                    from £793.67
                                                    This part replaces part number 6G33-19D629-AA
                                                    COMPRESSOR ASSEMBLY, AIR CONDITIONING Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: 702557
                                                    BOLT, M8 X 100
                                                    from £15.04
                                                    from £15.04
                                                    BOLT M8 X 100 Genuine Aston Martin - New (to order)
