031000-E1 - Engine Sealing

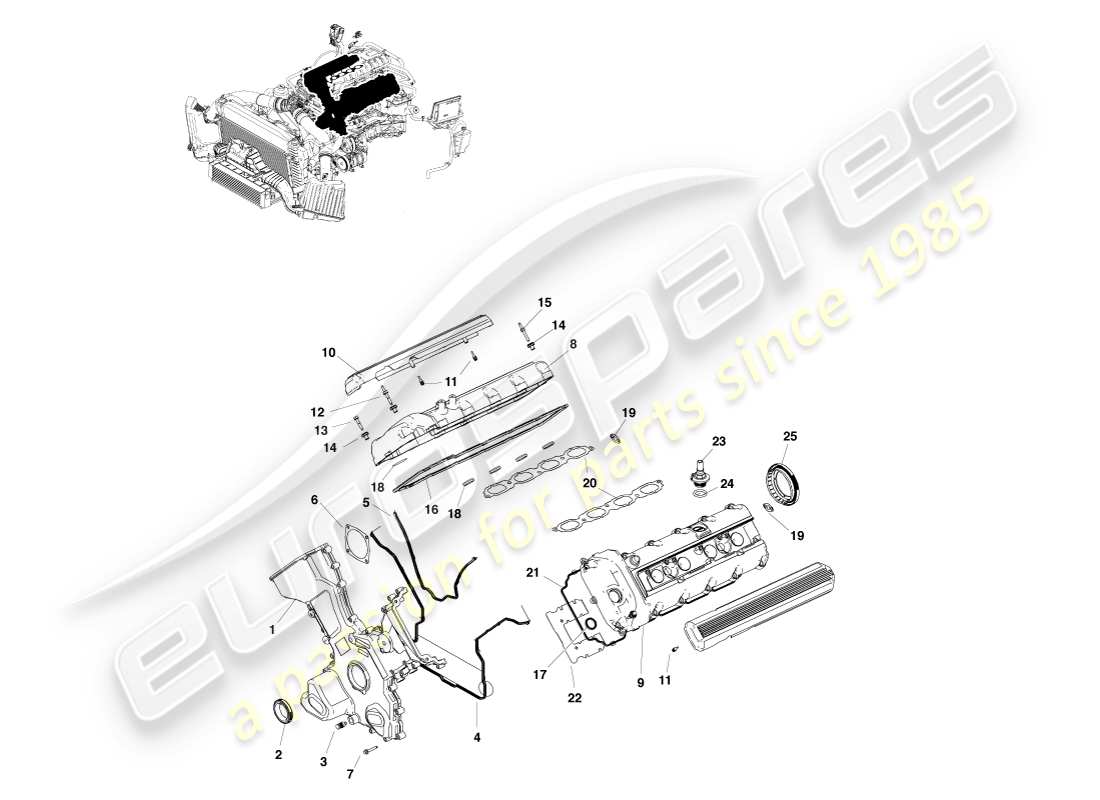

Aston Martin V8 Vantage (2007) Engine Sealing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 6G33-6019-BA
                                                TIMING COVER
                                                TIMING COVER Genuine Aston Martin - New (to order)
                                                # 2
                                                MPN: 6G43-03-10020
                                                SEAL, CRANKSHAFT, FRONT
                                                from £21.90
                                                from £21.90
                                                SEAL, CRANKSHAFT, FRONT Genuine Aston Martin - New In stock
                                                # 3
                                                MPN: 6G33-9H490-AA
                                                JOHN GUEST CARTRIDGE ASSY
                                                from £10.78
                                                from £10.78
                                                JOHN GUEST CARTRIDGE ASSEMBLY Genuine Aston Martin - New (to order)
                                                # 4
                                                MPN: 6G33-6E009-AA
                                                GASKET, OUTER
                                                from £78.42
                                                from £78.42
                                                GASKET, OUTER Genuine Aston Martin - New (to order)
                                                # 5
                                                MPN: 6G43-03-10022
                                                GASKET, INNER
                                                from £23.94
                                                from £23.94
                                                GASKET, INNER Genuine Aston Martin - New (to order)
                                                # 6
                                                MPN: 6G33-9F809-AA
                                                GASKET, THROTTLE BODY AIR INLET
                                                from £4.67
                                                from £4.67
                                                GASKET, THROTTLE BODY AIR INLET Genuine Aston Martin - New (to order)
                                                # 7
                                                MPN: 702946
                                                BOLT, HEX FLANGED, M6 X 35
                                                from £0.47
                                                from £0.47
                                                BOLT M6X35 HEX Genuine Aston Martin - New (to order)
                                                # 8
                                                MPN: 6G43-03-10028
                                                COVER, CYLINDER HEAD RH
                                                from £95.25
                                                from £95.25
                                                COVER, CYLINDER HEAD RH Genuine Aston Martin - New (to order)
                                                # 9
                                                MPN: 6G43-03-10029
                                                COVER, CYLINDER HEAD LH
                                                COVER, CYLINDER HEAD LH Genuine Aston Martin - New (to order)
                                                # 10
                                                MPN: 6G33-12025-AD
                                                COVER, COIL
                                                from £15.93
                                                from £15.93
                                                COVER, COIL Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: 6G33-6A548-BA
                                                BOLT M6 X 31.5, COIL COVER
                                                from £2.62
                                                from £2.62
                                                BOLT, M6 X 31.5 Genuine Aston Martin - New (to order)
                                                # 12
                                                MPN: 6G43-03-10027
                                                GROMMET, VALVE ROCKER ARM COVER
                                                from £1.55
                                                from £1.55
                                                GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: 6G43-03-10025
                                                BOLT AND GROMMET ASSY
                                                from £1.07
                                                from £1.07
                                                GROMMET, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: 6G43-07-10416
                                                GROMMET ASSY
                                                from £0.73
                                                from £0.73
                                                GROMMET ASSEMBLY Genuine Aston Martin - New (to order)
                                                # 15
                                                MPN: 6G33-6A548-AB
                                                BOLT M6 X 31.5, CAM COVER
                                                from £3.36
                                                from £3.36
                                                BOLT M6 X 31.5, CAM COVER Genuine Aston Martin - New (to order)
                                                # 16
                                                MPN: 2W93-6K260-BB
                                                GASKET, CAMSHAFT COVER, RH
                                                GASKET, CAMSHAFT COVER, RH Genuine Aston Martin - New (to order)
                                                # 17
                                                MPN: 6G43-03-10021
                                                SEAL, VALVE ROCKER ARM COVER
                                                from £14.03
                                                from £14.03
                                                SEAL, VALVE ROCKER ARM COVER Genuine Aston Martin - New (to order)
                                                # 18
                                                MPN: 6G43-03-10017
                                                SEAL, SP/PLG SLV
                                                SEAL, SP/PLG SLV Genuine Aston Martin - New (to order)
                                                # 19
                                                MPN: 6G33-9P435-AB
                                                GASKET, SECONDARY AIR
                                                from £10.42
                                                from £10.42
                                                GASKET, SECONDARY AIR Genuine Aston Martin - New (to order)
                                                # 20
                                                MPN: 6G33-9P851-AB-PK
                                                GASKET, INTAKE MANIFOLD
                                                Pack of 2
                                                from £16.13
                                                from £16.13
                                                GASKET, INTAKE MANIFOLD Genuine Aston Martin - New (to order)
                                                # 21
                                                MPN: 6G43-03-10031
                                                GASKET, CAMSHAFT COVER, LH
                                                Supersession
                                                Supersession
                                                Genuine Aston Martin (no longer available to order)
                                                # 22
                                                MPN: 6G43-07-10107
                                                BAFFLE, VALVE ROCKER ARM
                                                from £98.86
                                                from £98.86
                                                BAFFLE, VALVE ROCKER ARM Genuine Aston Martin - New (to order)
                                                # 23
                                                MPN: 6G33-6C729-BA
                                                TUBE ASSY, ENGINE VENT BREATHER
                                                Includes O ring
                                                from £28.55
                                                from £28.55
                                                TUBE ASSEMBLY, ENGINE VENT BREATHER Genuine Aston Martin - New (to order)
                                                # 24
                                                -
                                                O RING
                                                # 25
                                                MPN: 6G43-03-10033
                                                SEAL, CRANKSHAFT REAR
                                                from £51.34
                                                from £51.34
                                                SEAL, CRANKSHAFT REAR Genuine Aston Martin - New (to order)
