aston martin v8 vantage (2007) air charging, n400 parts diagram

031200-S3 - Air Charging, N400

Aston Martin V8 Vantage (2007) Air Charging, N400 Parts Diagram

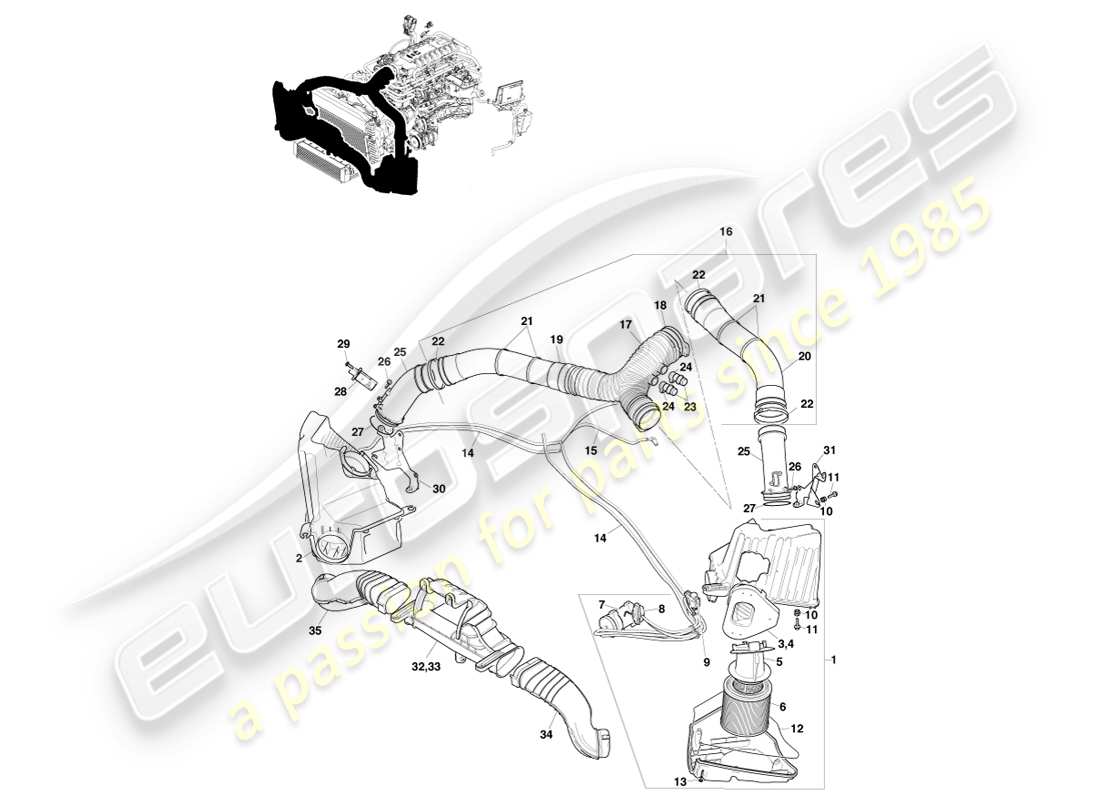

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 1
                                                                        MPN: 8G33-9600-CA
                                                                        AIRBOX ASSY, ENGINE AIR LH
                                                                        from £572.58
                                                                        from £572.58
                                                                        AIRBOX ASSEMBLY, ENGINE AIR LH Genuine Aston Martin - New (to order)
                                                                        # 2
                                                                        MPN: 8G33-9600-BA
                                                                        AIRBOX ASSY, ENGINE AIR RH
                                                                        from £581.33
                                                                        from £581.33
                                                                        AIRBOX ASSEMBLY, ENGINE AIR RH Genuine Aston Martin - New (to order)
                                                                        # 3
                                                                        MPN: 8D33-3N731-AA
                                                                        HOUSING ASSY, VALVE
                                                                        from £153.54
                                                                        from £153.54
                                                                        VALVE HSG ASSEMBLY - A15 Genuine Aston Martin - New (to order)
                                                                        # 4
                                                                        MPN: 8D33-5F006-AA
                                                                        RIVET
                                                                        from £2.11
                                                                        from £2.11
                                                                        RIVET Genuine Aston Martin - New (to order)
                                                                        # 5
                                                                        -
                                                                        ADAPTOR, FILTER
                                                                        # 6
                                                                        MPN: 4G43-9601-AB
                                                                        FILTER, ENGINE AIR
                                                                        from £49.95
                                                                        from £49.95
                                                                        This part replaces part number 4G43-9601-AB-PK
                                                                        AIR FILTER (single) Genuine Aston Martin - New In stock
                                                                        Genuine Aston Martin (no longer available to order)
                                                                        # 7
                                                                        MPN: 8D33-2K061-AA
                                                                        RESERVOIR, VACUUM
                                                                        from £96.94
                                                                        from £96.94
                                                                        VACUUM RESERVOIR Genuine Aston Martin - New (to order)
                                                                        # 8
                                                                        MPN: 8D33-7L576-AA
                                                                        VALVE, ACTUATOR CONTROL
                                                                        from £193.16
                                                                        from £193.16
                                                                        ACTUATOR CONTR VLV Genuine Aston Martin - New (to order)
                                                                        # 9
                                                                        MPN: 6L34-9H465-BA
                                                                        SOLENOID, VACUUM
                                                                        from £59.27
                                                                        from £59.27
                                                                        SOLENOID VAC Genuine Aston Martin - New (to order)
                                                                        # 10
                                                                        MPN: 4G43-9697-CA
                                                                        GROMMET
                                                                        from £8.04
                                                                        from £8.04
                                                                        GROMMET Genuine Aston Martin - New (to order)
                                                                        # 10
                                                                        MPN: 4G43-5144-AA
                                                                        SPACER
                                                                        from £8.67
                                                                        from £8.67
                                                                        SPACER Genuine Aston Martin - New (to order)
                                                                        # 11
                                                                        MPN: 703025
                                                                        SCREW, FLG, M6 X 25
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                                                        # 12
                                                                        MPN: 4G43-9C664-AB
                                                                        GASKET, AIR CLEANER ELEMENT
                                                                        from £11.60
                                                                        from £11.60
                                                                        GSKT-A/CLNR ELEM Genuine Aston Martin - New (to order)
                                                                        # 13
                                                                        MPN: 4G43-0410-AA
                                                                        SCREW, SELF TAP
                                                                        from £1.40
                                                                        from £1.40
                                                                        SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                                        # 14
                                                                        MPN: 8G33-43836-AA
                                                                        HOSE ASSY, VACUUM
                                                                        HOSE ASSEMBLY, VACUUM Genuine Aston Martin - New (to order)
                                                                        # 15
                                                                        MPN: 8G33-43836-BA
                                                                        HOSE ASSY, VACUUM
                                                                        from £15.70
                                                                        from £15.70
                                                                        HOSE ASSEMBLY, VACUUM Genuine Aston Martin - New (to order)
                                                                        # 16
                                                                        MPN: 8G33-9K146-AA
                                                                        TUBE ASSY, INTAKE MANIFOLD AIR INLET
                                                                        TUBE ASSEMBLY, INTAKE MANIFOLD AIR INLET Genuine Aston Martin - New (to order)
                                                                        # 17
                                                                        MPN: 6G33-9D609-BD
                                                                        ADAPTOR ASSY, THROTTLE BODY
                                                                        from £227.59
                                                                        from £227.59
                                                                        ADPT-DCT-THROT-BDY Genuine Aston Martin - New (to order)
                                                                        ADPT-DCT-THROT-BDY Genuine Aston Martin - Used In stock
                                                                        # 18
                                                                        MPN: 6G33-6N811-DA
                                                                        CLAMP, HERBIE 96MM
                                                                        from £3.98
                                                                        from £3.98
                                                                        CLAMP, HERBIE 96MM Genuine Aston Martin - New (to order)
                                                                        # 19
                                                                        MPN: 6G33-9C623-DB
                                                                        DUCT, CLEAN AIR RH
                                                                        DUCT, CLEAN AIR RH Genuine Aston Martin - New (to order)
                                                                        # 20
                                                                        MPN: 6G33-9C623-DB
                                                                        DUCT, CLEAN AIR LH
                                                                        DUCT, CLEAN AIR RH Genuine Aston Martin - New (to order)
                                                                        # 21
                                                                        MPN: 8D33-ANR1350-AA
                                                                        CABLE TIE HOSE CLIP ASSY
                                                                        from £4.49
                                                                        from £4.49
                                                                        TIE CABLE HOS CLIP A Genuine Aston Martin - New (to order)
                                                                        # 22
                                                                        MPN: 6G33-6N811-CA
                                                                        CLAMP, HERBIE 85MM
                                                                        from £3.82
                                                                        from £3.82
                                                                        CLAMP, HERBIE 85MM Genuine Aston Martin - New (to order)
                                                                        CLAMP, HERBIE 85MM Genuine Aston Martin - Used In stock
                                                                        # 23
                                                                        MPN: 6G33-9D609-BC
                                                                        PIPE, STUB PCV
                                                                        from £102.08
                                                                        from £102.08
                                                                        PIPE, STUB PCV Genuine Aston Martin - New (to order)
                                                                        # 24
                                                                        MPN: 6G33-6N811-BA
                                                                        CLAMP, HERBIE 26MM
                                                                        from £3.04
                                                                        from £3.04
                                                                        CLAMP, HERBIE 26MM Genuine Aston Martin - New (to order)
                                                                        # 26
                                                                        MPN: 4G43-0410-AA
                                                                        SCREW, SELF TAP
                                                                        from £1.40
                                                                        from £1.40
                                                                        SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                                        # 27
                                                                        MPN: 4G43-6C704-AA
                                                                        O RING, ENGINE DUCT
                                                                        from £13.42
                                                                        from £13.42
                                                                        O-RING ENG DUCT Genuine Aston Martin - New (to order)
                                                                        # 27
                                                                        MPN: 4G43-6C704-BA
                                                                        O RING, ENGINE DUCT, INTERIOR
                                                                        from £14.92
                                                                        from £14.92
                                                                        O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
                                                                        # 28
                                                                        MPN: 4G43-08-10933
                                                                        SENSOR ASSY, MAF ENG ELECT CONTR
                                                                        from £86.47
                                                                        from £86.47
                                                                        SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                                                        # 29
                                                                        MPN: 4G43-0410-BB
                                                                        SCREW, SELF TAP
                                                                        from £3.98
                                                                        from £3.98
                                                                        SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                                        # 30
                                                                        MPN: 6G33-9B609-BB
                                                                        BRACKET, AIR CLEANER RH
                                                                        BRACKET, AIR CLEANER RH Genuine Aston Martin - New (to order)
                                                                        # 31
                                                                        MPN: 6G33-9B609-CB
                                                                        BRACKET, AIR CLEANER LH
                                                                        BRACKET, AIR CLEANER LH Genuine Aston Martin - New (to order)
                                                                        # 32
                                                                        MPN: 6G33-9P866-CB
                                                                        DUCT ASSY, CENTRE AIR INTAKE
                                                                        from £148.13
                                                                        from £148.13
                                                                        DUCT ASSEMBLY, CENTRE AIR INTAKE Genuine Aston Martin - New (to order)
                                                                        # 33
                                                                        MPN: 4G43-2705-AA
                                                                        RIVET
                                                                        from £0.47
                                                                        from £0.47
                                                                        RIVET, PLASTIC Genuine Aston Martin - New (to order)
                                                                        # 34
                                                                        MPN: 6G33-9A675-HA
                                                                        DUCT ASSY, AIR INTAKE LH
                                                                        from £28.35
                                                                        from £28.35
                                                                        DUCT ASSEMBLY, AIR INTAKE LH Genuine Aston Martin - New (to order)
                                                                        # 35
                                                                        MPN: 6G33-9A675-GA
                                                                        DUCT ASSY, AIR INTAKE RH
                                                                        from £28.35
                                                                        from £28.35
                                                                        DUCT ASSEMBLY, AIR INTAKE RH Genuine Aston Martin - New (to order)
