aston martin v8 vantage (2007) front brake system parts diagram

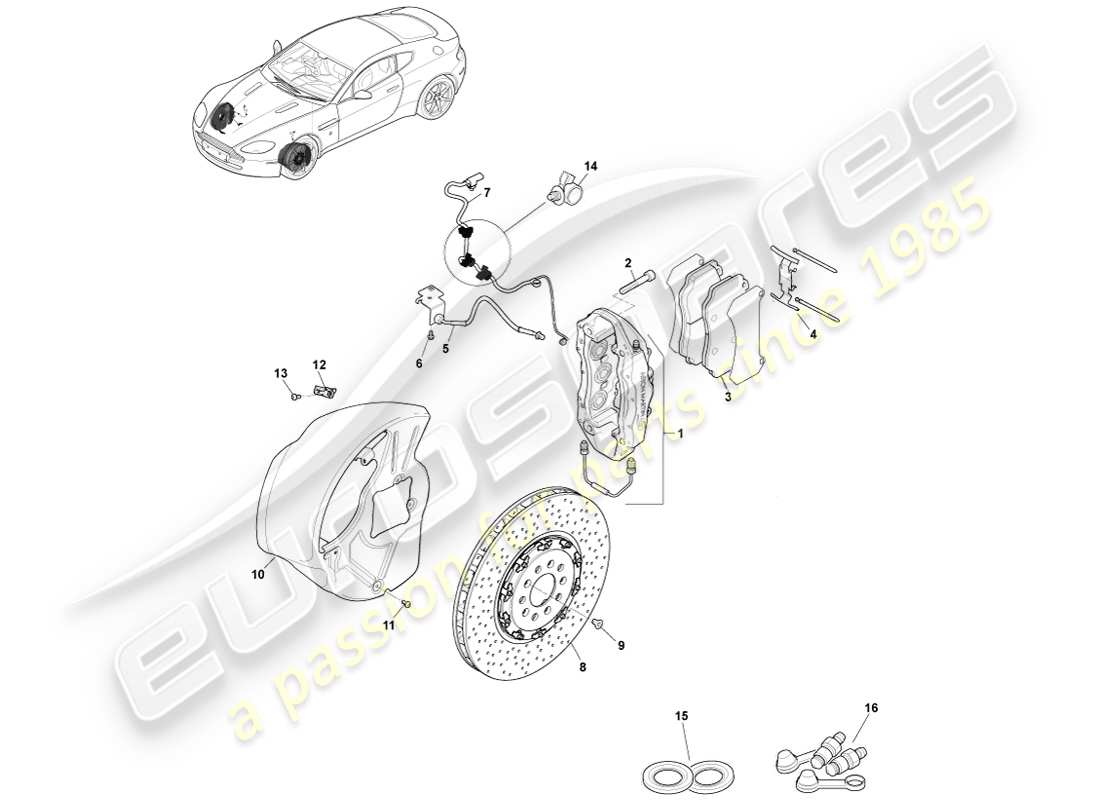

060300-C1 - Front Brake System

Aston Martin V8 Vantage (2007) Front Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 4G43-2C463-AA
                CALIPER ASSY, LH, LESS PADS
                Grey. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, GREY, LESS PADS, LH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C463-CA
                CALIPER ASSY, LH, LESS PADS
                Black. Up to VIN C16310, 355mm discs, V8
                from £318.19
                from £318.19
                CALIPER, FRONT, BLACK, LESS PADS, LH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C463-DA
                CALIPER ASSY, LH, LESS PADS
                Red. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, RED, LESS PADS, LH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C463-EA
                CALIPER ASSY, LH, LESS PADS
                Silver. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, SILVER, LESS PADS, LH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C463-FA
                CALIPER ASSY, LH, LESS PADS
                Yellow. Up to VIN C16310, 355mm discs, V8
                from £391.60
                from £391.60
                CALIPER, FRONT, YELLOW, LESS PADS, LH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C462-AA
                CALIPER ASSY, RH, ESS PADS
                Grey. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, GREY, LESS PADS, RH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C462-CA
                CALIPER ASSY, RH, LESS PADS
                Black. Up to VIN C16310, 355mm discs, V8
                from £318.19
                from £318.19
                CALIPER, FRONT, BLACK, LESS PADS, RH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C462-DA
                CALIPER ASSY, RH, LESS PADS
                Red. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, RED, LESS PADS, RH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C462-EA
                CALIPER ASSY, RH, LESS PADS
                Silver. Up to VIN C16310, 355mm discs, V8
                from £327.83
                from £327.83
                CALIPER, FRONT, SILVER, LESS PADS, RH Genuine Aston Martin - New (to order)
                # 1
                MPN: 4G43-2C462-FA
                CALIPER ASSY, RH, LESS PADS
                Yellow. Up to VIN C16310, 355mm discs, V8
                from £391.60
                from £391.60
                CALIPER, FRONT, YELLOW, LESS PADS, RH Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-AA
                CALIPER ASSY, LH, LESS PADS
                Grey. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-CA
                CALIPER ASSY, LH, LESS PADS
                Black. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-DA
                CALIPER ASSY, LH, LESS PADS
                Red. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-EA
                CALIPER ASSY, LH, LESS PADS
                Silver. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-FA
                CALIPER ASSY, LH, LESS PADS
                Yellow. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-AA
                CALIPER ASSY, RH, LESS PADS
                Grey. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-CA
                CALIPER ASSY, RH, ESS PADS
                Black. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-DA
                CALIPER ASSY, RH, LESS PADS
                Red. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-EA
                CALIPER ASSY, RH, LESS PADS
                Silver. From 11MY To 12.25MY, 380mm discs, V8S
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-FA
                CALIPER ASSY, RH, LESS PADS
                Yellow. From 11MY To 12.25MY, 380mm discs, V8S
                from £734.32
                from £734.32
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-AA
                CALIPER ASSY, LH, LESS PADS
                Grey. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-CA
                CALIPER ASSY, LH, LESS PADS
                Black. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-DA
                CALIPER ASSY, LH, LESS PADS
                Red. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-EA
                CALIPER ASSY, LH, LESS PADS
                Silver. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG43-2C463-FA
                CALIPER ASSY, LH, LESS PADS
                Yellow. From 12.25MY, VIN D16311, 380mm discs, All V8
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-AA
                CALIPER ASSY, RH, LESS PADS
                Grey. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-CA
                CALIPER ASSY, RH, LESS PADS
                Black. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-DA
                CALIPER ASSY, RH, LESS PADS
                Red. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-EA
                CALIPER ASSY, RH, LESS PADS
                Silver. From 12.25MY, VIN D16311, 380mm discs, All V8
                from £1,085.75
                from £1,085.75
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG43-2C462-FA
                CALIPER ASSY, RH, LESS PADS
                Yellow. From 12.25MY, VIN D16311, 380mm discs, All V8
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-JA
                CALIPER ASSY, LH, LESS PADS
                Black Anodised. From 15MY, 380mm discs, All V8
                from £491.56
                from £491.56
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-JA
                CALIPER ASSY, RH, LESS PADS
                Black Anodised. From 15MY, 380mm discs, All V8
                from £491.56
                from £491.56
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-AA
                CALIPER ASSY, LH, LESS PADS
                GT8 Grey
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-CA
                CALIPER ASSY, LH, LESS PADS
                GT8 BLACK
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-DA
                CALIPER ASSY, LH, LESS PADS
                GT8 red
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-FA
                CALIPER ASSY, LH, LESS PADS
                GT8 YELLOW
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-HA
                CALIPER ASSY, LH, LESS PADS
                GT8 orange
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C463-JA
                CALIPER ASSY, LH, LESS PADS
                GT8 Anodised Black
                from £999.68
                from £999.68
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-AA
                CALIPER ASSY, RH, LESS PADS
                GT8 Grey
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-CA
                CALIPER ASSY, RH, LESS PADS
                GT8 BLACK
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-DA
                CALIPER ASSY, RH, LESS PADS
                GT8 red
                from £947.74
                from £947.74
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-FA
                CALIPER ASSY, RH, LESS PADS
                GT8 YELLOW
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-HA
                CALIPER ASSY, RH, LESS PADS
                GT8 orange
                from £1,062.16
                from £1,062.16
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: HG3Y-2C462-JA
                CALIPER ASSY, RH, LESS PADS
                GT8 Anodised Black
                from £999.68
                from £999.68
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-HA
                CALIPER ASSY, LH, LESS PADS
                AMR Orange
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C463-MA
                CALIPER ASSY, LH, LESS PADS
                AMR Green
                from £1,626.89
                from £1,626.89
                CALIPER ASSEMBLY, LH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-HA
                CALIPER ASSY, RH, LESS PADS
                AMR Orange
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 1
                MPN: BG33-2C462-MA
                CALIPER ASSY, RH, LESS PADS
                AMR Green
                from £1,626.89
                from £1,626.89
                CALIPER ASSEMBLY, RH, LESS PADS Genuine Aston Martin - New (to order)
                # 2
                MPN: 4G43-2C564-AB
                BOLT, CALIPER TO KNUCKLE
                V8 Up to VIN C16310. Do Not Re-Use. Always Replace
                from £1.77
                from £1.77
                BOLT-M12 X 1.5 X 80 Genuine Aston Martin - New In stock
                # 2
                MPN: 8D33-2C564-AA
                BOLT, CALIPER TO KNUCKLE
                V8S Up to 12.25MY. Do Not Re-Use. Always Replace
                from £6.43
                from £6.43
                BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
                # 2
                MPN: 8D33-2C564-AA
                BOLT, CALIPER TO KNUCKLE
                All From 12.25MY, VIN D16311.Do Not Re-Use. Always Replace
                from £6.43
                from £6.43
                BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
                # 3
                MPN: 4G43-28-10941
                KIT, BRAKE BAD, FRONT, AXLE SET
                Up to VIN C16310, 355mm discs, V8
                from £397.81
                from £397.81
                KIT, BRAKE PADS & SHIMS, FRONT Genuine Aston Martin - New (to order)
                # 3
                MPN: AD43-2D007-AB
                KIT, BRAKE BAD, FRONT, AXLE SET
                From 11MY To 12.25MY, 380mm discs, V8S
                from £702.13
                from £702.13
                KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
                # 3
                MPN: AD43-2D007-AB
                KIT, BRAKE BAD, FRONT, AXLE SET
                From 12.25MY, VIN D16311, 380mm discs
                from £702.13
                from £702.13
                KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
                # 3
                MPN: AD43-2D007-AB
                KIT, BRAKE BAD, FRONT, AXLE SET
                GT8
                from £702.13
                from £702.13
                KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
                # 4
                MPN: 4G43-2C588-AA
                KIT, BRAKE PAD, SPRING AND PIN
                1 per caliper, Up to VIN C16310
                from £45.59
                from £45.59
                KIT, PAD SPRING & PIN, FRONT Genuine Aston Martin - New In stock
                # 4
                MPN: AD43-2C588-AA
                KIT, BRAKE PAD, SPRING AND PIN
                1 per caliper, V8S/ All From 12.25MY, VIN D16311
                from £66.53
                from £66.53
                KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
                # 4
                MPN: AD43-2C588-AA
                KIT, BRAKE PAD, SPRING AND PIN
                1 per caliper, GT8
                from £66.53
                from £66.53
                KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
                # 5
                MPN: 4G43-2078-AD
                HOSE ASSY, BRAKE FRONT, LH
                Up To VIN C16310
                from £127.24
                from £127.24
                HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - Used In stock
                # 5
                MPN: AD43-2078-AD
                HOSE ASSY, BRAKE FRONT, LH
                V8S/ All From 12.25MY, VIN D16311
                from £140.01
                from £140.01
                HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                # 5
                MPN: 4G43-2078-BD
                HOSE ASSY, BRAKE FRONT, RH
                Up To VIN C16310
                from £254.47
                from £254.47
                HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                # 5
                MPN: AD43-2078-BD
                HOSE ASSY, BRAKE FRONT, RH
                V8S/ All From 12.25MY, VIN D16311
                from £79.54
                from £79.54
                HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
                # 6
                MPN: 703265
                BOLT, M6X16
                from £0.47
                from £0.47
                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                # 7
                MPN: 4G43-2L507-AB
                LEAD, PAD WEAR
                Up To VIN C16310
                from £15.75
                from £15.75
                LEAD, PAD WEAR, FRONT Genuine Aston Martin - New (to order)
                LEAD, PAD WEAR, FRONT Genuine Aston Martin - Used In stock
                # 7
                MPN: 8D33-2L507-AA
                LEAD, PAD WEAR
                V8S/ All From 12.25MY, VIN D16311
                from £40.69
                from £40.69
                PAD WEAR LEAD FRONT Genuine Aston Martin - New (to order)
                # -
                -
                BRAKE DISCS ARE SOLD IN SINGLES. ALWAYS FIT IN PAIRS
                # 8
                MPN: 4G43-28-10265
                BRAKE DISC, FRONT, VENTED
                Up to VIN C16310, 355mm, V8
                from £188.73
                from £188.73
                FRONT BRAKE DISC, VENTILATED Genuine Aston Martin - New (to order)
                # 8
                MPN: BG33-1125-AA
                BRAKE DISC, FRONT, VENTED
                From VIN D16311 To VIN C18074, 380mm, V8
                from £1,022.34
                from £1,022.34
                BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
                # 8
                MPN: BG33-1125-AA
                BRAKE DISC, FRONT, VENTED
                Up To C18074, 380mm, V8S
                from £1,022.34
                from £1,022.34
                BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
                # 8
                MPN: BG33-1125-BA
                BRAKE DISC, FRONT, VENTED
                From C18075 (Aluminium/Iron Co-Cast), 380mm, All V8
                from £559.32
                from £559.32
                BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
                # 8
                MPN: HG3Y-1125-AA
                BRAKE DISC, FRONT, VENTED
                GT8
                from £1,446.71
                from £1,446.71
                BRAKE DISC, FRONT, VENTED Genuine Aston Martin - New (to order)
                # 9
                MPN: 4G43-2N389-AA
                SCREW, RETAINING, BRAKE DISC
                from £0.47
                from £0.47
                SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
                # 10
                MPN: 4G43-2K005-AB
                SHIELD ASSY, REAR BRAKE DISC, LH
                Up To VIN C16310
                SHIELD ASSEMBLY, REAR BRAKE DISC, LH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-2K005-AB
                SHIELD ASSY, REAR BRAKE DISC, LH
                V8S/ All From 12.25MY, VIN D16311
                from £15.36
                from £15.36
                SHIELD FRONT BRAKE DISC, LH Genuine Aston Martin - New (to order)
                SHIELD FRONT BRAKE DISC, LH Genuine Aston Martin - Used In stock
                # 10
                MPN: 4G43-2K004-AB
                SHIELD ASSY, REAR BRAKE DISC, RH
                Up To VIN C16310
                SHIELD ASSEMBLY, REAR BRAKE DISC, RH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-2K004-AB
                SHIELD ASSY, REAR BRAKE DISC, RH
                V8S/ All From 12.25MY, VIN D16311
                from £42.00
                from £42.00
                SHIELD FRONT BRAKE DISC, RH Genuine Aston Martin - New (to order)
                # 11
                MPN: 4G43-13D026-AA
                SCREW, M6, RETAINING, SHIELD
                from £0.47
                from £0.47
                SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                # 12
                MPN: 4G43-90-10039
                SENSOR, WHEEL SPEED
                from £49.57
                from £49.57
                SENSOR-ABS Genuine Aston Martin - New (to order)
                SENSOR-ABS Genuine Aston Martin - Used In stock
                # 13
                MPN: 4G43-13D026-BA
                SCREW, WHEEL SPEED SENSOR
                from £0.73
                from £0.73
                SCREW M5 Genuine Aston Martin - New (to order)
                # 14
                MPN: 4G43-65-10059
                CLIP, FIRTREE, PAD WEAR LEAD
                from £0.47
                from £0.47
                CLIP, FIRTREE Genuine Aston Martin - New (to order)
                # 15
                MPN: 4G43-32180-AA
                KIT, DUST BOOT, FRONT CALIPER
                per caliper
                from £30.10
                from £30.10
                KIT, DUST BOOT, FRONT CALIPER Genuine Aston Martin - New (to order)
                # 15
                MPN: 4G43-2C563-AA
                KIT, BLEED SCREW
                per caliper
                from £10.30
                from £10.30
                KIT, BLEED SCREW Genuine Aston Martin - New (to order)
                # 15
                MPN: 4G43-33693-AA
                CAP, BLEED SCREW
                from £16.93
                from £16.93
                CAP, BLEED SCREW Genuine Aston Martin - New (to order)
