aston martin v8 vantage (2007) sportshift, 6 spd parts diagram

070300-R2 - Sportshift, 6 spd

Aston Martin V8 Vantage (2007) Sportshift, 6 spd Parts Diagram

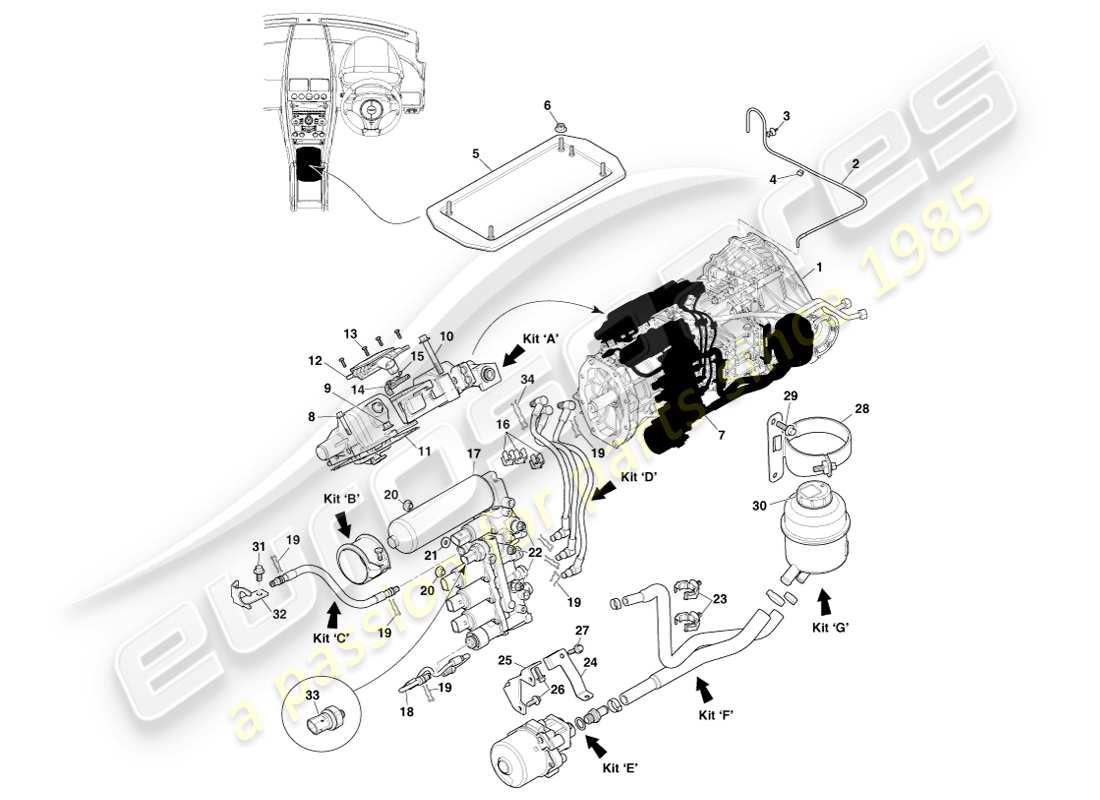

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 1
                                                                        MPN: 6G33-7002-BH
                                                                        6 SPEED TRANSAXLE ASSEMBLY, SPORTSHIFT
                                                                        V8, Up To 12.25MY
                                                                        from £18,553.25
                                                                        from £18,553.25
                                                                        6 SPEED TRANSAXLE ASSEMBLY, SPORTSHIFT Genuine Aston Martin - New (to order)
                                                                        # 1
                                                                        MPN: 091718
                                                                        6 SPEED ASM GEARBOX, REMANUFACTURED
                                                                        V8, Up To 12.25MY
                                                                        from £8,483.61
                                                                        from £8,483.61
                                                                        6 SPEED ASM GEARBOX, REMANUFACTURED Genuine Aston Martin - New (to order)
                                                                        # 2
                                                                        MPN: 6G33-7A245-AA
                                                                        PIPE ASSEMBLY, TRANSAXLE BREATHER, MANUAL
                                                                        from £39.85
                                                                        from £39.85
                                                                        PIPEASY-TRANS BREATH Genuine Aston Martin - New (to order)
                                                                        # 3
                                                                        MPN: 701575
                                                                        CLIP, PIPE
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
                                                                        # 4
                                                                        MPN: 702284
                                                                        CLIP, EDGE
                                                                        from £1.21
                                                                        from £1.21
                                                                        CLIP, EDGE Genuine Aston Martin - New (to order)
                                                                        # 5
                                                                        MPN: 4G43-7C309-CB
                                                                        COVER PLATE, TRANSMISSION GEARSHIFT
                                                                        from £19.61
                                                                        from £19.61
                                                                        PLATE, GEAR SHIFT COVER Genuine Aston Martin - New (to order)
                                                                        PLATE, GEAR SHIFT COVER Genuine Aston Martin - Used In stock
                                                                        # 6
                                                                        MPN: 703749
                                                                        NUT, M6
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 699877
                                                                        NUT-M6 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
                                                                        # 7
                                                                        MPN: 6G33-7C391-AE
                                                                        TRANSMISSION KIT, SPORTSHIFT
                                                                        Up To VIN C15848
                                                                        from £12,541.44
                                                                        from £12,541.44
                                                                        TRANSMISSION KIT, SPORTSHIFT Genuine Aston Martin - New (to order)
                                                                        # 7
                                                                        MPN: BG33-7C391-BA
                                                                        TRANSMISSION KIT, SPORTSHIFT
                                                                        FROM VIN C15848
                                                                        from £7,844.32
                                                                        from £7,844.32
                                                                        TRANSMISSION KIT, SPORTSHIFT Genuine Aston Martin - New (to order)
                                                                        # 8
                                                                        MPN: BG33-292227-AA
                                                                        BOLT, M6 X 30
                                                                        from £0.76
                                                                        from £0.76
                                                                        BOLT, M6 X 30 Genuine Aston Martin - New (to order)
                                                                        # 9
                                                                        MPN: 703169
                                                                        NUT, M6
                                                                        from £0.71
                                                                        from £0.71
                                                                        This part replaces part number 703168
                                                                        NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                        # 10
                                                                        MPN: 703193
                                                                        BOLT, M8 X 55
                                                                        from £0.47
                                                                        from £0.47
                                                                        BOLT M8X55 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                                                                        # 11
                                                                        MPN: 6G33-7K364-AB
                                                                        GASKET
                                                                        from £24.24
                                                                        from £24.24
                                                                        GASKET, TRANS GEAR SELECTOR Genuine Aston Martin - New (to order)
                                                                        # 12
                                                                        MPN: 6G33-7J269-AC
                                                                        SENSOR ASSEMBLY, TRANS ACTUATOR POSITION
                                                                        from £672.07
                                                                        from £672.07
                                                                        SENSOR ASSEMBLY, TRANS ACTUATOR POSITION Genuine Aston Martin - New (to order)
                                                                        # 13
                                                                        MPN: 702959
                                                                        SCREW, M4 X 12, PAN HEAD
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW M4X12 PAN HEAD Genuine Aston Martin - New (to order)
                                                                        # 14
                                                                        MPN: 6G33-7J282-AB
                                                                        MAGNET ASSEMBLY, TRANS ACTUATOR POSITION
                                                                        Up to 24/11/06
                                                                        MAGNET ASSEMBLY, TRANS ACTUATOR POSITION Genuine Aston Martin - New (to order)
                                                                        # 14
                                                                        MPN: 6G33-7J282-AC
                                                                        MAGNET ASSEMBLY, TRANS ACTUATOR POSITION
                                                                        From 24/11/06
                                                                        from £49.84
                                                                        from £49.84
                                                                        MAGNET ASSEMBLY, TRANS ACTUATOR POSITION Genuine Aston Martin - New (to order)
                                                                        # 15
                                                                        MPN: 6G33-505066-AC
                                                                        SCREW, M3 X 6, BUTTON HEAD
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW, M3 X 6, BUTTON HEAD Genuine Aston Martin - New (to order)
                                                                        # 16
                                                                        MPN: 702971
                                                                        CLIP, 8-10 X 6.5 X 0.5-4.5
                                                                        from £3.97
                                                                        from £3.97
                                                                        CLIP, 8-10 X 6.5 X 0.5-4.5 Genuine Aston Martin - New (to order)
                                                                        # 17
                                                                        MPN: 6G33-7F054-AA
                                                                        VALVE & ACCUMULATOR ASSEMBLY
                                                                        from £4,979.58
                                                                        from £4,979.58
                                                                        VALVE & ACCUMULATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                                                        # 18
                                                                        MPN: 6G33-7L087-AA
                                                                        PIPE ASSEMBLY
                                                                        from £199.69
                                                                        from £199.69
                                                                        PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                        # 19
                                                                        MPN: 6G33-7C526-AA
                                                                        PIPE CLIP-SMALL
                                                                        from £6.41
                                                                        from £6.41
                                                                        PIPE CLIP-SMALL Genuine Aston Martin - New (to order)
                                                                        # 20
                                                                        MPN: 6G33-7J039-BA
                                                                        MOUNTING
                                                                        from £6.26
                                                                        from £6.26
                                                                        MOUNTING Genuine Aston Martin - New (to order)
                                                                        # 21
                                                                        MPN: 6G33-7J039-AA
                                                                        MOUNTING
                                                                        from £3.98
                                                                        from £3.98
                                                                        MOUNTING Genuine Aston Martin - New (to order)
                                                                        # 22
                                                                        MPN: 703169
                                                                        NUT M6
                                                                        from £0.71
                                                                        from £0.71
                                                                        This part replaces part number 703168
                                                                        NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                        # 23
                                                                        MPN: 702282
                                                                        CLIP
                                                                        from £0.77
                                                                        from £0.77
                                                                        CLIP 16-18 5X6 5X1-6 Genuine Aston Martin - New (to order)
                                                                        # 24
                                                                        MPN: 6G33-7L564-AC
                                                                        BRACKET
                                                                        from £22.89
                                                                        from £22.89
                                                                        BRACKET Genuine Aston Martin - New (to order)
                                                                        # 25
                                                                        MPN: 6G33-7L564-BB
                                                                        BRACKET
                                                                        from £13.08
                                                                        from £13.08
                                                                        BRACKET Genuine Aston Martin - New (to order)
                                                                        # 26
                                                                        MPN: 703265
                                                                        SCREW, M6 X 16
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                                        # 27
                                                                        MPN: 703025
                                                                        SCREW, M6 X 25
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                                                        # 28
                                                                        MPN: 6G33-7F160-AA
                                                                        BRACKET- FIXED
                                                                        from £21.07
                                                                        from £21.07
                                                                        BRACKET- FIXED Genuine Aston Martin - New (to order)
                                                                        # 28
                                                                        MPN: 6G33-7F160-BB
                                                                        BRACKET- HINGED
                                                                        from £22.56
                                                                        from £22.56
                                                                        BRACKET- HINGED Genuine Aston Martin - New (to order)
                                                                        # 29
                                                                        MPN: 703187
                                                                        SCREW, M8 X 25
                                                                        from £0.47
                                                                        from £0.47
                                                                        SCREW M8 X 25 HEX Genuine Aston Martin - New (to order)
                                                                        # 30
                                                                        MPN: 6G33-67483-AA
                                                                        RESERVOIR CAP ASSEMBLY
                                                                        RESERVOIR CAP ASSEMBLY Genuine Aston Martin - New (to order)
                                                                        # 31
                                                                        MPN: 705009
                                                                        SCREW, HEX FLG, M8 X 16
                                                                        FROM VIN C15849
                                                                        from £2.17
                                                                        from £2.17
                                                                        SCREW, HEX FLANGE , M8 X 16 Genuine Aston Martin - New (to order)
                                                                        # 32
                                                                        MPN: BG33-R7N630-CA
                                                                        BRACKET, CLUTCH TUBE ASSEMBLY
                                                                        FROM VIN C15849
                                                                        BRACKET, CLUTCH TUBE ASSEMBLY Genuine Aston Martin - New (to order)
                                                                        # 33
                                                                        MPN: 4R12-41-10738
                                                                        SENSOR, OIL PRESSURE
                                                                        from £88.47
                                                                        from £88.47
                                                                        SENSOR, OIL PRESSURE Genuine Aston Martin - New (to order)
                                                                        # 34
                                                                        MPN: 6G33-7C526-BA
                                                                        PIPE CLIP-SMALL
                                                                        from £7.36
                                                                        from £7.36
                                                                        PIPE CLIP-SMALL Genuine Aston Martin - New (to order)
                                                                        # -
                                                                        -
                                                                        OIL, TRANSAXLE
                                                                        1 litre
                                                                        # -
                                                                        -
                                                                        HYDRAULIC FLUID, ASM
                                                                        1 litre
                                                                        # -
                                                                        -
                                                                        O-RING SEAL, FOR HIGH PRESSURE PIPES
                                                                        # -
                                                                        -
                                                                        SEE SPORTSHIFT SERVICE KITS (070300-R2A) FOR THE FOLLOWING SERVICE KITS
                                                                        # A
                                                                        MPN: 6G33-7C372-AA
                                                                        SHIFTER COVER ASSY KIT A
                                                                        from £4,211.59
                                                                        from £4,211.59
                                                                        SHIFTER COVER ASSEMBLY KIT A Genuine Aston Martin - New (to order)
                                                                        # B
                                                                        MPN: 6G33-7C595-AA
                                                                        ACCUMULATOR BRACKET KIT B
                                                                        from £115.72
                                                                        from £115.72
                                                                        ACCUMULATOR BRACKET KIT B Genuine Aston Martin - New (to order)
                                                                        # C
                                                                        MPN: 6G33-7J327-AA
                                                                        EVO PIPE KIT C, DRY BREAK CONNECTOR
                                                                        Up To VIN C15848
                                                                        from £555.21
                                                                        from £555.21
                                                                        EVO PIPE KIT C, DRY BREAK CONNECTOR Genuine Aston Martin - New (to order)
                                                                        # C
                                                                        MPN: BG33-7J327-AA
                                                                        EVO PIPE KIT C, PUSH FIT CONNECTOR
                                                                        FROM VIN C15849
                                                                        from £204.68
                                                                        from £204.68
                                                                        EVO PIPE KIT C, PUSH FIT CONNECTOR Genuine Aston Martin - New (to order)
                                                                        # D
                                                                        MPN: 6G33-7H394-BA
                                                                        HP HOSES KIT D
                                                                        from £1,316.16
                                                                        from £1,316.16
                                                                        HP HOSES KIT D Genuine Aston Martin - New (to order)
                                                                        # E
                                                                        MPN: 6G33-7A103-AA
                                                                        HYDRAULIC PUMP ASSY KIT E
                                                                        from £1,074.50
                                                                        from £1,074.50
                                                                        HYDRAULIC PUMP ASSEMBLY KIT E Genuine Aston Martin - New (to order)
                                                                        # F
                                                                        MPN: 6G33-7H394-AA
                                                                        LP PIPE KIT F, RESERVOIR
                                                                        from £309.97
                                                                        from £309.97
                                                                        LP PIPE KIT F, RESERVOIR Genuine Aston Martin - New (to order)
                                                                        # G
                                                                        MPN: 6G33-7J387-AA
                                                                        RESERVOIR TANK ASSY KIT G
                                                                        from £144.46
                                                                        from £144.46
                                                                        RESERVOIR TANK ASSEMBLY KIT G Genuine Aston Martin - New (to order)
