aston martin v8 vantage (2007) fuel tank assy, to 13my parts diagram

100101-S1 - Fuel Tank Assy, to 13MY

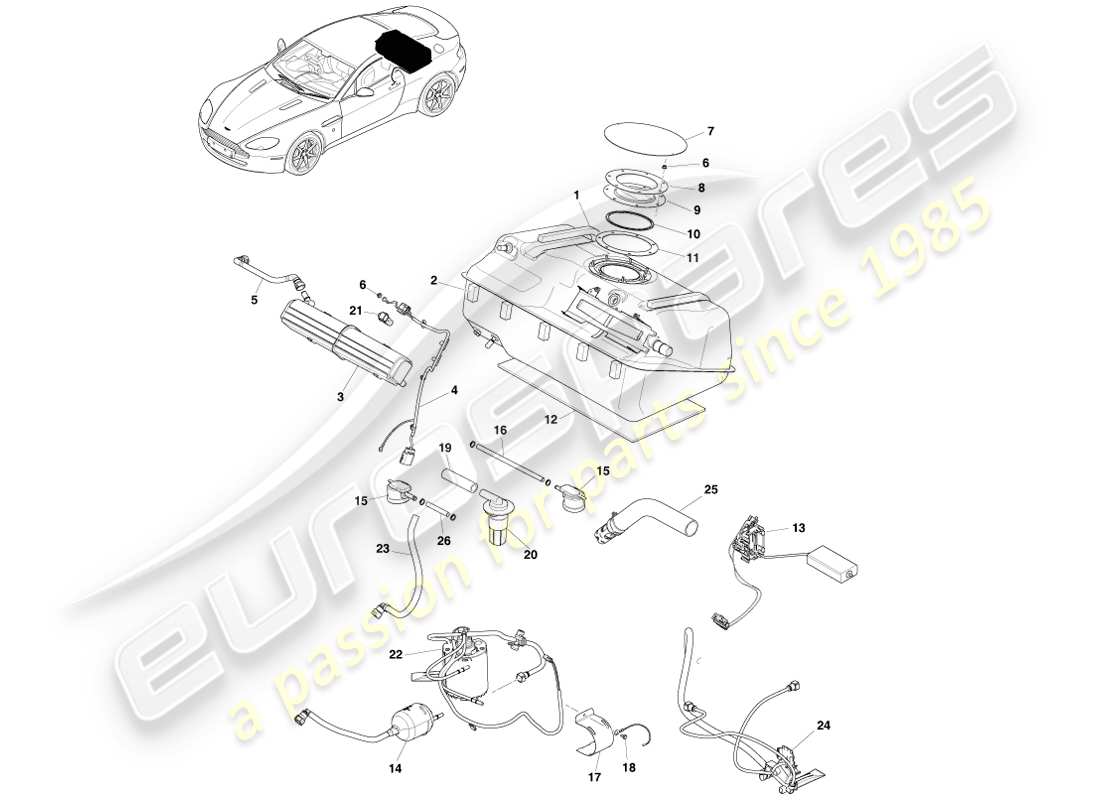

Aston Martin V8 Vantage (2007) Fuel Tank Assy, to 13MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # -
                                            MPN: 8G33-9C133-AF
                                            TANK AND CANISTER ASSY COMPLETE
                                            Up To VIN C16408, Replaced by BG33-9C133-AA PLUS Item 11, Section 031300
                                            from £900.00
                                            from £900.00
                                            TANK AND CANISTER ASSEMBLY COMPLETE Genuine Aston Martin - New (to order)
                                            TANK AND CANISTER ASSEMBLY COMPLETE Genuine Aston Martin - Used In stock
                                            # -
                                            MPN: BG33-9C133-AA
                                            TANK AND CANISTER ASSY COMPLETE
                                            FROM VIN C16409
                                            from £4,164.40
                                            from £4,164.40
                                            TANK AND CANISTER ASSEMBLY COMPLETE Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: 4G43-M2D28-AA
                                            FOAM PAD, TANK UPPER
                                            from £5.44
                                            from £5.44
                                            INS FU TNK UPPER Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 4G43-482550-AA
                                            FOAM PAD, TANK FRONT, UPPER
                                            from £13.93
                                            from £13.93
                                            FOAM PAD-TNK UPPER Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: 4G43-9D653-AA
                                            CANISTER ASSY
                                            Up To VIN C16408
                                            from £103.23
                                            from £103.23
                                            CNSTR & BRACKET ASY-FU Genuine Aston Martin - New (to order)
                                            CNSTR & BRACKET ASY-FU Genuine Aston Martin - Used In stock
                                            # 3
                                            MPN: BG43-9D653-AA
                                            CANISTER ASSY
                                            FROM VIN C16409
                                            from £425.69
                                            from £425.69
                                            BRACKET FU/VPR STEERING CN Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 6G33-14407-AE
                                            HARNESS, FUEL TANK
                                            from £70.60
                                            from £70.60
                                            HARNESS, FUEL TANK Genuine Aston Martin - New (to order)
                                            HARNESS, FUEL TANK Genuine Aston Martin - Used In stock
                                            # 5
                                            MPN: 6G33-4090-AA
                                            HOSE, FUEL VAPOUR
                                            Up To VIN C16408
                                            from £18.85
                                            from £18.85
                                            TUBE, ASSEMBLY, FUEL VAPOUR TO CANISTER Genuine Aston Martin - New (to order)
                                            TUBE, ASSEMBLY, FUEL VAPOUR TO CANISTER Genuine Aston Martin - Used In stock
                                            # -
                                            -
                                            HOSE
                                            FROM VIN C16409
                                            # -
                                            -
                                            FILTER, VAPOUR LINE
                                            # 6
                                            MPN: 697820
                                            NUT, M6
                                            Up To VIN C16408
                                            NUT, FLANGE , M6 LOCK Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: W520101
                                            NUT, M6
                                            FROM VIN C16409
                                            NUT, M6 Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: 4G43-9074-EA
                                            COVER, FUEL TANK
                                            from £12.59
                                            from £12.59
                                            PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                            PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - Used In stock
                                            # 8
                                            MPN: 4G43-32133-BA
                                            PLATE, CLAMP, FUEL TANK
                                            from £5.18
                                            from £5.18
                                            CLAMP PLATE Genuine Aston Martin - New (to order)
                                            CLAMP PLATE Genuine Aston Martin - Used In stock
                                            # 9
                                            MPN: 4G43-9C055-CA
                                            COVER, FUEL TANK SERVICE
                                            from £6.43
                                            from £6.43
                                            CVR-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                            CVR-FU/TNK COVER PLT Genuine Aston Martin - Used In stock
                                            # 10
                                            MPN: 4G43-9073-AA
                                            GASKET, FUEL TANK
                                            from £20.84
                                            from £20.84
                                            GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                            # 11
                                            -
                                            PLATE, CLAMP, FUEL TANK
                                            # 12
                                            MPN: 4G43-XC468090-AB
                                            FOAM PAD, TANK BASE
                                            from £29.02
                                            from £29.02
                                            FOAM PAD, TANK BASE Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 4G43-9E275-AA
                                            SENDER ASSY, FUEL TANK
                                            from £67.75
                                            from £67.75
                                            SE-FU/TNK SDR Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: 6G33-9155-AB
                                            FILTER ASSY, FUEL, RH
                                            from £263.51
                                            from £263.51
                                            FILTER ASSEMBLY - RHS Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 4G43-9B190-BA
                                            VALVE ASSY, FUEL VAPOUR (ROV)
                                            from £18.15
                                            from £18.15
                                            VALVE ASSEMBLY, FUEL VAPOUR (ROV) Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 4G43-4090-AB
                                            HOSE, FUEL TANK
                                            from £24.29
                                            from £24.29
                                            HOSE FUEL VAPOUR Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 6G33-9180-AB
                                            BRACKET, FUEL FILTER
                                            Up To VIN C16408
                                            from £47.67
                                            from £47.67
                                            BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                            BRACKET, FUEL FILTER Genuine Aston Martin - Used In stock
                                            # 17
                                            MPN: 8G43-9180-AA
                                            BRACKET, FUEL FILTER
                                            FROM VIN C16409
                                            BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 702082
                                            BOLT, M5 X 16, FILTER CLAMP TO BAFFLE
                                            from £0.74
                                            from £0.74
                                            BOLT M5X12 S/LOCK Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 4G43-4090-CA
                                            HOSE, FUEL VAPOUR
                                            from £9.48
                                            from £9.48
                                            HOSE, FUEL VAPOUR Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 4G43-9B190-AA
                                            VALVE ASSY, FUEL LEVEL VENT
                                            from £183.73
                                            from £183.73
                                            VALVE ASSEMBLY, FUEL LEVEL VENT Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 4G43-37-10041
                                            CONN. 6 WAY SUMITOMO
                                            from £40.52
                                            from £40.52
                                            ELEC CONNECTOR-6 WAY Genuine Aston Martin - New (to order)
                                            # -
                                            -
                                            O RING FOR USE WITH ITEM 21
                                            # 22
                                            MPN: 6G33-9B260-CC
                                            PUMP AND RESERVOIR ASSY, FUEL
                                            from £584.43
                                            from £584.43
                                            FUEL PUMP MODULE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 4G43-9B035-AB
                                            TUBE ASSY, FUEL VAPOUR, LOWER
                                            from £54.48
                                            from £54.48
                                            TUBE ASSEMBLY, FUEL VAPOUR, LOWER Genuine Aston Martin - New (to order)
                                            TUBE ASSEMBLY, FUEL VAPOUR, LOWER Genuine Aston Martin - Used In stock
                                            # 24
                                            MPN: 6G33-9B260-BD
                                            JET ASSY, FUEL PUMP
                                            from £116.46
                                            from £116.46
                                            JET PUMP MODULE Genuine Aston Martin - New (to order)
                                            JET PUMP MODULE Genuine Aston Martin - Used In stock
                                            # 25
                                            MPN: 4G43-9047-BA
                                            HOSE ASSY, FUEL TANK FILLER
                                            Up To 12.25MY, V8
                                            HOSE, FUEL TANK FILLER Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: AD23-9047-AA
                                            HOSE ASSY, FUEL TANK FILLER
                                            From 12.25MY, V8
                                            from £72.25
                                            from £72.25
                                            HOSE ASSEMBLY, FUEL TANK FILLER Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: AD23-9047-AA
                                            HOSE ASSY, FUEL TANK FILLER
                                            From 11MY, V8S
                                            from £72.25
                                            from £72.25
                                            HOSE ASSEMBLY, FUEL TANK FILLER Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 4G43-4090-BB
                                            HOSE, FUEL TANK
                                            from £6.72
                                            from £6.72
                                            HOSE, FUEL VAPOR Genuine Aston Martin - New (to order)
                                            # -
                                            -
                                            NUT, WASHER, M6, TANK HARNESS TO BDY
                                            # -
                                            -
                                            LABEL, CLEANLINESS, FUEL TANK
