aston martin v8 vantage (2007) fuel tank assy, 13my on parts diagram

100101 - Fuel Tank Assy, 13MY on

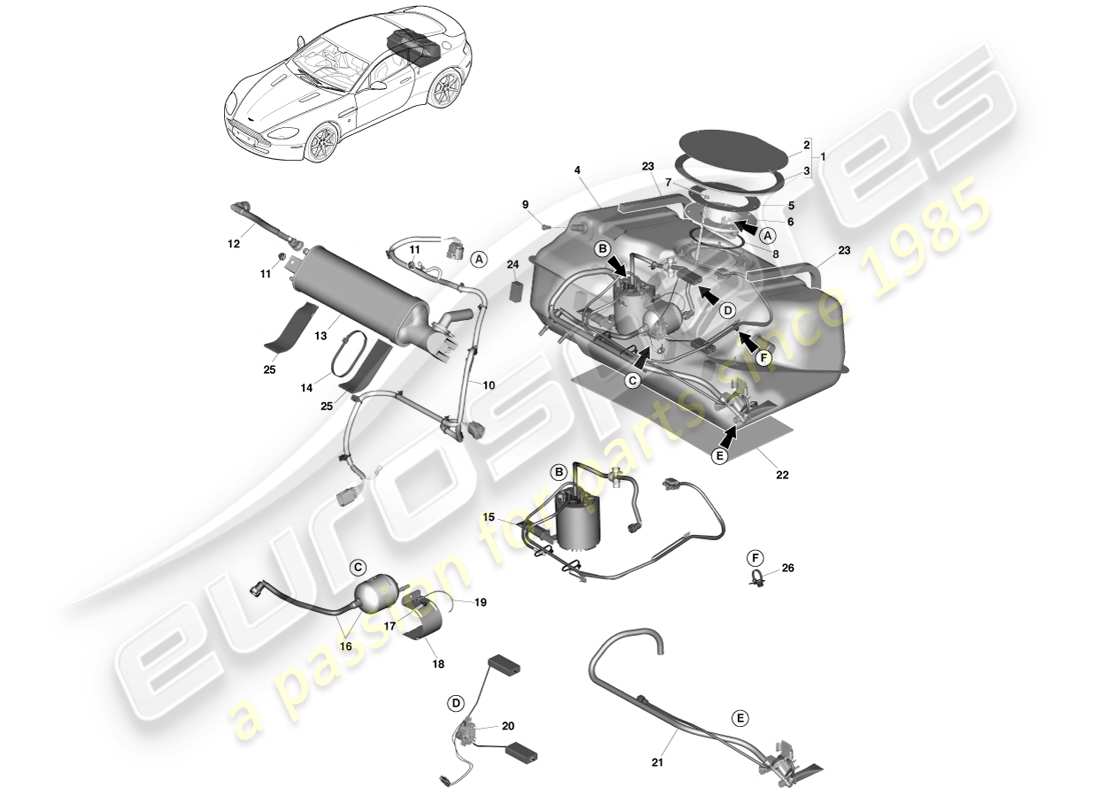

Aston Martin V8 Vantage (2007) Fuel Tank Assy, 13MY on Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 1
                                                MPN: DG43-9074-BA
                                                PLATE ASSEMBLY, FUEL TANK COVER
                                                Includes Gasket
                                                # 2
                                                MPN: DG43-9074-CA
                                                PLATE, FUEL TANK COVER
                                                # 3
                                                MPN: DG43-9073-AA
                                                GASKET, FUEL TANK COVER PLATE
                                                # 4
                                                MPN: DG33-9C133-AC
                                                FUEL TANK & CANISTER ASSEMBLY
                                                Up to 14MY. Includes Items 5 to 21
                                                from £2,538.62
                                                from £2,538.62
                                                # 4
                                                MPN: DG33-9C133-AD
                                                FUEL TANK & CANISTER ASSEMBLY
                                                From 14MY. Includes Items 5 to 21
                                                from £2,257.82
                                                from £2,257.82
                                                # 5
                                                MPN: 4G43-32133-BA
                                                CLAMP PLATE
                                                from £5.18
                                                from £5.18
                                                # 6
                                                MPN: CD33-9A309-AA
                                                COVER, FUEL TANK SERVICE
                                                from £79.86
                                                from £79.86
                                                # 8
                                                MPN: 4G43-9073-AA
                                                GASKET, FUEL TANK SERVICE COVER
                                                Replace Each Time Fuel Tank Service Cover Is Removed.
                                                from £20.84
                                                from £20.84
                                                # 9
                                                MPN: DG43-9155-AA
                                                FILTER, VAPOUR LINE
                                                from £20.85
                                                from £20.85
                                                # 10
                                                MPN: DG33-14407-AB
                                                HARNESS, FUEL TANK
                                                from £343.05
                                                from £343.05
                                                # 11
                                                MPN: 697177
                                                NUT, M6 FLANGED
                                                from £0.47
                                                from £0.47
                                                # 12
                                                MPN: BG43-4090-AA
                                                HOSE ASSEMBLY
                                                from £57.82
                                                from £57.82
                                                # 13
                                                MPN: BG43-9D653-AA
                                                CANISTER, VAPOUR STORAGE
                                                from £425.69
                                                from £425.69
                                                # 14
                                                -
                                                TIE-WRAP, HELLERMAN
                                                # 15
                                                MPN: CD33-9H307-AB
                                                PUMP AND RESERVOIR ASSEMBLY
                                                from £560.69
                                                from £560.69
                                                # 16
                                                MPN: 6G33-9155-AB
                                                FILTER ASSEMBLY, FUEL
                                                from £263.51
                                                from £263.51
                                                # 17
                                                MPN: 702082
                                                BOLT, M5 X 12 SELF LOCKING
                                                from £0.74
                                                from £0.74
                                                # 18
                                                MPN: 8G43-9180-AA
                                                BRACKET, FUEL FILTER
                                                # 19
                                                MPN: 6G33-66991-AB
                                                EARTH WIRE
                                                # 20
                                                MPN: 4G43-9E275-AA
                                                SENSOR, FUEL TANK SENDER
                                                from £67.75
                                                from £67.75
                                                # 21
                                                MPN: CD33-9275-AA
                                                JET PUMP MODULE ASSEMBLY
                                                from £122.26
                                                from £122.26
                                                # 22
                                                MPN: 4G43-XC468090-AB
                                                FOAM PAD, TANK BASE
                                                from £29.02
                                                from £29.02
                                                # 23
                                                MPN: 4G43-M2D28-AA
                                                INSULATION,FUEL TANK UPPER
                                                from £5.44
                                                from £5.44
                                                # 24
                                                MPN: 4G43-482550-AA
                                                FOAM PAD, TANK UPPER
                                                from £13.93
                                                from £13.93
                                                # 25
                                                MPN: BG43-M2D28-BA
                                                INSULATION,FUEL TANK UPPER
                                                # 26
                                                MPN: 4G43-9012-A-PIA01
                                                TIE WRAP, FIR TREE
                                                from £11.15
                                                from £11.15
