aston martin v8 vantage (2009) body rear end, roadster parts diagram

010106-20 - Body Rear End, Roadster

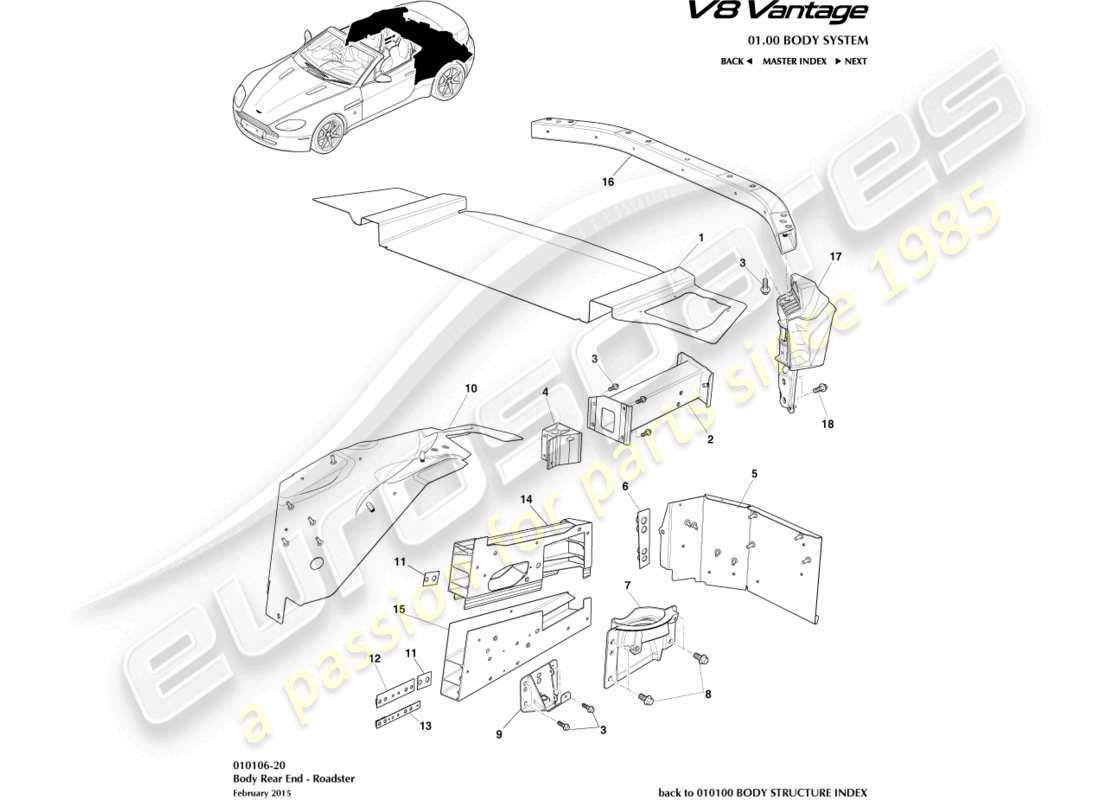

Aston Martin V8 Vantage (2009) Body Rear End, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 6G33-L47124-AD
      PANEL, TRUNK FLOOR
      Structural. Cat A Only
      from £264.02
      from £264.02
      PANEL, TRUNK FLOOR Genuine Aston Martin - New (to order)
      # 2
      MPN: AG33-17F035-BA
      ABSORBER ASSEMBLY, REAR BUMPER LH
      Structural. Cat A Only
      from £242.33
      from £242.33
      ABSORBER ASSEMBLY, REAR BUMPER, LH Genuine Aston Martin - New (to order)
      # 2
      MPN: AG33-17F034-BA
      ABSORBER ASSEMBLY, REAR BUMPER RH
      Structural. Cat A Only
      from £242.33
      from £242.33
      ABSORBER ASSEMBLY, REAR BUMPER, RH Genuine Aston Martin - New (to order)
      # 3
      MPN: 703120
      SCREW, M8X25 HEX HEAD, FLANGED
      from £3.45
      from £3.45
      SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
      INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
      # 4
      MPN: GOAG33-5A356-AA
      SUPPORT, SUBFRAME, LH
      Structural. Cat A Only
      from £29.93
      from £29.93
      SUPPORT S/FRAME REAR LH Genuine Aston Martin - New (to order)
      # 4
      MPN: GOAG33-5A355-AA
      SUPPORT, SUBFRAME, RH
      Structural. Cat A Only
      from £29.93
      from £29.93
      SUPPORT S/FRAME REAR RH Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G33-L10515-AF
      PANEL, OUTER, LH
      Up To 09MY, Structural. Cat A only
      from £47.04
      from £47.04
      PANEL, OUTER, LH Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G33-L10515-AL
      PANEL, OUTER, LH
      From 09MY, Structural. Cat A only
      PANEL, REAR FLOOR SIDE OUTER, LH Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G33-L10514-AF
      PANEL, OUTER, RH
      Up To 09MY, Structural. Cat A only
      from £47.04
      from £47.04
      PANEL, OUTER, RH Genuine Aston Martin - New (to order)
      # 5
      MPN: 6G33-L10514-AK
      PANEL, OUTER, RH
      From 09MY To 16MY, Structural. Cat A only
      from £76.01
      from £76.01
      PANEL, REAR FLOOR SIDE OUTER, RH Genuine Aston Martin - New (to order)
      # 5
      MPN: GG33-L10514-AA
      PANEL, OUTER, RH
      From 16MY, Structural. Cat A only
      PANEL, OUTER, RH Genuine Aston Martin - New (to order)
      # 6
      MPN: 6G33-334177-AA
      NUTPLATE, REAR DAMPER MOUNT M12
      Up To 13MY, Structural. Cat A only
      from £5.32
      from £5.32
      NUTPLATE, REAR DAMPER MOUNTING, M12 Genuine Aston Martin - New (to order)
      # 6
      MPN: DD23-334177-AA
      NUTPLATE, REAR DAMPER MOUNT M12
      From 13MY, Structural. Cat A only
      from £46.34
      from £46.34
      NUTPLATE, REAR DAMPER MOUNTING, M12 Genuine Aston Martin - New (to order)
      # 7
      MPN: 6G33-18A001-AB
      MOUNTING, REAR DAMPER, LH
      Up To 09MY, Structural. Cat A only
      from £76.03
      from £76.03
      MOUNTING, REAR DAMPER, LH Genuine Aston Martin - New (to order)
      # 7
      MPN: 6G33-18A001-AD
      MOUNTING, REAR DAMPER, LH
      From 09MY, Structural. Cat A only
      from £286.04
      from £286.04
      MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
      MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
      # 7
      MPN: 6G33-18A000-AD
      MOUNTING, REAR DAMPER, RH
      Structural. Cat A Only
      from £286.04
      from £286.04
      MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
      MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
      # 8
      MPN: 703185
      SCREW, M12X25, HEX HEAD, FLANGED
      Damper Top Mount
      from £6.33
      from £6.33
      M12X1.75X25 HEX Genuine Aston Martin - New (to order)
      # 9
      MPN: DG33-L278A71-AA
      BRACKET, SUBFRAME AND WHEELARCH LINER
      Structural. Cat A Only
      PANEL, FUEL TANK COMPARTMENT, UPPER Genuine Aston Martin - New (to order)
      # 10
      MPN: 6G33-L279A55-AJ
      PANEL, WHEELHOUSE, LH
      Up To 10MY, Structural. Cat A only
      from £139.01
      from £139.01
      PANEL, WHEELHOUSE, LH Genuine Aston Martin - New (to order)
      # 10
      MPN: BG33-L279A55-AB
      PANEL, WHEELHOUSE, LH
      From 10MY, Structural. Cat A only
      from £161.36
      from £161.36
      PANEL, WHEELHOUSE, LH Genuine Aston Martin - New (to order)
      # 10
      MPN: 6G33-L279A54-AG
      PANEL, WHEELHOUSE, RH
      Structural. Cat A Only
      from £139.01
      from £139.01
      PANEL, WHEELHOUSE, RH Genuine Aston Martin - New (to order)
      # 11
      MPN: 6G33-80997-AA
      NUTPLATE, M12, DAMPER MOUNT
      Structural. Cat A Only
      from £3.88
      from £3.88
      NUTPLATE REAR DMPR MNT Genuine Aston Martin - New (to order)
      # 12
      MPN: 6G33-5N394-AB
      NUTPLATE, BRACKET, REAR SUBFRAME, UPPER
      Structural. Cat A Only
      from £10.07
      from £10.07
      NUTPLATE BRACKET REAR SBF Genuine Aston Martin - New (to order)
      # 13
      MPN: 6G33-5N393-AB
      NUTPLATE, BRACKET, REAR SUBFRAME, LOWER
      Structural. Cat A Only
      from £6.12
      from £6.12
      NUTPLATE BRACKET REAR SBF Genuine Aston Martin - New (to order)
      # 14
      MPN: AG33-C10283-AA
      MEMBER ASSEMBLY, REAR FLOOR SIDE UPPER, LH
      Structural. Cat A Only
      from £70.38
      from £70.38
      MEMBER ASSEMBLY, FLOOR SIDE UPPER, LH Genuine Aston Martin - New (to order)
      # 14
      MPN: AG33-C10282-AA
      MEMBER ASSEMBLY, REAR FLOOR SIDE UPPER, RH
      Structural. Cat A Only
      from £60.82
      from £60.82
      MEMBER ASSEMBLY, FLOOR SIDE UPPER, RH Genuine Aston Martin - New (to order)
      # 15
      MPN: AG33-10457-AA
      MEMBER ASSY, REAR FLOOR SIDE, LH
      Structural. Cat A Only
      MEMBER ASSEMBLY, REAR FLOOR SIDE, LH Genuine Aston Martin - New (to order)
      # 15
      MPN: 6G33-10456-AC
      MEMBER ASSY, REAR FLOOR SIDE, RH
      Up To 10MY, Structural. Cat A only
      from £65.44
      from £65.44
      MEMBER ASSEMBLY, REAR FLOOR SIDE, RH Genuine Aston Martin - New (to order)
      # 15
      MPN: AG33-10456-AA
      MEMBER ASSY, REAR FLOOR SIDE, RH
      From 10MY, Structural. Cat A only
      from £62.79
      from £62.79
      MEMBER ASSEMBLY, REAR FLOOR SIDE, RH Genuine Aston Martin - New (to order)
      # 16
      MPN: 6G33-L41623-AF
      BEAM, SUPPORT
      Structural. Cat A Only
      from £158.91
      from £158.91
      SUPPORT BEAM, TAILGATE Genuine Aston Martin - New (to order)
      # 17
      MPN: 6G33-L416W21-AF
      MOUNTING BRACKET, LH
      Structural. Cat A Only
      from £112.50
      from £112.50
      MOUNTING BRACKET, TAILGATE SUPPORT BEAM, LH Genuine Aston Martin - New (to order)
      # 17
      MPN: 6G33-L416W20-AF
      MOUNTING BRACKET, RH
      Structural. Cat A Only
      from £147.73
      from £147.73
      MOUNTING BRACKET, TAILGATE SUPPORT BEAM, RH Genuine Aston Martin - New (to order)
      # 18
      MPN: 703121
      SCREW, M8X20, HEX HEAD, FLANGED
      from £0.47
      from £0.47
      SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
