aston martin v8 vantage (2009) front structure parts diagram

010201 - front structure

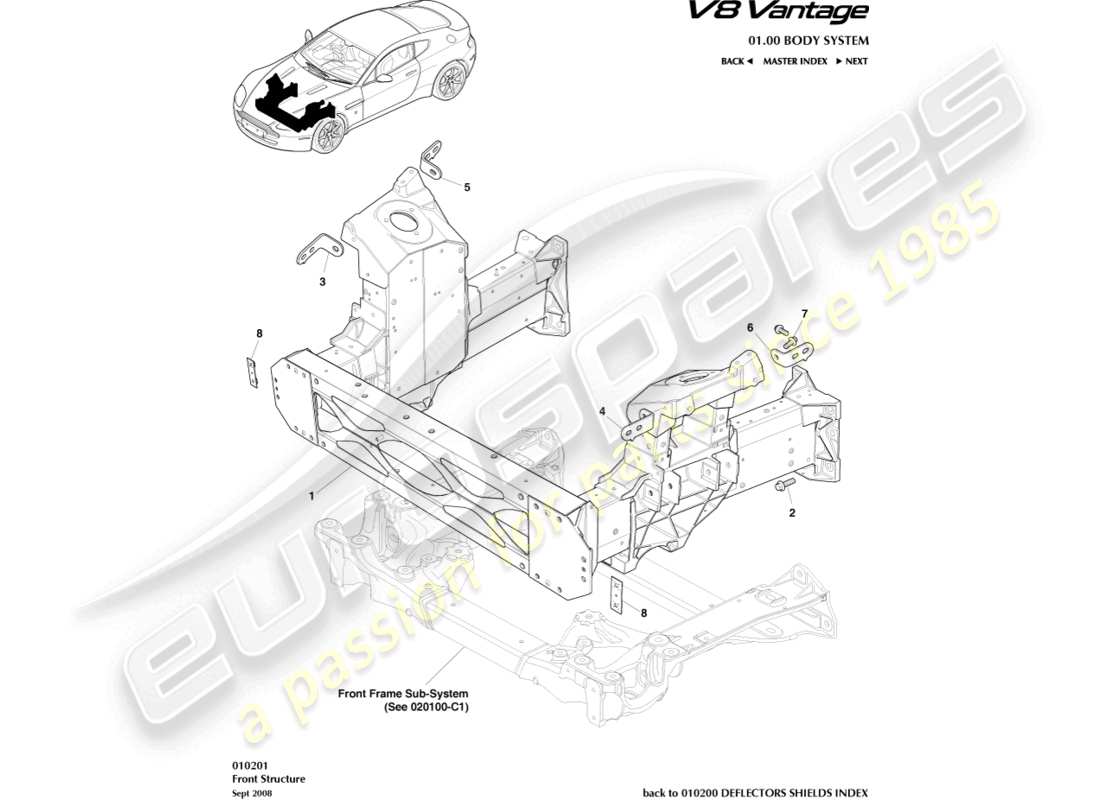

Aston Martin V8 Vantage (2009) Front Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 9G33-CSA01-AA
        SUB ASSEMBLY 01, COUPE
        6.5MY Onwards, Chassis plate required, Structural Cat. A only
        from £5,087.86
        from £5,087.86
        SUB ASSEMBLY, COUPE Genuine Aston Martin - New (to order)
        SUB ASSEMBLY, COUPE Genuine Aston Martin - Used In stock
        # 1
        MPN: 9G33-LSA01-AA
        SUB ASSEMBLY 01, ROADSTER
        6.5MY Onwards, Chassis plate required, Structural Cat. A only
        from £10,175.72
        from £10,175.72
        SUB ASSEMBLY 01, ROADSTER Genuine Aston Martin - New (to order)
        # 2
        MPN: 701241
        SCREW, M12X40, HEX FLG HEAD
        BOLT, M12 Genuine Aston Martin - New (to order)
        # 3
        MPN: 6G33-10594-AA
        BRACKET, FRONT RH
        Front S/M to HSG, RH
        from £11.54
        from £11.54
        BRACKET FRONT SM TO FRONT Genuine Aston Martin - New (to order)
        BRACKET FRONT SM TO FRONT Genuine Aston Martin - Used In stock
        # 4
        MPN: 6G33-10595-AA
        BRACKET, FRONT LH
        Front S/M to HSG, LH
        from £7.71
        from £7.71
        BRACKET FRONT SM TO HSNG Genuine Aston Martin - New (to order)
        BRACKET FRONT SM TO HSNG Genuine Aston Martin - Used In stock
        # 5
        MPN: 6G33-130A32-AB
        BRACKET, REAR RH
        from £8.51
        from £8.51
        BRACKET FRONT S/M RH Genuine Aston Martin - New (to order)
        BRACKET FRONT S/M RH Genuine Aston Martin - Used In stock
        # 5
        MPN: DG43-130A32-AA
        BRACKET, REAR RH
        13MY
        from £48.50
        from £48.50
        BRACKET, REAR RH Genuine Aston Martin - New (to order)
        # 6
        MPN: 6G33-130A33-AB
        BRACKET, REAR LH
        from £8.51
        from £8.51
        BRACKET FRONT S/M LH Genuine Aston Martin - New (to order)
        BRACKET FRONT S/M LH Genuine Aston Martin - Used In stock
        # 6
        MPN: DG43-130A33-AA
        BRACKET, REAR LH
        13MY
        from £48.50
        from £48.50
        BRACKET FRONT S/M LH Genuine Aston Martin - New (to order)
        # 7
        MPN: 702210
        BOLT, M10X30, HEX FLG HEAD
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 8
        MPN: 4G43-71480-AC
        NUTPLATE, FRONT CRASH STRUCTURE
        from £8.64
        from £8.64
        NUTPLTE FRONT CRSH STR Genuine Aston Martin - New (to order)
