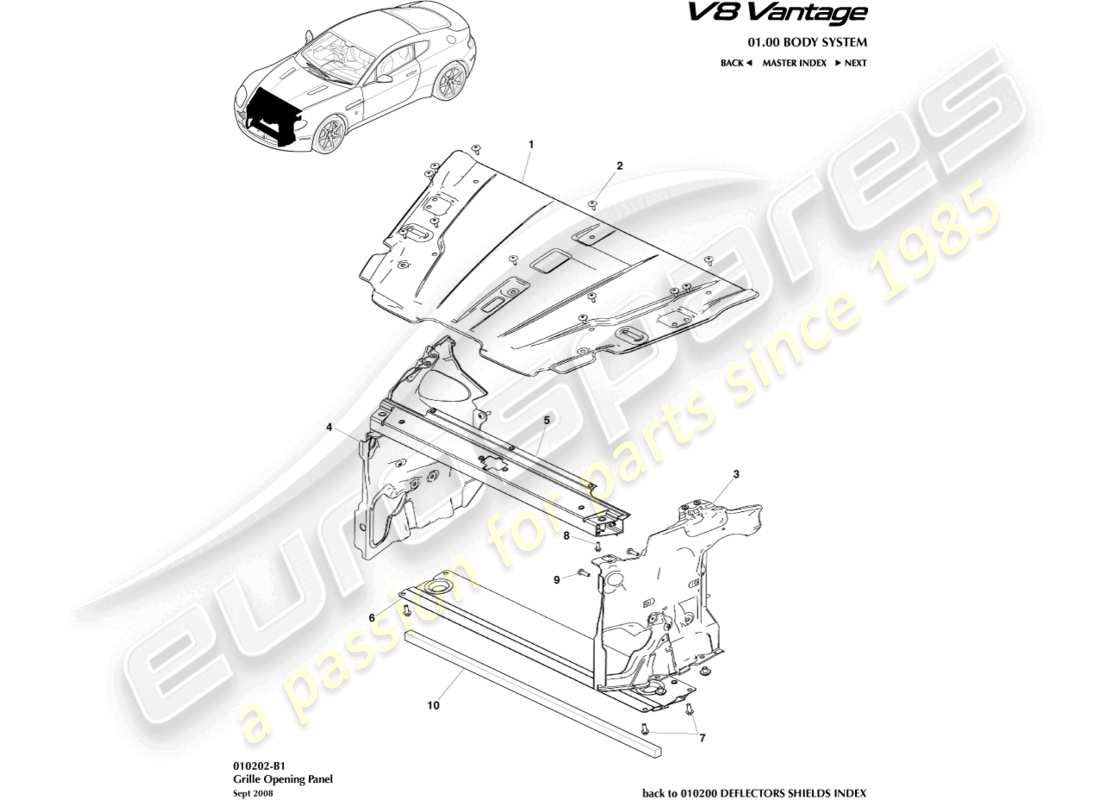

010202-B1 - Grille Opening Panel

Aston Martin V8 Vantage (2009) Grille Opening Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-8136-BA
          PANEL ASSEMBLY, RADIATOR CLOSING
          from £669.71
          from £669.71
          PANEL ASSEMBLY, RADIATOR CLOSING Genuine Aston Martin - New (to order)
          # 2
          MPN: 6G33-FA0115-AB-PK
          SCREW AND WASHER, M6 X 21
          Pack of 20
          from £12.31
          from £12.31
          This part replaces part number 6G33-FA0115-AB
          SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
          # 3
          MPN: 6G33-F01991-AE
          PANEL, AIR VENT, LH
          Up to 09MY
          PANEL, AIR VENT, LH Genuine Aston Martin - New (to order)
          # 3
          MPN: 9G33-F01991-AC
          PANEL, AIR VENT, LH
          FROM 09MY
          from £228.07
          from £228.07
          PANEL, AIR VENT, LH Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-F01990-AE
          PANEL, AIR VENT, RH
          Up to 09MY
          Supersession
          Supersession
          Genuine Aston Martin (no longer available to order)
          # 4
          MPN: 9G33-F01990-AA
          PANEL, AIR VENT, RH
          FROM 09MY
          from £212.45
          from £212.45
          This part replaces part number 6G33-F01990-AE
          PANEL, AIR VENT, RH Genuine Aston Martin - New (to order)
          RH VENT PANEL Genuine Ferrari Part - New (to order)
          # 5
          MPN: 6G33-10853-AF
          CROSSMEMBER, FRONT, LATCH MOUNTING
          up to 09MY, See 2018.IPSB2018_411
          Genuine Aston Martin (no longer available to order)
          CROSSMEMBER, FRONT, LATCH MOUNTING Genuine Aston Martin - Used In stock
          # 5
          MPN: AG33-10853-BA
          CROSSMEMBER, FRONT, LATCH MOUNTING
          FROM 09MY
          from £236.66
          from £236.66
          CROSSMEMBER, FRONT, LATCH MOUNTING Genuine Aston Martin - New (to order)
          # 6
          MPN: AG33-8052-CA
          SUPPORT, RADIATOR LOWER
          from £421.85
          from £421.85
          SUPPORT, RADIATOR LOWER Genuine Aston Martin - New (to order)
          SUPPORT, RADIATOR LOWER Genuine Aston Martin - Used In stock
          # 7
          MPN: 703203
          SCREW, M6X25
          from £0.47
          from £0.47
          SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
          LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
          # 8
          MPN: 703203
          SCREW, M6X25
          from £0.47
          from £0.47
          SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
          LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
          # 9
          MPN: 703172-PK
          SCREW, M8 X 25
          Pack of 10
          from £3.13
          from £3.13
          SCREW-M8X25 PAN (10) Genuine Aston Martin - New (to order)
          VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
          # -
          -
          BOLT, M10X30
          Pack of 10
          This part replaces part number 702210
          # 10
          MPN: BG33-16F558-AA
          FOAM SEAL
          V8S / All From VIN D16311
          from £15.94
          from £15.94
          FOAM SEAL Genuine Aston Martin - New (to order)
          LOWER RADIATOR FOAM Genuine Ferrari Part - New (to order)
