aston martin v8 vantage (2009) front undershield parts diagram

010207-B1 - Front Undershield

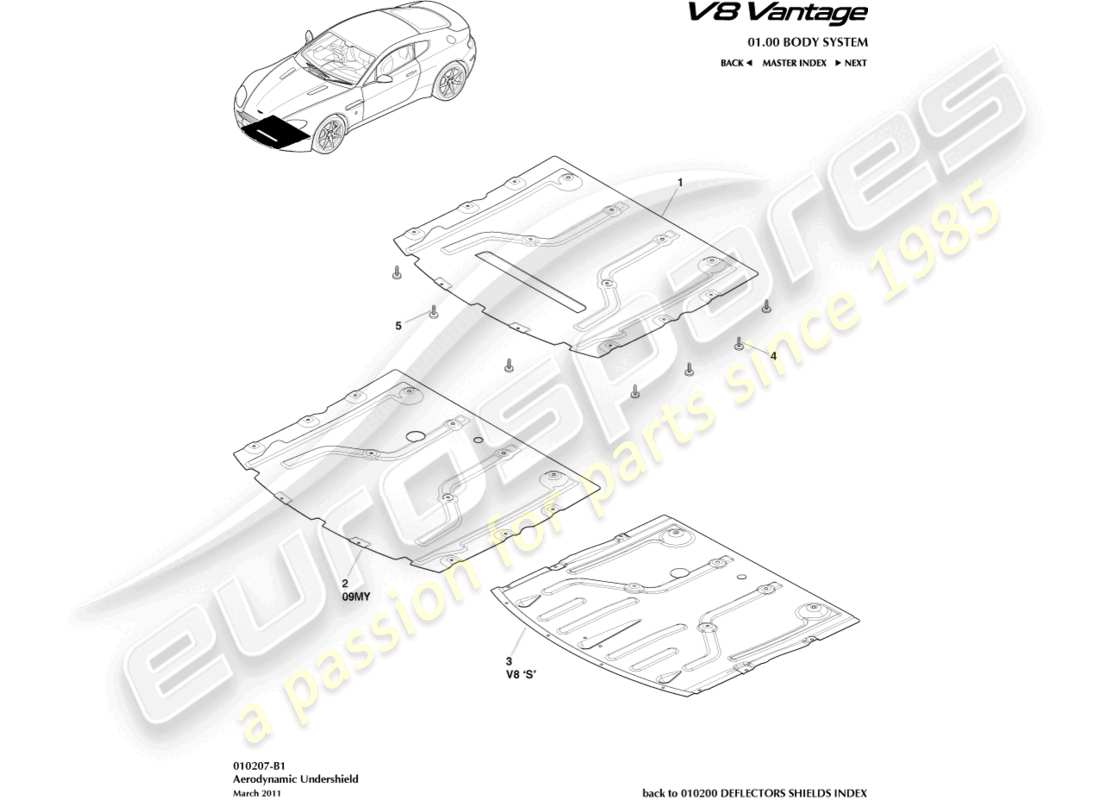

Aston Martin V8 Vantage (2009) Front Undershield Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 6G33-5E209-AH
    UNDERTRAY, FRONT
    08MY
    from £570.19
    from £570.19
    UNDERTRAY, FRONT Genuine Aston Martin - New (to order)
    # 2
    MPN: 9G33-5E209-AA
    UNDERTRAY, FRONT
    09MY
    from £859.82
    from £859.82
    UNDERTRAY, FRONT Genuine Aston Martin - New (to order)
    # 3
    MPN: BG33-5E209-BA
    UNDERTRAY, FRONT
    V8S / All From D16311
    from £570.17
    from £570.17
    UNDERTRAY, FRONT Genuine Aston Martin - New (to order)
    # -
    -
    SCREW M6X14 PAN INT LOBE
    V8S / All From D16311
    # -
    -
    SCREW M8X25 PAN HD 6 LOBE D
    V8S / All From D16311
    # 4
    MPN: 6G33-FA0115-AB-PK
    SCREW / WASHER, M6X21
    06MY. Pack of 20
    from £12.31
    from £12.31
    This part replaces part number 6G33-FA0115-AB
    SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
    # 4
    MPN: 6G33-FA0115-AB-PK
    SCREW / WASHER, M6X21
    6.5MY on. Pack of 20
    from £12.31
    from £12.31
    This part replaces part number 6G33-FA0115-AB
    SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
    # 4
    MPN: 6G33-FA0115-AB-PK
    SCREW / WASHER, M6X21
    V8S / All From D16311. Pack of 20
    from £12.31
    from £12.31
    This part replaces part number 6G33-FA0115-AB
    SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
    # 4
    MPN: 6G33-100134-AB
    SCREW / WASHER, M8X18
    6.5MY on
    SCREW/WASHER, M6 X 18 Genuine Aston Martin - New (to order)
    # 5
    MPN: 702510
    SCREW AND WASHER, 4.8X19
    SCREW AND WASHER, 4.8X19 Genuine Aston Martin - New (to order)
    FRONT UNDERTRAY SCREW Genuine Ferrari Part - New (to order)
    # -
    -
    NUT, SPRING, UUNDERTRAY TO FRONT
