aston martin v8 vantage (2009) header trim, roadster parts diagram

010503-B4 - Header Trim, Roadster

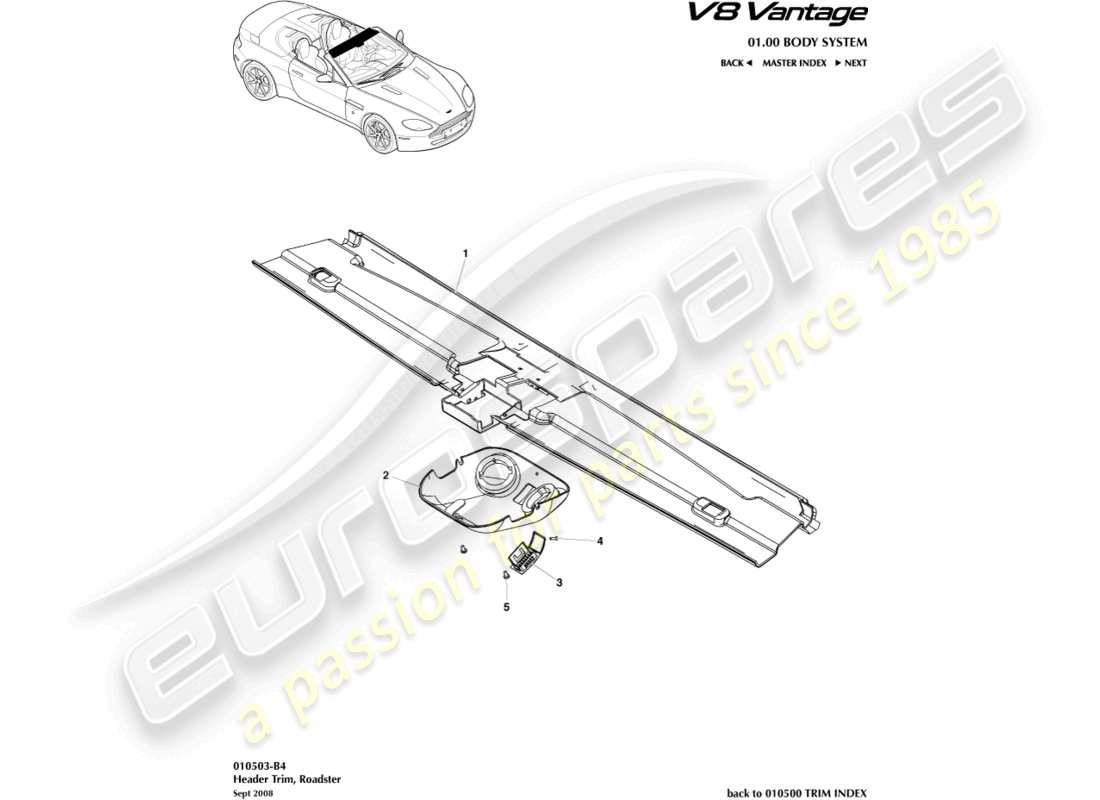

Aston Martin V8 Vantage (2009) Header Trim, Roadster Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 7G33-L03408-BCW
              PANEL ASSY, HEADER, LHD,
              from £546.62
              from £546.62
              PANEL ASSEMBLY, HEADER, LHD, Genuine Aston Martin - New (to order)
              # 1
              MPN: 7G33-L03409-BCW
              PANEL ASSY, HEADER, RHD,
              from £546.62
              from £546.62
              PANEL ASSEMBLY, HEADER, RHD, Genuine Aston Martin - New (to order)
              # 2
              MPN: 7G33-L519A58-ACW
              CONSOLE ASSY, FRONT HEADER
              from £754.77
              from £754.77
              CONSOLE ASSEMBLY, FRONT HEADER Genuine Aston Martin - New (to order)
              # 3
              MPN: 4G43-19G379-AA
              Bezel, microphone retainer
              from £6.37
              from £6.37
              RET BEZ MIKE Genuine Aston Martin - New (to order)
              # 4
              MPN: 6G33-51756-AA
              SCREW, M5X13
              SCREW, M5X13 Genuine Aston Martin - New (to order)
              # 5
              MPN: 703178
              SCREW, M4X8
              from £0.47
              from £0.47
              M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
              # 5
              MPN: 701653
              NUT, 4.2X0.7-2
              from £0.47
              from £0.47
              SPRING NUT 4.2X0.7-2 Genuine Aston Martin - New (to order)
              # -
              -
              FILLER, FRONT HEADER, 3MM FOAM
              # -
              -
              FOAM, ENERGY ABSORBANT, RH
              # -
              -
              FOAM, ENERGY ABSORBANT, LH
