aston martin v8 vantage (2009) body side quarter trim, coupe parts diagram

010507-B1 - Body Side Quarter Trim, Coupe

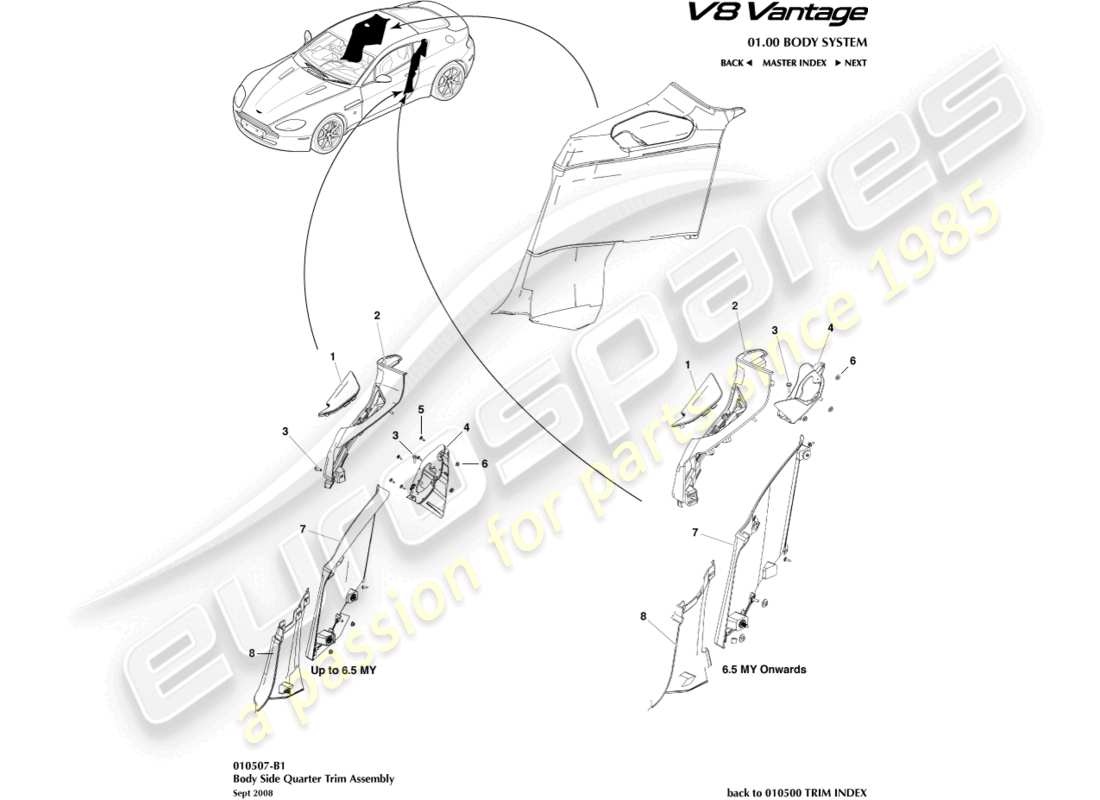

Aston Martin V8 Vantage (2009) Body Side Quarter Trim, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 6G33-310B09-AB
        GRILLE, BODY SIDE SPEAKER, LH
        ANTHRACITE
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 1
        MPN: 6G33-310B09-BA
        GRILLE, BODY SIDE SPEAKER, LH
        Graphite
        GRILLE, BODY SIDE SPEAKER, LH Genuine Aston Martin - New (to order)
        # 1
        MPN: 6G33-310B11-AB
        GRILLE, BODY SIDE SPEAKER, LH
        Platinum
        from £115.69
        from £115.69
        GRILLE, BODY SIDE SPEAKER, LH Genuine Aston Martin - New (to order)
        # 1
        MPN: EG43-310B09-GA
        GRILLE, BODY SIDE SPEAKER, LH
        Iridium 14MY
        from £104.24
        from £104.24
        GRILLE, BODY SIDE SPEAKER, LH Genuine Aston Martin - New (to order)
        # 1
        MPN: EG43-310B09-FA
        GRILLE, BODY SIDE SPEAKER, LH
        Graphite 14MY
        from £77.42
        from £77.42
        GRILLE, BODY SIDE SPEAKER, LH Genuine Aston Martin - New (to order)
        # 1
        MPN: CY83-310B09-BA
        GRILLE, REAR QUARTER SPEAKER, B&O, LH
        Black, 13MY
        from £532.47
        from £532.47
        GRILLE, REAR QUARTER SPEAKER, LH, BLACK Genuine Aston Martin - New (to order)
        # 1
        MPN: 6G33-310B08-AB
        GRILLE, BODY SIDE SPEAKER, RH
        ANTHRACITE
        from £56.45
        from £56.45
        GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: 6G33-310B08-BA
        GRILLE, BODY SIDE SPEAKER, RH
        Graphite
        GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: 6G33-310B10-AB
        GRILLE, BODY SIDE SPEAKER, RH
        Platinum
        from £115.69
        from £115.69
        GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: EG43-310B08-GA
        GRILLE, BODY SIDE SPEAKER, RH
        Iridium 14MY
        from £104.24
        from £104.24
        GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: EG43-310B08-FA
        GRILLE, BODY SIDE SPEAKER, RH
        Graphite 14MY
        from £102.19
        from £102.19
        GRILLE, BODY SIDE SPEAKER, RH Genuine Aston Martin - New (to order)
        # 1
        MPN: CY83-310B08-BA
        GRILLE, REAR QUARTER SPEAKER, B&O, RH
        Black, 13MY
        from £532.47
        from £532.47
        GRILLE, REAR QUARTER SPEAKER, RH, BLACK Genuine Aston Martin - New (to order)
        # 2
        MPN: 6G33-290A23-ACW
        MOULDING ASSY, UPPER TRIM, LH
        from £544.57
        from £544.57
        MOULDING ASSEMBLY, UPPER TRIM, LH Genuine Aston Martin - New (to order)
        # 2
        MPN: 6G33-290A23-ADW
        MOULDING ASSY, UPPER TRIM, LH
        6.5MY onwards
        from £646.65
        from £646.65
        MOULDING ASSEMBLY, UPPER TRIM, LH Genuine Aston Martin - New (to order)
        # 2
        MPN: 6G33-290A22-ACW
        MOULDING ASSY, UPPER TRIM, RH
        from £695.46
        from £695.46
        MOULDING ASSEMBLY, UPPER TRIM, RH Genuine Aston Martin - New (to order)
        # 2
        MPN: 6G33-290A22-ADW
        MOULDING ASSY, UPPER TRIM, RH
        6.5MY onwards
        from £790.30
        from £790.30
        MOULDING ASSEMBLY, UPPER TRIM, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: 700607
        SCREW, M6X20
        from £0.47
        from £0.47
        SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)

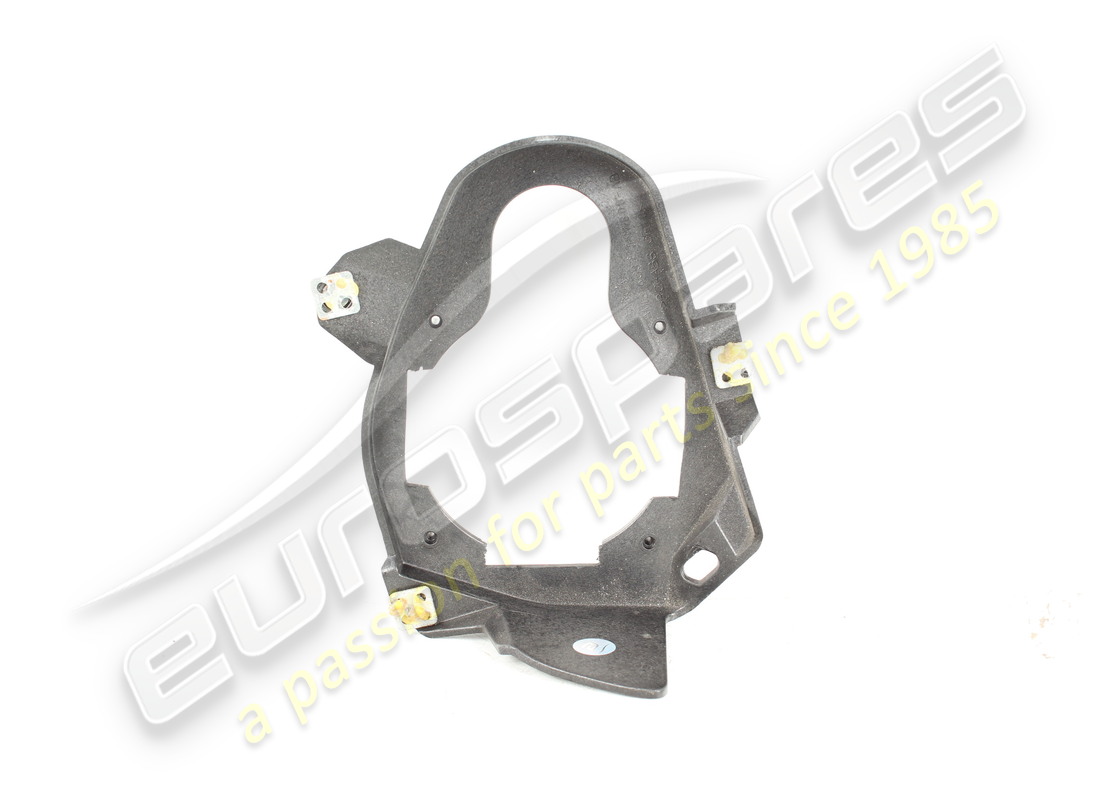

        # 4
        MPN: 6G33-18W809-AB
        SUPPORT, RADIO REAR SPEAKER, LH
        from £8.55
        from £8.55
        Genuine Aston Martin (no longer available to order)
        SUPPORT, RADIO REAR SPEAKER, LH Genuine Aston Martin - Used In stock
        # 4
        MPN: 6G33-18W809-AC
        SUPPORT, RADIO REAR SPEAKER, LH
        6.5MY onwards
        from £11.68
        from £11.68
        This part replaces part number 6G33-18W809-AB which we have in stock
        SUPPORT, RADIO REAR SPEAKER, LH Genuine Aston Martin - New (to order)

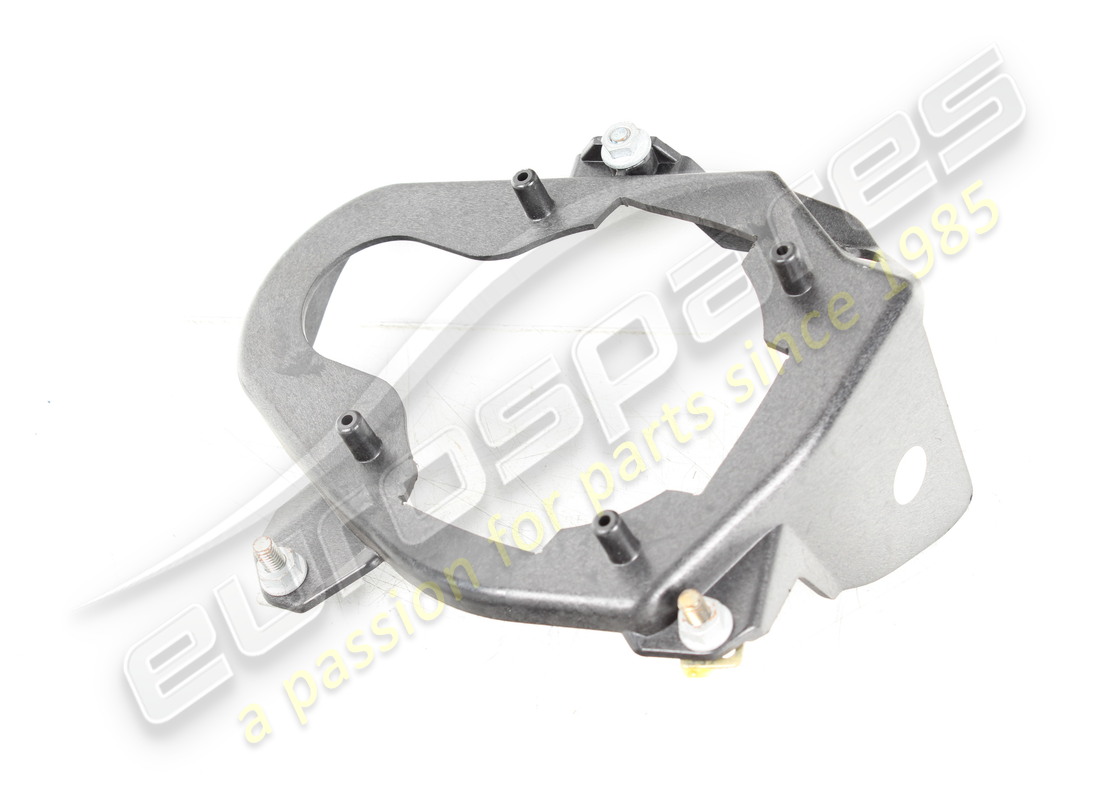

        # 4
        MPN: 6G33-18W808-AB
        SUPPORT, RADIO REAR SPEAKER, RH
        from £8.55
        from £8.55
        Genuine Aston Martin (no longer available to order)
        SUPPORT, RADIO REAR SPEAKER, RH Genuine Aston Martin - Used In stock
        # 4
        MPN: 6G33-18W808-AC
        SUPPORT, RADIO REAR SPEAKER, RH
        6.5MY onwards
        from £11.68
        from £11.68
        This part replaces part number 6G33-18W808-AB which we have in stock
        SUPPORT, RADIO REAR SPEAKER, RH Genuine Aston Martin - New (to order)
        # 5
        MPN: 701157
        SCREW, ST4.2X16
        from £0.47
        from £0.47
        SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
        # 6
        MPN: 701170
        NUT, M6X1, 3 EACH SIDE
        NUT, FLANGE , M6, REGULATOR TO BODY Genuine Aston Martin - New (to order)
        # -
        -
        STARLOCK WASHER, M6
        15.5MY on
        # 7
        MPN: 6G33-312A08-ABW
        PANEL ASSY, QUARTER, LOWER, LHS
        Up to 6.5MY
        from £481.73
        from £481.73
        PANEL ASSEMBLY, QUARTER, LOWER, LHS Genuine Aston Martin - New (to order)
        # 7
        MPN: 6G33-312A08-ACW
        PANEL ASSY, QUARTER, LOWER, LHS
        FROM 6.5MY
        from £481.73
        from £481.73
        PANEL ASSEMBLY, QUARTER, LOWER, LHS Genuine Aston Martin - New (to order)
        # 7
        MPN: 6G33-312A07-ABW
        PANEL ASSY, QUARTER, LOWER, RHS
        Up to 6.5MY
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 7
        MPN: 6G33-312A07-ACW
        PANEL ASSY, QUARTER, LOWER, RHS
        FROM 6.5MY
        from £481.73
        from £481.73
        This part replaces part number 6G33-312A07-ABW
        PANEL ASSEMBLY, QUARTER, LOWER, RHS Genuine Aston Martin - New (to order)
        # 8
        MPN: 6G33-312A55-BGW
        PANEL ASSY, QUARTER, LOWER, LHS
        from £423.91
        from £423.91
        PANEL ASSEMBLY QUARTER TRIM LOWER, LHS Genuine Aston Martin - New (to order)
        # 8
        MPN: 6G33-312A55-ACW
        PANEL ASSY, LOWER, LOOP PILE LHS
        Standard 6.5MY onwards
        PANEL ASSEMBLY, LOWER, LOOP PILE LHS Genuine Aston Martin - New (to order)
        # 8
        MPN: 6G33-312A54-BFW
        PANEL ASSY, QUARTER, LOWER, RHS
        from £298.83
        from £298.83
        PANEL ASSEMBLY QUARTER TR LOWER R Genuine Aston Martin - New (to order)
        # 8
        MPN: 6G33-312A54-ACW
        PANEL ASSY, LOWER, LOOP PILE LHS
        Standard 6.5MY onwards
        PANEL ASSEMBLY, LOWER, LOOP PILE LHS Genuine Aston Martin - New (to order)
