aston martin v8 vantage (2009) rear end trim, coupe parts diagram

010507-B2 - Rear End Trim, Coupe

Aston Martin V8 Vantage (2009) Rear End Trim, Coupe Parts Diagram

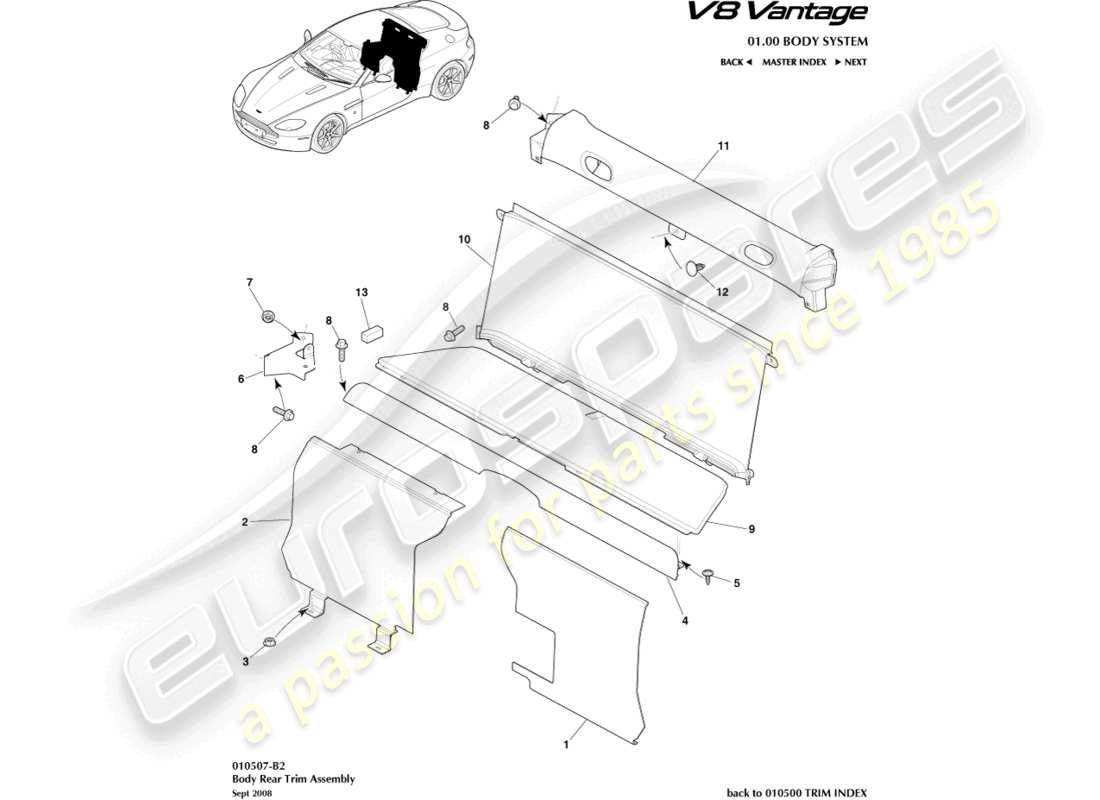

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-275A08-BAW
                  HEEL BOARD ASSY, REAR LH
                  HEEL BOARD ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
                  # 1
                  MPN: JG33-275A08-GA
                  HEEL BOARD ASSY, REAR LH
                  17MY on
                  HEEL BOARD ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-674A06-BAW
                  HEEL BOARD ASSY, REAR RH
                  from £305.32
                  from £305.32
                  HEEL BOARD ASSEMBLY, REAR RH Genuine Aston Martin - New (to order)
                  # 2
                  MPN: JG33-674A06-GA
                  HEEL BOARD ASSY, REAR RH
                  17MY on
                  HEEL BOARD ASSEMBLY, REAR RH Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 6G33-674A08-AB
                  FINISHER, REAR CABIN
                  from £68.99
                  from £68.99
                  FINISHER, REAR CABIN Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 701157
                  SCREW, SELF TAP 4.2X16
                  from £0.47
                  from £0.47
                  SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 6G33-314A96-AC
                  BRACKET ASSY, 1/4 PANEL, REAR
                  from £11.03
                  from £11.03
                  BRACKET, REAR HEEL BOARD Genuine Aston Martin - New (to order)
                  BRACKET, REAR HEEL BOARD Genuine Aston Martin - Used In stock
                  # 8
                  MPN: 703203
                  SCREW, FLG, M6X20
                  from £0.47
                  from £0.47
                  SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                  LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                  # 9
                  MPN: 6G33-11587-ACW
                  DOOR ASSY, STOWAGE COMPARTMENT, STANDARD CARPET
                  from £192.82
                  from £192.82
                  DOOR ASSEMBLY, STOWAGE COMPARTMENT, STANDARD CARPET Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 6G33-11587-BBW
                  DOOR ASSY, STOWAGE COMPARTMENT, PREMIUM CARPET
                  from £385.07
                  from £385.07
                  DOOR ASSEMBLY, STOWAGE COMPARTMENT, PREMIUM CARPET Genuine Aston Martin - New (to order)
                  # 9
                  MPN: JG33-11587-GA
                  DOOR ASSY, STOWAGE COMPARTMENT, PREMIUM CARPET
                  17MY on
                  DOOR ASSEMBLY, STOWAGE COMPARTMENT, PREMIUM CARPET Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 6G33-60028-ABW
                  COVER ASSY, REAR BULKHEAD
                  from £578.55
                  from £578.55
                  COVER ASSEMBLY, REAR BULKHEAD CENTRE Genuine Aston Martin - New (to order)
                  # 10
                  MPN: GD2Y-60028-AAW
                  COVER ASSY, REAR BULKHEAD
                  GT8, Alcantara
                  COVER ASSEMBLY, REAR BULKHEAD Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 6G33-674A09-ACW
                  FINISHER ASSY, REAR CABIN UPPER
                  Up to 08MY
                  from £846.97
                  from £846.97
                  FINISHER ASSEMBLY, REAR CABIN UPPER Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 8G33-674A09-AAW
                  FINISHER ASSY, REAR CABIN UPPER
                  FROM 08MY
                  from £684.86
                  from £684.86
                  FINISHER ASSEMBLY, REAR CABIN UPPER Genuine Aston Martin - New (to order)
                  # 11
                  MPN: GD2Y-674A09-AAW
                  FINISHER ASSY, REAR CABIN UPPER
                  GT8
                  FINISHER ASSEMBLY, REAR CABIN UPPER Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 4G43-MXC1800-AA
                  FASTENER, FIR TREE
                  from £0.54
                  from £0.54
                  This part replaces part number 4G43-MXC1800-AA-PK
                  FASTENER, FIRTREE Genuine Aston Martin - New In stock
                  # 13
                  MPN: 4G43-46660-AA
                  FOAM BLOCK, PARCEL SHELF
                  from £13.15
                  from £13.15
                  FOAM BLOCK, PARCEL SHELF Genuine Aston Martin - New (to order)
