aston martin v8 vantage (2009) rear environment trim, roadster parts diagram

010507-B5 - Rear Environment Trim, Roadster

Aston Martin V8 Vantage (2009) Rear Environment Trim, Roadster Parts Diagram

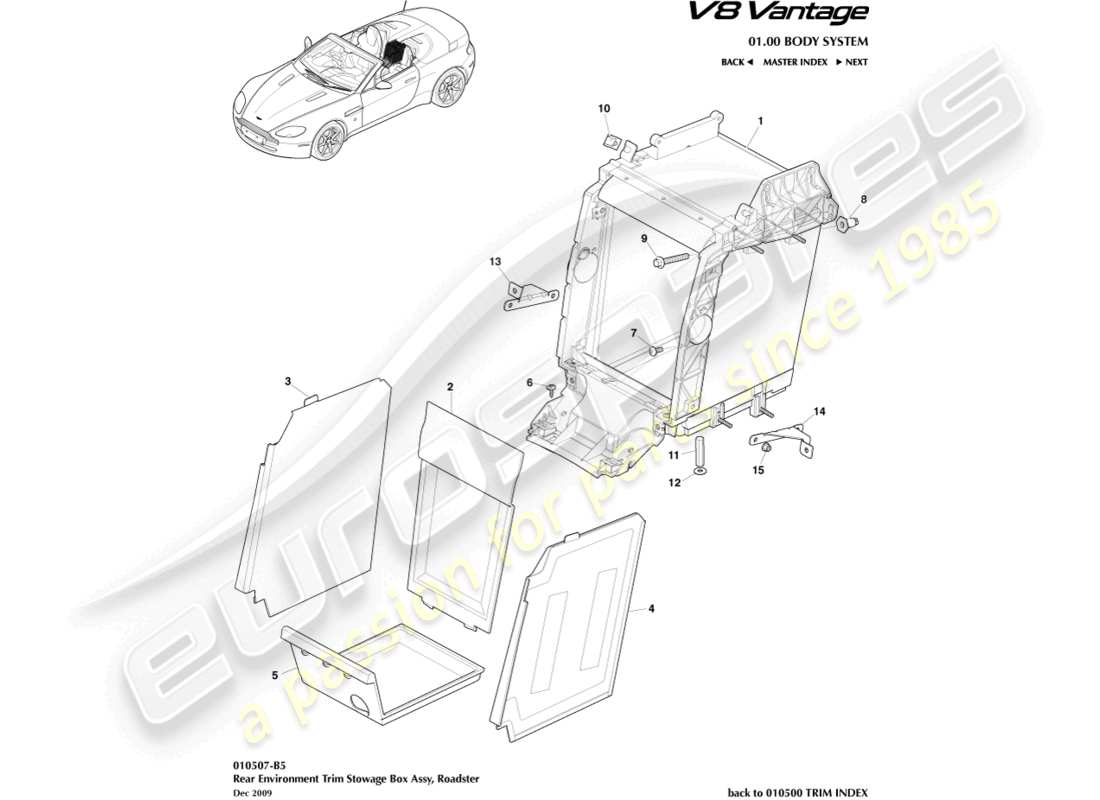

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 6G33-L116A95-AH
                                BOX ASSEMBLY, STOWAGE
                                from £361.56
                                from £361.56
                                BOX ASSEMBLY, STOWAGE Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 6G33-L135A52-ACW
                                LINING ASSEMBLY, STOWAGE COMPARTMENT, REAR
                                from £22.83
                                from £22.83
                                LINING ASSEMBLY, STOWAGE COMPARTMENT, REAR Genuine Aston Martin - New (to order)
                                # 3
                                MPN: 6G33-L11600-ACW
                                LINING ASSEMBLY, STOWAGE COMPARTMENT, RHS
                                LNG ASSEMBLY STWG CMPT RH Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 6G33-L11601-ACW
                                LINING ASSEMBLY, STOWAGE COMPARTMENT, LHS
                                LNG ASSEMBLY STWG CMPT LH Genuine Aston Martin - New (to order)
                                # 5
                                MPN: 6G33-L19C004-AC
                                MAT, STOWAGE BOX
                                from £11.88
                                from £11.88
                                MAT, STOWAGE BOX Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 701157-PK
                                SCREW, 4.2 X 16
                                from £1.62
                                from £1.62
                                SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 703149
                                SCREW, M6 X 16
                                from £0.47
                                from £0.47
                                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                # 8
                                MPN: 6G33-E826A80-DA
                                NUT, M8 FLEXITOL ADJUSTER
                                from £2.55
                                from £2.55
                                M8 FLEXITOL TOL ADJ Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 703193
                                BOLT, M8 X 55
                                from £0.47
                                from £0.47
                                BOLT M8X55 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 702945
                                NUT, U TYPE
                                from £1.07
                                from £1.07
                                M6 J NUT Genuine Aston Martin - New (to order)
                                # 11
                                MPN: 6G33-2B518-AA
                                STUD, STOWAGE BOX LOCATION
                                from £2.55
                                from £2.55
                                STUD, STOWAGE BOX LOCATION Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 697142
                                WASHER
                                from £0.47
                                from £0.47
                                WASHER Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 6G33-L044B52-AC
                                BRACKET, REAR END TRIM LOWER INNER, RH
                                from £24.50
                                from £24.50
                                BRACKET, REAR END TRIM LOWER INNER, RH Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 6G33-L044B53-AC
                                BRACKET, REAR END TRIM LOWER INNER, LH
                                from £24.50
                                from £24.50
                                BRACKET, REAR END TRIM LOWER INNER, LH Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 703165
                                NUT, M5
                                from £0.47
                                from £0.47
                                NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
