010508-B3 - Load Compartment Trim, Roadster

Aston Martin V8 Vantage (2009) Load Compartment Trim, Roadster Parts Diagram

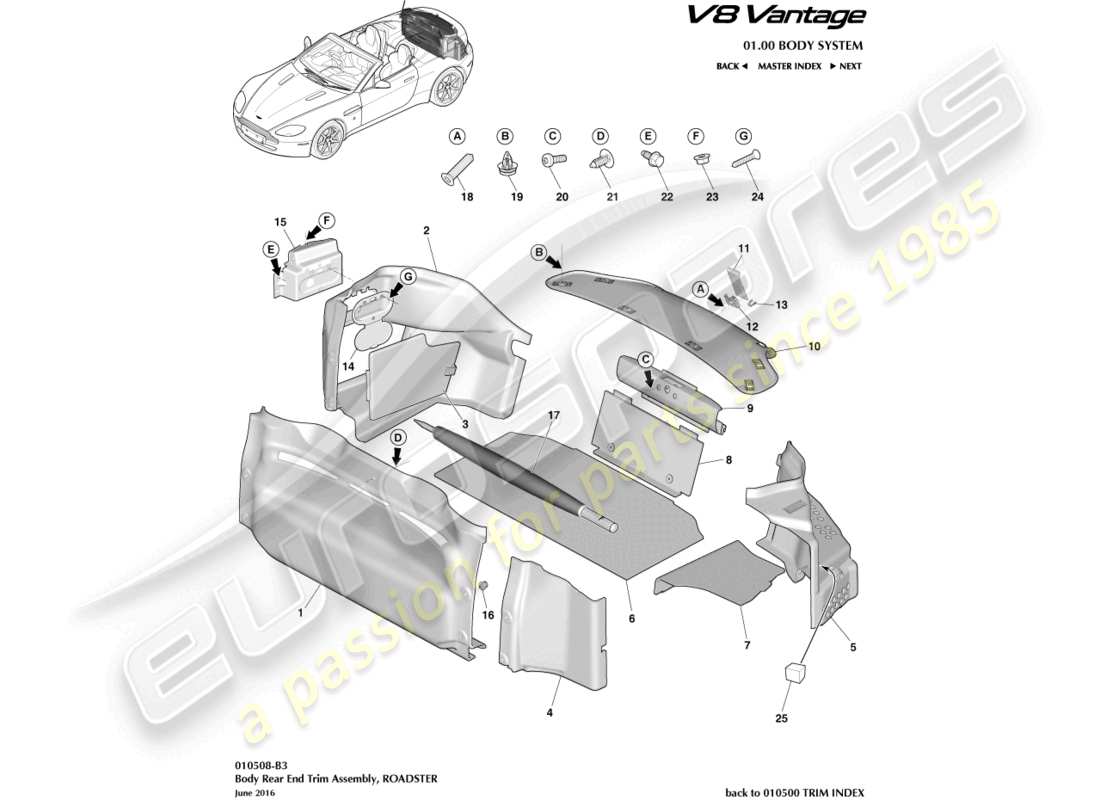

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 1
                                        MPN: 6G33-L130A60-AEW
                                        CARPET ASSEMBLY, LOAD COMPARTMENT, UMBRELLA
                                        Non B+O
                                        from £904.37
                                        from £904.37
                                        # 1
                                        MPN: AG33-L130A60-AC
                                        CARPET ASSEMBLY, LOAD COMPARTMENT, UMBRELLA
                                        B+O
                                        # 1
                                        MPN: 6G33-L45456-BCW
                                        CARPET ASSEMBLY, LOAD COMPARTMENT, NON UMBRELLA
                                        Non B+O
                                        from £111.20
                                        from £111.20
                                        # 1
                                        MPN: AG33-L45456-BC
                                        CARPET ASSEMBLY, LOAD COMPARTMENT, NON UMBRELLA
                                        B+O
                                        # 2
                                        MPN: 6G33-L45422-AEW
                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH
                                        Non B+O
                                        from £904.37
                                        from £904.37
                                        # 2
                                        MPN: AG33-L45422-AB
                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH
                                        B+O
                                        from £74.10
                                        from £74.10
                                        # 3
                                        MPN: 6G33-L454A22-AEW
                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH
                                        # 4
                                        MPN: 6G33-L454K65-ADW
                                        CARPET, LUGGAGE COMPARTMENT, FRONT SIDE, LH
                                        from £317.11
                                        from £317.11
                                        # 5
                                        MPN: 6G33-L45423-ADW
                                        CARPET, LUGGAGE COMPARTMENT, LH
                                        # 6
                                        MPN: 6G33-L454A14-AFW
                                        CARPET, LUGGAGE COMPARTMENT, FLOOR
                                        Non B+O
                                        from £407.24
                                        from £407.24
                                        # 6
                                        MPN: AG33-L454A14-AC
                                        CARPET, LUGGAGE COMPARTMENT, FLOOR
                                        B+O
                                        from £49.40
                                        from £49.40
                                        # 7
                                        MPN: 6G33-L454A23-ACW
                                        CARPET, LUGGAGE COMPARTMENT, FLOOR SIDE, LH
                                        Up to 13MY
                                        # 7
                                        MPN: 6G33-L454A23-ADW
                                        CARPET, LUGGAGE COMPARTMENT, FLOOR SIDE, LH
                                        # 8
                                        MPN: 6G33-L407A76-AFW
                                        CARPET ASSEMBLY CENTRE, REAR, NON WARNING TRIANGLE
                                        from £317.11
                                        from £317.11
                                        # 8
                                        MPN: 6G33-L407A76-BFW
                                        CARPET ASSEMBLY, CENTRE, REAR, WARNING TRIANGLE
                                        from £642.39
                                        from £642.39
                                        # 9
                                        MPN: 6G33-L42626-AB
                                        FINISHER, TAILGATE, REAR SCUFF
                                        from £179.27
                                        from £179.27
                                        # 10
                                        MPN: 6G33-L45594-AEW
                                        PANEL ASSEMBLY, DECK LID
                                        from £112.57
                                        from £112.57
                                        # 11
                                        MPN: 6G33-434A30-AB
                                        STRAP ASSEMBLY, LUGGAGE COMPARTMENT DOOR PULL
                                        from £93.01
                                        from £93.01
                                        # 12
                                        MPN: 6G33-40168-AC
                                        BRACKET, PULL DOWN STRAP RETENTION
                                        from £22.23
                                        from £22.23
                                        # 13
                                        MPN: 4G43-N623361-AA
                                        CLIP, U TYPE
                                        from £0.70
                                        from £0.70
                                        # 14
                                        MPN: 4G43-13A752-AC
                                        LID, LOAD COMPARTMENT, SWITCH PLATE
                                        from £5.23
                                        from £5.23
                                        # 15
                                        MPN: 6G33-L43661-AB
                                        PANEL ASSEMBLY, SWITCH PLATE
                                        from £59.77
                                        from £59.77
                                        # 16
                                        MPN: 6G33-438A26-AB
                                        TIE DOWN, LUGGAGE
                                        from £20.68
                                        from £20.68
                                        # 17
                                        MPN: 7G43-700712-BB
                                        UMBRELLA, AML BLACK STANDARD
                                        Supersession
                                        Supersession
                                        # 18
                                        MPN: 6G33-AA0231-AA
                                        SCREW, M8X34, CSK HEAD
                                        from £3.48
                                        from £3.48
                                        # 19
                                        MPN: 702587
                                        PIN, PLASTIC TRIM
                                        from £0.47
                                        from £0.47
                                        # 20
                                        MPN: 704701
                                        SCREW, M6X20
                                        from £2.21
                                        from £2.21
                                        # 21
                                        MPN: 4G43-MXC1800-AA-PK
                                        FIR TREE FASTENER
                                        Pack of 20
                                        Supersession
                                        Supersession
                                        This part replaces part number 4G43-MXC1800-AA which we have in stock
                                        # 22
                                        MPN: 702220
                                        SCREW, M6X12
                                        from £0.47
                                        from £0.47
                                        # 23
                                        MPN: 702944
                                        NUT, M6
                                        from £0.58
                                        from £0.58
                                        # 24
                                        MPN: 697524
                                        SCREW, NO8X25
                                        from £0.47
                                        from £0.47
                                        # 25
                                        MPN: AD33-205A04-CA
                                        TRIM INFILL, SPACER, FOAM BLOCK
                                        16MY on
                                        from £2.60
