aston martin v8 vantage (2009) soft sealing, coupe parts diagram

010703-B1 - Soft Sealing, Coupe

Aston Martin V8 Vantage (2009) Soft Sealing, Coupe Parts Diagram

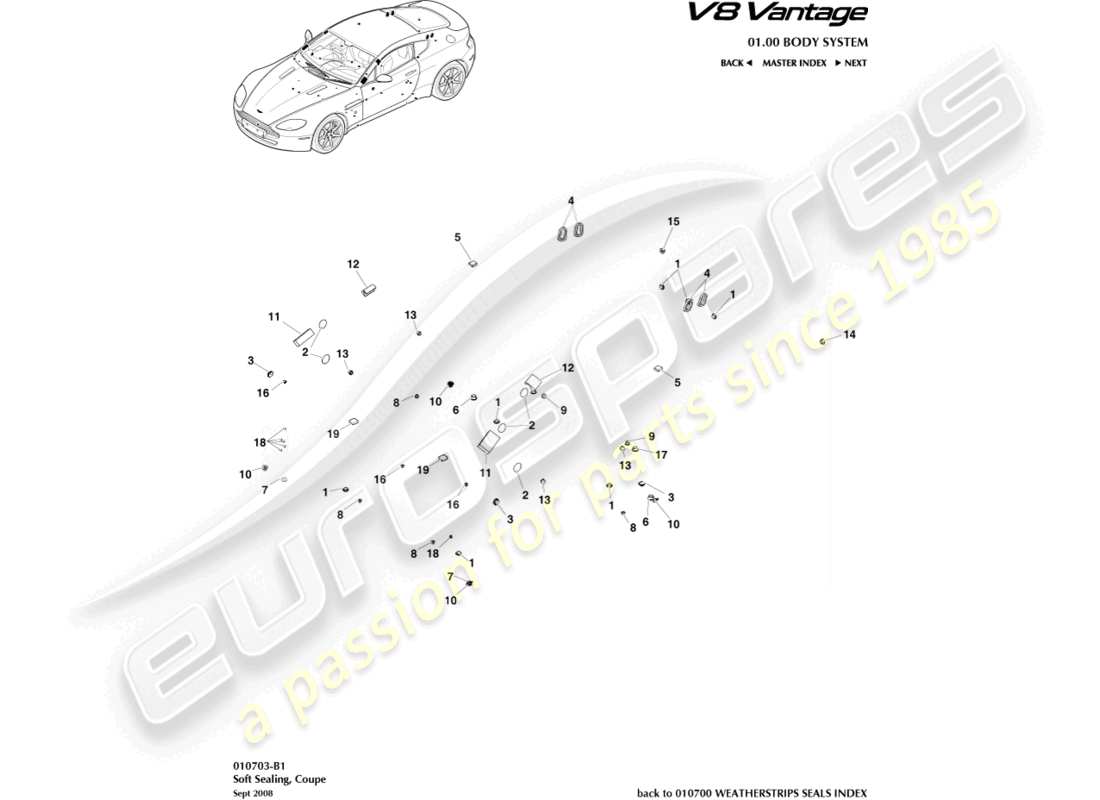

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 4G43-301347-AA
                                    GROMMET, TONNEAU LATCH BOX
                                    from £0.82
                                    from £0.82
                                    20MM BODY PLUG Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 4G43-L20220-AA
                                    SEAL PATCH, 50MM DIA
                                    from £0.47
                                    from £0.47
                                    SL PCH LG DOOR INNER Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 4G43-2273-AA
                                    GROMMET P/BRK
                                    from £1.27
                                    from £1.27
                                    25MM BODY PLUG Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 6G33-9184-AA
                                    GASKET, HINGE MOUNTING
                                    from £1.76
                                    from £1.76
                                    GASKET, HINGE MOUNTING Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: 6G33-58864-AA
                                    PAD, SEALING 30X30
                                    Up to 15MY
                                    from £0.51
                                    from £0.51
                                    PAD, SEALING 30X30 Genuine Aston Martin - New (to order)
                                    # 5
                                    MPN: FG43-M4D4515-AA
                                    PAD, SEALING 30X30
                                    FROM 15.5MY
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 4G43-M4D4515-BA
                                    PAD, SEALING 30X30 Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 6G33-N804814-AA
                                    BUNG, 24MM
                                    from £1.57
                                    from £1.57
                                    24MM BUNG Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 6G33-N806457-AA
                                    BUNG, 20MM
                                    from £1.35
                                    from £1.35
                                    20MM BUNG Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 6G33-25919-AA
                                    BUNG, 12MM
                                    from £0.61
                                    from £0.61
                                    12MM BUNG Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 6G33-46447-AA
                                    BUNG, 16MM
                                    from £0.47
                                    from £0.47
                                    BUNG, 16MM Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 702804
                                    PLUG
                                    from £1.59
                                    from £1.59
                                    DRAIN PLUG RUBR-20MM Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 4G43-F280C09-AA
                                    SEALING BLOCK, PILLAR
                                    from £13.38
                                    from £13.38
                                    A PILLAR SEALING BLK Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 4G43-026A30-AB
                                    BAF FRONT BODY PILLAR
                                    from £5.20
                                    from £5.20
                                    BAF FRONT BODY PLR Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 6G33-N805935-AA
                                    PLUG AND GRIP, M20
                                    from £0.47
                                    from £0.47
                                    PLUG AND GRIP, M20 Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 4G43-N808070-AA
                                    BUNG, 19MM
                                    from £1.11
                                    from £1.11
                                    PLUG-RUBBER-19MM BLK Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 4G43-N804138-AA
                                    BUNG, 18MM
                                    from £0.47
                                    from £0.47
                                    18MM BUNG Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 4G43-N800631-AA
                                    BUNG, 11MM
                                    from £0.83
                                    from £0.83
                                    BUNG-11 MM Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 6G33-N804263-AA
                                    BUNG, 22MM
                                    from £1.20
                                    from £1.20
                                    22MM BUNG Genuine Aston Martin - New (to order)
                                    # 18
                                    MPN: 4G43-N811191-AA
                                    BUNG 7MM
                                    LHD
                                    from £0.47
                                    from £0.47
                                    PLUG-BLACK-7MM Genuine Aston Martin - New (to order)
                                    # 18
                                    MPN: 4G43-N811191-AA
                                    BUNG 7MM
                                    RHD
                                    from £0.47
                                    from £0.47
                                    PLUG-BLACK-7MM Genuine Aston Martin - New (to order)
                                    # 19
                                    MPN: 6G43-F78410-AA
                                    SEALING PAD 35 X 35
                                    from £0.96
                                    from £0.96
                                    SLNG PAD-AL BUTYL Genuine Aston Martin - New (to order)
