aston martin v8 vantage (2009) stone chip guards parts diagram

010805-B5 - Stone Chip Guards

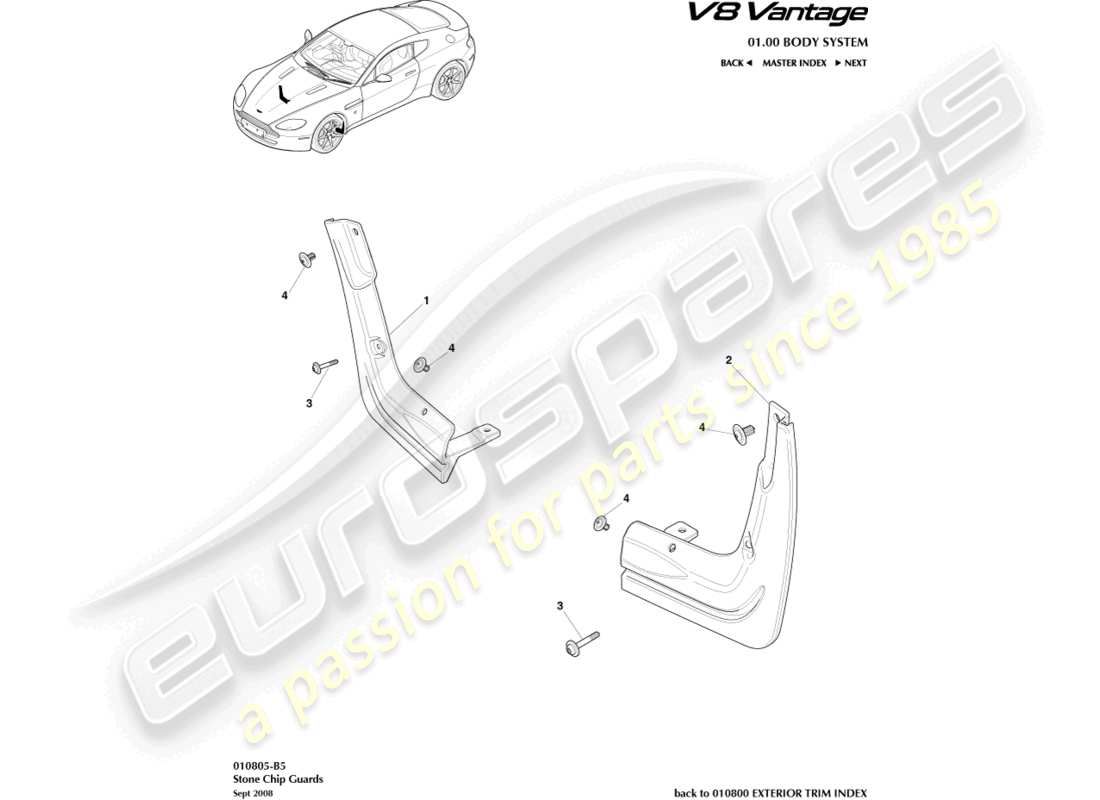

Aston Martin V8 Vantage (2009) Stone Chip Guards Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 7G33-16L588-AA
          GUARD, STONE CHIP, RH
          from £61.62
          from £61.62
          GUARD, STONE CHIP, RH Genuine Aston Martin - New (to order)
          GUARD, STONE CHIP, RH Genuine Aston Martin - Used In stock
          # 2
          MPN: 7G33-16L589-AA
          GUARD, STONE CHIP, LH
          from £61.62
          from £61.62
          GUARD, STONE CHIP, LH Genuine Aston Martin - New (to order)
          GUARD, STONE CHIP, LH Genuine Aston Martin - Used In stock
          # 3
          MPN: 702920
          SCREW AND WASHER, SELF TAP 4.8X32
          from £21.33
          from £21.33
          SCREW AND WASHER, SELF TAP 4.8X32 Genuine Aston Martin - New (to order)
          # 4
          MPN: 1R12-642790-AA
          SCRIVET, 8MM PANEL 3-10MM
          from £0.47
          from £0.47
          SCRIVET Genuine Aston Martin - New (to order)
