011201-50 - Centre Stack, Manual, 16MY

Aston Martin V8 Vantage (2009) Centre Stack, Manual, 16MY Parts Diagram

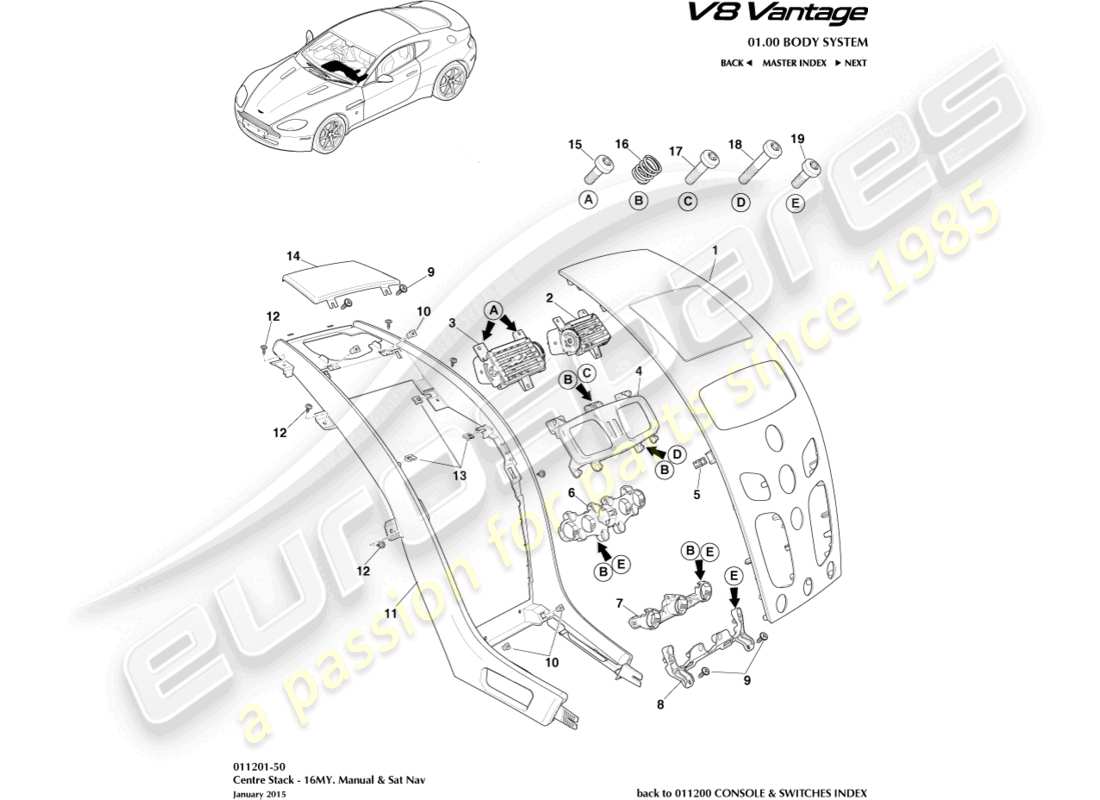

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: GG33-045J10-GB
                            CENTRE STACK, VENEERED
                            Piano Black, Manual
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: GG33-045J10-HB
                            CENTRE STACK, VENEERED
                            Carbon 2x2 Twill, Manual
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: GG33-045J10-JB
                            CENTRE STACK, VENEERED
                            Carbon Cuprum, Manual
                            from £4,041.18
                            from £4,041.18
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: GG33-045J10-KB
                            CENTRE STACK, VENEERED
                            Graphite, Manual
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: GG33-045J10-LB
                            CENTRE STACK, VENEERED
                            Ice Mocha, Manual
                            from £3,029.93
                            from £3,029.93
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: GG33-045J10-MB
                            CENTRE STACK, VENEERED
                            Iridium, Manual
                            from £4,488.28
                            from £4,488.28
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 1
                            MPN: HG3Y-045J10-AB
                            CENTRE STACK, VENEERED
                            Carbon, Herringbone, GT8
                            from £6,312.45
                            from £6,312.45
                            CENTRE STACK, VENEERED Genuine Aston Martin - New (to order)
                            # 2
                            MPN: CD33-046B30-AB
                            REGISTER, AIR VENT, RH
                            from £47.49
                            from £47.49
                            RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                            # 3
                            MPN: CD33-046B31-AB
                            REGISTER, AIR VENT, LH
                            from £66.10
                            from £66.10
                            RGSTR ASSEMBLY IPNL A/C Genuine Aston Martin - New (to order)
                            # 4
                            MPN: GG33-19F648-AB
                            BEZEL, AIR REGISTER
                            Graphite
                            from £331.39
                            from £331.39
                            BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                            # 4
                            MPN: GG33-19F648-BB
                            BEZEL, AIR REGISTER
                            Iridium
                            from £331.39
                            from £331.39
                            BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                            # 4
                            MPN: GG33-19F648-CB
                            BEZEL, AIR REGISTER
                            Piano black
                            from £220.34
                            from £220.34
                            BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                            # 4
                            MPN: GG33-19F648-DB
                            BEZEL, AIR REGISTER
                            Ice Mocha
                            from £331.39
                            from £331.39
                            BEZEL, AIR REGISTER Genuine Aston Martin - New (to order)
                            # 5
                            MPN: 702520-PK
                            CLIP, 8.5X16X1.7, TRIM PUSH-IN
                            Pack of 20
                            from £2.42
                            from £2.42
                            CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
                            FRONT BUMPER CLIP (SMALL) Genuine Ferrari Part - New (to order)
                            # 6
                            MPN: GG33-14A462-AA
                            CARRIER, SWITCHES, UPPER
                            CARRIER, SWITCHES, UPPER Genuine Aston Martin - New (to order)
                            # 7
                            MPN: GG33-14A462-BA
                            CARRIER, SWITCHES, LOWER
                            from £21.40
                            from £21.40
                            CARRIER, SWITCHES, LOWER Genuine Aston Martin - New (to order)
                            # 8
                            MPN: GG33-044N19-BA
                            BRACE, CENTRE STACK
                            BRACE, CENTRE STACK Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 703646
                            SCREW, SELF-TAPPING, 4.8X19
                            from £16.10
                            from £16.10
                            SCREW, SELF-TAPPING, 4.8X19 Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 704764
                            NUT, PUSH FIT, 4.2
                            from £0.68
                            from £0.68
                            NUT M4.2X1.41 PANEL PS Genuine Aston Martin - New (to order)
                            # 11
                            MPN: GG33-55210-AAW
                            PANEL ASSEMBLY, CENTRE
                            from £658.95
                            from £658.95
                            PANEL ASSEMBLY, CENTRE Genuine Aston Martin - New (to order)
                            # 11
                            MPN: JG33-55210-AAW
                            PANEL ASSEMBLY, CENTRE
                            18MY onwards
                            PANEL ASSEMBLY, CENTRE Genuine Aston Martin - New (to order)
                            # 11
                            MPN: GG33-55210-ABW
                            PANEL ASSEMBLY, CENTRE
                            GT8
                            from £658.95
                            from £658.95
                            PANEL ASSEMBLY, CENTRE Genuine Aston Martin - New (to order)
                            # 11
                            MPN: HG3Y-55210-AAW
                            PANEL ASSEMBLY, CENTRE
                            GT8 with Manual Seat
                            PANEL ASSEMBLY, CENTRE Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 701157-PK
                            SCREW AND WASHER, 4.2X16
                            Pack of 10
                            from £1.62
                            from £1.62
                            SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 701448
                            J NUT, 4.2
                            from £0.47
                            from £0.47
                            NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                            SPLITTER NUTS Genuine Ferrari Part - New (to order)
                            # 14
                            MPN: EG43-C046A26-BA
                            GRILLE, SPEAKER
                            Less Bang and Olufsen
                            from £75.12
                            from £75.12
                            GRILLE, SPEAKER Genuine Aston Martin - New (to order)
                            # 14
                            MPN: 9D33-C046A26-AC
                            GRILLE, SPEAKER
                            With Bang and Olufsen
                            from £304.26
                            from £304.26
                            I/PNL CTR SPEAKER GRILL Genuine Aston Martin - New (to order)
                            # 15
                            MPN: 702959
                            SCREW, M4X12, PAN HEAD
                            from £0.47
                            from £0.47
                            SCREW M4X12 PAN HEAD Genuine Aston Martin - New (to order)
                            # 16
                            MPN: DD33-11A090-AB
                            COMPRESSION SPRING, CENTRE STACK SWITCHES
                            from £0.48
                            from £0.48
                            CTR STACK COMP SPRIN Genuine Aston Martin - New (to order)
                            # 17
                            MPN: DD33-0838-AA
                            SCREW, M4X16, PAN HEAD, PATCH LOCK
                            from £0.47
                            from £0.47
                            SCREW-M4X16 PATCH LK Genuine Aston Martin - New (to order)
                            # 18
                            MPN: DD33-0816-AA
                            SCREW, M4X20, PAN HEAD, PATCH LOCK
                            from £0.77
                            from £0.77
                            SCREW, M4X20, PAN HEAD, PATCH LOCK Genuine Aston Martin - New (to order)
                            # 19
                            MPN: DD33-0863-AA
                            SCREW, M4X12, PAN HEAD, PATCH LOCK
                            from £0.47
                            from £0.47
                            SCREW-M4X12 PATCH LK Genuine Aston Martin - New (to order)
